Comparison of machine learning for predicting and mapping soil organic carbon in cultivated land in a subtropical complex geomorphic region
REN Biwu1, 2,,CHEN Hanyue1,,,
ZHANG Liming1,
NIE Xiangqin1,
XING Shihe1,
FAN Xieyu1
1. College of Resources and Environment, Fujian Agriculture and Forestry University/Key Laboratory of Soil Ecosystem Health and Regulation of Fujian Province, Fuzhou 350002, China
2. School of Public Management, Fujian Agriculture and Forestry University, Fuzhou 350002, China
Funds: the National Natural Science Foundation of China41971050
the Science and Technology Planning Project of Fujian Province2017N5006
the Agricultural Technology Extension Project of the Ministry of Agriculture and Rural Affairs of the People's Republic of ChinaKLD19H01A
the Central Committee Guides Local Science and Technology Development Projects of China2018L3013
the Special Fund for Science and Technology Innovation of Fujian Agriculture and Forestry UniversityKFA18106A
More Information
Corresponding author:CHEN Hanyue, E-mail: Chenhanyue.420@163.com
摘要
HTML全文
图
参考文献
相关文章
施引文献
资源附件
访问统计
摘要
摘要:耕地土壤有机碳（SOC）是土壤质量的重要指标，也是生态系统健康的重要表征。当前机器学习（Machine Learning，ML）用于SOC数字制图日益热门，但不同算法在高空间分辨率SOC数字制图中的对比研究尚有欠缺。本研究以福建省东北部复杂地形地貌区为例，采用10 m空间分辨率Sentinel-2影像数据，选取地形、气候、遥感植被变量为驱动因子，重点分析当前常用的机器学习算法——支持向量机（Support Vector Machine，SVM）、随机森林（Random Forest，RF）在SOC预测中的差异，并与传统普通克里格模型（Ordinary Kriging，OK）进行比较。结果表明：基于地形、遥感植被因子和气候因子构建的RF模型表现最佳（RMSE=2.004，r=0.897），其精度优于OK模型（RMSE=4.571，r=0.623），而SVM模型预测精度相对最低（RMSE=5.190，r=0.431）；3种模型预测SOC空间分布趋势总体相似，表现为西高东低、北高南低，其中RF模型呈现的空间分异信息更加精细；最优模型反演得到耕地土壤有机碳平均含量为15.33 g·kg-1；RF模型和SVM模型变量重要性程度表明：高程和降水是影响复杂地貌区SOC空间分布的重要变量，而遥感植被因子重要性程度低于高程。
关键词:复杂地貌区/
耕地土壤有机碳/
机器学习算法/
普通克里格/
数字土壤制图
Abstract:Soil organic carbon (SOC) is a key indicator of soil quality and ecosystem health. At present, machine learning (ML) models for predicting soil properties based on environmental variables are increasingly popular; however, the performance of different ML algorithms in predicting and mapping SOC, especially at high spatial resolutions, have not been compared. This study aimed to develop, evaluate, and compare the performance of Support Vector Machine (SVM), Random Forest (RF), and Ordinary Kriging (OK) models for predicting and mapping the SOC contents in the northeast of Fujian Province. Remote sensing vegetation indices were derived from Sentinel-2 image data with a spatial resolution of 10 m. These vegetation indices, along with selected terrain and climate factors, were adopted as environmental variables to map SOC using the SVM and RF models. The results showed that the performance of the RF model (RMSE[root-mean-square error]=2.004, r=0.897) was better than that of the OK model (RMSE=4.571, r=0.623) and explained most of the SOC spatial heterogeneity. The SVM model had the poorest prediction accuracy (RMSE=5.190, r=0.431). SOC mapped from the three models had similar spatial patterns, with an increasing SOC gradient from east to west and from south to north of the study area. SOC in the farmlands predicted with the RF model varied in the range of 15.33±4.07 g·kg-1. Elevation and rainfall were the most important variables for the RF and SVM models, respectively, whereas the remote sensing vegetation indices were less important than elevation.
Key words:Complex landform/
Soil organic carbon of cultivated land/
Machine learning/
Ordinary kriging/
Digital soil mapping
HTML全文

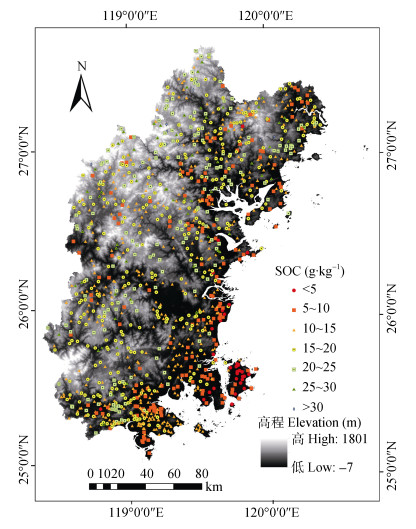

图1研究区地理位置、采样点分布及不同采样点土壤有机碳(SOC)含量范围
Figure1.Location, distribution of soil sampling sites and soil organic carbon content (SOC) ranges of sampling sites of the study areas
下载: 全尺寸图片幻灯片

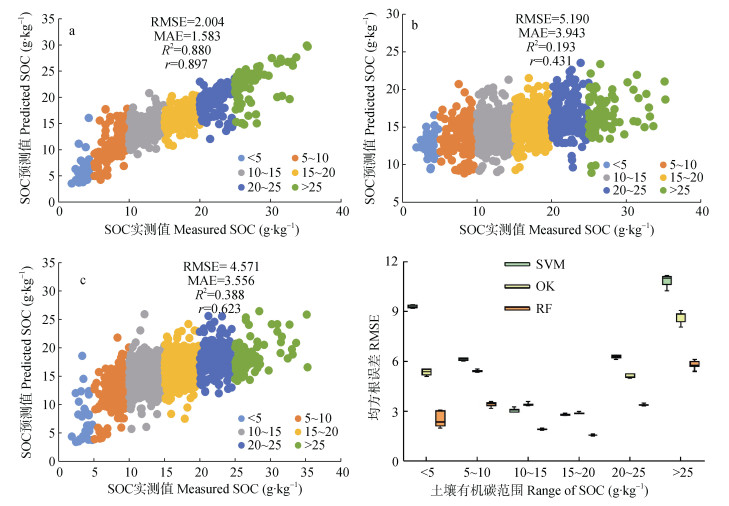

图2随机森林(RF, a)、支持向量机(SVM, b)和传统普通克里格模型(OK, c)预测土壤有机碳含量(SOC)模型表现和不同模型预测土壤有机碳范围均方根误差(RMSE, d)
Figure2.Performance of soil organic carbon content (SOC) prediction of Random Forest (RF, a), Support Vector Machine (SVM, b) and Ordinary Kriging (OK, c) models and RMSEs in different soil organic carbon ranges predicted by different models (d)
下载: 全尺寸图片幻灯片

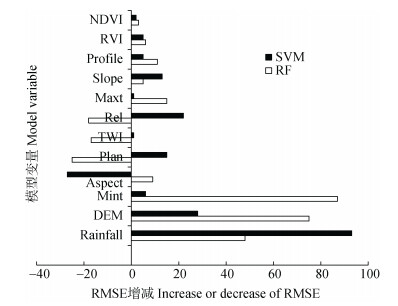

图3随机森林(RF)和支持向量机(SVM)模型因子重要性对比
Figure3.Comparison of importance of environmental variables in Random Forest (RF) and Support Vector Machine (SVM) models
下载: 全尺寸图片幻灯片

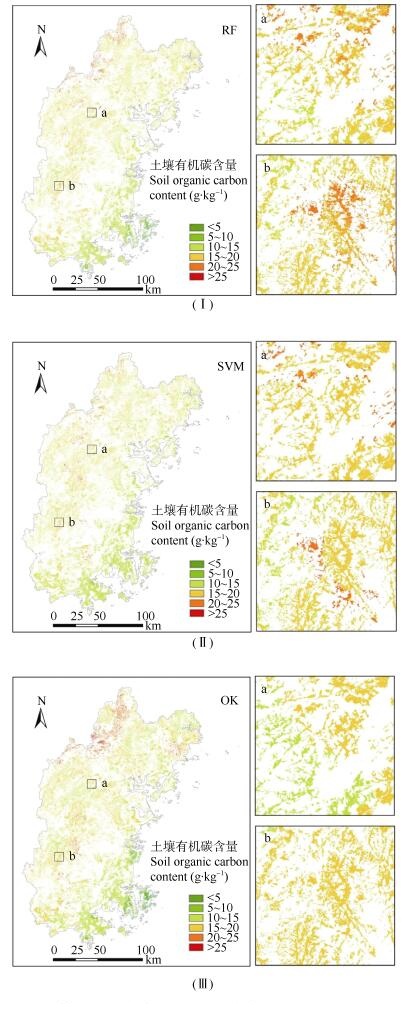

图4基于随机森林(RF, Ⅰ)、支持向量机(SVM, Ⅱ)和传统普通克里格模型(OK, Ⅲ)的福建省土壤有机碳空间分布图
Figure4.Spatial distribution maps of soil organic carbon of Fujian Province estimated by Random Forest (RF, Ⅰ), Support Vector Machine (SVM, Ⅱ) and Ordinary Kriging (OK, Ⅲ) models
下载: 全尺寸图片幻灯片

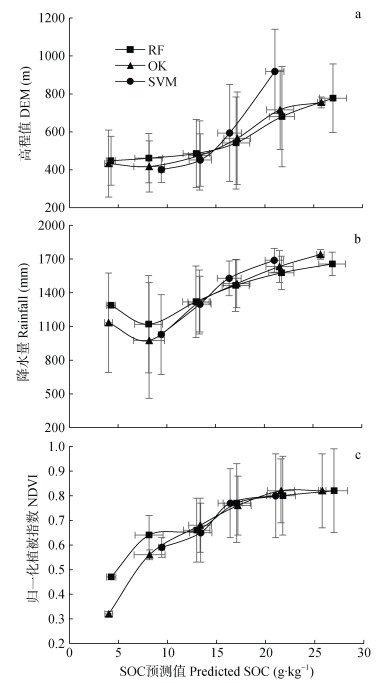

图5基于随机森林(RF)、支持向量机(SVM)和传统普通克里格模型(OK)预测的土壤有机碳(SOC)含量与代表环境因子的关系
Figure5.Relationships between representative environmental factors and soil organic carbon (SOC) contents predicted by Random Forest (RF), Support Vector Machine (SVM) and Ordinary Kriging (OK) models
下载: 全尺寸图片幻灯片表1影响土壤有机碳的环境变量
Table1.Environmental variables affecting soil organic carbon
| 变量类别 Variable category | 指标 Index |
| 植被指数 Vegetation index (VI) | 比值植被指数Ratio vegetation index (RVI) |
| 归一化植被指数 Normalized difference vegetation index (NDVI) | |
| 气候因子 Climate factor (CF) | 年最高气温Max annual temperature (Maxt) |
| 年最低气温Min annual temperature (Mint) | |
| 年降水量Mean annual rainfall (Rainfall) | |
| 地形因子 Topographical factor (TF) | 数字高程模型Digital evaluation model (DEM) |
| 地形湿度指数Topographic wetness index (TWI) | |
| 坡度Slope | |
| 坡向Aspect | |
| 平面曲率Plan | |
| 剖面曲率Profile | |
| 地形起伏度Relief of topography (Rel) |
下载: 导出CSV表2不同模型土壤有机碳(SOC)预测值与实测值对比
Table2.Comparison of predicted by different models and measured soil organic carbon (SOC) values
| 模型 Model | 最小值 Min (g?kg?1) | 平均值 Mean (g?kg?1) | 中值 Median (g?kg?1) | 最大值 Max (g?kg?1) | 标准偏差 SD (g?kg?1) | 变异系数 CV (%) |
| SOC | 1.874 | 15.343 | 14.849 | 35.269 | 5.843 | 38.08 |
| 传统普通克里格Ordinary Kriging | 3.428 | 15.339 | 16.059 | 26.428 | 3.531 | 23.02 |
| 支持向量机Support Vector Machine | 8.827 | 14.964 | 15.020 | 23.512 | 2.269 | 15.16 |
| 随机森林Random Forest | 3.569 | 15.333 | 15.110 | 29.907 | 4.065 | 26.51 |
