吕雪梅^{1, 2,},
曾阳^1,,,
田世丽²,
孙杰²,
张国忠²,
黄威²,
顾梦娜²,
许稳³,
刘学军³,
董红敏⁴,
马林⁵,
程一松⁵,
胡春胜⁵,
吴电明⁶,
潘月鹏^2,,
1.山东大学青岛校区环境科学与工程学院 青岛 266237
2.中国科学院大气物理研究所大气边界层物理和大气化学国家重点实验室 北京 100029
3.中国农业大学资源与环境学院/教育部植物-土壤相互作用实验室 北京 100193
4.中国农业科学院农业环境与可持续发展研究所 北京 100081
5.中国科学院遗传与发育生物学研究所农业资源研究中心 石家庄 050022
6.华东师范大学地理科学学院/教育部地理信息科学重点实验室 上海 200241
基金项目: 国家重点研发计划专项2017YFC0210103
大气重污染成因与治理攻关项目DQGG0208
国家自然科学基金项目41405144
2019年北京高等学校高水平人才交叉培养计划PXM2020_014207_000009

详细信息

作者简介:吕雪梅, 主要研究方向为大气氨排放。E-mail:201732588@mail.sdu.edu.cn

通讯作者:曾阳, 主要从事固体废弃物处置与氨气减排研究, E-mail:yangzeng@sdu.edu.cn
潘月鹏, 主要从事大气沉降定量与追踪溯源研究, E-mail:panyuepeng@mail.iap.ac.cn

中图分类号:X831

计量

文章访问数:333
HTML全文浏览量:4
PDF下载量:222
被引次数:0

出版历程

收稿日期:2019-12-14
录用日期:2020-02-04
刊出日期:2020-07-01

Atmospheric reactive nitrogen in typical croplands and intensive pig and poultry farms in the North China Plain

LYU Xuemei^{1, 2,},
ZENG Yang^1,,,
TIAN Shili²,
SUN Jie²,
ZHANG Guozhong²,
HUANG Wei²,
GU Mengna²,
XU Wen³,
LIU Xuejun³,
DONG Hongmin⁴,
MA Lin⁵,
CHENG Yisong⁵,
HU Chunsheng⁵,
WU Dianming⁶,
PAN Yuepeng^2,,
1. School of Environmental Science and Engineering, Shandong University, Qingdao 266237, China
2. State Key Laboratory of Atmospheric Boundary Layer Physics and Atmospheric Chemistry, Institute of Atmospheric Physics, Chinese Academy of Sciences, Beijing 100029, China
3. College of Agricultural Resources and Environmental Sciences, China Agricultural University/Key Laboratory of Plant-Soil Interactions, Ministry of Education, Beijing 100193, China
4. Institute of Agricultural Environment and Sustainable Development, Chinese Academy of Agricultural Sciences, Beijing 100081, China
5. Center for Agricultural Resources Research, Institute of Genetics and Developmental Biology, Chinese Academy of Sciences, Shijiazhuang 050022, China
6. School of Geographical Sciences, East China Normal University/Key Laboratory of Geographic Information Sciences, Ministry of Education, Shanghai 200241, China
Funds: the National Key Research and Development Project of China2017YFC0210103
the National Research Program for Key Issues in Air Pollution Control of ChinaDQGG0208
the National Natural Science Foundation of China41405144
2019 Beijing Colleges and Universities High-level Talent Cross-cultivation PlanPXM2020_014207_000009

More Information

Corresponding author:ZENG Yang, E-mail: yangzeng@sdu.edu.cn;PAN Yuepeng, E-mail: panyuepeng@mail.iap.ac.cn

摘要
HTML全文
图(5)表(0)
参考文献(30)
相关文章
施引文献
资源附件(0)
访问统计

摘要
摘要:大气活性氮（N_r）是导致霾污染和过量氮沉降的主要前体物。随着近年来大气污染防治行动的深入，消减农业源N_r排放逐渐被提上议事日程。目前，针对农田和畜禽养殖场内外环境大气中N_r的实地测量资料较为缺乏，且以往研究多以氨气（NH₃）为主，很少关注其他N_r成分。为了阐明农业活动对大气N_r的潜在影响，本研究基于扩散管主动采样系统，对华北平原典型农田（河北香河和栾城农田）、养猪场和蛋鸡养殖场环境大气中的4种N_r成分，即NH₃、硝酸气体（HNO₃）、颗粒态铵盐（p-NH₄⁺）和颗粒态硝酸盐（p-NO₃^-）开展了现场同步观测。结果显示：观测期间猪舍内NH₃和p-NH₄⁺平均浓度（1 250.9 μg·m^-3和76.6 μg·m^-3）显著高于舍外（378.5 μg·m^-3和4.2 μg·m^-3）；而猪舍内HNO₃和p-NO₃^-平均浓度（10.3 μg·m^-3和20.8 μg·m^-3）与舍外接近（9.8 μg·m^-3和22.1 μg·m^-3）；鸡舍内仅NH₃平均浓度（197.7 μg·m^-3）显著高于舍外（77.3 μg·m^-3），而p-NH₄⁺、HNO₃和p-NO₃^-平均浓度（7.3 μg·m^-3、9.0 μg·m^-3和6.2 μg·m^-3）均与舍外接近（10.7 μg·m^-3、9.9 μg·m^-3和7.2 μg·m^-3）。总体上看，养猪场环境大气中N_r浓度显著高于养鸡场（P < 0.05）。香河和栾城农田大气NH₃、p-NH₄⁺、HNO₃和p-NH₄⁺的平均浓度分别为21.4 μg·m^-3、1.9 μg·m^-3、4.4 μg·m^-3和5.5 μg·m^-3，显著低于养殖场外N_r浓度（P < 0.05）。从形态组成上看，养殖场和农田大气N_r主要以NH₃-N（占比>80%）的形态存在，说明华北农业活动产生的N_r主要通过NH₃的形式向外扩散传输，并没有在当地快速转化为颗粒物。未来需要进一步研究N_r在大气中的传输路径和转化机制，为制定有效的减排措施提供科学支持。
关键词:华北平原/
农田/
养殖场/
养殖圈舍/
活性氮/
大气污染
Abstract:Reactive nitrogen (N_r) is the main precursor of atmospheric haze pollution, which leads to excessive nitrogen deposition. With prevention and control measured for air pollution in recent years, reducing N_r from agricultural sources has recently been suggested. Currently, field measurements focusing on atmospheric N_r in farmland and animal farms are still limited and are mainly focused on ammonia (NH₃), with little attention being paid to other N_r components. In order to characterize the potential impact of agricultural activities on atmospheric N_r concentrations, this study carried out simultaneous field measurements of major N_r species, including gaseous NH₃, nitric acid (HNO₃), particle ammonium (p-NH₄⁺) and nitrate (p-NO₃^-), in two farmlands (Xianghe farmland and Luancheng farmland in Hebei Province), a pig farm and a poultry farm in the North China Plain using the active denuder sampling system. The results showed that the average concentrations of NH₃ and p-NH₄⁺ inside the pig house (1 250.9 and 76.6 μg·m^-3, respectively) were significantly higher (P < 0.05) than those outside the pig house (378.5 and 4.2 μg·m^-3, respectively). However, the average concentrations of HNO₃ and p-NO₃^- inside the pig house (10.3 and 20.8 μg·m^-3, respectively) were comparable to those outside the pig house (9.8 and 22.1 μg·m^-3, respectively). In contrast, the measured N_r concentrations were similar both inside and outside the poultry house for all N_r species (overall ranged from 6.2 to 10.7 μg·m^-3) except for NH₃, which was significantly higher (P < 0.05) inside (197.7 μg·m^-3) compared to outside (77.3 μg·m^-3). In general, atmospheric N_r concentrations in the pig farm were significantly higher than those in the poultry farm (P < 0.05). The average air concentrations of NH₃, p-NH₄⁺, HNO₃ and p-NO₃^- in the farmland were 21.4, 1.9, 4.4 and 5.5 μg·m^-3, respectively, which were significantly lower than those outside the pig and poultry farms (P < 0.05). From the perspective of chemical composition, N_r mainly existed in the form of NH₃-N (accounting for more than 80%) in pig, poultry and farmland environments, which indicated that the N_r produced by agricultural activities in the North China Plain mainly diffused outward in the form of NH₃ instead of transforming into particles locally. Detailed investigations on the transmission mechanisms and transport pathways of N_r in the atmosphere are urgently needed to provide scientific support for the implementation of effective emission mitigation measures.
Key words:North China Plain/
Farm land/
Intensive pig and poultry farms/
Breeding house/
Reactive nitrogen/
Air pollution

HTML全文

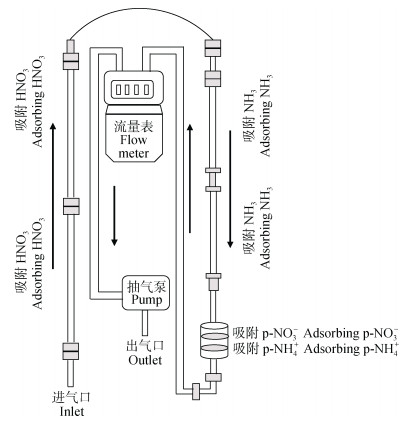

图1Delta系统结构图
${\rm{p - NH}}_4^ + $指颗粒物铵盐, ${\rm{p - NO}}_3^ - $指颗粒物硝酸盐。${\rm{p - NH}}_4^ + $is particle ammonium.${\rm{p - NO}}_3^ - $ is particle nitrate.
Figure1.Diagram of Delta sampling system


下载: 全尺寸图片幻灯片

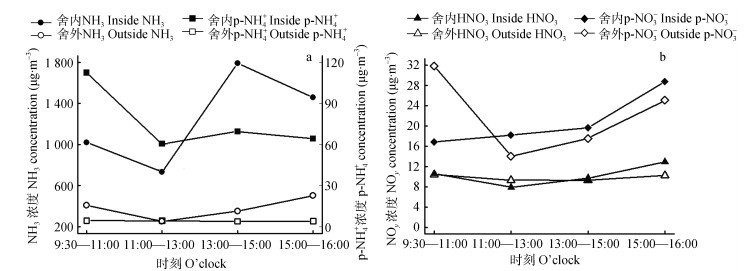

图2猪舍内外NH_x (a)和NO_y (b)浓度变化
${\rm{p - NH}}_4^ + $指颗粒物铵盐, ${\rm{p - NO}}_3^ - $指颗粒物硝酸盐。${\rm{p - NH}}_4^ + $ is particle ammonium. ${\rm{p - NO}}_3^ - $ is particle nitrate.
Figure2.NH_x (a) and NO_y (b) concentrations profiles inside and outside the pig house


下载: 全尺寸图片幻灯片


图3鸡舍内外NH_x(a)和NO_y(b)浓度变化
${\rm{p - NH}}_4^ + $指颗粒物铵盐, ${\rm{p - NO}}_3^ - $指颗粒物硝酸盐。${\rm{p - NH}}_4^ + $ is particle ammonium. ${\rm{p - NO}}_3^ - $ is particle nitrate.
Figure3.NH_x(a) and NO_y (b) concentrations profiles inside and outside the poultry house


下载: 全尺寸图片幻灯片

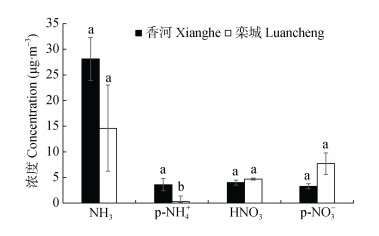

图4不同地区农田大气N_r浓度
${\rm{p - NH}}_4^ + $指颗粒物铵盐, ${\rm{p - NO}}_3^ - $指颗粒物硝酸盐。不同字母表示不同农田观测结果之间差异显著(P < 0.05)。p-NH₄⁺ is particle ammonium, p-NO₃^– is particle nitrate. Different lowercase letters indicate significant differences between farmlands in two areas (P < 0.05).
Figure4.N_r concentrations in farmland atmosphere at Xianghe and Luancheng


下载: 全尺寸图片幻灯片

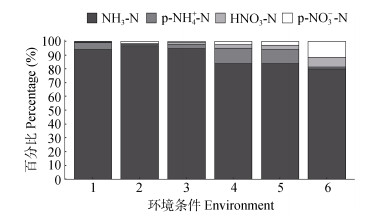

图5不同环境条件下不同形态活性氮(N_r)的N质量浓度百分比
1 :猪舍内; 2:猪舍外; 3:鸡舍内; 4:鸡舍外; 5:香河农田; 6:栾城农田。1: inside the pig house; 2: outside the pig house; 3: inside the poultry house; 4: outside the poultry house; 5: Xianghe farmland; 6: Luancheng farmland
Figure5.Composition in N mass concentration of different forms of reactive nitrogen (N_r) in different environments


下载: 全尺寸图片幻灯片
