基于GIS的村级小麦玉米高产高效管理系统构建与验证

删除或更新信息，请邮件至freekaoyan#163.com(#换成@)

本站小编 Free考研考试/2022-01-01

作者简介:李亚楠, 主要从事养分资源管理与利用研究。E-mail:418740967@qq.com

通讯作者:马文奇, 主要从事养分资源管理与利用研究。E-mail:mawq@hebau.edu.cn

中图分类号:S31

计量

文章访问数:698
HTML全文浏览量:5
PDF下载量:569
被引次数:0

出版历程

收稿日期:2019-02-27
录用日期:2019-03-13
刊出日期:2019-07-01

Establishment and assessment of management systems for wheat and maize with high yield and nitrogen use efficiency based on GIS at the village level

LI Yanan,
WANG Haodan,
QU Hongrui,
CAO Hongzhu,
TONG Bingxin,
CUI Shilei,
HAN Yanru,
MA Wenqi^,
College of Resources and Environmental Science, Hebei Agricultural University, Baoding 071000, China
Funds: the National Key Research and Development Project of China2016YFD0200403
the National Basic Research Program of China2015CB150405

More Information

Corresponding author:MA Wenqi, E-mail:mawq@hebau.edu.cn

摘要
HTML全文
图(6)表(1)
参考文献(29)
相关文章
施引文献
资源附件(0)
访问统计

摘要
摘要:小农户是我国农业生产的主体，由此导致生产中存在产量和资源利用效率地块间变异大的问题。为了提高作物的产量和氮肥利用效率，实现小农户地块的精准管理，本文以GIS技术为平台，利用C#语言，建立村级小麦玉米高产高效管理系统，并通过田间对比试验和农户调研分别进行了系统效果的验证及其可行性评价。结果表明，该系统以农户地块为单元，通过信息查询、分析、作物管理决策、系统管理等功能模块，实现了村域每个农户地块的高产高效（氮肥高效）技术推荐。两年22个对比试验结果表明，与农民习惯相比，系统推荐的高产高效处理小麦季平均增产10.8%，氮肥偏生产力提高28.5%；玉米季平均增产10.3%，氮肥偏生产力增加16.9%，实现小麦玉米产量和氮肥利用效率的同步提高。农户调研结果表明，农户对推荐系统的认可程度较高，利用该系统进行技术推荐具有可行性；农户对小麦玉米的各项推荐技术认知度较高，但采用率差异较大，其中小麦优良品种采用率可达94%，但小麦精量播种技术的采用率只有29%，玉米增密技术和晚收技术的采用率仅仅2%和35%；受科技人员技术推荐影响较大的试验户和辐射户的认知率与采用率均高于普通农户，说明通过技术服务可以促进小麦玉米高产高效管理技术的应用。总之，本系统实现了小农户地块作物管理技术的辅助决策，具有显著增产增效作用，可以为村级实现大面积的作物高产高效提供支持。
关键词:小农户/
小麦/
玉米/
高产高效/
管理系统/
氮肥利用效率
Abstract:Smallholder farmers are the main body of agricultural production in China, but there are big variations in the crop yields and efficiency of resource utilization among these farmers. To increase the yield and nutrient use efficiency of crops and ensure precise management of smallholders' plots, this research established a management system for wheat and maize that produces high yield and nitrogen use efficiency at the village level, based on GIS using C# language. The verification of system effects was carried out through the field comparative test on the farmland and a feasibility evaluation was conducted by investigating farmers. During the farmer survey, the farmers were classified into 3 categories, which included the test farmers in whose fields the comparative test was conducted, radiation farmers who often interacted with researchers, and ordinary farmers who were not influenced by researchers. The results showed that the management system, based on peasant household plots, created high yield and nitrogen use efficiency for each farmer in the village, through information queries, data analyses, management decision making, system management, and other functional modules. The results of 22 comparative experiments in two years showed that, compared with the farmers practice treatment (FP), the treatment with high yield and nitrogen use efficiency (DH), recommended by the system, increased the winter wheat yield and partial nitrogen fertilizer productivity (PFP_N) by 10.8% and 28.5%, respectively. The treatment system (DH) recommended during the maize season increased the yield and PFP_N by 10.3% and 16.9%, respectively. This indicated that, with technological support from the recommendation system, farmers could be increasing their yield and nitrogen use efficiency of the winter wheat and summer maize, simultaneously. The results of the farmers' investigation showed that smallholders had a high degree of recognition for the management system, making it feasible to use the system for technical recommendations. Farmers had a high recognition for the recommended technologies for winter wheat and summer maize, but the adoption rate varied greatly. In particular, the adoption rate of recommended wheat varieties was 94%, but the adoption rate of precision sowing technology for winter wheat was 29%. The adoption rate of densification technology and late harvest technology of summer maize was only 2% and 35%, respectively. The recognition and adoption rates of the test and radiation households, which were greatly influenced by the technical recommendations made by the scientific and technical personnel, were higher than that of the ordinary peasant households. This indicated that it was feasible to popularize the management system to peasant households. In conclusion, the management system of winter wheat and summer maize for high yield and nitrogen use efficiency incorporated the auxiliary decision-making of crop management technology for smallholder plots, and had a significant effect on increasing the yield and nutrient use efficiency, which provided the possibility of achieving high crop yield and nutrient efficiency in large areas.
Key words:Small holder farmers/
Wheat/
Maize/
High yield and efficiency/
Management system/
Nitrogen use efficiency

HTML全文

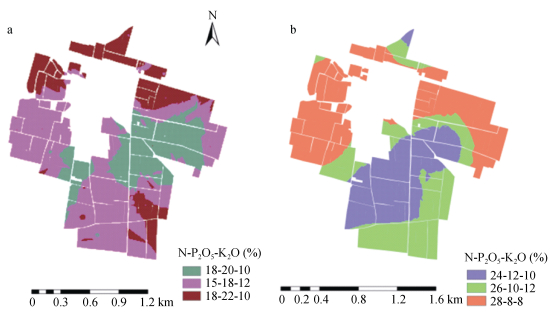

图1小麦基肥(a)和玉米(b)施肥的氮磷钾配方图
Figure1.Fertilization formulas of basal fertilizer for wheat (a) and total fertilizer for maize (b) in Yangong Village

下载: 全尺寸图片幻灯片

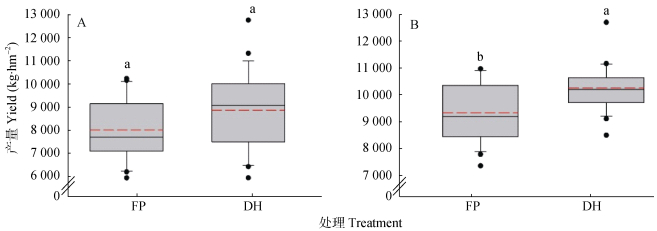

图2不同管理方式下小麦(A)和玉米(B)的产量对比
FP:农民习惯处理; DH:高产高效处理。不同小写字母表示处理间在5%水平上差异显著。图中箱式图框内的上中下3条黑色实线分别代表 75%分位、50%分位和25%分位, 框外的上下两条横线分别代表 90%分位和10%分位, 框内的虚线为平均值。
Figure2.Yield comparison of wheat (A) and maize (B) under different treatments of management
FP means farmer practices; DH means practice of high yield and nitrogen use efficiency of crops. Different lowercase letters indicate significant differences between two treatments at 5% level. The upper, middle and lower black solid lines in the box chart represent 75%, 50% and 25% quantiles, respectively. The upper and lower horizontal lines outside the box represent 90% and 10% quantiles, respectively. The dotted line in the box is the average.

下载: 全尺寸图片幻灯片

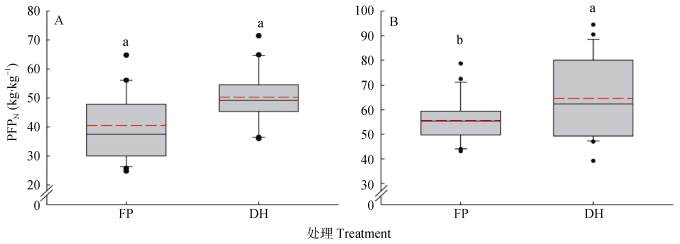

图3不同管理方式下小麦(A)和玉米(B)的氮肥偏生产力(PFP_N)对比
FP:农民习惯处理; DH:高产高效处理。不同小写字母表示处理间在5%水平上差异显著。图中箱式图框内的上中下3条黑色实线分别代表 75%分位、50%分位和25%分位, 框外的上下两条横线分别代表 90%分位和10%分位, 框内的虚线为平均值。
Figure3.Comparison of nitrogen partial productivities (PFP_N) of wheat (A) and maize (B) under different treatments of management
FP means farmer practices; DH means practice of high yield and nitrogen use efficiency of crops. Different lowercase letters indicate significant differences between two treatments at 5% level. The upper, middle and lower black solid lines in the box chart represent 75%, 50% and 25% quantiles, respectively. The upper and lower horizontal lines outside the box represent 90% and 10% quantiles, respectively. The dotted line in the box is the average.

下载: 全尺寸图片幻灯片

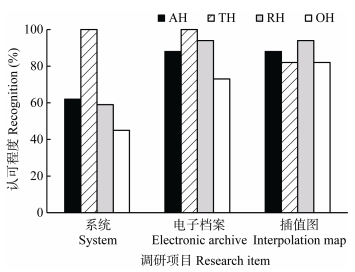

图4农户对村级高产高效管理系统的认可程度
AH:所有户; TH:试验户; RH:辐射户; OH:普通户。
Figure4.Farm households' recognition of the crop management system with high yield and nitrogen use efficiency at village level
AH: all investigated households; TH: test households; RH: radiation households; OH: ordinary households.

下载: 全尺寸图片幻灯片

图5农户对小麦关键技术的认知度(a)和采用率(b)
AH:所有户; TH:试验户; RH:辐射户; OH:普通户。
Figure5.Farm households' recognition (a) and adoption rate (b) of key technologies in wheat
AH: all investigated households; TH: test households; RH: radiation households; OH: ordinary households.

下载: 全尺寸图片幻灯片

图6农户对玉米关键技术的认知度(a)和采用率(b)
AH:所有户; TH:试验户; RH:辐射户; OH:普通户。
Figure6.Farm households' recognition (a) and adoption rate (b) of key technologies in maize
AH: all investigated households; TH: test households; RH: radiation households; OH: ordinary households.

下载: 全尺寸图片幻灯片

表1村级小麦玉米高产高效管理系统基础数据
Table1.Basic data of high yield and efficiency management system for wheat and maize at village level

属性数据Attributive data	调查指标Survey indicator
农户基本信息 Basic information of farm households	劳动力人口数、户主年龄、受教育程度、联系方式、收入来源、农业及非农业收入状况 Size of labor force, age and education level of householder, contact information, income source, agricultural and non-agricultural income
农田基本信息 Farmland basic information	地块位置、耕地面积、土壤类型、土壤养分含量、承包租赁情况 Plot location, arable land area, soil type, soil nutrients contents, and leasehold status
农户种植结构信息 Planting structure information of farmer	作物种类、近五年种植变化、作物出售比例及价格 Crop varieties, planting changes in recent five years, crop sales proportion and price
作物种植管理信息 Planting management information of crops	品种、播期、播量、肥料养分含量、施肥量、灌溉次数及时期、打药次数及时期、秸秆还田情况、产量 Variety, sowing date, seeding rate, nutrient content of fertilizer, amount of fertilizer applied, number and period of irrigation, number and period of pesticides application, straw returning to field, yield
作物高产高效管理技术 Management techniques for high yield and efficiency of crops	推荐优良品种、适宜播期、播量、施肥量、打药次数及时期、灌溉次数及时期 Recommendation of excellent varieties, suitable sowing time and seeding rate, application amount and times of fertilizer and pesticide, times and period of irrigation

下载: 导出CSV

参考文献(29)

[1]	CUI Z L, ZHANG H Y, CHEN X P, et al. Pursuing sustainable productivity with millions of smallholder farmers[J]. Nature, 2018, 555(7696):363-366 doi: 10.1038/nature25785
[2]	FAN M S, SHEN J B, YUAN L X, et al. Improving crop productivity and resource use efficiency to ensure food security and environmental quality in China[J]. Journal of Experimental Botany, 2012, 63(1):13-24 doi: 10.1093/jxb/err248
[3]	CHEN X P, CUI Z L, VITOUSEK P M, et al. Integrated soil-crop system management for food security[J]. Proceedings of the National Academy of Sciences of the United States of America, 2011, 108(16):6399-6404 doi: 10.1073/pnas.1101419108
[4]	CHEN X P, CUI Z L, FAN M S, et al. Producing more grain with lower environmental costs[J]. Nature, 2014, 514(7523):486-489 doi: 10.1038/nature13609
[5]	ZHANG W F, CAO G X, LI X L, et al. Closing yield gaps in China by empowering smallholder farmers[J]. Nature, 2016, 537(7622):671-674 doi: 10.1038/nature19368
[6]	吴良泉, 陈新平, 石孝均, 等. "大配方、小调整"区域配肥技术的应用[J].磷肥与复肥, 2013, 28(3):68-70 doi: 10.3969/j.issn.1007-6220.2013.03.029 WU L Q, CHEN X P, SHI X J, et al. Application of region formulation fertilizer technology based on "Regional Fertilizer Formula and Site Specific Adjustment"[J]. Phosphate & Compound Fertilizer, 2013, 28(3):68-70 doi: 10.3969/j.issn.1007-6220.2013.03.029
[7]	CHEN G F, CAO H Z, LIANG J, et al. Factors affecting nitrogen use efficiency and grain yield of summer maize on smallholder farms in the North China plain[J]. Sustainability, 2018, 10(2):363 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=sustainability-10-00363
[8]	武军, 谢英丽, 安丙俭.我国精准农业的研究现状与发展对策[J].山东农业科学, 2013, 45(9):118-121 http://d.old.wanfangdata.com.cn/Periodical/shandnykx201309036 WU J, XIE Y L, AN B J. Research status and development countermeasures of precision agriculture in China[J]. Shandong Agricultural Sciences, 2013, 45(9):118-121 http://d.old.wanfangdata.com.cn/Periodical/shandnykx201309036
[9]	燕跃奎, 郭澎涛, 罗微.基于GIS的儋州民营胶园精细化施肥配方制定研究[J].热带作物学报, 2014, 35(10):2050-2058 doi: 10.3969/j.issn.1000-2561.2014.10.028 YAN Y K, GUO P T, LUO W. Establishing precision fertilization formulas for private rubber plantations of Danzhou County based on geographic information system (GIS)[J]. Chinese Journal of Tropical Crops, 2014, 35(10):2050-2058 doi: 10.3969/j.issn.1000-2561.2014.10.028
[10]	许鑫, 张浩, 席磊, 等.基于WebGIS的小麦精准施肥决策系统[J].农业工程学报, 2011, 27 (S2):94-98 http://www.cnki.com.cn/Article/CJFDTOTAL-NYGU2011S2020.htm XU X, ZHANG H, XI L, et al. Decision-making system for wheat precision fertilization based on WebGIS[J]. Transactions of the CSAE, 2011, 27(S2):94-98 http://www.cnki.com.cn/Article/CJFDTOTAL-NYGU2011S2020.htm
[11]	危常州, 侯振安, 朱和明, 等.基于GIS的棉田精准施肥和土壤养分管理系统的研究[J].中国农业科学, 2002, 35(6):678-685 doi: 10.3321/j.issn:0578-1752.2002.06.017 WEI C Z, HOU Z A, ZHU H M, et al. Study on precision fertilizer recommendation and soil nutrition management in cotton land based on GIS system[J]. Scientia Agricultura Sinica, 2002, 35(6):678-685 doi: 10.3321/j.issn:0578-1752.2002.06.017
[12]	江厚龙, 刘国顺, 杨超, 等.基于GIS丘陵土壤分区与烤烟推荐施肥研究[J].中国烟草科学, 2013, 34(2):10-17 http://d.old.wanfangdata.com.cn/Periodical/zgyckx201302005 JIANG H L, LIU G S, YANG C, et al. Flue-cured tobacco fertilizer recommendations based on GIS soil delineation at hilly areas[J]. Chinese Tobacco Science, 2013, 34(2):10-17 http://d.old.wanfangdata.com.cn/Periodical/zgyckx201302005
[13]	柳云龙, 姜丽娜.基于GIS的农田养分管理与推荐施肥系统设计与开发[J].农业网络信息, 2007, (8):23-26 doi: 10.3969/j.issn.1672-6251.2007.08.007 LIU Y L, JIANG L N. Research on recommended fertilization system and farmland nutrient management based on GIS[J]. Agriculture Network Information, 2007, (8):23-26 doi: 10.3969/j.issn.1672-6251.2007.08.007
[14]	鲍士旦.土壤农化分析[M].北京:中国农业出版社, 2005 BAO S D. Soil and Agricultural Chemistry Analysis[M]. Beijing:China Agriculture Press, 2005
[15]	池建.精通ArcGIS地理信息系统[M].北京:清华大学出版社, 2011:303-306 CHI J. Proficient in ArcGIS Geographic Information System[M]. Beijing:Tsinghua University Press, 2011:303-306
[16]	张福锁, 陈新平, 陈清, 等.中国主要作物施肥指南[M].北京:中国农业大学出版社, 2009:10-15 ZHANG F S, CHEN X P, CHEN Q, et al. Guidelines for Fertilization of Major Crops in China[M]. Beijing:China Agricultural University Press, 2009:10-15
[17]	WEBB R A. Use of the boundary line in the analysis of biological data[J]. Journal of Horticultural Science, 1972, 47(3):309-319 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=10.1080/00221589.1972.11514472
[18]	DOBERMANN A R. Nitrogen Use Efficiency-State of the Art[R]. Frankfurt, Germany: Paper presented at the IFA International Workshop on Enhanced-Efficiency Fertilizers, 2005: 28-30
[19]	屈红蕊.基于GIS的村级作物高产高效管理系统的优化与应用[D].保定: 河北农业大学, 2017 QU H R. Optimization and application of the crop management system with high crop yield and high nitrogen use efficiency based on GIS at village level[D]. Baoding: Hebei Agricultural University, 2017
[20]	王昊丹.基于GIS的村级玉米高产高效管理系统的构建与验证[D].保定: 河北农业大学, 2016 WANG H D. Establish and assess the planting system with high maize yield and high nitrogen use efficiency based on GIS at village level[D]. Baoding: Hebei Agricultural University, 2016
[21]	袁学敏.基于模型与GIS的小麦精确栽培方案生成技术研究[D].南京: 南京农业大学, 2012 YUAN X M. Model and GIS-based on precise cultivation prescription generation technology in wheat[D]. Nanjing: Nanjing Agricultural University, 2012
[22]	巨晓棠, 何忠俊.加拿大Alberta省的以水定产测土施肥技术体系[J].干旱地区农业研究, 1998, 16(1):84-89 doi: 10.3321/j.issn:1000-7601.1998.01.014 JU X T, HE Z J. Technical system of soil test and fertilizer recommendation based on the available water for crops in Alberta, Canada[J]. Agricultural Research in the Arid Areas, 1998, 16(1):84-89 doi: 10.3321/j.issn:1000-7601.1998.01.014
[23]	邹宗杰.目标产量法经验公式计算问题初探[J].青海农林科技, 1987, (4):38-41 http://www.cnki.com.cn/Article/CJFDTOTAL-QHNK198704007.htm ZOU Z J. A preliminary study on the empirical formula of target production method[J]. Agricultural Science and Technology of Qinghai Province, 1987, (4):38-41 http://www.cnki.com.cn/Article/CJFDTOTAL-QHNK198704007.htm
[24]	陈冬冬.冬小麦-夏玉米大面积高产高效的限制因素与技术途径研究[D].保定: 河北农业大学, 2016 CHEN D D. Study on limiting factors and technical approaches for high-yield and high-efficiency of winter wheat and summer corn[D]. Baoding: Hebei Agricultural University, 2016
[25]	李国强, 王猛, 胡峰, 等.基于GIS的夏玉米氮肥精确管理系统设计与实现[J].贵州农业科学, 2016, 44(2):186-189 doi: 10.3969/j.issn.1001-3601.2016.02.047 LI G Q, WANG M, HU F, et al. Design and implement of GIS-based precision nitrogen management system in summer maize[J]. Guizhou Agricultural Sciences, 2016, 44(2):186-189 doi: 10.3969/j.issn.1001-3601.2016.02.047
[26]	刘小军, 曹静, 汤亮, 等.基于模型和GIS的水稻生产管理决策支持系统构建与应用[J].中国水稻科学, 2010, 24(3):297-302 doi: 10.3969/j.issn.1001-7216.2010.03.013 LIU X J, CAO J, TANG L, et al. Development and application of a model and GIS-based decision support system for rice production management[J]. Chinese Journal of Rice Science, 2010, 24(3):297-302 doi: 10.3969/j.issn.1001-7216.2010.03.013
[27]	李向岭, 李丛锋, 葛均筑, 等.播期和种植密度对玉米产量性能的影响[J].玉米科学, 2011, 19(2):95-100 http://d.old.wanfangdata.com.cn/Periodical/ymkx201102024 LI X L, LI C F, GE J Z, et al. Effects of planting date and planting density on yield performance of maize[J]. Journal of Maize Sciences, 2011, 19(2):95-100 http://d.old.wanfangdata.com.cn/Periodical/ymkx201102024
[28]	张福锁, 陈新平, 崔振岭, 等.主要作物高产高效技术规程[M].北京:中国农业大学出版社, 2010 ZHANG F S, CHEN X P, CUI Z L, et al. Technical Regulations for High Yield and High Efficiency of Main Crops[M]. Beijing:China Agricultural University Press, 2010
[29]	张福锁, 张朝春.高产高效养分管理技术创新与应用[M].北京:中国农业大学出版社, 2017 ZHANG F S, ZHANG C C. Innovation and Application of Nutrient Management Technology for Double High Agriculture[J]. Beijing:China Agricultural University Press, 2017
