不同施肥方式下砂姜黑土冬小麦-夏玉米轮作农田氨挥发特征及排放系数

本站小编 Free考研考试/2022-01-01

吕金岭,
王小非,
李太魁,
寇长林,
河南省农业科学院植物营养与资源环境研究所/农业部原阳农业环境与耕地保育科学观测实验站/河南省农业生态环境重点实验室 郑州 450002
基金项目: 国家重点研发计划项目2017YFD0800600
国家重点研发计划项目2017YFC0212400
国家自然科学基金项目41807098

详细信息
作者简介:吕金岭, 研究方向为农田氮素循环和氨排放。E-mail:lvjinling2008@163.com
通讯作者:寇长林, 研究方向为农田土壤肥力提升。E-mail:koucl@126.com
中图分类号:S19

计量

文章访问数:205
HTML全文浏览量:1
PDF下载量:124
被引次数:0
出版历程

收稿日期:2020-06-20
录用日期:2020-10-07
刊出日期:2020-12-01

Ammonia emission characteristics and emission coefficients of wheat and corn rotation cropland under different fertilization methods in lime concretion black soil

LYU Jinling,
WANG Xiaofei,
LI Taikui,
KOU Changlin,
Institute of Plant Nutrition, Resources and Environmental Science, Henan Academy of Agricultural Sciences/Yuanyang Scientific Observing and Experimental Station of Agro-Environment and Arable Land Conservation, Ministry of Agriculture/Henan Key Laboratory of Agricultural Eco-environment, Zhengzhou 450002, China
Funds: the National Key Research and Development Program of China2017YFD0800600
the National Key Research and Development Program of China2017YFC0212400
the National Natural Science Foundation of China41807098

More Information
Corresponding author:KOU Changlin, E-mail:koucl@126.com


摘要
HTML全文
(7)(2)
参考文献(31)
相关文章
施引文献
资源附件(0)
访问统计

摘要
摘要:土壤类型对于农田氨挥发影响较大,而关于砂姜黑土农田氨挥发特征及排放系数研究相对较少,不利于区域性农田土壤氨排放清单的准确评估。基于此,选取豫南典型砂姜黑土为研究对象,设置不施肥(CK)、传统施肥(TR)、优化施肥(OPT)、再优化施肥(ZOPT)和缓控肥(HK)5种施肥处理,利用密闭海绵法,探究砂姜黑土农田不同施肥方式下冬小麦-夏玉米轮作土壤氨挥发特征,并尝试确定氨排放系数。结果表明:砂姜黑土传统施肥条件下冬小麦季土壤氨挥发量为11.1 kg·hm-2,夏玉米季氨挥发量为13.4 kg·hm-2,说明夏玉米季是砂姜黑土冬小麦-夏玉米轮作农田氨的高排放时期。对比不同处理的氨挥发量,发现ZOPT和HK处理冬小麦季和夏玉米季的氨挥发量显著低于其他处理(P < 0.05),其次为OPT处理,TR处理的氨挥发量最高。HK处理的氨排放系数最低,其中冬小麦季和夏玉米季分别为1.7%和1.5%,显著低于其他处理(P < 0.05);其次为ZOPT和OPT处理,其氨排放系数冬小麦季分别为2.1%和2.6%,夏玉米季分别为2.6%和3.6%;TR处理的氨排放系数最高,冬小麦季和夏玉米季分别为3.6%和4.7%。不同施肥处理氨挥发量与施肥量的拟合结果表明,随施肥量增加,冬小麦-夏玉米轮作农田氨挥发显示出较强的线性增长趋势,其中夏玉米季和冬小麦季的R2分别为0.934和0.931,说明该区域砂姜黑土传统施肥量的氨挥发未出现明显的激发性增长现象。本研究结果可为砂姜黑土区冬小麦-夏玉米轮作农田氮肥利用率的提高和氮排放清单的估算提供依据。
Abstract:Soil type affects farmland ammonia volatilization, but few studies have examined ammonia volatilization characteristics and emission coefficients. Therefore, the accurate inventory of regional farmland soil ammonia emissions is disadvantaged. Lime concretion black soil found in southern Henan, China, was used to explore the ammonia volatilization characteristics of winterwheat-summer maize-rotated cropland by the closed-sponge method. The soil was unfertilized (CK) or treated with traditional fertilizer (TR), optimized fertilizer (OPT), re-optimized fertilizer (ZOPT), or slow-controlled fertilizer (HK), and the ammonia emissions coefficient was determined. The results showed that the winter wheat and summer maize ammonia volatilization amounts using the traditional fertilizer treatment were 11.1 and 13.4 kg·hm-2, respectively. Summer maize ammonia emission was 21% higher than winter wheat, indicating that the summer maize season was a high-volume period. Winter wheat and summer maize treated with HK and ZOPT had the lowest ammonia emission coefficients (HK:1.7% for winter wheat, 1.5% for summer maize; ZOPT:2.1% for winter wheat, 2.6% for summer maize; P < 0.05), the OPT treatment had moderate coefficients (2.6% for winter wheat, 3.6% for summer maize), and the TR treatment had the highest coefficients (3.6% for winter wheat, 4.7% for summer maize). The ammonia emissions fertilization gradients and fertilization amounts were plotted, and the ammonia volatilization amounts under variable fertilization treatments were linear (R2:0.931 for winter wheat, 0.934 for summer maize). These results may help to improve nitrogen fertilizer use and the ammonia emission inventory and provide basis for nitrogen emission estimation of winter wheat-summer maize rotation in lime concretion black soil croplands.

HTML全文

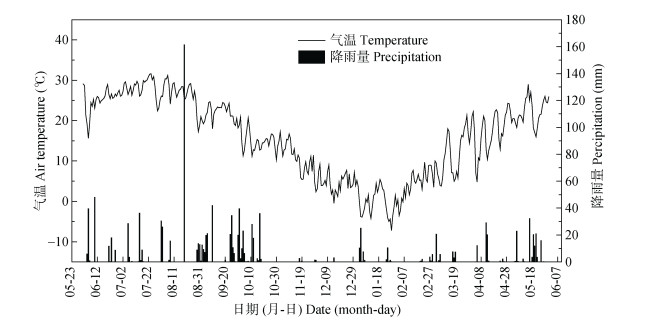

图12017—2018年试验期间的气温与降水量
Figure1.Temperature and precipitation during the experiment period in 2017-2018


下载: 全尺寸图片幻灯片

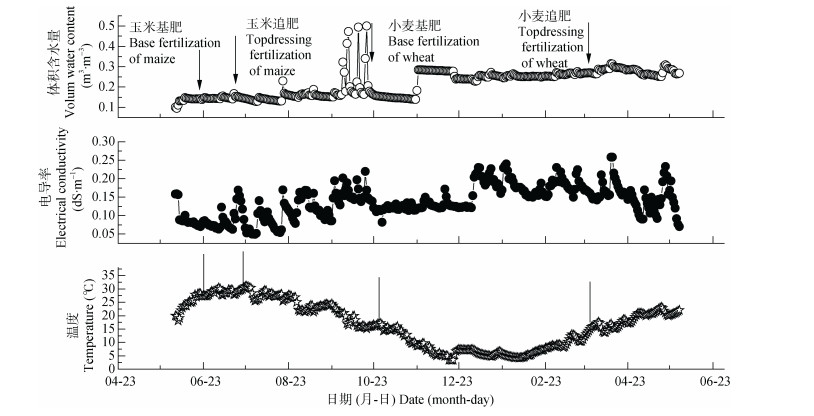

图2试验期间砂姜黑土冬小麦季和夏玉米季耕层土壤体积含水量、电导率和温度的变化
Figure2.Dynamics of soil moisture content, electrical conductivity and temperature of ploughed soil layer in winter wheat and summer maize rotation seasons during the experimental period


下载: 全尺寸图片幻灯片

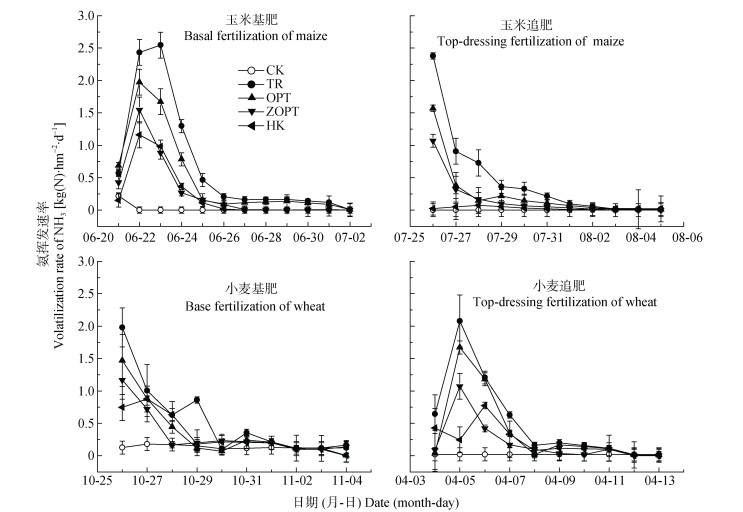

图3冬小麦季和夏玉米季不同施肥处理典型施肥期氨挥发速率
试验各处理介绍见表 1
Figure3.Ammonia volatilization rates in typical fertilization periods of different fertilization treatments in winter wheat and summer maize seasons
The description of each treatment is shown in the table 1.


下载: 全尺寸图片幻灯片

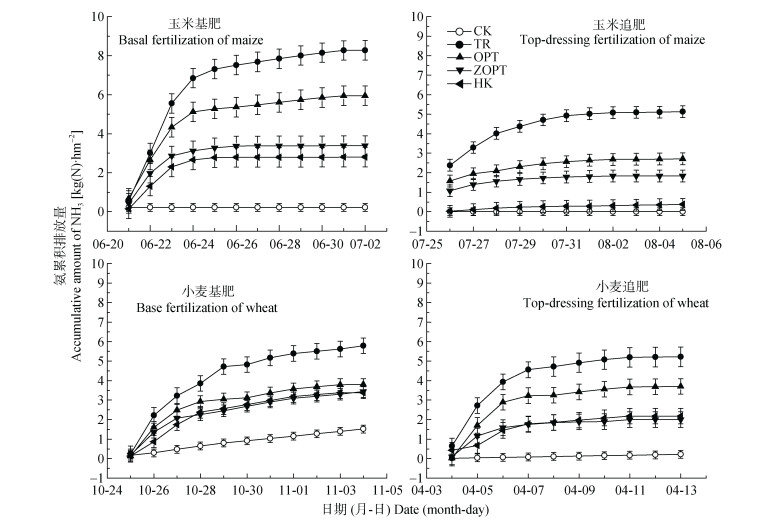

图4冬小麦季和夏玉米季不同施肥处理典型施肥期氨累积挥发量
试验各处理介绍见表 1
Figure4.Cumulative ammonia volatilization in typical fertilization periods of different fertilization treatments in winter wheat and summer maize seasons
The description of each treatment is shown in the table 1.


下载: 全尺寸图片幻灯片

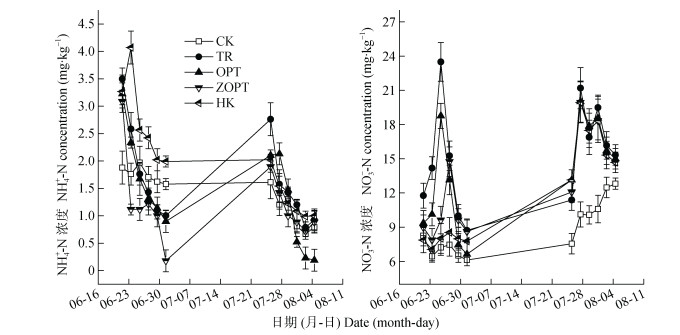

图5不同施肥处理夏玉米季土壤NH4-N和NO3-N浓度动态变化
试验各处理介绍见表 1
Figure5.Dynamics of soil NH4-N and NO3-N concentrations under different fertilization treatments in summer maize seasons
The description of each treatment is shown in the table 1.


下载: 全尺寸图片幻灯片

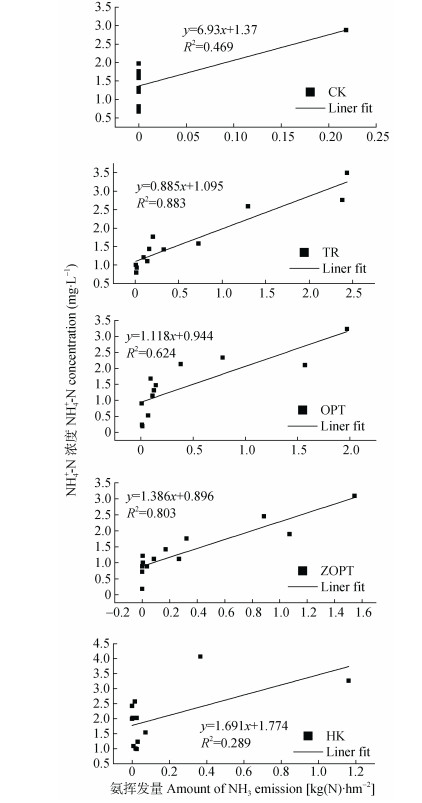

图6不同施肥处理夏玉米季氨挥发量与土壤NH4-N浓度的相关性
试验各处理介绍见表 1
Figure6.Correlation between ammonia emissions and soil NH4-N concentration under different fertilization treatments in summer maize season
The description of each treatment is shown in the table 1.


下载: 全尺寸图片幻灯片

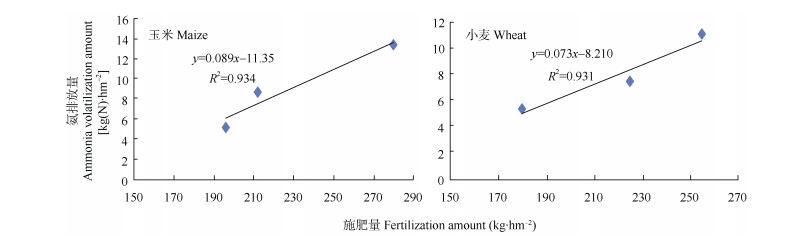

图7砂姜黑土农田夏玉米季和冬小麦季氨挥发与施肥量的响应关系
Figure7.Correlation between ammonia volatilization in summer maize and winter wheat seasons and fertilizer application rate in lime concretion black soil


下载: 全尺寸图片幻灯片

表1砂姜黑土冬小麦-夏玉米轮作农田不同施肥处理的施肥量
Table1.Fertilization amounts of different fertilization treatments of winter wheat-summer maize rotation system in lime concretion black soil ?kg·hm-2
作物
Crop
处理
Treatment
氮肥N fertilizer 磷肥
P2O5
钾肥
K2O
总量
Total
基肥
Basal
追肥
Topdressing
夏玉米
Summer maize
CK 0 0 0 0 0
TR 280 168 112 67.5 67.5
OPT 232 139 93 67.5 67.5
ZOPT 196 118 78 67.5 67.5
HK 202 202 0 67.5 67.5
冬小麦
Winter wheat
CK 0 0 0 90.0 90.0
TR 255 153 102 90.0 90.0
OPT 225 135 90 90.0 90.0
ZOPT 180 108 72 90.0 90.0
HK 225 225 0 90.0 90.0
HK处理的氮肥为聚脲甲醛缓释肥; 其他处理氮肥为尿素。The nitrogen fertilizer of the treatment HK is a polyurea formaldehyde slow-release fertilizer; the urea is used in other treatments.


下载: 导出CSV
表2冬小麦和夏玉米季不同施肥处理作物产量、氮肥利用率、氨净挥发量及排放系数
Table2.Crop yields, nitrogen fertilizer utilization rates, net ammonia emissions and emission factors in winter wheat and summer maize seasons under different fertilization treatments
作物
Crop
处理
Treatment
施氮量
Nitrogen fertilization rate (kg·hm-2)
籽粒产量
Grain yield (t·hm-2)
地上部吸氮量
Nitrogen uptake of
overground part (kg·hm-2)
氮肥利用
率Nitrogen use efficiency (%)
氨挥发量
Ammonia emission (kg·hm-2)
氨排放系数
Ammonia emission factor (%)
夏玉米
Summer maize
CK 0 3.42d 44.3d / / /
TR 280 8.84a 154.4b 39.3c 13.4a 4.7a
OPT 232 8.75b 152.7bc 46.7b 8.7b 3.6b
ZOPT 196 8.68c 151.2c 54.5a 5.2c 2.6c
HK 202 9.04a 158.7a 56.6a 3.2d 1.5d
冬小麦
Winter wheat
CK 0 3.4d 69.0d / / /
TR 255 8.3b 174.3b 41.3c 11.1a 3.6a
OPT 225 8.9a 186.9a 52.4a 7.5b 2.6b
ZOPT 180 7.0c 159.0c 50.0b 5.4c 2.1c
HK 225 9.1a 186.6a 52.3a 5.6c 1.7d
试验各处理介绍见表 1。不同小写字母表示P < 0.05水平差异显著性。The description of each treatment is shown in the table 1. Different lowercase letters in the same column mean significant differences among different treatments at 0.05 level.


下载: 导出CSV

参考文献(31)
[1]张福锁, 王激清, 张卫峰, 等.中国主要粮食作物肥料利用率现状与提高途径[J].土壤学报, 2008, 45(5): 915-924
ZHANG F S, WANG J Q, ZHANG W F, et al. Nutrient use efficiencies of major cereal crops in China and measures for improvement[J]. Acta Pedologica Sinica, 2008, 45(5): 915-924
[2]胡春胜, 张玉铭, 秦树平, 等.华北平原农田生态系统氮素过程及其环境效应研究[J].中国生态农业学报, 2018, 26(10): 1501-1514 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=2018-1009&flag=1
HU C S, ZHANG Y M, QIN S P, et al. Nitrogen processes and related environmental effects on agro-ecosystem in the North China Plain[J]. Chinese Journal of Eco-Agriculture, 2018, 26(10): 1501-1514 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=2018-1009&flag=1
[3]巨晓棠, 谷保静.氮素管理的指标[J].土壤学报, 2017, 54(2): 281-296
JU X T, GU B J. Indexes of nitrogen management[J]. Acta Pedologica Sinica, 2017, 54(2): 281-296
[4]卢丽丽, 吴根义.农田氨排放影响因素研究进展[J].中国农业大学学报, 2019, 24(1): 149-162 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgnydxxb201901019
LU L L, WU G Y. Advances in affecting factors of ammonia emission in farmland[J]. Journal of China Agricultural University, 2019, 24(1): 149-162 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgnydxxb201901019
[5]董文旭, 吴电明, 胡春胜, 等.华北山前平原农田氨挥发速率与调控研究[J].中国生态农业学报, 2011, 19(5): 1115-1121 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=20110521&flag=1
DONG W X, WU D M, HU C S, et al. Ammonia volatilization and control mechanisms in the piedmont of North China Plain[J]. Chinese Journal of Eco-Agriculture, 2011, 19(5): 1115-1121 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=20110521&flag=1
[6]PAN Y P, TIAN S L, LIU D W, et al. Source apportionment of aerosol ammonium in an ammonia-rich atmosphere: An isotopic study of summer clean and hazy days in urban Beijing[J]. Journal of Geophysical Research: Atmospheres, 2018, 123(10): 5681-5689 doi: 10.1029/2017JD028095
[7]ZHANG Q Q, PAN Y P, HE Y X, et al. Bias in ammonia emission inventory and implications on emission control of nitrogen oxides over North China Plain[J]. Atmospheric Environment, 2019, 214: 116869 doi: 10.1016/j.atmosenv.2019.116869
[8]WANG C, YIN S S, BAI L, et al. High-resolution ammonia emission inventories with comprehensive analysis and evaluation in Henan, China, 2006-2016[J]. Atmospheric Environment, 2018, 193: 11-23 doi: 10.1016/j.atmosenv.2018.08.063
[9]王玥凯, 郭自春, 张中彬, 等.不同耕作方式对砂姜黑土物理性质和玉米生长的影响[J].土壤学报, 2019, 56(6): 1370-1380 http://kns.cnki.net/KCMS/detail/detail.aspx?dbcode=CJFD&filename=TRXB201906009
WANG Y K, GUO Z C, ZHANG Z B, et al. Effect of tillage practices on soil physical properties and maize growth in Shajiang black soil[J]. Acta Pedologica Sinica, 2019, 56(6): 1370-1380 http://kns.cnki.net/KCMS/detail/detail.aspx?dbcode=CJFD&filename=TRXB201906009
[10]刘卫玲, 程思贤, 李娜, 等.深松(耕)时期与方式对砂姜黑土耕层养分和冬小麦、夏玉米产量的影响[J].河南农业科学, 2020, 49(3): 8-16 http://www.cnki.com.cn/Article/CJFDTotal-HNNY202003003.htm
LIU W L, CHENG S X, LI N, et al. Effects of time and pattern of deep tillage on topsoil nutrient content, yield of winter wheat and summer maize in lime concretion black soil[J]. Journal of Henan Agricultural Sciences, 2020, 49(3): 8-16 http://www.cnki.com.cn/Article/CJFDTotal-HNNY202003003.htm
[11]叶新新, 王冰清, 刘少君, 等.耕作方式和秸秆还田对砂姜黑土碳库及玉米小麦产量的影响[J].农业工程学报, 2019, 35(14): 112-118 http://www.cnki.com.cn/Article/CJFDTotal-NYGU201914014.htm
YE X X, WANG B Q, LIU S J, et al. Influence of tillage and straw retention on soil carbon pool and maize-wheat yield in Shajiang black soil[J]. Transactions of the Chinese Society of Agricultural Engineering, 2019, 35(14): 112-118 http://www.cnki.com.cn/Article/CJFDTotal-NYGU201914014.htm
[12]李欠欠.脲酶抑制剂LIMUS对我国农田氨减排及作物产量和氮素利用的影响[D].北京: 中国农业大学, 2014
LI Q Q. Effect of inhibitor LIMUS on ammonia mitigation and crop yield and nitrogen use efficiency in different croplands of China[D]. Beijing: Chinese Agricultural University, 2014
[13]张庆利, 张民, 杨越超, 等.碳酸氢铵和尿素在山东省主要土壤类型上的氨挥发特性研究[J].土壤通报, 2002, 33(1): 32-34
ZHANG Q L, ZHANG M, YANG Y C, et al. Volatilization of ammonium bicarbonate and urea in main soil of Shandong Province[J]. Chinese Journal of Soil Science, 2002, 33(1): 32-34
[14]丁世杰, 熊淑萍, 马新明, 等.耕作方式与施氮量对小麦-玉米复种系统玉米季土壤氮素转化及产量的影响[J].应用生态学报, 2017, 28(1): 142-150
DING S J, XIONG S P, MA X M, et al. Effects of tillage and nitrogen application rate on soil nitrogen transformation and yield in a winter wheat/summer maize multiple cropping system[J]. Chinese Journal of Applied Ecology, 2017, 28(1): 142-150
[15]赵蒙, 曾科, 姚元林, 等.聚脲甲醛缓释肥对太湖稻麦轮作体系氨挥发及产量的影响[J].植物营养与肥料学报, 2019, 25(1): 55-63 http://www.cnki.com.cn/Article/CJFDTotal-ZWYF201901007.htm
ZHAO M, ZENG K, YAO Y L, et al. Effects of polyurea-formaldehyde on ammonia volatilization and yields under rice-wheat rotation in Taihu Region[J]. Plant Nutrition and Fertilizer Science, 2019, 25(1): 55-63 http://www.cnki.com.cn/Article/CJFDTotal-ZWYF201901007.htm
[16]鲍士旦.土壤农化分析[M].北京:中国农业出版社, 2000: 80
BAO S D. Soil and Agricultural Chemistry Analysis[M]. Beijing: China Agriculture Press, 2000: 80
[17]姜涛, 倪皖莉, 朱晓峰, 等.砂姜黑土夏花生氮磷钾吸收与分配特征研究[J].中国农学通报, 2019, 35(35): 73-78
JIANG T, NI W L, ZHU X F, et al. Characteristics of nitrogen, phosphorus and potassium absorption and distribution of summer peanut in lime concretion black soil region[J]. Chinese Agricultural Science Bulletin, 2019, 35(35): 73-78
[18]翟学旭, 王振林, 戴忠民, 等.灌溉与非灌溉条件下黄淮冬麦区不同追氮时期农田土壤氨挥发损失研究[J].植物营养与肥料学报, 2013, 19(1): 54-64
ZHAI X X, WANG Z L, DAI Z M, et al. Ammonia volatilization loss in Huang Huai winter wheat cultivation areas under irrigated and rainfed conditions[J]. Plant Nutrition and Fertilizer Science, 2013, 19(1): 54-64
[19]吕宏菲, 马星霞, 杨改河, 等.秸秆还田对关中地区麦玉复种体系土壤氨排放的影响[J].中国生态农业学报(中英文), 2020, 28(4): 513-522 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=2020-0405&flag=1
LYU H F, MA X X, YANG G H, et al. Effect of straw returning on ammonia emissions from soil in a wheat-maize multiple cropping system in the Guanzhong region, China[J]. Chinese Journal of Eco-Agriculture, 2020, 28(4): 513-522 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=2020-0405&flag=1
[20]郭成士, 马东豪, 张丛志, 等.典型砂姜黑土黑色物质提取方法及成份研究[J].土壤学报, 2020, 17(1): 23-38
GUO C S, MA D H, ZHANG C Z, et al. Extraction method and composition of black matter in typical Shajiang Calci-Aquic Vertisols in China[J]. Acta Pedologica Sinica, 2020, 17(1): 23-38
[21]王擎运, 杨远照, 徐明岗, 等.长期秸秆还田对砂姜黑土矿质复合态有机质稳定性的影响[J].土壤学报, 2019, 56(5): 1108-1117
WANG Q Y, YANG Y Z, XU M G, et al. Effects of long-term straw returning on stability of mineral-complexed organic matter in Shajiang black soil[J]. Acta Pedologica Sinica, 2019, 56(5): 1108-1117
[22]董文旭, 胡春胜, 陈素英, 等.保护性耕作对冬小麦-夏玉米农田氮肥氨挥发损失的影响[J].中国农业科学, 2013, 46(11): 2278-2284 http://d.wanfangdata.com.cn/Periodical/zgnykx201311012
DONG W X, HU C S, CHEN S Y, et al. Effect of conservation tillage on ammonia volatilization from nitrogen fertilizer in winter wheat-summer maize cropping system[J]. Scientia Agricultura Sinica, 2013, 46(11): 2278-2284 http://d.wanfangdata.com.cn/Periodical/zgnykx201311012
[23]山楠, 赵同科, 毕晓庆, 等.不同施氮水平下小麦田氨挥发规律研究[J].农业环境科学学报, 2014, 33(9): 1858-1865 http://www.cnki.com.cn/Article/CJFDTotal-NHBH201409028.htm
SHAN N, ZHAO T K, BI X Q, et al. Ammonia volatilization from wheat soil under different nitrogen rates[J]. Journal of Agro-Environment Science, 2014, 33(9): 1858-1865 http://www.cnki.com.cn/Article/CJFDTotal-NHBH201409028.htm
[24]张翀, 韩晓阳, 李雪倩, 等.川中丘陵区紫色土冬小麦/夏玉米轮作氨挥发研究[J].中国生态农业学报, 2015, 23(11): 1359-1366 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=20151102&flag=1
ZHANG C, HAN X Y, LI X Q, et al. Ammonia volatilization in winter wheat/summer maize rotation system of purple soil in hilly area of Central Sichuan Basin[J]. Chinese Journal of Eco-Agriculture, 2015, 23(11): 1359-1366 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=20151102&flag=1
[25]杨晓云, 杨虎德.不同施肥条件下北方夏玉米农田土壤氨挥发研究[J].干旱区资源与环境, 2016, 30(11): 137-142
YANG X Y, YANG H D. Soil ammonia volatilization under the different fertilization in summer corn farmland in North China[J]. Journal of Arid Land Resources and Environment, 2016, 30(11): 137-142
[26]田玉华, 曾科, 尹斌.基于不同监测方法的太湖地区稻田基蘖肥期氨排放研究[J].土壤学报, 2019, 56(5): 1180-1189
TIAN Y H, ZENG K, YIN B. Ammonia emission following basal and tillering fertilization in Taihu Lake region relative to monitoring techniques[J]. Acta Pedologica Sinica, 2019, 56(5): 1180-1189
[27]张玉铭, 胡春胜, 董文旭.华北太行山前平原农田氨挥发损失[J].植物营养与肥料学报, 2005, 11(3): 417-419
ZHANG Y M, HU C S, DONG W X. Ammonia volatilization from wheat-maize rotation field in the piedmont of Taihang[J]. Plant Nutrition and Fertilizer Science, 2005, 11(3): 417-419
[28]王旭刚, 郝明德, 陈磊, 等.长期施肥条件下小麦农田氨挥发损失的原位研究[J].植物营养与肥料学报, 2006, 12(1): 18-24
WANG X G, HAO M D, CHEN L, et al. In situ study of ammonia volatilization from wheat cropland under long-term continuous fertilization[J]. Plant Nutrition and Fertilizer Science, 2006, 12(1): 18-24
[29]黄巧义, 张木, 黄旭, 等.聚脲甲醛缓释氮肥一次性基施在双季稻上的应用效果[J].中国农业科学, 2018, 51(20): 3996-4006
HUANG Q Y, ZHANG M, HUANG X, et al. Effect of one-off application of poly urea-formaldehyde fertilizer under reduced N rate on double cropping rice[J]. Scientia Agricultura Sinica, 2018, 51(20): 3996-4006
[30]LIU T Q, HUANG J F, CHAI K B, et al. Effects of N fertilizer sources and tillage practices on NH3 volatilization, grain yield, and N use efficiency of rice fields in Central China[J]. Frontiers in Plant Science, 2018, 9: 385 doi: 10.3389/fpls.2018.00385
[31]姜超强, 卢殿君, 祖朝龙, 等.施用方式和氮肥种类对砂姜黑土氮素迁移的影响[J].土壤, 2018, 50(2): 248-255
JIANG C C, LU D J, ZU C L, et al. Effects of different fertilization methods and nitrogen fertilizers on nitrogen diffusion and migration in lime concretion black soil[J]. Soils, 2018, 50(2): 248-255
