李欢1,
艾宁2,
黄涛1,
顾继升1
1.宁夏回族自治区遥感测绘勘查院(宁夏回族自治区遥感中心) 银川 750000
2.宁夏回族自治区应急宣传教育中心 银川 750001
基金项目: 宁夏回族自治区重点研发计划一般项目2018BEG03069
详细信息
通讯作者:武丹, 主要从事遥感监测与研究工作。E-mail:wudannever@qq.com
中图分类号:F124.5;X24计量
文章访问数:177
HTML全文浏览量:11
PDF下载量:114
被引次数:0
出版历程
收稿日期:2020-03-26
录用日期:2020-04-27
刊出日期:2020-12-01
Predicting spatiotemporal changes in land use and habitat quality based on CA-Markov: A case study in central Ningxia, China
WU Dan1,,,LI Huan1,
AI Ning2,
HUANG Tao1,
GU Jisheng1
1. Remote Sensing Mapping and Surveying Institute of Ningxia Hui Autonomous Region(Remote Sensing Center of Ningxia Hui Autonomous Region), Yinchuan 750000, China
2. Emergency Publicity and Education Center of Ningxia Hui Autonomous Region, Yinchuan 750001, China
Funds: the Key R & D Program of Ningxia Hui Autonomous Region2018BEG03069
More Information
Corresponding author:WU Dan, E-mail:wudannever@qq.com
摘要
HTML全文
图
参考文献
相关文章
施引文献
资源附件
访问统计
摘要
摘要:探究干旱半干旱区土地利用结构动态变化特征，评估并预测生境质量，可为区域生态规划和恢复提供决策性依据。本研究以搭载OLI和ETM+传感器遥感影像和气象数据、社会经济数据等为基础，采用土地利用转移流概念、InVEST模型和CA-Markov模型研究2000-2030年宁夏中部干旱区土地利用和生境质量时空变化特征及规律，对未来情境进行模拟和预测。研究结果表明：宁夏中部干旱区土地系统结构变化与生态建设规划高度一致，具有黄河流域两侧集中分布的特征，土地系统综合动态度逐期减小，活跃度具有稳中有变、部分较活跃的特征。土地系统信息熵特征值呈逐年降低趋势。随着时间变化土地系统受人类活动干扰强度低，自我调整程度高，修复能力强，系统向稳定状态转化。2000-2015年研究区生态环境质量呈“U”型特征，以优秀等级为主。2015-2030年土地系统结构将发生显著变化，生境质量优秀、差和良好等级面积逐渐扩大，生态系统呈现稳定向好的趋势。本研究的多模型集成应用可为区域土地规划和生态恢复建设提供理论依据和支撑。
Abstract:The ecological impacts of land use have become a contested topic in ecological environmental research. An understanding of the land-use structure characteristics in arid and semi-arid areas allows for habitat quality assessment and prediction and provides a decision-making guide for regional ecological planning and restoration. Remote sensing apparatus equipped with an operational land imager and enhanced thematic mapper plus sensors, meteorological data, and socio-economic data were used to explore the temporal and spatial changes of land use and habitat quality in the arid area of central Ningxia, China, from 2000 to 2030. Land-use transfer flow, the InVEST model, and the CA-Markov model were used to simulate the habitat characteristics and laws and generate predictions. The land-use transfer flow, which explored the dynamic changes of the land system structure, showed significant results and explained the land-use transfer laws and spatial distribution characteristics. The land system structure changes were consistent with the ecological construction plan and had a concentrated distribution on both sides of the Yellow River basin. The land system's comprehensive dynamics gradually decreased and stabilized. The entropy value showed an annual downward trend, indicating that over time, with less human disturbances, the land can self-adjust and self-repair, creating a stable state. From 2000 to 2015, the ecological environment quality showed "U" shape characteristics, indicating an excellent habitat quality grade. From 2015 to 2030, the land system structure will undergo significant changes; the excellent, good, and poor habitat quality areas will gradually expand, and the ecosystem will stabilize and improve. The multi-model integration application can thus provide support for regional land planning and ecological restoration.
HTML全文
图12000-2015年宁夏中部干旱区土地利用变化图
Figure1.Maps of land use change in the arid regions of central Ningxia from 2000 to 2015
下载: 全尺寸图片幻灯片

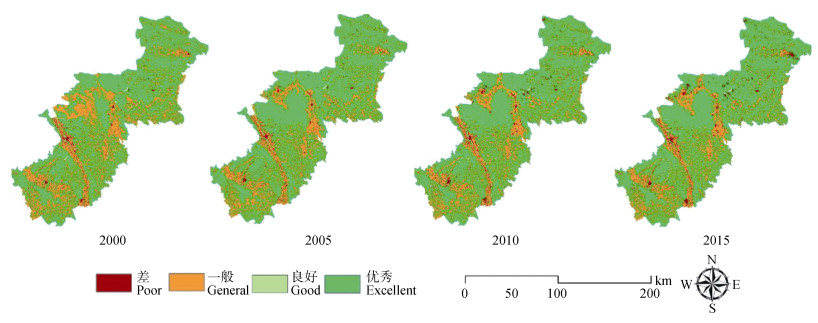

图2宁夏中部干旱区生境质量空间分布
Figure2.Spatial distribution of habitat quality in the arid regions of central Ningxia
下载: 全尺寸图片幻灯片

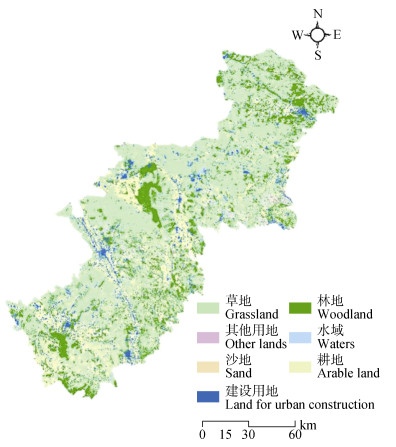

图3宁夏中部干旱区2030年土地利用预测图
Figure3.Forecast of land use in the arid regions of central Ningxia in 2030
下载: 全尺寸图片幻灯片

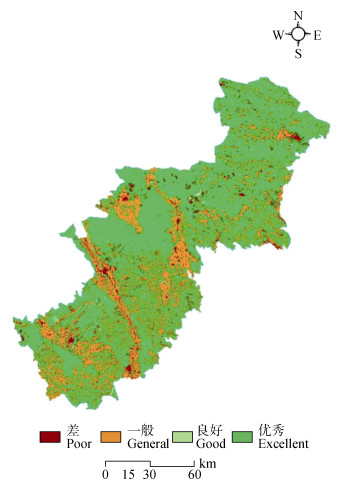

图4宁夏中部干旱区2030年生境质量预测图
Figure4.Prediction map of habitat quality in the arid regions of central Ningxia in 2030
下载: 全尺寸图片幻灯片表1生态胁迫因子属性表
Table1.Threat fader properties
| 胁迫因子 Stress factor | 最大影响距离 Maximum impact distance (km) | 权重 Weight | 距离递减率 Distance lapse rate |
| 农村居民地 Rural settlement | 5 | 0.2 | 1 |
| 工矿用地 Industrial land | 5 | 0.3 | 1 |
| 交通用地 Land for transportation | 10 | 0.4 | 1 |
| 水利设施用地 Land for water facilities | 5 | 0.1 | 1 |
| 城镇建设用地 Land for urban construction | 8 | 0.3 | 1 |
下载: 导出CSV表2不同土地利用类型的生境适宜性
Table2.Habitat suitabilities of different land use types
| 土地覆盖类型 Land cover type | 生境适宜性 Habitat suitability | 土地利用类型?Land use type | |||||
| 农村居民地 Rural residential areas | 城镇建设用地 Urban land | 工矿用地 Industrial and mining land | 交通用地 Traffic land | 水利设施用地 Water conservancy facility land | |||
| 林地?Woodland | 1 | 0.8 | 0.9 | 0.7 | 0.8 | 0.6 | |
| 草地?Grassland | 1 | 0.75 | 0.9 | 0.7 | 0.7 | 0.6 | |
| 沙地?Sand | 1 | 0.5 | 0.6 | 0.45 | 0.4 | 0.03 | |
| 其他用地?Other lands | 0.3 | 0.5 | 0.35 | 0.3 | 0.4 | 0.25 | |
| 水域?Waters | 1 | 0.5 | 0.6 | 0.3 | 0.4 | 0.5 | |
| 耕地?Arable land | 1 | 0.8 | 0.9 | 0.7 | 0.8 | 0.9 | |
| 建设用地 Construction land | 农村居民地?Rural settlement | 0 | 0 | 0 | 0 | 0 | 0 |
| 城镇建设用地 Land for urban construction | 0 | 0 | 0 | 0 | 0 | 0 | |
| 工矿用地?Industrial land | 0 | 0 | 0 | 0 | 0 | 0 | |
| 交通用地 Land for transportation | 0 | 0 | 0 | 0 | 0 | 0 | |
| 水利设施用地 Land for water facilities | 0 | 0 | 0 | 0 | 0 | 0 | |
下载: 导出CSV表32000-2015年宁夏中部干旱区土地利用动态度
Table3.Dynamic degrees of land use in the arid regions of central Ningxia from 2000 to 2015 ?
| 土地利用类型 Land use type | 2000-2005 | 2005-2010 | 2010-2015 | 2000-2015 | |
| 单一土地利用动态度 Dynamic degree of single land use | 草地?Grassland | 1.94 | 0.08 | 0.63 | 0.91 |
| 耕地?Arable land | -3.42 | -0.63 | -1.00 | -1.58 | |
| 建设用地?Land for urban construction | 2.35 | 3.84 | 2.50 | 3.32 | |
| 林地?Woodland | 4.47 | 1.01 | 0.19 | 1.98 | |
| 其他用地?Other lands | -1.77 | -1.03 | -1.89 | -1.45 | |
| 沙地?Sand | -8.15 | -4.13 | -3.73 | -4.12 | |
| 水域?Waters | 1.29 | 1.88 | -0.26 | 1.00 | |
| 综合利用动态度?Comprehensive dynamic degree of land use | 2.13 | 0.93 | 0.71 | 2.96 | |
下载: 导出CSV表42000-2015年宁夏中部干旱区主要土地利用类型动态度特征和土地信息熵
Table4.Dynamic characteristics of main land use types and information entropy of land in the arid regions of central Ningxia from 2000 to 2015
| 年份 Year | 土地利用类型动态度?Dynamic characteristics of land use (%) | 土地信息熵 Information entropy of land | ||||||
| 草地 Grassland | 耕地 Arable land | 建设用地 Land for urban construction | 林地 Woodland | 其他土地 Other lands | 沙地 Sand | 水域 Waters | ||
| 2000-2005 | 3.16 | 5.57 | 4.32 | 4.05 | 4.28 | 23.46 | 10.88 | 0.17 |
| 2005-2010 | 1.48 | 1.44 | 3.71 | 1.49 | 5.12 | 8.05 | 7.98 | 0.09 |
| 2010-2015 | 2.46 | 3.72 | 8.82 | 2.78 | 9.10 | 11.49 | 18.43 | 0.08 |
| 2000-2015 | 4.12 | 7.92 | 7.89 | 5.30 | 8.43 | 42.07 | 16.69 | 0.22 |
下载: 导出CSV表52000-2015年宁夏中部干旱区生境质量等级变化表
Table5.Habitat quality grade change table in the arid regions of central Ningxia from 2000 to 2015
| 生境质量等级 Habitat quality level | 2000 | 2005 | 2010 | 2015 | |||||||
| 面积 Area (km2) | 比例 Proportion (%) | 面积 Area (km2) | 比例 Proportion (%) | 面积 Area (km2) | 比例 Proportion (%) | 面积 Area (km2) | 比例 Proportion (%) | ||||
| 差?Poor | 484.32 | 2.59 | 518.32 | 2.77 | 639.64 | 3.42 | 694.92 | 3.71 | |||
| 一般?General | 6 169.65 | 32.97 | 5 132.98 | 27.43 | 4 949.24 | 26.45 | 4 721.34 | 25.23 | |||
| 良好?Good | 80.13 | 0.43 | 85.24 | 0.46 | 93.25 | 0.50 | 92.09 | 0.49 | |||
| 优秀?Excellent | 11 977.46 | 64.01 | 12 975.02 | 69.34 | 13 029.44 | 69.63 | 13 203.22 | 70.56 | |||
下载: 导出CSV表62000-2015年宁夏中部干旱区土地利用面积对比
Table6.Comparison of land use area in arid regions of central Ningxia from 2000 to 2015
| 土地覆盖类型 Land cover type | 2015年面积 Area in 2015 (km2) | 2030年面积 Area in 2030 (km2) |
| 草地?Grassland | 9 528.09 | 9 934.00 |
| 耕地?Arable land | 4 723.73 | 4 590.06 |
| 建设用地?Land for urban construction | 694.70 | 922.35 |
| 林地?Woodland | 2 494.09 | 2 866.32 |
| 其他用地?Other lands | 1 078.75 | 298.62 |
| 沙地?Sand | 114.76 | 8.21 |
| 水域?Waters | 92.06 | 106.62 |
下载: 导出CSV表72030年宁夏中部干旱区生境质量等级和对比表
Table7.Habitat quality levels and comparisons in the arid regions of central Ningxia in 2030
| 生境质量等级 Habitat quality level | 优秀 Excellent | 良好 Good | 一般 General | 差 Poor |
| 面积?Area (km2) | 13 900.81 | 106.67 | 3 781.41 | 922.68 |
| 占比?Proportion (%) | 0.70 | 0.01 | 0.24 | 0.05 |
| 面积变化 Change of area (km2) | 697.59 | 14.58 | -939.93 | 227.76 |
| 比例变化 Change of proportion (%) | 5.28 | 15.84 | -19.91 | 32.77 |
下载: 导出CSV参考文献
