Synergistic Enhancement of Gelling Properties of Oxidatively Damaged Myofibrillar Protein by Sodium Pyrophosphate and Transglutaminase
LI BaoLing,, LI Ying, FAN Xin, MA WenHui, CAO YunGang,School of Food and Biological Engineering, Shaanxi University of Science and Technology, Xi’an 710021
Abstract 【Objective】 This study was designed to explore the effects of sodium pyrophosphate (PP), transglutaminase (TG), and their combination (PP+TG) on the gelling properties of oxidatively damaged pork myofibrillar protein (MP), which was expected to provide a theoretical basis for the enhancement of functional properties of oxidatively damaged proteins. 【Method】 MP was extracted from porcine longissimus lumborum muscle, and oxidized using a lipoxygenase-linoleic acid oxidation system. Subsequently, PP (1 mmol∙L-1), TG (E:S=1:500) and their combination (PP+TG) were added and incorporated into the oxidatively damaged MP systems, respectively. The effects of different additive treatments on the secondary and tertiary structures of oxidatively damaged MP solution were investigated by circular dichroism spectroscopy and endogenous tryptophan fluorescence, respectively. The changes of cross-linking and aggregation of MP with different treatments were investigated through measuring particle size, solubility and SDS-PAGE. The textural properties of MP gels were measured by physical property tester, and the water holding capacity (WHC) was determined by centrifugation method. The whiteness of the MP gels was measured by spectrophotometer, and the microstructure of the MP gels was observed by a scanning electron microscopy. 【Result】 The results showed that PP treatment significantly changed the protein conformation, reduced the mean particle size and enhanced the solubility of oxidatively damaged MP, and obviously enhanced the gel strength and water holding capacity (P <0.05). The microstructure of gel with PP treatment was more regular, uniform and delicate than that of oxidatively damaged MP gel. TG treatment significantly improved the gel strength, but had no positive effect on the water holding capacity. While the MP gel with TG treatment had a compact microstructure with small pores, there were still irregular shape and rough surface. On the whole, the combination of PP and TG had the best synergistic effect. The gel strength and water holding capacity of oxidatively damaged MP under PP+TG treatment were significantly enhanced, and the gel performance was obviously better than that of non-oxidized MP. 【Conclusion】 The combination of PP and TG could effectively improve the gelling properties of oxidatively damaged MP. Keywords:myofibrillar protein;sodium pyrophosphate;transglutaminase;oxidation;gelling properties
PDF (1057KB)元数据多维度评价相关文章导出EndNote|Ris|Bibtex收藏本文 本文引用格式 李保玲, 李颖, 范鑫, 马文慧, 曹云刚. 焦磷酸钠与谷氨酰胺转氨酶对氧化损伤肌原纤维蛋白凝胶性能的协同改善效应[J]. 中国农业科学, 2021, 54(16): 3527-3536 doi:10.3864/j.issn.0578-1752.2021.16.014 LI BaoLing, LI Ying, FAN Xin, MA WenHui, CAO YunGang. Synergistic Enhancement of Gelling Properties of Oxidatively Damaged Myofibrillar Protein by Sodium Pyrophosphate and Transglutaminase[J]. Scientia Acricultura Sinica, 2021, 54(16): 3527-3536 doi:10.3864/j.issn.0578-1752.2021.16.014

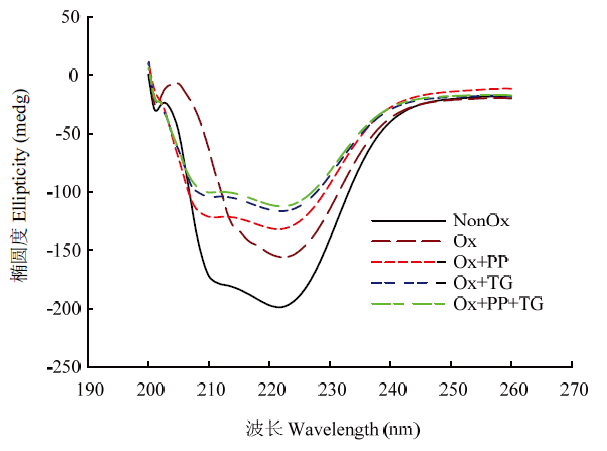

NonOx:未氧化 Non-oxidized;Ox:氧化 Oxidized;Ox+PP:氧化+焦磷酸钠 Oxidized+sodium pyrophosphate;Ox+TG:氧化+谷氨酰胺转氨酶 Oxidized+transglutaminase;Ox+PP+TG:氧化+焦磷酸钠+谷氨酰胺转氨酶 Oxidized+sodium pyrophosphate+transglutaminase。下同 The same as below Fig. 1Effects of different treatments on the structure of MP solution

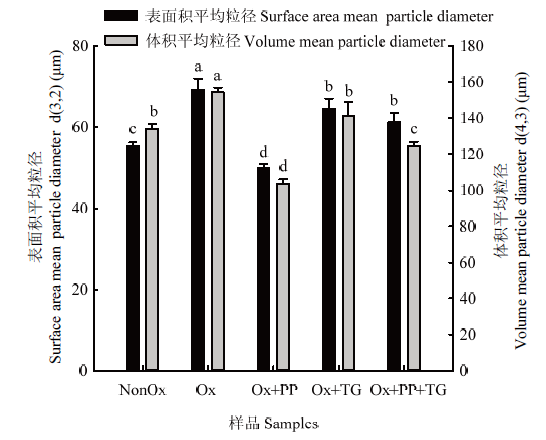

不同小写字母表示差异显著(P<0.05)。下同 Fig. 3Effects of different treatments on the particle size of MP solution
Different lowercase letters indicate significant difference (P<0.05). The same as below
2.4 PP和TG处理对氧化损伤MP交联聚集行为的影响

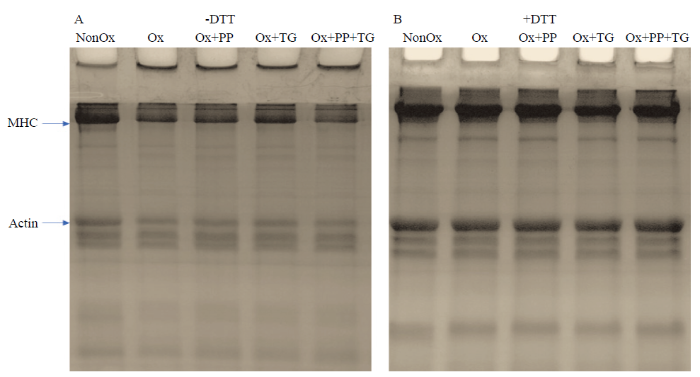

在非还原条件下(图4-A),与未氧化MP相比,氧化MP的肌球蛋白重链(myosin heavy chain,MHC)和肌动蛋白(Actin)的条带强度明显降低,同时在浓缩胶的顶端出现了蛋白聚集体;在还原条件下(图4-B),氧化损伤MP的MHC和Actin条带损失完全恢复,说明氧化诱导的聚合物主要与肌球蛋白重链和肌动蛋白有关[6,18],同时也表明这些聚合物主要通过二硫键的交联形成[19]。PP和TG单独使用时均未对氧化损伤MP的MHC和Actin条带强度产生显著影响,PP+TG处理下的MHC和Actin条带强度显著减弱。在还原条件下,PP处理下的氧化损伤MP顶端聚集物完全消失,而TG和PP+TG处理的MP顶端聚集物未完全消失,这表明部分聚集体是由TG催化形成的非S-S共价键连接产生,如ε-(γ-谷氨酰基)赖氨酸异肽键[20]。
XIONG YL. Protein Oxidation and ImpIications for MuscIe Food QuaIity. Antioxidants in Muscle Foods. Nutritional Strategies to Improve Quality New York: Wiley and Sons, 2000: 85-90. [本文引用: 1]
LUND MN, HEINONENM, BARON CP, ESTE?VEZM. Protein oxidation in muscle foods: A review Molecular Nutrition & Food Research, 2011, 55(1):83-95. [本文引用: 1]
ZHOU FB. Oxidative modification on porcine myofibrillar protein in relation to structural changes and functional properties [D]. Guangzhou: South China University of Technology, 2016. (in Chinese) [本文引用: 1]
MILLSJ, DONNISONA, BRIGHTWELLG. Factors affecting microbial spoilage and shelf-life of chilled vacuum-packed lamb transported to distant markets: A review Meat Science, 2014, 98(1):71-80. DOI:10.1016/j.meatsci.2014.05.002URL [本文引用: 1]
LUO SL, ZHANGP, GAOD. Research progress on the packaging materials and technology used for meat foods Food and Fermentation Industries, 2019, 45(4):220-228. (in Chinese) [本文引用: 1]
ZHANG LT, LIQ, HONGH, LUO YK. Prevention of protein oxidation and enhancement of gel properties of silver carp (Hypophthalmichthys molitrix) surimi by addition of protein hydrolysates derived from surimi processing by-products Food Chemistry, 2020, 316:126343. DOI:10.1016/j.foodchem.2020.126343URL [本文引用: 2]
XU CC, QU YH, HOPKINS DL, LIUC, WANGB, GAO YF, LUO HL. Dietary lycopene powder improves meat oxidative stability in Hu lambs Journal of the Science of Food and Agriculture, 2019, 99(3):1145-1152. DOI:10.1002/jsfa.2019.99.issue-3URL [本文引用: 1]
JONGBERGS, SKOV SH, TORNGREN MA, SKIBSTED LH, LUND MN. Effect of white grape extract and modified atmosphere packaging on lipid and protein oxidation in chill stored beef patties Food Chemistry, 2011, 128(2):276-283. DOI:10.1016/j.foodchem.2011.03.015URL [本文引用: 1]
LI YQ. Protein oxidation-induced structure and function changes of common carp (Cyprinus carpio) protein and its control technology Harbin: Northeast Agricultural University, 2013. (in Chinese) [本文引用: 1]
CAO YG, TRUE AD, CHENJ, XIONG YL. Dual role (anti-and pro-oxidant) of Gallic acid in mediating myofibrillar protein gelation and gel in vitro digestion Journal of Agricultural and Food Chemistry, 2016, 64(15):3054-3061. DOI:10.1021/acs.jafc.6b00314URL [本文引用: 2]
CAO YG. Effect of plant-derived polyphenols on oxidative stability and functional properties of meat proteins: Mechanism and application [D]. Wuxi: Jiangnan University, 2016. (in Chinese) [本文引用: 2]
LI CQ. Mechaism of transglutaminase-catalyzed cross-linking of oxidatively stressed myofibrillar protein [D]. Wuxi: Jiangnan University, 2013. (in Chinese) [本文引用: 1]
SHEN QW, SWARTZ DR. Influence of salt and pyrophosphate on bovine fast and slow myosin S1 dissociation from actin Meat Science, 2010, 84(3):364-370. DOI:10.1016/j.meatsci.2009.09.003URL [本文引用: 1]
YOKOYAMAK, NION, KIKUCHIY. Properties and applications of microbial transglutaminase Applied Microbiology and Biotechnology, 2004, 64(4):447-454. DOI:10.1007/s00253-003-1539-5URL [本文引用: 1]
PARKD, XIONG YL. Oxidative modification of amino acids in porcine myofibrillar protein isolates exposed to three oxidizing systems Food Chemistry, 2007, 103(2):607-616. DOI:10.1016/j.foodchem.2006.09.004URL [本文引用: 1]
XIA XF, KONG BH, XIONG YL, REN YM. Decreased gelling and emulsifying properties of myofibrillar protein from repeatedly frozen-thawed porcine longissimus muscle are due to protein denaturation and susceptibility to aggregation Meat Science, 2010, 85(3):481-486. DOI:10.1016/j.meatsci.2010.02.019URL [本文引用: 1]
ZHANGX, YANG YL, MAY, WANG JY. Effects of pH on the non-covalent forces and structure of myofibrillar protein and heat induced gel Scientia Agricultura Sinica, 2017, 50(3):564-573. (in Chinese) [本文引用: 1]
LIUG, XIONG YL, BUTTERFIELD DA. Chemical, physical, and gel-forming properties of oxidized myofibrils and whey-and soy-protein isolates Journal of Food Science, 2000, 65(5):811-818. DOI:10.1111/jfds.2000.65.issue-5URL [本文引用: 1]
CAO YG, MA WH, AI NS, YAN LL, ZHAO QQ, MIN HW, BAIX, HUANG JR. Effects of different oxidation intensities on the structure and gel properties of myofibrillar protein Food Science, 2019, 40(20):21-27. (in Chinese) [本文引用: 1]
RAMIREZ-SUAREZ JC, XIONG YL. Transglutaminase cross- linking of whey/myofibrillar proteins and the effect on protein gelation Journal of Food Science, 2002, 67(8):2885-2891. DOI:10.1111/jfds.2002.67.issue-8URL [本文引用: 1]
XIA XF, KONG BH, GUO YY, LIUQ. Effect of freeze-thawing cycles on the quality properties and microstructure of pork muscle Scientia Agricultura Sinica, 2009, 42(3):982-988. (in Chinese) [本文引用: 1]
CAO YG, XIONG YL. Chlorogenic acid-mediated gel formation of oxidatively stressed myofibrillar protein Food Chemistry, 2015, 180:235-243. DOI:10.1016/j.foodchem.2015.02.036URL [本文引用: 1]
WANGC, LIX, DENG SY, WANGH, ZHANG CH. Effects of hydroxyl radicals oxidation on structure and hydration properties of bovine serum albumin Scientia Agricultura Sinica, 2017, 50(15):3013-3023. (in Chinese) [本文引用: 1]
SUNY. Effect of structural-changes induced by pyrophosphate on the cross-linking action of pork myosin by TGase [D]. Shenyang: Shenyang Agricultural University, 2019. (in Chinese) [本文引用: 1]
HERRERO AM, CAMBERO MI, ORDÓÑEZ JA, DE LA HOZL, CARMONAP. Raman spectroscopy study of the structural effect of microbial transglutaminase on meat systems and its relationship with textural characteristics Food Chemistry, 2008, 109(1):25-32. DOI:10.1016/j.foodchem.2007.12.003URL [本文引用: 1]
CAO YG, MA WH, WANG JK, ZHANG SH, WANG ZY, ZHAOJ, FANX, ZHANG DQ. Influence of sodium pyrophosphate on the physicochemical and gelling properties of myofibrillar proteins under hydroxyl radical-induced oxidative stress Food & Function, 2020, 11(3):1996-2004. [本文引用: 1]
LI FF, WANGB, KONG BH, SHIS, XIA XF. Decreased gelling properties of protein in mirror carp (Cyprinus carpio) are due to protein aggregation and structure deterioration when subjected to freeze-thaw cycles Food Hydrocolloids, 2019, 97:105223. DOI:10.1016/j.foodhyd.2019.105223URL [本文引用: 1]
CAO YG, MA WH, HUANG JR, XIONG YL. Effects of sodium pyrophosphate coupled with catechin on the oxidative stability and gelling properties of myofibrillar protein Food Hydrocolloids, 2020, 104:105722. DOI:10.1016/j.foodhyd.2020.105722URL [本文引用: 3]
BAO YL, BOERENS, ERTBJERGP. Myofibrillar protein oxidation affects filament charges, aggregation and water-holding Meat Science, 2018, 135:102-108. DOI:10.1016/j.meatsci.2017.09.011URL [本文引用: 1]
HU ZL, ZOU YF, LIN YH, PUQ, XU XL. Effect of oxidation degree on heat-induced gel formation and physico-chemical properties of myofibrillar protein Food Science, 2013, 34(17):19-23. (in Chinese) [本文引用: 1]
SRINIVASANS, HULTIN HO. Chemical, physical, and functional properties of cod proteins modified by a nonenzymic free-radical- generating system Journal of Agricultural and Food Chemistry, 1997, 45(2):310-320. DOI:10.1021/jf960367gURL [本文引用: 1]
LI CQ, XIONG YL. Mild oxidation promotes myosin S2 cross-linking by microbial transglutaminase Food Chemistry, 2019, 287:390-397. DOI:10.1016/j.foodchem.2019.02.097URL [本文引用: 1]
HWANG JS, LAI KM, HSU KC. Changes in textural and rheological properties of gels from tilapia muscle proteins induced by high pressure and setting Food Chemistry, 2007, 104(2):746-753. DOI:10.1016/j.foodchem.2006.11.075URL [本文引用: 1]
YANG YL, ZHOUL, YOUY, TANG XZ, WEI SM. The effects of oxidation on textural properties and water holding capacity of heat-induced myofibrillar protein gel Scientia Agricultura Sinica, 2018, 51(18):3570-3581. (in Chinese) [本文引用: 1]
ZHOU FB, ZHAO MM, SU GW, CUIC, SUN WZ. Gelation of salted myofibrillar protein under malondialdehyde-induced oxidative stress Food Hydrocolloids, 2014, 40:153-162. DOI:10.1016/j.foodhyd.2014.03.001URL [本文引用: 1]
LIY, SUN HM, ZHANG CH, BAI YY, WANG ZY. Analysis of frozen beef protein oxidation effect during thawing Scientia Agricultura Sinica, 2013, 46(7):1426-1433. (in Chinese) [本文引用: 1]
JULAVITTAYANUKULO, BENJAKULS, VISESSANGUANW. Effect of phosphate compounds on gel-forming ability of surimi from bigeye snapper (Priacanthus tayenus) Food Hydrocolloids, 2006, 20(8):1153-1163. DOI:10.1016/j.foodhyd.2005.12.007URL [本文引用: 1]
SHAO JH, DENG YM, JIAN, LI RR, CAO JX, LIU DY, LI JR. Low-field NMR determination of water distribution in meat batters with NaCl and polyphosphate addition Food Chemistry, 2016, 200:308-314. [本文引用: 1]
