Abstract 【Objective】The purpose of this study was to investigate the effects of tillage with mulching on soil aggregate structure and water use efficiency of potato in southern Ningxia where is a typical semiarid rain-fed area. 【Method】A four years term field experiment of three growing season was carried out from 2013 to 2016, and three tillage methods (subsoiling, no tillage and ploughing) with three mulching measures (straw mulching, film mulching and no mulching) were set up to study the effects of different tillage methods combined with mulching measures on soil aggregate quantity, soil water storage capacity, potato yield and water use efficiency. 【Result】 Tillage methods, mulching measures and their interaction could significantly increase the >0.25 mm aggregate size fraction in 0-40 cm layer. In 0-20 cm layer, compared with ploughing tillage without mulching treatment, subsoiling with straw mulching treatment significantly increased the >0.25 mm aggregate size fraction by 14.2% and 16.9% in dry year (2016) and deficit year (2014), respectively, while no tillage with straw mulching treatment was significantly increased by 8.5% in the normal year (2015). In 20-40 cm soil layer, subsoiling with straw mulch in dry year, subsoiling with film mulch in deficit year, and no tillage with straw mulch in normal year had the best effects in the >0.25 mm aggregate size fraction, which were significantly increased by 18.2%, 21.5% and 18.7%, respectively, compared with ploughing tillage without mulching. The tillage methods, mulching measures, and their interactions had significant effects on the soil water storage (0-200 cm). Compared with ploughing without mulching treatment, subsoiling with straw mulching treatment significantly increased the mean soil water storage in fallow period by 29.6%, 9.3%, and 11.4%, respectively. Compared with ploughing tillage without mulching, subsoiling with straw mulching treatment in dry year and deficit year significantly increased the mean soil water storage in key growth period by 21.9% and 28.3%, respectively, while no tillage with straw mulching treatment in normal year significantly increased the mean soil water storage in key growth period by 17.1%. In deficit year, the mulching methods and the interaction of tillage with mulching had significant effects on the yield and water use efficiency of potato, while no significances were found among the tillage methods. Compared with the ploughing without mulching, no tillage with straw mulch significantly increased the potato yield and water use efficiency by 51.8% and 50.5%, respectively. In normal year and dry year, the tillage methods, mulching measures and their interactions had highly significant effects on the potato yield and water use efficiency, and treatment of subsoiling with straw mulch had the best effect. The yield and water use efficiency of subsoiling with straw mulching treatment was 56.19% and 44.84% higher than that of ploughing tillage without mulching, respectively. 【Conclusion】Tillage combined with mulching could improve soil aggregate structure, significantly enhance soil water storage and moisture conservation capacity in fallow and growth periods, and significantly improve potato yield and water use efficiency. Subsoiling combined with straw mulch in normal and dry years, and no tillage combined with straw mulch in deficit years could achieve continuous yield increase of potato in southern Ningxia. Keywords:tillage with mulching;soil aggregate;soil water;potato yield;water use efficiency
PDF (1040KB)元数据多维度评价相关文章导出EndNote|Ris|Bibtex收藏本文 本文引用格式 苗芳芳, 勉有明, 普雪可, 吴春花, 周永瑾, 侯贤清. 耕作覆盖对宁南旱区土壤团粒结构及马铃薯水分利用效率的影响[J]. 中国农业科学, 2021, 54(11): 2366-2376 doi:10.3864/j.issn.0578-1752.2021.11.010 MIAO FangFang, MIAN YouMing, PU XueKe, WU ChunHua, ZHOU YongJin, HOU XianQing. Effects of Tillage with Mulching on Soil Aggregate Structure and Water Use Efficiency of Potato in Dry-Farming Area of Southern Ningxia[J]. Scientia Acricultura Sinica, 2021, 54(11): 2366-2376 doi:10.3864/j.issn.0578-1752.2021.11.010
Table 2 表2 表2不同处理下0—40 cm土层>0.25 mm粒径土壤团聚体数量(DR0.25 mm, %) Table 2Content of >0.25 mm aggregates at 0-40 cm soil layer under different treatments
处理 Treatment
2014
2015
2016
0-20 cm
20-40 cm
0-20 cm
20-40 cm
0-20 cm
20-40 cm
BT
70.39
72.25
70.39
72.25
70.39
72.25
NT
BM
64.79c
64.62c
71.19b
70.88b
72.98c
75.02b
JM
68.56b
70.64b
75.88a
76.92a
79.37a
80.18a
DM
72.16a
79.16a
72.50b
70.58b
75.35b
79.56a
ST
BM
69.92c
76.52c
72.18b
68.60ab
74.38c
74.60c
JM
86.61a
84.67b
74.90a
69.93a
80.81a
85.80a
DM
80.95b
89.10a
72.72b
68.41b
77.01b
77.36b
CT
BM
74.06c
73.35a
69.97b
64.78b
70.76c
72.60b
JM
78.50b
72.35a
75.56a
69.86a
79.54a
80.34a
DM
85.74a
73.20a
72.70a
69.43a
77.13b
78.45a
F
T
228.10**
108.03**
16.03*
58.35**
14.35*
23.27**
M
330.36**
276.32**
93.92**
19.25**
233.24**
94.67**
T×M
65.52**
76.71**
74.14**
21.14**
7.63**
9.50**
BT:处理前;NT:免耕;ST:深松;CT翻耕;BM:不覆盖;JM:秸秆覆盖;DM地膜覆盖。T表示耕作;M表示覆盖;T×M表示耕作与覆盖的交互作用。不同小写字母表示同一主因素处理下各副因素间差异达显著水平(P<0.05)。*表示差异显著(P<0.05),**表示差异极显著(P<0.01),ns表示差异不显著(P>0.05)。下同 BT: before treating; NT: no-tillage; ST: subsoiling; CT: ploughing; BM: no mulch; JM: straw mulching; DM: polythene mulch. T: tillage; M: mulch; T×M: interaction effects between tillage with mulch. Values followed by different letters within the secondary factors under the same primary factor treatment has reached a significant level at P<0.05. * indicates significance (P<0.05), ** indicates extremely significant (P<0.01), ns indicates no significance (P>0.05). The same as below

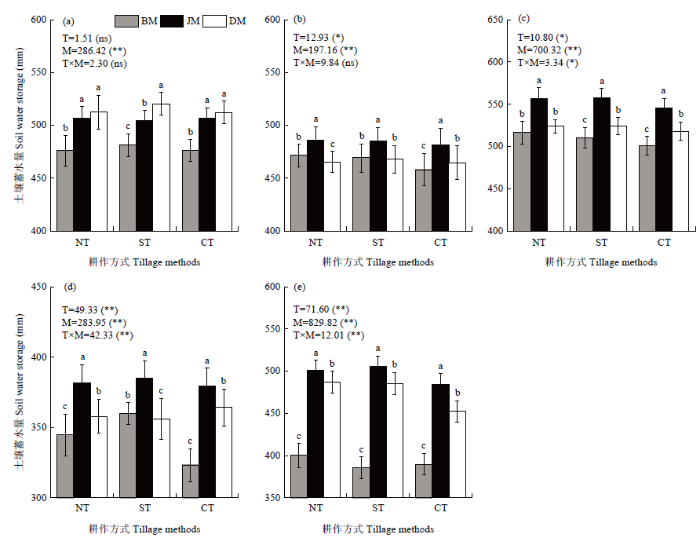

(a):2013—2014年休闲末期土壤蓄水量;(b):2014—2015年休闲初期土壤蓄水量,(c):2014—2015年休闲末期土壤蓄水量,(d):2015—2016年休闲初期土壤蓄水量,(e):2015—2016年休闲末期土壤蓄水量。同时期不同小写字母表示在0.05水平差异显著。*表示差异显著(P<0.05),**表示差异极显著(P<0.01),ns表示差异不显著(P>0.05)。下同 Fig. 2Effects of tillage with mulch measures on soil water storage during the fallow period
(a): Soil water storage at the end of leisure during 2013-2014; (b): Soil water storage at the beginning of leisure from 2014 to 2015; (c): Soil water storage at the end of leisure during 2014-2015; (d): Soil water storage at the beginning of leisure from 2015 to 2016; (e): Soil water storage at the end of leisure during 2015-2016. Values followed by different lowercase letters within the same stage are significantly different at P<0.05. * Indicates significance (P<0.05), ** Indicates extremely significant (P<0.01), ns: Indicates no significance (P>0.05). The same as below
HOUX Q, TANGJ, YUL L, ZHAOF P, WANGQ W, HUE J, WEIK R. Effect of autumn mulching tillage on growth and water use efficiency of potato Journal of Drainage and Irrigation Machinery Engineering, 2016,34(2):165-172. (in Chinese) [本文引用: 2]
LIR, HOUX Q. Effects of different ground surface mulch under subsoiling on potato yield and water use efficiency Transactions of the Chinese Society of Agricultural Engineering, 2015,31(20):115-123. (in Chinese). [本文引用: 8]
HOUX Q, LIR, JIAZ K, HANQ F, WANGW, YANGB P. Effects of rotational tillage practices on soil properties, winter wheat yields and water-use efficiency in semi-arid areas of north-west China , 2012,129:7-13. DOI:10.1016/j.fcr.2011.12.021URL [本文引用: 1]
RASMUSSENP E, CAMARAK M, PAYNEW A. Long-term effects of tillage, nitrogen and rainfall on winter wheat yields in the pacific northwest , 2003,48(2):22-24 [本文引用: 1]
SUNG F, CHENF, XIAOX P, WUF L, ZHANGH L. Preliminary study on effects of rotational tillage on soil physical properties and rice yield Transactions of the Chinese Society of Agricultural Engineering, 2007,23(12):109-113. (in Chinese) [本文引用: 1]
SIX Z, ZHANGX, MAOJ W, LIL, LIG P, YUH. Effect of tillage method and straw mulching on soil physicochemical properties and peanut yield Chinese Agricultural Science Bulletin, 2017,33(5):61-65 (in Chinese) [本文引用: 1]
LIUL. Effects of straw mulching and tillage measures on soil water and temperature and maize yield formation in black soil region [D]. Harbin: Northeast Agricultural University, 2019. (in Chinese) [本文引用: 1]
LIY Y, LIUS Y, SHANC Y, JIY Q. Framework for comprehensive benefit assessment on conservation tillage and its application Transactions of the Chinese Society of Agricultural Engineering, 2015,31(15):48-54. (in Chinese) [本文引用: 1]
SUL, WANGS l, ZHANGY J, LIJ, WANGX L, WANGR, LYUW, CHENN N, WANGQ. Conservation agriculture based on crop rotation and tillage in the semi-arid Loess Plateau, China: Effects on crop yield and soil water use , 2018,251:67-77. DOI:10.1016/j.agee.2017.09.011URL [本文引用: 1]
CAIT Y, JIAZ K, HUANGY W, HUANGH J, MENGL, YANGB P, LIH. Effects of different straw mulch rates on soil water conservation and water-saving benefits in spring maize field Transactions of the Chinese Society of Agricultural Engineering, 2011,27(S1):238-243. (in Chinese) [本文引用: 2]
YANGH D, HAIJ B, JIAZ K, HANQ F, ZHANGB J, RENS C. Effect of different plastic- film mulching in the whole growth period on soil moisture and water use efficiency of winter wheat Agricultural Research in the Arid Areas, 2011,29(2):27-34. (in Chinese) [本文引用: 1]
DUX Y, YANGL H, TUOY F, GAOH Y, ZHANGZ W. Moisture condition, soil temperature and growth condition in maize field mulched South-to-North Water Transfers and Water Science and Technology, 2006,4(2):24-26. (in Chinese) [本文引用: 1]
LIJ H, YAOY Q, LüJ J, ZHANGJ, DINGZ Q, YUX F. Effect of double-subsoiling cover on soil water and crop yield in hilly arid area Journal of Henan Agricultural Sciences, 2013,42(11):17-20. (in Chinese) [本文引用: 1]
HOUX Q, LI.R. Potato tuber yields in semi-arid environments are increased by tillage and mulching practices , 2018,110(6):2641-2651. DOI:10.2134/agronj2017.10.0606URL [本文引用: 1]
LIN N, SUNM, GAOZ Q, ZHANGJ, ZHANGH Y, LIANGY F, YANGQ S, YANGZ P, DENGY. A study on the relationship between water consumption and nitrogen absorption, utilization under sub-soiling during the fallow period plus mulched-sowing in humid and dry years of dryland wheat Scientia Agricultura Sinica, 2018,51(18):3455-3469. (in Chinese) [本文引用: 1]
ZHANGX, ZHANGY L, LIUD, DUH H, LIJ, WANGX D. Effects of planting methods and tillage systems on soil structure and water use efficiency Transactions of the Chinese Society for Agricultural Machinery, 2019,50(3):250-261. (in Chinese) [本文引用: 3]
HOUX Q, LIR. Effects of mulching with no-tillage on soil physical properties and potato yield in mountain area of southern Ningxia Transactions of the Chinese Society of Agricultural Engineering, 2015,31(19):112-119. (in Chinese) [本文引用: 4]
XIEJ H, LIL L, ZHANGR Z, CHAIQ, LUOZ Z, CAIL Q. Effect of tillage system on rain-fed maize yield and soil physical characteristics for one film used two years Journal of Soil and Water Conservation, 2016,30(3):184-189, 195. (in Chinese) [本文引用: 1]
LIA Z, ZHANGR Z, WANGJ. Effect of tillage methods on the formation of water-stable, aggregates in loess soil Chinese Journal of Soil Science, 2008,39(3):480-484. (in Chinese) [本文引用: 1]
WENF F, SUNM, DENGL F, ZHAOW F, GAOZ Q. Effect of deep-plow and mulching during fallow period on soil water and wheat water use efficiency in dryland Chinese Journal of Eco-Agriculture, 2013,21(11):1358-1364. (in Chinese) DOI:10.3724/SP.J.1011.2013.01358URL [本文引用: 1]
WANGL X, LIZ P, LIUS P, DUJ P. Effects of different tillage and mulching methods on the growth and photosynthetic characteristics of maize Journal of Maize Sciences, 2016,24(2):142-146. (in Chinese) [本文引用: 1]
WANGH L, ZHANGX C, YUX F, MAY F, HOUH Z. Effect of using black plastic film as mulch on soil temperature and moisture and potato yield Acta Ecologica Sinica, 2016,36(16):5215-5226. (in Chinese) [本文引用: 1]
DENGY, GAOZ Q, SUNM, ZHAOW F, ZHAOH M, LIQ. Effects of deep plowing and mulch in fallow period on soil water and yield of wheat in dryland Chinese Journal of Applied Ecology, 2014,25(1):132-138. (in Chinese) [本文引用: 2]
SUNM, GEX M, GAOZ Q, RENA X, DENGY, ZHAOW F, ZHAOH M. Relationship between water storage conservation in fallow period and grains protein formation in dryland wheat in different precipitation years Scientia Agricultura Sinica, 2014,47(9):1692-1704. (in Chinese) [本文引用: 1]
QIZ J, FENGH, ZHANGT B, ZHOUL F. Effects of mulch and tillage methods on soil water and temperature as well as corn yield in Hetao irrigation district Transactions of the Chinese Society of Agricultural Engineering, 2016,32(20):108-113. (in Chinese) [本文引用: 1]
YANGY. Effects of conservation tillage on water and nitrogen use in rainfed winter wheat and soil ammonia volatilization in Loess Plateau [D]. Yangling: Northwest A & F University, 2015. (in Chinese) [本文引用: 1]
LIUJ L, LIJ W, ZHOUY, FUQ, ZHANGL L, LIUL. Effects of straw mulching and tillage on soil water characteristics Transactions of the Chinese Society for Agricultural Machinery, 2019,50(7):333-339. (in Chinese) [本文引用: 1]
ZHAOX R, ZHAOX J, CHENX Z. Effects of conservation tillage on soil moisture and wheat yield Transactions of the Chinese Society of Agricultural Engineering, 2009,25(S1):6-10. (in Chinese) [本文引用: 1]
XUEZ W. Effects of tillage and straw returning on water consumption characteristics in a winter wheat and summer maize rotation system [D]. Zhengzhou: Henan Agricultural University, 2014. (in Chinese) [本文引用: 1]
HUANGM, WUJ Z, LIY J, WANGH Z, FUG Z, CHENM C, LIX L, MAJ L. Effects of tillage method and straw mulching on grain yield and protein content in wheat and soil nitrate residue under a winter wheat and summer soybean crop rotation in drylands Acta Prataculturae Sinica, 2018,27(9):34-44. (in Chinese) [本文引用: 1]
CHENM N, SUNM, GAOZ Q, RENA X, YANGZ P, HAOX Y. Effects of mulching during fallow period on soil water storage and consumption and its relationship with wheat yield of dryland Scientia Agricultura Sinica, 2016,49(13):2572-2582. (in Chinese) [本文引用: 1]
HOUX Q, LIR. Interactive effects of autumn tillage with mulching on soil temperature, productivity and water use efficiency of rainfed potato in loess plateau of China , 2019,224:105747. DOI:10.1016/j.agwat.2019.105747URL [本文引用: 1]
YANGQ S, SUNM, GAOZ Q, ZHANGH Y, ZHANGJ, LIANGY F, LIN N. Effect of sowing-mulching following subsoiling in fallow period on wheat yield in arid area on the Loess Plateau Agricultural Research in the Arid Areas, 2019,37(2):158-166. (in Chinese) [本文引用: 1]
