Binding Characterization of Odorant Binding Protein OBP56h in Drosophila suzukii with Small Molecular Compounds
LI Du1,2, NIU ChangYing,1, LI FengQi,2, LUO Chen21 College of Plant Science & Technology, Huazhong Agricultural University, Wuhan 430070; 2 Beijing Key Laboratory of Environment Friendly Management on Fruit Diseases and Pests in North China, Institute of Plant and Environment Protection, Beijing Academy of Agriculture and Forestry Sciences, Beijing 100097

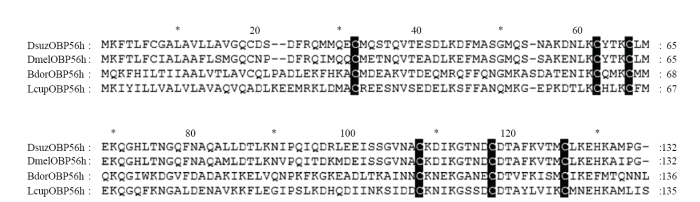

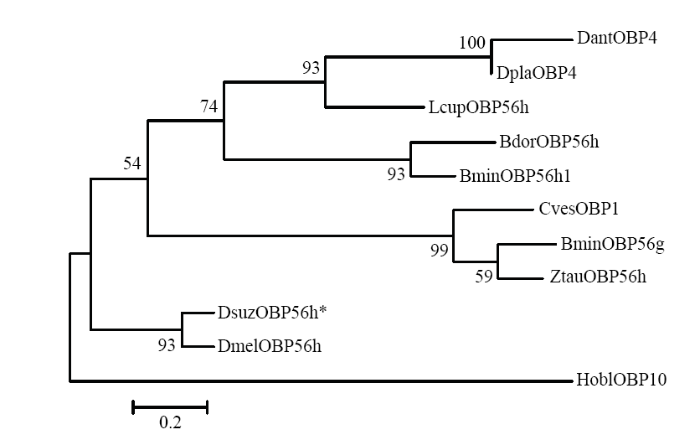

Abstract 【Objective】The objective of this study is to clone the odorant binding protein 56h (OBP56h) gene from Drosophila suzukii, get the recombinant DsuzOBP56h protein, and characterize the binding profiles of DsuzOBP56h with some small molecular compounds.【Method】By means of specific primer, reverse transcription PCR (RT-PCR) was used to clone the full-length ORF of DsuzOBP56h. The sequences of insect OBPs with high similarity were downloaded from NCBI database for sequence alignment and analysis. Using NdeⅠand XhoⅠas restriction sites, OBP56h was ligated into pET-30a (+) prokaryotic expression vector, and transformed into Escherichia coli BL21 (DE3). IPTG was applied to induce the expression of recombinant DsuzOBP56h protein. The bacterial solution was collected and the protein was obtained through breaking cells by ultrasound, and then the protein was purified by the method of Ni-NTA resin. The purified protein was dialyzed by Tris-HCl and the concentration was determined by the method of BCA. The protein was diluted with 50 mmol·L -1 Tris-HCl (pH 7.4) to a final concentration of 2 μmol·L -1, and the ligand was diluted with chromatography-grade methanol to a final concentration of 1 mmol·L -1. The binding characterization of DsuzOBP56h with 18 small molecular compounds was investigated using bis-ANS as fluorescence probe. 【Result】 The full-length ORF of OBP56h in D. suzukii was amplified, which is 405 bp in total, including 19 amino acids of signal peptide in the N-terminal. It has 6 conserved cysteine sites, which is consistent with the typical characteristics of OBPs, and has the closest evolutionary relationship with D. melanogaster OBP56h. OBP56h was successfully inserted into pET-30a (+) and expressed at 1 mmol·L -1 IPTG and 28℃, then purified by the method of Ni-NTA resin. In the competitive fluorescence assay, the dissociation constant Kbis-ANS was 0.9568 μmol·L -1, indicating that bis-ANS is suitable to be a reporter of competitive fluorescence binding assay. Among 18 ligands, the binding affinity of bitter tastants berberine chloride and coumarin with DsuzOBP56h was strong, and the dissociation constant is 12.16 and 17.93 μmol·L -1, respectively. The dissociation constant of naringenin with DsuzOBP56h is 25.32 μmol·L -1. A volatile odorant β-cyclocitral, which is attractive to D. suzukii produced by strawberry leaves, can also bind to DsuzOBP56h, with the dissociation constant of 31.37 μmol·L -1.【Conclusion】The OBP56h in D. suzukii can bind with a variety of bitter tastants and volatile odors from plants, indicating that OBP56h may be involved in the gustatory and olfactory recognition of food in D. suzukii. The results can provide a theoretical basis for understanding the feeding behavior of D. suzukii, and provide a new idea for the ecological prevention and control of D. suzukii. Keywords:Drosophila suzukii;odorant-binding protein;prokaryotic expression;competitive binding
PDF (868KB)元数据多维度评价相关文章导出EndNote|Ris|Bibtex收藏本文 本文引用格式 李都, 牛长缨, 李峰奇, 罗晨. 斑翅果蝇气味结合蛋白OBP56h与小分子化合物的结合特征[J]. 中国农业科学, 2019, 52(15): 2616-2623 doi:10.3864/j.issn.0578-1752.2019.15.006 LI Du, NIU ChangYing, LI FengQi, LUO Chen. Binding Characterization of Odorant Binding Protein OBP56h in Drosophila suzukii with Small Molecular Compounds[J]. Scientia Acricultura Sinica, 2019, 52(15): 2616-2623 doi:10.3864/j.issn.0578-1752.2019.15.006

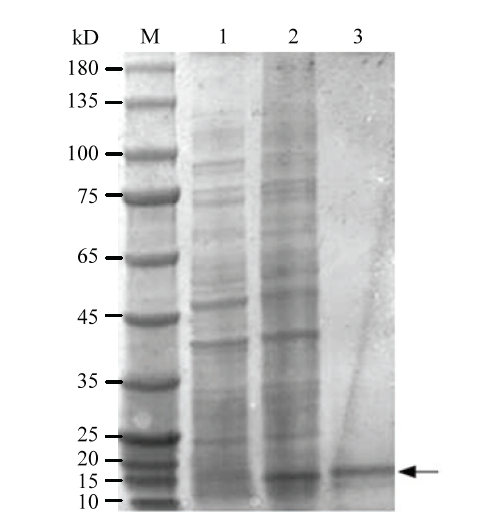

Fig. 3Expression and purification of the recombinant DsuzOBP56h protein
M:蛋白Marker Protein molecular weight;1:未诱导的pET30a-OBP56h的BL21菌体Bacterial products containing pET30a-OBP56h without induction;2:BL21菌体中DsuzOBP56h蛋白诱导表达Expression products after induction;3:纯化后的OBP56h蛋白Purified recombinant protein OBP56h
MITSUIH, TAKAHASHIK H, KIMURAM T . Spatial distributions and clutch sizes of Drosophila species ovipositing on cherry fruits of different stages Population Ecology, 2006,48(3):233-237. [本文引用: 1]
LEALW S . Odorant reception in insects: Roles of receptors, binding proteins, and degrading enzymes Annual Review of Entomology, 2013,58:373-391. URL [本文引用: 1]
SWARUPS, WILLIAMST I, ANHOLTR R . Functional dissection of odorant binding protein genes in Drosophila melanogaster Genes, Brain, and Behavior, 2011,10(6):648-657. [本文引用: 1]
WANGP, LYMANR F, MACKAYT F, ANHOLTR R . Natural variation in odorant recognition among odorant-binding proteins in Drosophila melanogaster Genetics, 2010,184(3):759-767. [本文引用: 1]
GROSSE-WILDEE, SVATO?A, KRIEGERJ . A pheromone-binding protein mediates the bombykol-induced activation of a pheromone receptor in vitro Chemical Senses, 2006,31(6):547-555. [本文引用: 1]
陈玲, 李红亮, 周宇翔, 赵磊, 张林雅, 倪翠侠, 商晗武 . 桔小实蝇气味结合蛋白BdorOBP2的cDNA克隆、组织表达及配基结合特性 昆虫学报, 2013,56(6):612-621. URLMagsci [本文引用: 1] 为了研究桔小实蝇<em>Bactrocera dorsalis</em>气味结合蛋白(odorant-binding proteins, OBPs)参与其嗅觉识别过程中的功能及其与植物气味的结合特性, 本研究克隆了桔小实蝇的一个气味结合蛋白基因, 命名为BdorOBP2(GenBank登录号为KC773766), 并对该基因进行了原核表达。<em>BdorOBP</em>2开放阅读框长447 bp, 编码148 个氨基酸, 具有典型的6个半胱氨酸位点。定量PCR结果显示, 桔小实蝇<em>BdorOBP</em>2在不同组织中均有表达, 其中头部中的表达量最高, 翅中表达量最低(为头部表达量的63%±6%)。构建了BdorOBP2原核表达载体, 诱导并获得了重组<em>BdorOBP</em>2并进行了亲和层析纯化。最后以N-苯基-1-萘胺(N-phenyl-1-naphthylamine, 1-NPN)为荧光探针, 利用荧光竞争结合实验测定了重组BdorOBP2与7种主要寄主水果气味物质的结合能力, 发现其对多数酯类和醛类化合物亲合力较强, 亲合力最强的气味物质为反-2-己烯醛和β-紫罗兰酮, 结合常数KD分别为9.96和15.37 μmol/L。本研究结果可为高效地开发和设计桔小实蝇的嗅觉引诱剂配方提供一定的理论依据和参考。 CHENL, LIH L, ZHOUY X, ZHAOL, ZHANGL Y, NIC X, SHANGH W . cDNA cloning, tissue expression and ligand binding characteristics of odorant-binding protein 2 from the oriental fruit fly,Bactrocera dorsalis (Diptera: Tephritidae) Acta Entomologica Sinica, 2013,56(6):612-621. (in Chinese) URLMagsci [本文引用: 1] 为了研究桔小实蝇<em>Bactrocera dorsalis</em>气味结合蛋白(odorant-binding proteins, OBPs)参与其嗅觉识别过程中的功能及其与植物气味的结合特性, 本研究克隆了桔小实蝇的一个气味结合蛋白基因, 命名为BdorOBP2(GenBank登录号为KC773766), 并对该基因进行了原核表达。<em>BdorOBP</em>2开放阅读框长447 bp, 编码148 个氨基酸, 具有典型的6个半胱氨酸位点。定量PCR结果显示, 桔小实蝇<em>BdorOBP</em>2在不同组织中均有表达, 其中头部中的表达量最高, 翅中表达量最低(为头部表达量的63%±6%)。构建了BdorOBP2原核表达载体, 诱导并获得了重组<em>BdorOBP</em>2并进行了亲和层析纯化。最后以N-苯基-1-萘胺(N-phenyl-1-naphthylamine, 1-NPN)为荧光探针, 利用荧光竞争结合实验测定了重组BdorOBP2与7种主要寄主水果气味物质的结合能力, 发现其对多数酯类和醛类化合物亲合力较强, 亲合力最强的气味物质为反-2-己烯醛和β-紫罗兰酮, 结合常数KD分别为9.96和15.37 μmol/L。本研究结果可为高效地开发和设计桔小实蝇的嗅觉引诱剂配方提供一定的理论依据和参考。
CHEND K, ZHANGL Y, XINGZ L, LEIZ R . Identification and function of the OBP13 protein from the leafminer (Liriomyza sativae) Scientia Agricultura Sinica, 2018,51(5):893-904. (in Chinese) URL [本文引用: 1]
KARAGEORGIM, BR?CKERL B, LEBRETONS, MINERVINOC, CAVEYM, SIJUK P, GRUNWALDKADOW I C, GOMPELN, PRUD’HOMMEB. Evolution of multiple sensory systems drives novel egg-laying behavior in the fruit pest Drosophila suzukii Current Biology, 2017,27(6):847-853. [本文引用: 2]
RENL M, QINS N, DINGX T, WANF H, CHUD . Research on the invasion and control of a fruit insect pest,Drosophila suzukii (Matsumura) Journal of Biosafety, 2014,23(3):142-150. (in Chinese) [本文引用: 1]
ZHANGK C, YANG H, GUOX J, WANGJ, ZHANGX M, ZHOUY . Research review on spotted wing drosophila (Drosophila suzukii) Journal of Fruit Science, 2014,31(4):717-721. (in Chinese) [本文引用: 1]
HAMBYK A, BECHERP G . Current knowledge of interactions between Drosophila suzukii and microbes, and their potential utility for pest management Journal of Pest Science, 2016,89(3):621-630. [本文引用: 1]
LEEJ C, BURRACKH J, BARRANTESL D, BEERSE H, DREVESA J, HAMBYK A, HAVILANDD R, ISAACSR, RICHARDSONT A, SHEARERP W, STANLEYC A, WALSHD B, WALTONV M, ZALOMF G, BRUCKD J . Evaluation of monitoring traps for Drosophila suzukii(Diptera: Drosophilidae) in North America Journal of Economic Entomology, 2012,105(4):1350-1357. [本文引用: 1]
WANGX G, STEWARTT J, BIONDIA, CHAVEZB A, INGELSC, CAPRILEJ, GRANTJ A, WALTONV M, DAANEK M . Population dynamics and ecology of Drosophila suzukii in central California Journal of Pest Science, 2016,89(3):701-712. [本文引用: 1]
FENGY, BRUTONR, PARKA, ZHANGA . Identification of attractive blend for spotted wing drosophila,Drosophila suzukii, from apple juice Journal of Pest Science, 2018,91(4):1251-1267. [本文引用: 1]
WALLINGFORDA K, HESLERS P, CHAD H, LOEBG M . Behavioral response of spotted-wing drosophila,Drosophila suzukii Matsumura, to aversive odors and a potential oviposition deterrent in the field Pest Management Science, 2016,72(4):701-706. [本文引用: 1]
GALINDOK, SMITHD P . A large family of divergent Drosophila odorant-binding proteins expressed in gustatory and olfactory sensilla Genetics, 2001,159(3):1059-1072. [本文引用: 2]
SWARUPS, MOROZOVAT V, SRIDHARS, NOKESM, ANHOLTR R . Modulation of feeding behavior by odorant-binding proteins in Drosophila melanogaster Chemical Senses, 2014,39(2):125-132. [本文引用: 2]
DALTOND T, WALTONV M, SHEARERP W, WALSHD B, CAPRILEJ, ISAACSR . Laboratory survival of Drosophila suzukii under simulated winter conditions of the Pacific Northwest and seasonal field trapping in five primary regions of small and stone fruit production in the United States Pest Management Science, 2011,67(11):1368-1374. [本文引用: 1]
CONGDONR W, MUTHG W, SPLITTGERBERA G . The binding interaction of Coomassie blue with proteins Analytical Biochemistry, 1993,213(2):407-413. [本文引用: 1]
KNOLHOFFL M, HECKELD G . Behavioral assays for studies of host plant choice and adaptation in herbivorous insects Annual Review of Entomology, 2014,59:263-278. URL [本文引用: 1]
MATSUOT, SUGAYAS, YASUKAWAJ, AIGAKIT, FUYAMAY . Odorant-binding proteins OBP57d and OBP57e affect taste perception and host-plant preference in Drosophila sechellia PLoS Biology, 2007,5(5):e118. [本文引用: 1]
L?BELD, STROTMANNJ, JACOBM, BREERH . Identification of a third rat odorant-binding protein (OBP3) Chemical Senses, 2001,26(6):673-680. [本文引用: 1]
XUP, ATKINSONR, JONESD N, SMITHD P . Drosophila OBP LUSH is required for activity of pheromone-sensitive neurons Neuron, 2005,45(2):193-200. [本文引用: 1]
LAUGHLINJ D, HAT S, JONESD N, SMITHD P . Activation of pheromone-sensitive neurons is mediated by conformational activation of pheromone-binding protein Cell, 2008,133(7):1255-1265. [本文引用: 1]
ZWIEBELL J, TAKKENW . Olfactory regulation of mosquito-host interactions Insect Biochemistry and Molecular Biology, 2004,34(7):645-652. URL [本文引用: 1]
KEESEYI W, KNADENM, HANSSONB S . Olfactory specialization in Drosophila suzukii supports an ecological shift in host preference from rotten to fresh fruit Journal of Chemical Ecology, 2015,41(2):121-128. [本文引用: 1]
CHAD H, ADAMST, ROGGH, LANDOLTP J . Identification and field evaluation of fermentation volatiles from wine and vinegar that mediate attraction of spotted wing drosophila,Drosophila suzukii Journal of Chemical Ecology, 2012,38(11):1419-1431. [本文引用: 1]
DWECKH K, EBRAHIMS A, THOMAM, MOHAMEDA A, KEESEYI W, TRONAF, LAVISTA-LLANOSS, SVATO?A, SACHSES, KNADENM, HANSSONB S . Pheromones mediating copulation and attraction in Drosophila Proceedings of the National Academy of Sciences of the United States of America, 2015,112(21):E2829-E2835. [本文引用: 1]
SHORTERJ R, DEMBECKL M, EVERETTL J, MOROZOVAT V, ARYAG H, TURLAPATIL, STARMOUR G E, SCHALC, MACKAYT F C, ANHOLTR R H . Obp56h modulates mating behavior in Drosophila melanogaster G3: Genes, Genomes, Genetics, 2016,6(10):3335-3342. [本文引用: 1]
JEONGY T, SHIMJ, OHS R, YOONH I, KIMC H, MOONS J, MONTELLC . An odorant-binding protein required for suppression of sweet taste by bitter chemicals Neuron, 2013,79(4):725-737. [本文引用: 1]
SUNJ S, LARTERN K, CHAHDAJ S, RIOUXD, GUMASTEA, CARLSONJ R . Humidity response depends on the small soluble protein Obp59a in Drosophila Elife, 2018,7:e39249. [本文引用: 1]
HERRERAM C, DECASTRO M D L . Ultrasound-assisted extraction for the analysis of phenolic compounds in strawberries Analytical and Bioanalytical Chemistry, 2004,379(7/8):1106-1112. [本文引用: 1]
CHATTOPADHYAYD, SENS, CHATTERJEER, ROYD, JAMESJ, THIRUMURUGANK . Context- and dose-dependent modulatory effects of naringenin on survival and development of Drosophila melanogaster Biogerontology, 2016,17(2):383-393. [本文引用: 1]
GUS H, WUK M, GUOY Y, PICKETTJ A, FIELDL M, ZHOUJ J, ZHANGY J . Identification of genes expressed in the sex pheromone gland of the black cutworm Agrotis ipsilon with putative roles in sex pheromone biosynthesis and transport BMC Genomics, 2013,14:636. [本文引用: 2]
SONGY Q, SUNH Z, DUJ . Identification and tissue distribution of chemosensory protein and odorant binding protein genes in Tropidothorax elegans Distant (Hemiptera: Lygaeidae) Scientific Reports, 2018,8:7803. [本文引用: 1]
