白帆^{1, 3,},
杨晓光^1,,,
刘志娟¹,
孙爽¹,
张镇涛¹,
王晓煜^{1, 2},
高继卿¹,
刘涛¹
1.中国农业大学资源与环境学院 北京 100193
2.中国气象局资产管理事务中心 北京 100081
3.北京市气象服务中心 北京 100089
基金项目: 国家重点研究与发展计划项目2017YFD0300301

详细信息

作者简介:白帆, 主要研究方向为气候变化对作物的影响与适应。E-mail:baifan19950613@126.com

通讯作者:杨晓光, 主要研究方向为气候变化对作物的影响与适应。E-mail:yangxg@cau.edu.cn

中图分类号:S513

计量

文章访问数:399
HTML全文浏览量:1
PDF下载量:713
被引次数:0

出版历程

收稿日期:2019-08-06
录用日期:2019-12-31
刊出日期:2020-04-01

Effects of sowing dates on grain yield of spring maize in the Three-Province of the Northeast China under climate change

BAI Fan^{1, 3,},
YANG Xiaoguang^1,,,
LIU Zhijuan¹,
SUN Shuang¹,
ZHANG Zhentao¹,
WANG Xiaoyu^{1, 2},
GAO Jiqing¹,
LIU Tao¹
1. College of Resources and Environmental Sciences, China Agricultural University, Beijing 100193, China
2. Asset Operation Centre, China Meteorological Administration, Beijing 100081, China
3. Beijing Meteorological Service Center, Beijing 100089, China
Funds: the National Key Research and Development Program of China2017YFD0300301

More Information

Corresponding author:YANG Xiaoguang, E-mail:yangxg@cau.edu.cn

摘要
HTML全文
图(5)表(5)
参考文献(32)
相关文章
施引文献
资源附件(0)
访问统计

摘要
摘要:为探究气候变化背景下东北三省（黑龙江省、吉林省和辽宁省）春玉米适宜播期的变化程度，本文以东北三省春玉米潜在种植区为研究区域，基于1981—2015年气象资料，1981—2012年农业气象观测站玉米生育期、产量资料以及土壤资料，分气侯区对农业生产系统模型（APSIM）进行调参和验证，建立适用于东北三省10个不同气候区的模型相关参数，在各气候区利用调参验证后的APSIM-Maize模型设置不同播期，模拟各年代不同播期下春玉米潜在产量和气候生产潜力，综合高产和稳产性指标，明确了不同区域各年代不同条件下适宜播期范围。研究结果表明，APSIM模型对于东北三省7个春玉米品种开花和成熟两个关键生育期以及产量模拟结果与实测结果具有较好的一致性，表明APSIM模型能够较好地模拟研究区域春玉米生育期和产量。充分灌溉条件下，研究区域内适宜播期范围从4月16日至5月19日，空间上呈纬向分布南早北迟的特征；20世纪90年代和21世纪00年代玉米适宜播期较20世纪80年代有提前趋势，其中20世纪90年代提前趋势更明显；第1、第3、第5、第7和第9气候区雨养条件下较充分灌溉条件下适宜播期有推迟趋势，推迟天数为3~6 d。雨养条件下各年代不同气候区理论上的适宜播期较目前生产中实际播期下的产量提高2.84%~9.96%。以上结果为进行未来气候变化对东北三省春玉米影响及其适宜播期等研究提供了技术支撑。
关键词:气候变化/
东北三省/
春玉米/
APSIM模型/
适宜播期/
产量
Abstract:Northeast China is the most sensitive area to climate change, where is also the important region of maiza production in China. It has both theoretical and practical significance to explore suitable sowing date of spring maize in three provinces of Northeast China (Heilongjiang Province, Jilin Province and Liaoning Province) under climate change. Meteorological data from 1981 to 2015 and agro-meteorological observations, including maize phenology data, yield data, and soil data from 1981 to 2012, were used to construct an APSIM-Maize model. The data were collected from the potential cultivation zones of spring maize in the three provinces of the Northeast China. The model was calibrated and validated in different climatic zones across the study area and related parameters were established accordingly. The potential yields and climatic potential yields of spring maize during different decades were then determined by setting different sowing dates based on the validated APSIM model. Combined with the indices of yield level and yield stability, the suitable range of sowing dates was determined under different conditions during different decades in each climatic zone. The results showed that the simulated values, including the days from sowing date to flowering date and maturity date, and the yield, were in agreement with the observed values for the seven spring maize varieties in the study area. This indicated that the APSIM model accurately simulated the phenological development and yield information of spring maize in the study area. Under the condition of sufficient irrigation, the suitable sowing date in the study area ranged from April 16 to May 19. A latitudinal distribution was exhibited for the suitable sowing date with the date moving earlier from south to north. The suitable sowing date of maize in the 1990s and 2000s was earlier than that in the 1980s, and this advanced trend was more significant in the 1990s than in the 2000s. However, under rainfed conditions, the suitable sowing period in the first, third, fifth, seventh, and ninth climatic zones displayed a delayed trend, with the delay ranging from 3 days to 6 days. Compared with the yield simulated using the sowing date applied in current production, the yield simulated using the theoretical suitable sowing date increased by 2.84%-9.96% in different climatic zones during different decades under rainfed conditions. This research supports the use of the APSIM model in Northeast China for applications such as the selection of suitable sowing dates under future climate scenarios.
Key words:Climate change/
Three-Province of the Northeast China/
Spring maize/
APSIM model/
Suitable sowing date/
Yield

HTML全文

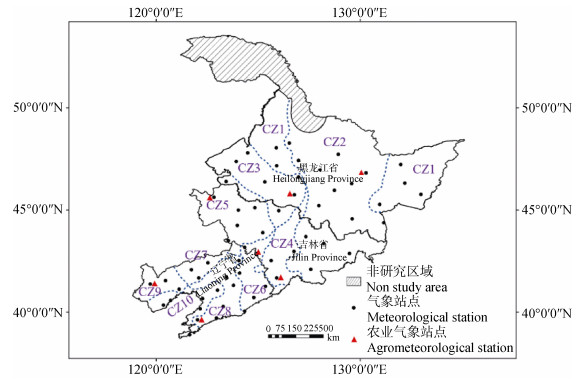

图1研究区域气候区划分及站点分布
Figure1.Division of climatic zones (CZx) and distribution of stations in the study area


下载: 全尺寸图片幻灯片

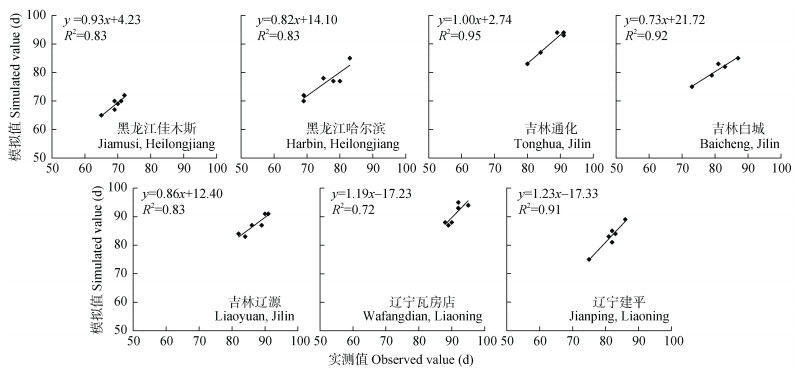

图2东北三省代表站点春玉米播种到开花日数实测值及模拟值验证结果比较
Figure2.Validation of the APSIM model simulation for days from sowing to flowering of spring maize in representative stations of the Three-Province of the Northeast China


下载: 全尺寸图片幻灯片

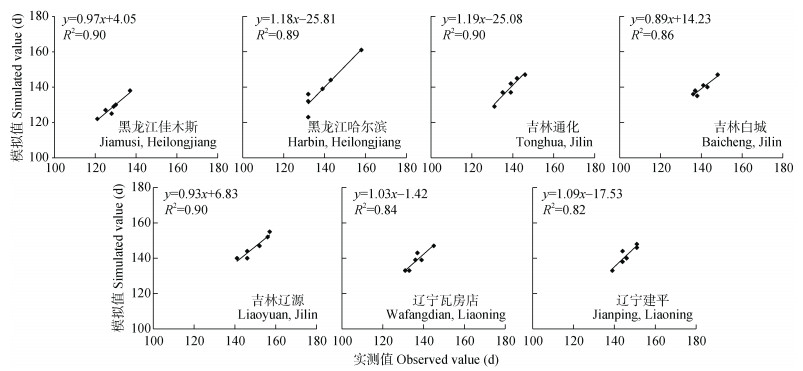

图3东北三省代表站点春玉米播种到成熟日数实测值及模拟值验证结果比较
Figure3.Validation of the APSIM model simulation for days from sowing to maturity of spring maize in representative stations in the Three-Province of the Northeast China


下载: 全尺寸图片幻灯片

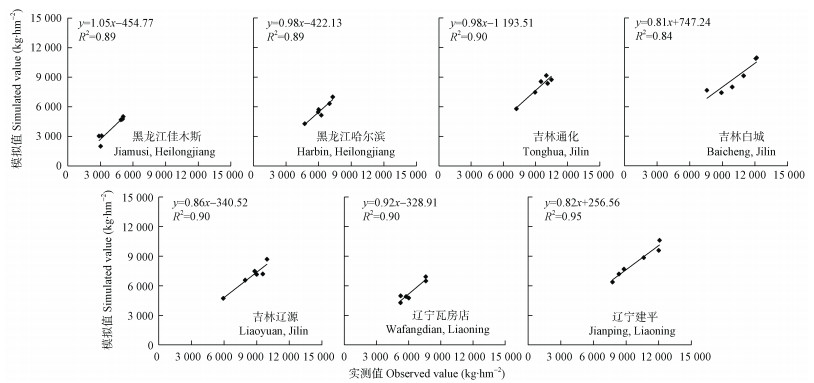

图4东北三省代表站点春玉米产量实测值及模拟值验证结果比较
Figure4.Validation of the APSIM model simulation for the yield of spring maize in in representative stations in the Three-Province of the Northeast China


下载: 全尺寸图片幻灯片

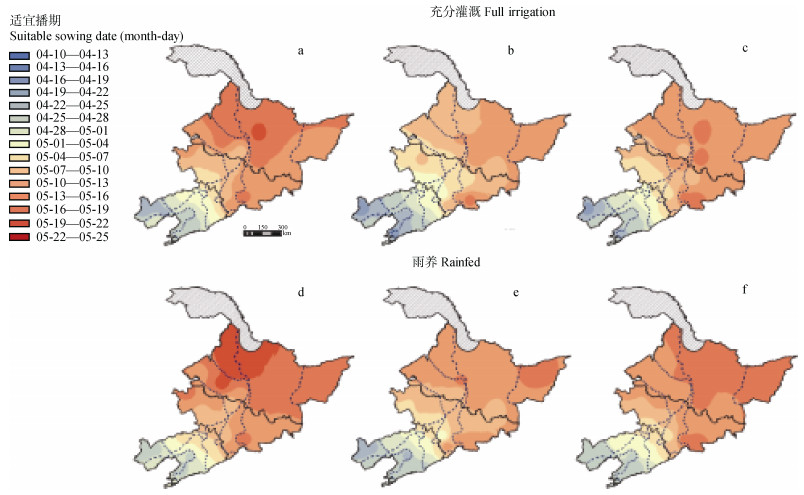

图5充分灌溉(a, b, c)和雨养(d, e, f)条件下20世纪80年代(a, d)、90年代(b, e)和21世纪00年代(c, f)东北三省不同气候区春玉米适宜播期的时空分布
Figure5.Distribution of suitable sowing dates for spring maize in different climatic zones in the Three-Province of the Northeast China during 1980s (a, d), 1990s (b, e) and 2000s (c, f) under full irrigation (a, b, c) and rainfed (d, e, f) conditions


下载: 全尺寸图片幻灯片

表1东北三省气候区划及划分标准
Table1.Criteria for the division and distribution of climatic zones in the Three-Province of the Northeast China

气候区 Climatic zone	区域范围分布 Regional distribution	代表站点 Representative station	≥10 ℃有效积温 Effective accumulated temperature (≥10 ℃) (℃·d)	水分亏缺指数(K) Crop water deficit index (K)
CZ1	黑龙江省东部及西北部 Eastern and Northwest of Heilongjiang Province	富锦、鸡西、宝清 Fujin, Jixi, Baoqing	1 314~1 600	> 0
CZ2	黑龙江省中部及吉林省东部 Central of Heilongjiang Province and East of Jilin Province	佳木斯、尚志、牡丹江 Jiamusi, Shangzhi, Mudanjiang	1 314~1 600	< 0
CZ3	黑龙江省西南部 Southwest of Heilongjiang Province	哈尔滨、海伦、齐齐哈尔 Harbin, Hailun, Qiqihar	1 601~1 800	> 0
CZ4	吉林省中部 Central of Jilin Province	通化、蛟河、桦甸 Tonghua, Jiaohe, Huadian	1 601~1 800	< 0
CZ5	吉林省西部 West of Jilin Province	白城、泰来、乾安 Baicheng, Tailai, Qian’an	1 801~2 000	> 0
CZ6	辽宁省东部 East of Liaoning Province	宽甸、桓仁、开原 Kuandian, Huanren, Kaiyuan	1 801~2 000	< 0
CZ7	辽宁省西北部 Northwest of Liaoning Province	阜新、彰武、黑山 Fuxin, Zhangwu, Heishan	2 001~2 200	> 0
CZ8	辽宁省中部 Central of Liaoning Province	本溪、岫岩、庄河 Benxi, Xiuyan, Zhuanghe	2 001~2 200	< 0
CZ9	辽宁省西南部 Southwest of Liaoning Province	朝阳、建平、锦州 Chaoyang, Jianping, Jinzhou	2 201~2 370	> 0
CZ10	辽宁省南部 South of Liaoning Province	营口、兴城、大连 Yingkou, Xingcheng, Dalian	2 201~2 370	< 0

下载: 导出CSV
表2东北三省各气候区春玉米APSIM模型调参和验证所用品种及数据来源
Table2.Maize cultivars and data sources for APSIM calibration and evaluation in different climatic zone in the Three-Province of the Northeast China

气候区 Climatic zone	代表站点 Representative station	品种 Variety	调参验证年份 Year for calibration and validation
CZ1, CZ2	黑龙江佳木斯Jiamusi, Heilongjiang	东农248 Dongnong 248	1994, 1996, 1998, 2001—2003
CZ3	黑龙江哈尔滨Harbin, Heilongjiang	四单19 Sidan 19	1999—2004
CZ4	吉林通化Tonghua, Jilin	吉单101 Jidan 101	1988—1991, 1995, 1999
CZ5	吉林白城Baicheng, Jilin	白单9 Baidan 9	1990—1995
CZ6	吉林省辽源Liaoyuan, Jilin	吉单159 Jidan 159	1998, 2002—2006
CZ7, CZ8	辽宁瓦房店Wafangdian, Liaoning	连玉6号Lianyu 6	1999—2005
CZ9, CZ10	辽宁建平Jianping, Liaoning	丹玉13 Danyu 13	1996, 1998, 2001—2004

下载: 导出CSV
表3东北三省不同气候区春玉米开花期、成熟期及产量APSIM模型验证结果评价
Table3.Validation metrics of APSIM model performance for the flowering date, maturity date and yield of spring maize in each climatic zone in the Three-Province of the Northeast China

气候区 Climatic zone	品种 Variety	项目 Item	模型评价指标Validation parameter
			R2	RMSE	NRMSE (%)	MAE	D
CZ1, CZ2	东农248 Dongnong 248	开花期Flowering date	0.826	1.08 d	1.56	0.83 d	0.941
		成熟期Maturity date	0.902	1.58 d	1.23	1.17 d	0.973
		产量Yield	0.890	452.81 kg·hm-2	11.30	305.37 kg·hm-2	0.954
CZ3	四单19 Sidan 19	开花期Flowering date	0.828	2.35 d	3.14	2.17 d	0.947
		成熟期Maturity date	0.892	4.22 d	3.03	2.83 d	0.959
		产量Yield	0.893	621.20 kg·hm-2	10.27	553.5 kg·hm-2	0.870
CZ4	吉单101 Jidan 101	开花期Flowering date	0.955	3.29	3.81	3.17 d	0.865
		成熟期Maturity date	0.898	2.27	1.64	2.17 d	0.955
		产量Yield	0.898	1 418.61 kg·hm-2	15.11	1 372.75 kg·hm-2	0.740
CZ5	白单9 Baidan 9	开花期Flowering date	0.922	1.47 d	1.83	1.17 d	0.961
		成熟期Maturity date	0.863	1.83 d	1.30	1.33 d	0.948
		产量Yield	0.923	1 412.69 kg·hm-2	13.77	1 279.58 kg·hm-2	0.825
CZ6	吉单159 Jidan 159	开花期Flowering date	0.832	1.35 d	1.56	1.17 d	0.952
		成熟期Maturity date	0.905	3.32 d	2.22	3.00 d	0.919
		产量Yield	0.904	1 424.04 kg·hm-2	17.07	1 409.69 kg·hm-2	0.756
CZ7, CZ8	连玉6号 Lianyu 6	开花期Flowering date	0.718	1.78 d	1.96	1.50 d	0.889
		成熟期Maturity date	0.837	2.97 d	2.17	2.17 d	0.905
		产量Yield	0.899	914.98 kg·hm-2	14.66	858.00 kg·hm-2	0.813
CZ9, CZ10	丹玉13 Danyu 13	开花期Flowering date	0.909	2.00 d	2.45	1.67 d	0.931
		成熟期Maturity date	0.817	3.19 d	2.19	2.83 d	0.874
		产量Yield	0.954	1 536.51 kg·hm-2	15.47	15.47 kg·hm-2	0.817

下载: 导出CSV
表4充分灌溉和雨养条件下不同年代东北三省各气候区春玉米的适宜播期
Table4.Suitable sowing dates of spring maize in different climatic zones in the Three-Province of the Northeast China during different decades under full irrigation and rainfed conditions

灌溉条件 Irrigation	气候区 Climatic zone	适宜播期(月-日) Suitable sowing date (month-day)
		1980s	1990s	2000s
充分灌溉 Full irrigation	CZ1	05-10—05-16	05-07—05-13	05-07—05-13
	CZ2	05-07—05-19	05-04—05-13	05-07—05-16
	CZ3	05-07—05-16	05-01—05-13	05-01—05-13
	CZ4	05-04—05-13	05-01—05-10	05-04—05-13
	CZ5	05-01—05-13	04-28—05-10	05-01—05-10
	CZ6	04-28—05-07	04-22—05-04	04-25—05-07
	CZ7	04-28—05-01	04-22—04-28	04-25—05-01
	CZ8	04-22—05-01	04-19—04-28	04-22—04-28
	CZ9	04-19—04-25	04-16—04-25	04-16—04-25
	CZ10	04-22—05-01	04-16—05-01	04-19—05-01
雨养 Rainfed	CZ1	05-10—05-16	05-10—05-16	05-10—05-16
	CZ2	05-10—05-16	05-07—05-13	05-07—05-16
	CZ3	05-07—05-19	05-01—05-16	05-01—05-16
	CZ4	05-04—05-13	05-04—05-10	05-04—05-13
	CZ5	05-04—05-16	05-01—05-10	05-04—05-13
	CZ6	04-28—05-07	04-22—05-07	04-25—05-07
	CZ7	04-28—05-07	04-28—05-01	04-28—05-04
	CZ8	04-22—05-01	04-19—04-28	04-22—04-28
	CZ9	04-22—04-28	04-19—04-28	04-22—04-25
	CZ10	04-22—05-01	04-16—05-01	04-19—05-01

下载: 导出CSV
表5雨养条件下东北三省各气候区不同年代春玉米适宜播期与实际播期相比的增产幅度
Table5.Increase of yield in different climatic zones of spring maize sown in suitable dates over actual yield in the Three- Province of the Northeast China during different decades under rainfed condition

气候区 Climatic zone	增产幅度Yield increase rate (%)
	1980s	1990s	2000s
CZ1	6.69	6.44	3.90
CZ2	7.21	6.04	4.61
CZ3	4.58	5.60	5.45
CZ4	5.71	6.62	7.07
CZ5	5.83	4.37	4.46
CZ6	5.75	2.86	4.83
CZ7	7.81	2.39	8.08
CZ8	7.59	4.81	3.31
CZ9	9.69	4.04	2.84
CZ10	8.50	3.75	4.50

下载: 导出CSV

参考文献(32)

[1]	IPCC. Climate Change 2013: The Physical Science Basis. Contribution of Working Group Ⅰ to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change[R]. Cambridge: Cambridge University Press, 2013: 1-1552
[2]	《第三次气候变化国家评估报告》编写委员会.第三次气候变化国家评估报告[M]. 2版.北京:科学出版社, 2015 Committee for the Compilation of Third National Climate Assessment. Compilation of Third National Climate Assessment[M]. 2nd ed. Beijing:Science Press, 2015
[3]	赵秀兰.近50年中国东北地区气候变化对农业的影响[J].东北农业大学学报, 2010, 41(9):144-149 http://d.old.wanfangdata.com.cn/Periodical/dbnydxxb201009027 ZHAO X L. Influence of climate change on agriculture in Northeast China in recent 50 years[J]. Journal of Northeast Agricultural University, 2010, 41(9):144-149 http://d.old.wanfangdata.com.cn/Periodical/dbnydxxb201009027
[4]	中华人民共和国国家统计局.中国统计年鉴2017[M].北京:中国统计出版社, 2017 National Bureau of Statistics of the People's Republic of China. China Statistical Yearbook 2017[M]. Beijing:China Statistics Press, 2017
[5]	李宁, 翟志席, 李建民, 等.播期与密度组合对夏玉米群体源库关系及冠层透光率的影响[J].中国生态农业学报, 2010, 18(5):959-964 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=20105959&flag=1 LI N, ZHAI Z X, LI J M, et al. Effect of sowing date and density on sink/source relationship and canopy light transmission of summer maize (Zea mays L.)[J]. Chinese Journal of Eco-Agriculture, 2010, 18(5):959-964 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=20105959&flag=1
[6]	赵先丽, 李丽光, 蔡福, 等.播期对辽南地区春玉米生育进程及产量影响的试验研究[J].气象与环境学报, 2017, 33(6):66-72 doi: 10.3969/j.issn.1673-503X.2017.06.009 ZHAO X L, LI L G, CAI F, et al. Effects of different sowing dates on growth process and yield of spring maize in southern Liaoning[J]. Journal of Meteorology and Environment, 2017, 33(6):66-72 doi: 10.3969/j.issn.1673-503X.2017.06.009
[7]	马树庆, 王琪, 罗新兰.基于分期播种的气候变化对东北地区玉米(Zea mays)生长发育和产量的影响[J].生态学报, 2008, 28(5):2131-2139 doi: 10.3321/j.issn:1000-0933.2008.05.029 MA S Q, WANG Q, LUO X L. Effect of climate change on maize (Zea mays) growth and yield based on stage sowing[J]. Acta Ecologica Sinica, 2008, 28(5):2131-2139 doi: 10.3321/j.issn:1000-0933.2008.05.029
[8]	李文科, 薛庆禹, 王靖, 等.播期对吉林春玉米生长发育及产量形成的影响[J].玉米科学, 2013, 21(5):81-86 doi: 10.3969/j.issn.1005-0906.2013.05.016 LI W K, XUE Q Y, WANG J, et al. Effect of sowing date on the growth, development and yield formation of spring-maize in Jilin Province[J]. Journal of Maize Sciences, 2013, 21(5):81-86 doi: 10.3969/j.issn.1005-0906.2013.05.016
[9]	戴明宏, 赵久然, CLAUPEIN W, 等.基于CERES-Maize模型春玉米水分优化管理决策[J].水土保持学报, 2009, 23(1):187-192 doi: 10.3321/j.issn:1009-2242.2009.01.040 DAI M H, ZHAO J R, CLAUPEIN W, et al. Decision for optimized water management based on CERES-Maize Crop model[J]. Journal of Soil and Water Conservation, 2009, 23(1):187-192 doi: 10.3321/j.issn:1009-2242.2009.01.040
[10]	米娜, 张玉书, 纪瑞鹏, 等.基于作物模型与最佳季节法的锦州地区玉米最佳播种期分析[J].中国农业气象, 2016, 37(1):68-76 doi: 10.3969/j.issn.1000-6362.2016.01.009 MI N, ZHANG Y S, JI R P, et al. Analysis on optimum sowing date of maize in Jinzhou using crop growth model and optimum season method[J]. Chinese Journal of Agrometeorology, 2016, 37(1):68-76 doi: 10.3969/j.issn.1000-6362.2016.01.009
[11]	许红根, 陈江鲁, 张镇涛, 等.基于APSIM模型的新疆春播中晚熟玉米最适播期研究[J].石河子大学学报:自然科学版, 2018, 36(2):153-158 http://d.old.wanfangdata.com.cn/Periodical/shzdxxb201802004 XU H G, CHEN J L, ZHANG Z T, et al. Optimal sowing date for maize in spring sowing medium-late maturing region in Xinjiang Province based on APSIM model[J]. Journal of Shihezi University: Natural Science, 2018, 36(2):153-158 http://d.old.wanfangdata.com.cn/Periodical/shzdxxb201802004
[12]	刘明, 陶洪斌, 王璞, 等.播期对春玉米生长发育、产量及水分利用的影响[J].玉米科学, 2009, 17(2):108-111 http://d.old.wanfangdata.com.cn/Periodical/ymkx200902026 LIU M, TAO H B, WANG P, et al. Effects of sowing date on growth, yield formation and water utilization of spring maize[J]. Journal of Maize Sciences, 2009, 17(1):108-111 http://d.old.wanfangdata.com.cn/Periodical/ymkx200902026
[13]	罗新兰, 崔佳龙, 蔡福, 等.播期对玉米生长发育和产量的影响[J].干旱地区农业研究, 2017, 35(5):14-20 http://d.old.wanfangdata.com.cn/Periodical/ghdqnyyj201705003 LUO X L, CUI J L, CAI F, et al. Effect of sowing date on growth and yield of maize[J]. Agricultural Research in the Arid Areas, 2017, 35(5):14-20 http://d.old.wanfangdata.com.cn/Periodical/ghdqnyyj201705003
[14]	于振文.作物栽培学各论[M]. 2版.北京:中国农业出版社, 2013 YU Z W. Crop Cultivation[M]. 2nd ed. Beijing:China Agricultural University Press, 2013
[15]	RAMANKUTTY N, FOLEY J A, NORMAN J, et al. The global distribution of cultivable lands:Current patterns and sensitivity to possible climate change[J]. Global Ecology and Biogeography, 2002, 11(5):377-392 doi: 10.1046/j.1466-822x.2002.00294.x
[16]	薛昌颖, 霍治国, 李世奎, 等.灌溉降低华北冬小麦干旱减产的风险评估研究[J].自然灾害学报, 2003, 12(3):131-136 doi: 10.3969/j.issn.1004-4574.2003.03.021 XUE C Y, HUO Z G, LI S K, et al. Action of irrigation on decreasing yield reduction due to drought:A risk assessment of winter wheat in North China Plain[J]. Journal of Natural Disasters, 2003, 12(3):131-136 doi: 10.3969/j.issn.1004-4574.2003.03.021
[17]	ALLEN R G, PEREIRA L S, RAES D, et al. Crop Evapotranspiration: Guidelines for Computing Crop Water Requirements[R]. Rome: Food and Agriculture Organization of the United Nations, 1998
[18]	KEATING B A, CARBERRY P S, HAMMER G L, et al. An overview of APSIM, a model designed for farming systems simulation[J]. European Journal of Agronomy, 2003, 18(3/4):267-288 doi: 10.1016-S1161-0301(02)00108-9/
[19]	MCCOWN R L, HAMMER G L, HARGREAVES J N G, et al. APSIM:A novel software system for model development, model testing and simulation in agricultural systems research[J]. Agricultural Systems, 1996, 50(3):255-271 doi: 10.1016/0308-521X(94)00055-V
[20]	ASSENG S, ANDERSON G C, DUNIN F X, et al. Use of the APSIM wheat model to predict yield, drainage, and NO3- leaching for a deep sand[J]. Australian Journal of Agricultural Research, 1998, 49(3):363-378
[21]	ROBERTSON M J, CARBERRY P S, HUTH N I, et al. Simulation of growth and development of diverse legume species in APSIM[J]. Australian Journal of Agricultural Research, 2002, 53(4):429-446 doi: 10.1071/AR01106
[22]	PEAKE A S, ROBERTSON M J, BIDSTRUP R J. Optimising maize plant population and irrigation strategies on the Darling Downs using the APSIM crop simulation model[J]. Australian Journal of Experimental Agriculture, 2008, 48(3):313-325 doi: 10.1071/EA06108
[23]	BASSU S, ASSENG S, MOTZO R, et al. Optimising sowing date of durum wheat in a variable Mediterranean environment[J]. Field Crops Research, 2009, 111(1/2):109-118 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=6972d47270098d0f058ab2dec22124f2
[24]	HOLZWORTH D P, HUTH N I, DEVOIL P G, et al. APSIM-Evolution towards a new generation of agricultural systems simulation[J]. Environmental Modelling & Software, 2014, 62:327-350 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=db5cb5dfe873fe731c0be6010d0f0aed
[25]	李广, 黄高宝, 王琦, 等.基于APSIM模型的旱地小麦和豌豆水肥协同效应分析[J].草业学报, 2011, 20(5):151-159 http://d.old.wanfangdata.com.cn/Periodical/caoyexb201105020 LI G, HUANG G B, WANG Q, et al. Analysis of cooperation effect of water and fertilizer on wheat and pea in dryland based on APSIM model[J]. Acta Prataculturae Sinica, 2011, 20(5):151-159 http://d.old.wanfangdata.com.cn/Periodical/caoyexb201105020
[26]	王静, 杨晓光, 吕硕, 等.黑龙江省春玉米产量潜力及产量差的时空分布特征[J].中国农业科学, 2012, 45(10):1914-1925 doi: 10.3864/j.issn.0578-1752.2012.10.004 WANG J, YANG X G, Lü S, et al. Spatial-temporal characteristics of potential yields and yield gaps of spring maize in Heilongjiang Province[J]. Scientia Agricultura Sinica, 2012, 45(10):1914-1925 doi: 10.3864/j.issn.0578-1752.2012.10.004
[27]	肖登攀, 陶福禄.过去30年气候变化对华北平原冬小麦物候的影响研究[J].中国生态农业学报, 2012, 20(11):1539-1545 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=20121119&flag=1 XIAO D P, TAO F L. Impact of climate change in 1981-2009 on winter wheat phenology in the North China Plain[J]. Chinese Journal of Eco-Agriculture, 2012, 20(11):1539-1545 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=20121119&flag=1
[28]	WALLACH D, GOFFINET B. Mean squared error of prediction in models for studying ecological and agronomic systems[J]. Biometrics, 1987, 43(3):561-573 doi: 10.2307/2531995
[29]	ASSENG S, FILLERY I R P, DUNIN F X, et al. Potential deep drainage under wheat crops in a Mediterranean climate. I. Temporal and spatial variability[J]. Australian Journal of Agricultural Research, 2001, 52(1):45-56 doi: 10.1071/AR99186
[30]	温振民, 张永科.用高稳系数法估算玉米杂交种高产稳产性的探讨[J].作物学报, 1994, 20(4):508-512 doi: 10.3321/j.issn:0496-3490.1994.04.020 WEN Z M, ZHANG Y K. Study of a method for estimation performance of the high and stable yield of maize hybrids by the high-stably yielding coefficient[J]. Acta Agronomica Sinica, 1994, 20(4):508-512 doi: 10.3321/j.issn:0496-3490.1994.04.020
[31]	LIU Z J, YANG X G, LIN X M, et al. Maize yield gaps caused by non-controllable, agronomic, and socioeconomic factors in a changing climate of Northeast China[J]. Science of the Total Environment, 2016, 541:756-764 doi: 10.1016/j.scitotenv.2015.08.145
[32]	李少昆, 王振华, 高增贵, 等.北方春玉米田间种植手册[M].北京:中国农业出版社, 2011 LI S K, WANG Z H, GAO Z G, et al. Northern Spring Maize Planting Manual[M]. Beijing:China Agricultural University Press, 2011
