敦宇^1,,
张焓^{1, 3,,},
杨征伦³,
唐常源²,
张兆吉¹
1.中国地质科学院水文地质环境地质研究所 石家庄 050061
2.中山大学 广州 510275
3.日本千叶大学 千叶 271-8510 日本
基金项目: the National Natural Science Foundation of China41701368
the Fundamental Research Funds for Chinese Academy of Geological SciencesJYYWF20181303
the National Water Pollution Control and Treatment Science and Technology Major Project of China2018ZX07109-001-004

详细信息

作者简介:

通讯作者:张焓, 主要研究方向为水文地质与环境地质。E-mail:243809538@qq.com

中图分类号:X523;S273.5

计量

文章访问数:611
HTML全文浏览量:4
PDF下载量:559
被引次数:0

出版历程

收稿日期:2019-08-04
录用日期:2019-09-17
刊出日期:2019-11-01

Distribution characteristics and sources of nitrate in the unsaturated zone and groundwater of farmlands in an area irrigated with reclaimed water

DUN Yu^1,,
ZHANG Han^{1, 3,,},
YANG Zhenglun³,
TANG Changyuan²,
ZHANG Zhaoji¹
1. Institute of Hydrogeology and Environmental Geology, Chinese Academy of Geological Sciences, Shijiazhuang 050061, China
2. Sun Yat-sen University, Guangzhou 510275, China
3. Chiba University, Chiba 271-8510, Japan
Funds: the National Natural Science Foundation of China41701368
the Fundamental Research Funds for Chinese Academy of Geological SciencesJYYWF20181303
the National Water Pollution Control and Treatment Science and Technology Major Project of China2018ZX07109-001-004

More Information

Corresponding author:ZHANG Han, E-mail:243809538@qq.com

摘要
HTML全文
图(7)表(0)
参考文献(16)
相关文章
施引文献
资源附件(0)
访问统计

摘要
摘要:本文通过对华北平原典型再生水灌溉区（河北省石家庄洨河流域）的包气带土壤、地表水和地下水进行采样分析，对硝酸盐在多种环境介质中的来源与环境行为进行了研究，识别了再生水灌溉区地下水硝酸盐污染来源，明确了不同灌溉条件对包气带土壤中硝酸盐迁移的影响。在受到城市再生水严重影响的洨河流域，地下水中的硝酸盐浓度分布范围在4.0 mg·L^-1到156.6 mg·L^-1之间，已经形成了距离河道2 km、深度70 m的硝酸盐高值区域，经过计算硝酸盐的垂向扩散速率为每年1~2 m。硝酸盐与氯离子的相关性表明，城市再生水是再生水灌溉区包气带、地表水和地下水中硝酸盐的主要来源。利用Geoprobe获取利用不同灌溉水农田土壤剖面样品，研究再生水对厚包气带NO₃^--N垂向分布影响，再生水灌溉区和地下水灌溉区中包气带土壤的NO₃^--N的平均含量为137.0 mg·kg^-1和107.7 mg·kg^-1，最高含量523.2 mg·L^-1和725.9 mg·L^-1，分别出现1.20 m和0.85 m深度，分布规律有着明显的差别。包气带土壤硝酸盐与氯离子的相关性分析表明，再生水灌溉区土壤硝酸盐主要来源于城市再生水，而地下水灌溉区可能来源于农田氮肥。地下水年龄和硝酸盐之间关系表明，地下水中1975年以前补给的硝酸盐浓度低于1975年以后补给，地下水硝酸盐污染与包气带氮入渗的历史过程密切相关。在华北平原特殊的地质水文背景下，农田面源污染对地下水的影响有限，但再生水灌溉区地下水硝酸盐污染的风险较高。
关键词:再生水灌溉区/
包气带/
地下水/
硝酸盐/
华北平原
Abstract:The present study aimed to presenting the source and environmental behavior of nitrate in various environmental media by sampling and analyzing the soil in the unsaturated zone, surface water, and groundwater of a typical area irrigated with reclaimed water in the North China Plain. This study also identified the sources of groundwater nitrate pollution in the area, and determined the effects of different irrigation conditions on nitrate migration in the soil in the unsaturated zone. In the Xiao River basin, which is seriously affected by reclaimed urban water, nitrate concentrations in groundwater ranged from 4.0 mg·L^-1 to 156.6 mg·L^-1, nitrate in the groundwater had formed a high-value area of 2 km from the river channel and 70 m in depth. And nitrate moved down 1-2 m every year. The correlation between nitrate and chloride ion indicated that reclaimed urban water was the main source of nitrate in the unsaturated zone, surface water, and groundwater of the area irrigated with reclaimed water. Geoprobe system was used to obtain continuous soil core samples from the typical unsaturated zones to study the influence of reclaimed water on the vertical distribution of NO₃^--N in thick unsaturated zone. The average contents of NO₃^--N in the reclaimed water and groundwater irrigation areas were 137.0 mg·kg^-1 and 107.7 mg·kg^-1, with the peak values of 523.2 mg·kg^-1 at a soil depth of 1.20 m and 725.9 mg·kg^-1 at a depth of 0.85 m, respectively. The correlation analysis between soil nitrate and chloride ion indicated that the NO₃^--N in the reclaimed water irrigation area was mainly affected by reclaimed urban water, whereas in the groundwater irrigation area it may because the use of agricultural nitrogen fertilizers. By comprehensively analyzing the relationship between groundwater age and nitric acid, the historical process of the nitrogen source causing the groundwater nitrate pollution could be reproduced on a time scale. Under the unique hydrogeological background of the North China Plain, the nonpoint source pollution of the farmland has a limited effect on groundwater pollution, while the risk of groundwater nitrate nitrogen pollution is relatively high around the reclaimed water river.
Key words:Reclaimed water irrigation area/
Unsaturated zone/
Groundwater/
Nitrate/
North China Plain

HTML全文

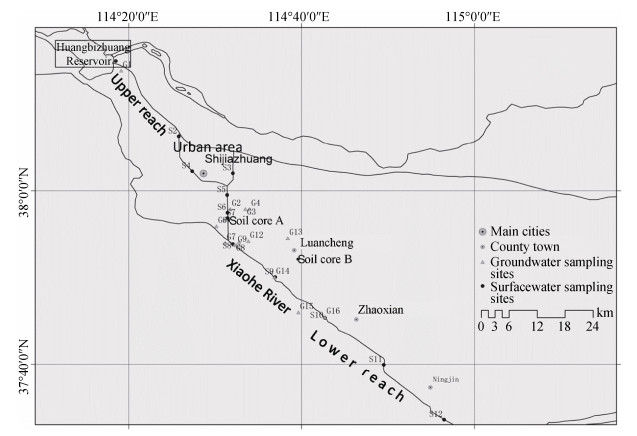

Figure1.Study area and sampling locations


下载: 全尺寸图片幻灯片

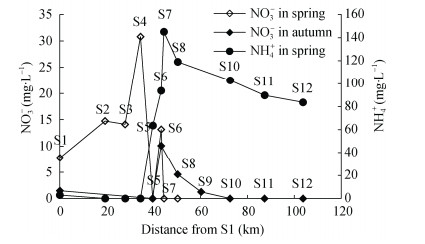

Figure2.NO₃^? and NH₄⁺ concentrations variations in surface water along the Xiao River in autumn and spring in 2016


下载: 全尺寸图片幻灯片

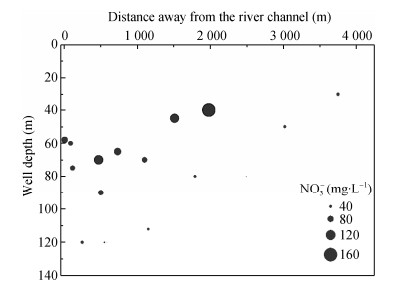

Figure3.Variations in the concentration of NO₃^- with well depth and distance from the river


下载: 全尺寸图片幻灯片

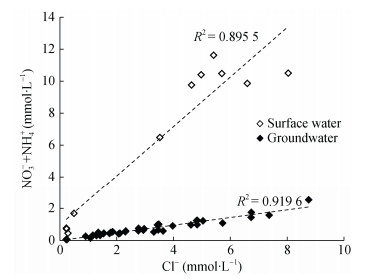

Figure4.Relationship between NO₃^-+NH₄⁺ and Cl^? in the surface water and groundwater


下载: 全尺寸图片幻灯片


Figure5.Soil classification and concentration profiles of water-soluble NO₃^- (A) in wastewater irrigation area and soil core (B) in groundwater irrigation area


下载: 全尺寸图片幻灯片

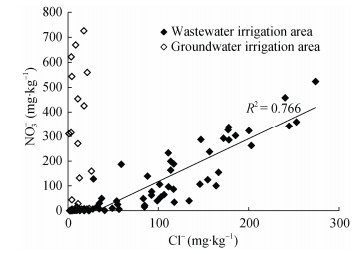

Figure6.Relationship between the contents of NO₃^? and Cl^- in soil core samples


下载: 全尺寸图片幻灯片

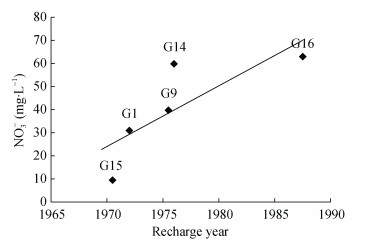

Figure7.Relationship between NO₃^- concentrations and apparent ages of freon (CFC-12)


下载: 全尺寸图片幻灯片


参考文献(16)

CAO Y, TANG C, SONG X, et al. 2013. Residence time as a key for comprehensive assessment of the relationship between changing land use and nitrates in regional groundwater systems[J]. Environmental Science:Processes & Impacts, 15(4):876-885 http://europepmc.org/abstract/med/23503885

CHEN J, WANG Y, ZHANG H, et al. 2006. Overview on the studies of nitrate pollution in groundwater[J]. Progress in Geography, 25(1):34-44 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dlkxjz200601004

DUN Y, TANG C, SHEN Y. 2014. Identifying interactions between river water and groundwater in the North China Plain using multiple tracers[J]. Environmental Earth Sciences, 72(1):99-110 doi: 10.1007/s12665-013-2989-4

GOURCY L, BARAN N, VITTECOQ B. 2009. Improving the knowledge of pesticide and nitrate transfer processes using age-dating tools (CFC, SF6, 3H) in a volcanic island (Martinique, French West Indies)[J]. Journal of Contaminant Hydrology, 108(3/4):107-117 https://www.ncbi.nlm.nih.gov/pubmed/19631404

LI F, PAN G, TANG C, et al. 2008. Recharge source and hydrogeochemical evolution of shallow groundwater in a complex alluvial fan system, southwest of North China Plain[J]. Environmental Geology, 55(5):1109-1122 doi: 10.1007/s00254-007-1059-1

LI X, HU C, LEI Y, et al. 2006. Calculation for the accumulation of nitrate nitrogen in a Luancheng soil by geoprobe[J]. Chinese Journal of Soil Science, 37(5):906-908 http://en.cnki.com.cn/Article_en/CJFDTOTAL-TRTB200605016.htm

McARTHUR J, SIKDAR P, HOQUE M, et al. 2012. Waste-water impacts on groundwater:Cl/Br ratios and implications for arsenic pollution of groundwater in the Bengal Basin and Red River Basin, Vietnam[J]. Science of the Total Environment, 437: 390-402 doi: 10.1016/j.scitotenv.2012.07.068

OSTER H, SONNTAG C, MüNNICH K O. 1996. Groundwater age dating with chlorofluorocarbons[J]. Water Resources Research, 32(10):2989-3001 doi: 10.1029/96WR01775

PANNO S, HACKLEY K, HWANG H, et al. 2006. Characterization and identification of Na-Cl sources in ground water[J]. Ground Water, 44(2):176-187 doi: 10.1111/j.1745-6584.2005.00127.x

TANG C, CHEN J, SHINDO S, et al. 2004. Assessment of groundwater contamination by nitrates associated with wastewater irrigation:a case study in Shijiazhuang region, China[J]. Hydrological Processes, 18: 2303-2312 doi: 10.1002/hyp.5531

TANG C, CHEN J, SONG X, et al. 2006. Effects of wastewater irrigation on groundwater quantity and quality in the suburbs of Shijiazhuang City, China[J]. Resources Science, 28(1):102-108 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zykx200601017

WANG S, TANG C, SONG X, et al. 2016. Factors contributing to nitrate contamination in a groundwater recharge area of the North China Plain[J]. Hydrological Processes, 30(13):2271-2285 doi: 10.1002/hyp.10778

WANG S, ZHENG W, KONG X. 2018a. Spatial distribution characteristics of nitrate in shallow groundwater of the agricultural area of the North China Plain[J]. Chinese Journal of Eco-Agriculture, 26(10):1476-1482 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=2018-1006&flag=1

WANG S, YUAN R, TANG C, et al. 2018b. Combination of CFCs and stable isotopes to characterize the mechanism of groundwater-surface water interactions in a headwater basin of the North China Plain[J]. Hydrological Processes, 32(11):1571-1587 doi: 10.1002/hyp.11494

YANG Y, WATANABE M, ZHANG X, et al. 2006. Optimizing irrigation management for wheat to reduce groundwater depletion in the piedmont region of the Taihang Mountains in the North China Plain[J]. Agricultural Water Management, 82(1/2):25-44 http://cn.bing.com/academic/profile?id=7acf22a8039f9f1baafcaf8dfc8757eb&encoded=0&v=paper_preview&mkt=zh-cn

ZHANG Z. 2009. Investigation and evaluation of sustainable utilization of groundwater in the North China Plain[M]. Beijing:Geological Publishing House
