李广1,,,
刘强2
1.甘肃农业大学林学院 兰州 730070
2.甘肃农业大学信息科学技术学院 兰州 730070
基金项目: 甘肃农业大学学科建设基金GAU-XKJS2018258
甘肃农业大学学科建设基金GAU-XKJS2018254
甘肃农业大学学科建设基金GAU-XKJS2018255
国家自然科学基金项目31560343
国家自然科学基金项目31560378
甘肃农业大学青年导师基金项目GAU-QNDS-201702
详细信息
作者简介:王钧, 研究方向为水土保持与荒漠化防治。E-mail:julianwong82@163.com
通讯作者:李广, 主要研究方向为水土保持与荒漠化研究。E-mail:lig@gsau.edu.cn
中图分类号:S157.4+2计量
文章访问数:516
HTML全文浏览量:2
PDF下载量:759
被引次数:0
出版历程
收稿日期:2018-10-26
录用日期:2019-03-25
刊出日期:2019-08-01
Soil water storage under conservation tillage based on LSTM neural network simulation in the Loess Plateau Gully Region of central Gansu
WANG Jun1, 2,,LI Guang1,,,
LIU Qiang2
1. College of Forestry, Gansu Agricultural University, Lanzhou 730070, China
2. College of Information Science and Technology, Gansu Agricultural University, Lanzhou 730070, China
Funds: the Subject Construction Fund of Gansu Agricultural UniversityGAU-XKJS2018258
the Subject Construction Fund of Gansu Agricultural UniversityGAU-XKJS2018254
the Subject Construction Fund of Gansu Agricultural UniversityGAU-XKJS2018255
the National Natural Science Foundation of China31560343
the National Natural Science Foundation of China31560378
the Youth Tutor Fund Project of Gansu Agricultural UniversityGAU-QNDS-201702
More Information
Corresponding author:LI Guang, E-mail:lig@gsau.edu.cn
摘要
HTML全文
图
参考文献
相关文章
施引文献
资源附件
访问统计
摘要
摘要:为分析陇中黄土高原沟壑区不同保护性耕作措施的贮水效果，本研究利用春小麦/豌豆（W/P）、豌豆/春小麦（P/W）轮作的长期定位试验，分别设置传统耕作（T）、免耕（NT）、传统耕作秸秆覆盖（TS）和免耕覆盖（NTS）4种耕作措施，以当地月平均气温、月降水量、月平均辐射量、月平均蒸发量、月作物耗水量为输入因子，以月土壤贮水量为输出，建立基于长短期记忆（Long Short-Term Memory，LSTM）神经网络的土壤贮水量预测模型，并对该模型的有效性进行评估。研究结果表明：1）基于LSTM神经网络建立的土壤贮水量模型对陇中黄土高原沟壑区保护性耕作下土壤贮水量预测具有较好的适用性，模型模拟结果的平均均方根误差为7.76 mm，平均绝对误差为6.95 mm，相对误差控制在-5%~+5%的范围内。2）P/W轮作序列中各处理的土壤贮水量均比W/P轮作序列增加1.09%~1.43%。3）不同轮作序列，NTS处理的贮水效果均优于其他3种耕作措施，在W/P轮作序列中，NTS处理的年均土壤贮水量比T、NT和TS分别增加2.89%、1.70%和2.46%；在P/W轮作序列中，NTS处理的年均土壤贮水量比T、NT和TS分别增加3.03%、1.91%和2.57%。4）不同降水年型，NTS处理的土壤贮水量最高，且干旱年效果更加显著，其中丰水年NTS处理的土壤贮水量比T、NT和TS平均增加2.71%、1.48%和2.19%，而干旱年平均增加3.97%、2.54%和3.64%。5）保护性耕作措施的贮水效果随季节发生变化，作物生长前期（3-5月）保护性耕作措施的贮水优势较为明显，进入作物生长旺盛期（5-6月）保护性耕作措施与传统耕作的贮水效果差异不显著，而作物生长后期（7月）保护性耕作措施较传统耕作土壤贮水量明显增加。基于LSTM神经网络模拟环境下免耕覆盖的贮水保墒效果最好，为陇中黄土高原沟壑区最适宜的保护性耕作措施。
关键词:保护性耕作/
春小麦/豌豆轮作/
土壤贮水量/
LSTM神经网络/
预测模型/
陇中黄土高原沟壑区
Abstract:In order to analyze the effects of soil water storage for four different tillage measures[traditional tillage (T), no-tillage with no straw cover (NT), traditional tillage with straw incorporation (TS) and no-tillage with straw cover (NTS)], the field research was conducted in the Loess Plateau Gully Region of central Gansu. The objectives of the study were to establish a prediction model for soil water storage based on Long Short-Term Memory (LSTM), and to evaluate the model's effectiveness using the long-term positioning experiment of the rotation sequence for spring wheat/pea (W/P) and pea/spring wheat (P/W) crops. In the experiment, monthly average temperature, monthly precipitation, monthly average radiation, monthly average evaporation and monthly crop water consumption constituted input factors, and value for soil water storage constituted the output factor in the prediction model. The results of the present study showed that:1) The water storage model based on LSTM neural network showed good applicability for predicting soil water storage, particularly in conservation tillage practice, in the Loess Plateau Gully Region of central Gansu. The average root mean square error and mean absolute error of the model simulation were 7.76 mm and 6.95 mm, respectively; moreover, the relative error was controlled between -5% and +5%. 2) In P/W rotation sequence, the soil water storage of various treatments increased by 1.09%-1.43% as compared to W/P. 3) Within different rotation sequences, water storage effect of NTS treatment turned out to be better than those for other three tillage measures. In W/P rotation sequence, the annual average soil water storage of NTS treatment was 2.89%, 1.70% and 2.46% higher than that of T, NT, and TS, respectively. In P/W rotation sequence, the average annual soil water storage of NTS treatment increased by 3.03%, 1.91% and 2.57%, respectively, compared to that of T, NT, and TS. 4) In the years with different precipitation, the soil water storage of NTS treatment was the highest, and this effect was markedly more significant in the dry year. The soil water storage of NTS treatment increased by 2.71%, 1.48% and 2.19%, on average, in the wet year, and it increased by 3.97%, 2.54% and 3.64%, on average, in the dry year as compared to the values recorded for T, NT and TS. 5) The water storage effect for conservation tillage measures varied with the season. There was obvious water storage advantage of conservation tillage measures during the early stages of crop growth (March-May). However, there was not significant between the results of conservation tillage measures and traditional tillage during the full growth stage (May-June). Nevertheless, the soil water storages for conservation tillage increased significantly during the late stage of crop growth (July). Going by the effect on soil water storage based on LSTM neural network, no-tillage mulching remains the best practice as well as the most suitable measure of protective tillage in the Loess Plateau Gully Region of central Gansu.
Key words:Conservation tillage/
Spring wheat/pea rotation/
Soil water storage/
LSTM neural network/
Prediction model/
Loess Plateau Gully Region of central Gansu
HTML全文

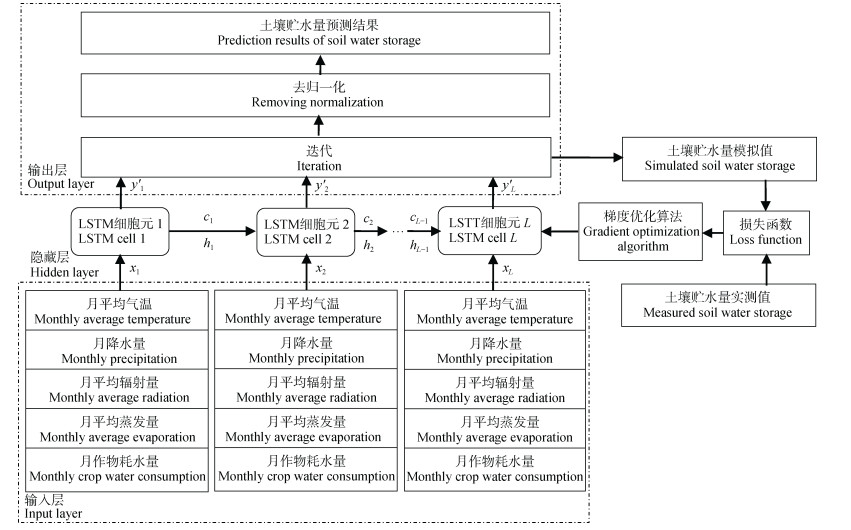

图1基于LSTM神经网络的土壤贮水量模型示意图
Figure1.The diagram of soil water storage model based on LSTM neural network
下载: 全尺寸图片幻灯片

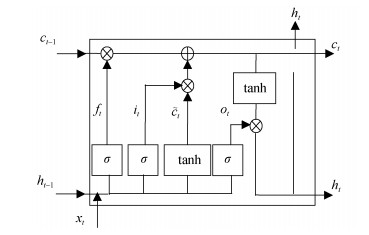

图2LSTM神经网络细胞结构图
Figure2.Cell structure of LSTM neural network
下载: 全尺寸图片幻灯片

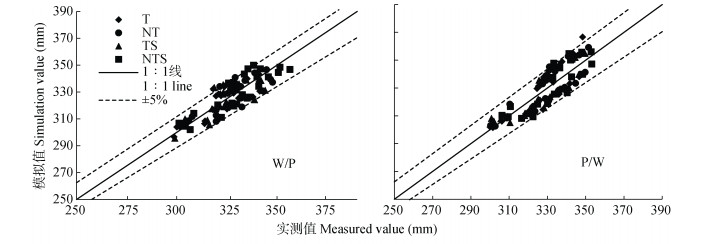

图3不同春小麦(W)/豌豆(P)轮作序列不同耕作措施的土壤贮水量模拟值与观测值相关分析
T:传统耕作; NT:免耕; TS:传统耕作秸秆覆盖; NTS:免耕秸秆覆盖。
Figure3.Correlation analysis of LSTM neural network simulated and observed values of soil water storage under different tillage measures and different sequences of spring wheat (W) and pea (P) rotation
T: traditional tillage; NT: no-tillage with no straw cover; TS: traditional tillage with straw incorporation; NTS: no-tillage with straw cover.
下载: 全尺寸图片幻灯片

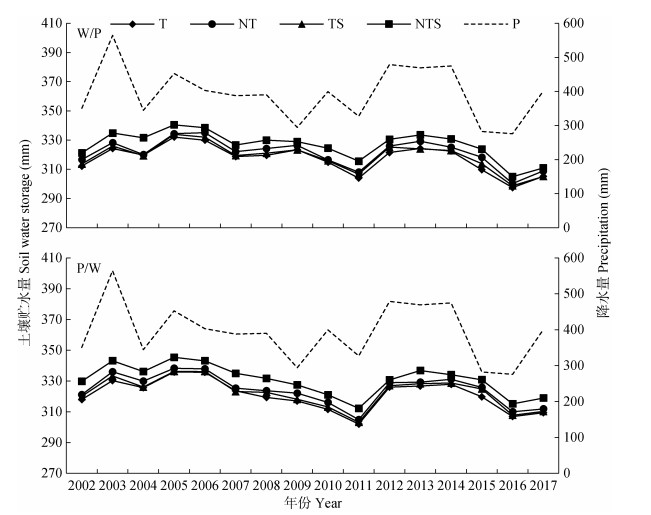

图42002—2017年春小麦(W)/豌豆(P)轮作序列不同耕作措施土壤贮水量与年降水量的关系
T:传统耕作; NT:免耕; TS:传统耕作秸秆覆盖; NTS:免耕秸秆覆盖; P:降水量。
Figure4.Relationship between soil water storage and annual precipitation of different tillage measures under different sequences of spring wheat (W) and pea (P) rotation from 2002 to 2017
T: traditional tillage; NT: no-tillage with no straw cover; TS: traditional tillage with straw incorporation; NTS: no-tillage with straw cover; P: precipitation.
下载: 全尺寸图片幻灯片

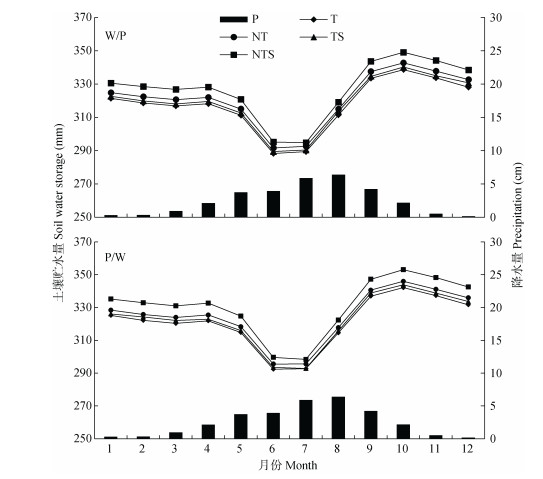

图52002—2017年春小麦(W)/豌豆(P)轮作序列不同耕作措施下各月土壤贮水量的变化
T:传统耕作; NT:免耕; TS:传统耕作秸秆覆盖; NTS:免耕秸秆覆盖; P:降水量。
Figure5.Monthly changes of soil water storage of different tillage measures under different sequences of spring wheat (W) and pea (P) rotation from 2002 to 2017
T: traditional tillage; NT: no-tillage with no straw cover; TS: traditional tillage with straw incorporation; NTS: no-tillage with straw cover; P: precipitation.
下载: 全尺寸图片幻灯片

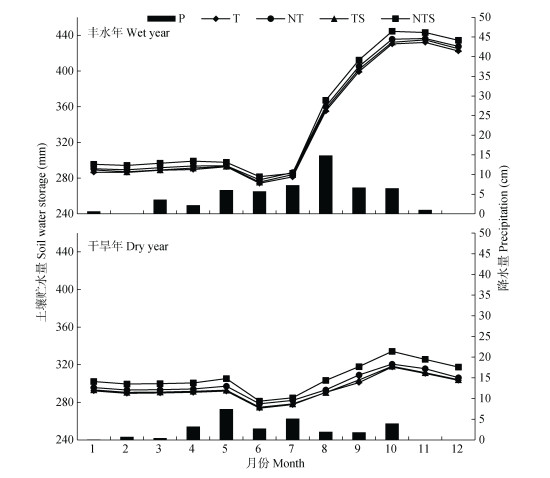

图6不同耕作措施下春小麦/豌豆轮作系统(W/P)春小麦农田月平均土壤贮水量在丰水年和干旱年的变化特征
T:传统耕作; NT:免耕; TS:传统耕作秸秆覆盖; NTS:免耕秸秆覆盖; P:降水量。
Figure6.Monthly changes of soil water storage of spring wheat farmland of spring wheat/pea rotation sequence (W/P) in wet and dry years under different tillage measures
T: traditional tillage; NT: no-tillage with no straw cover; TS: traditional tillage with straw incorporation; NTS: no-tillage with straw cover; P: precipitation.
下载: 全尺寸图片幻灯片

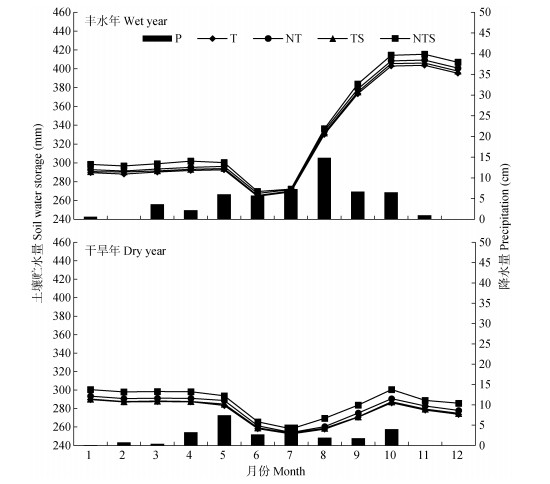

图7不同耕作措施下豌豆/春小麦轮作系统(P/W)豌豆农田月平均土壤贮水量在丰水年和干旱年的特征
T:传统耕作; NT:免耕; TS:传统耕作秸秆覆盖; NTS:免耕秸秆覆盖; P:降水量。
Figure7.Monthly changes of soil water storage of pea farmland of pea/spring wheat rotation sequence (P/W) in wet and dry years under different tillage measures
T: traditional tillage; NT: no-tillage with no straw cover; TS: traditional tillage with straw incorporation; NTS: no-tillage with straw cover; P: precipitation.
下载: 全尺寸图片幻灯片表1试验田0~200 cm土层土壤容重
Table1.Soil bulk density in 0-200 cm soil layers of the experimental field
| 土层Soil layer (cm) | 0~5 | 5~10 | 10~30 | 30~50 | 50~80 | 80~110 | 110~140 | 140~170 | 170~200 |
| 容重Soil bulk density (g?cm-3) | 1.29 | 1.23 | 1.32 | 1.20 | 1.14 | 1.14 | 1.13 | 1.12 | 1.11 |
下载: 导出CSV表2基于LSTM神经网络的土壤贮水量模型参数
Table2.Parameters of LSTM neural network model for soil water storage
| 参数Parameter | 值Value |
| 隐藏层数Hidden layer | 20 |
| 最大迭代次数Maximum iterations | 50 |
| 批尺寸Batch size | 5 |
| 损失函数Loss function | mse |
| 下降方式Descent method | Adadelta optimization algorithm |
| 学习速率Learning rate | 0.001 |
下载: 导出CSV表3不同春小麦(W)/豌豆(P)轮作序列不同耕作措施下土壤贮水量LSTM神经网络模型模拟值与实测值的统计指标
Table3.Statistical indices of LSTM neural network simulated and observed values of soil water storage under different tillage measures and different sequences of spring wheat (W) and pea (P) rotation
| 序列 Sequence | 处理 Treatment | 模拟平均值 Simulated average (mm) | 实测平均值 Measured average (mm) | 相关系数 Correlation coefficient | 均方根误差 Root mean square error (mm) | 平均绝对误差 Mean absolute error (mm) |
| W/P | T | 322.90 | 322.17 | 0.99 | 7.02 | 6.02 |
| NT | 327.57 | 326.85 | 0.99 | 7.26 | 6.23 | |
| TS | 324.59 | 323.15 | 0.99 | 7.19 | 6.16 | |
| NTS | 332.01 | 330.79 | 0.99 | 7.52 | 6.76 | |
| P/W | T | 326.40 | 325.95 | 0.99 | 8.09 | 7.33 |
| NT | 329.60 | 328.81 | 0.99 | 8.24 | 7.68 | |
| TS | 327.63 | 326.28 | 0.99 | 8.22 | 7.67 | |
| NTS | 334.77 | 333.40 | 0.99 | 8.56 | 7.78 | |
| T:传统耕作; NT:免耕; TS:传统耕作秸秆覆盖; NTS:免耕秸秆覆盖。T: traditional tillage; NT: no-tillage with no straw cover; TS: traditional tillage with straw incorporation; NTS: no-tillage with straw cover. | ||||||
下载: 导出CSV参考文献
| [1] | 胡继超, 姜东, 曹卫星, 等.短期干旱对水稻叶水势、光合作用及干物质分配的影响[J].应用生态学报, 2004, 15(1):63-67 doi: 10.3321/j.issn:1001-9332.2004.01.014 HU J C, JIANG D, CAO W X, et al. Effect of short-term drought on leaf water potential, photosynthesis and dry matter partitioning in paddy rice[J]. Chinese Journal of Applied Ecology, 2004, 15(1):63-67 doi: 10.3321/j.issn:1001-9332.2004.01.014 |
| [2] | 邓振镛, 张强, 王强, 等.黄土高原旱塬区土壤贮水量对冬小麦产量的影响[J].生态学报, 2011, 31(18):5281-5289 http://d.old.wanfangdata.com.cn/Conference/7569489 DENG Z Y, ZHANG Q, WANG Q, et al. Influence of water storage capacity on yield of winter wheat in dry farming area in the Loess Plateau[J]. Acta Ecologica Sinica, 2011, 31(18):5281-5289 http://d.old.wanfangdata.com.cn/Conference/7569489 |
| [3] | 林祥, 王东, 谷淑波.播种期补灌对土壤含水量和小麦籽粒产量的影响[J].麦类作物学报, 2015, 35(12):1700-1711 doi: 10.7606/j.issn.1009-1041.2015.12.14 LIN X, WANG D, GU S B. Effects of supplemental irrigation at sowing stage on soil moisture and grain yield of wheat[J]. Journal of Triticeae Crops, 2015, 35(12):1700-1711 doi: 10.7606/j.issn.1009-1041.2015.12.14 |
| [4] | 陈宁宁, 李军, 吕薇, 等.不同轮耕方式对渭北旱塬麦玉轮作田土壤物理性状与产量的影响[J].中国生态农业学报, 2015, 23(9):1102-1111 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=2015904&flag=1 CHEN N N, LI J, LYU W, et al. Effects of different rotational tillage patterns on soil physical properties and yield of winter wheat-spring maize rotation field in Weibei highland[J]. Chinese Journal of Eco-Agriculture, 2015, 23(9):1102-1111 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=2015904&flag=1 |
| [5] | 邵晓梅, 严昌荣.陇中黄土高原丘陵沟壑区土壤水分动态变化分析[J].水土保持研究, 2006, 13(4):243-245 doi: 10.3969/j.issn.1005-3409.2006.04.077 SHAO X M, YAN C R. Analysis on the dynamic change of soil water in the loess plateau gully and hill region[J]. Research of Soil and Water Conservation, 2006, 13(4):243-245 doi: 10.3969/j.issn.1005-3409.2006.04.077 |
| [6] | CHOUDHURY S G, SRIVASTAVA S, SINGH R, et al. Tillage and residue management effects on soil aggregation, organic carbon dynamics and yield attribute in rice-wheat cropping system under reclaimed sodic soil[J]. Soil and Tillage Research, 2014, 136:76-83 doi: 10.1016/j.still.2013.10.001 |
| [7] | PALM C, BLANCO-CANQUI H, DECLERCK F, et al. Conservation agriculture and ecosystem services:An overview[J]. Agriculture, Ecosystems & Environment, 2014, 187:87-105 http://d.old.wanfangdata.com.cn/NSTLQK/NSTL_QKJJ0232700227/ |
| [8] | MITCHELL J P, SINGH P N, WALLENDER W W, et al. No-tillage and high-residue practices reduce soil water evaporation[J]. California Agriculture, 2012, 66(2):55-61 doi: 10.3733/ca.v066n02p55 |
| [9] | 杨长刚, 柴守玺.秸秆带状覆盖对旱地冬小麦产量及土壤水热利用的调控效应[J].应用生态学报, 2018, 29(10):3245-3255 http://d.old.wanfangdata.com.cn/Periodical/yystxb201810012 YANG C G, CHAI S X. Regulatory effects of bundled straw covering on winter wheat yield and soil thermal-moisture utilization in dryland[J]. Chinese Journal of Applied Ecology, 2018, 29(10):3245-3255 http://d.old.wanfangdata.com.cn/Periodical/yystxb201810012 |
| [10] | 彭正凯, 李玲玲, 谢军红.保护性耕作对陇中旱作农田水分特征的影响[J].应用生态学报, 2018, 29(12):4022-4028 http://d.old.wanfangdata.com.cn/Periodical/yystxb201812016 PENG Z K, LI L L, XIE J H. Effects of conservational tillage on water characteristics in dryland farm of central Gansu, Northwest China[J]. Chinese Journal of Applied Ecology, 2018, 29(12):4022-4028 http://d.old.wanfangdata.com.cn/Periodical/yystxb201812016 |
| [11] | 殷文, 柴强, 胡发龙, 等.干旱内陆灌区不同秸秆还田方式下春小麦田土壤水分利用特征[J].中国农业科学, 2019, 52(7):1247-1259 http://d.old.wanfangdata.com.cn/Periodical/zgnykx201907012 YIN W, CHAI Q, HU F L, et al. Characteristics of soil water utilization in spring wheat field with different straw retention approaches in dry inland irrigation areas[J]. Scientia Agricultura Sinica, 2019, 52(7):1247-1259 http://d.old.wanfangdata.com.cn/Periodical/zgnykx201907012 |
| [12] | QIU Y, FU B, WANG J, et al. Spatial prediction of soil moisture content using multiple-linear regressions in a gully catchment of the Loess Plateau, China[J]. Journal of Arid Environments, 2010, 74(2):208-220 doi: 10.1016/j.jaridenv.2009.08.003 |
| [13] | 尹笑笑, 王东.两种土壤质地麦田贮水量与表层土壤水分的关系[J].麦类作物学报, 2018, 38(7):841-853 http://d.old.wanfangdata.com.cn/Periodical/mlzwxb201807013 YIN X X, WANG D. Relation of the soil water storage in a certain soil depth to the soil water content in the surface layer in two different soil texture wheat fields[J]. Journal of Triticeae Crops, 2018, 38(7):841-853 http://d.old.wanfangdata.com.cn/Periodical/mlzwxb201807013 |
| [14] | 周良臣.利用土壤水动力学模型预测麦田土壤水分的研究[J].节水灌溉, 2007, (3):10-13 doi: 10.3969/j.issn.1007-4929.2007.03.003 ZHOU L C. Study on estimation of soil-water content by using soil-water dynamics model[J]. Water Saving Irrigation, 2007, (3):10-13 doi: 10.3969/j.issn.1007-4929.2007.03.003 |
| [15] | 李广, 黄高宝, BELLOTTI W, 等. APSIM模型在黄土丘陵沟壑区不同耕作措施中的适用性[J].生态学报, 2009, 29(5):2655-2663 doi: 10.3321/j.issn:1000-0933.2009.05.056 LI G, HUANG G B, BELLOTTI W, et al. Adaptation research of APSIM model under different tillage systems in the Loess hill-gullied region[J]. Acta Ecologica Sinica, 2009, 29(5):2655-2663 doi: 10.3321/j.issn:1000-0933.2009.05.056 |
| [16] | 丁晋利, 武继承, 杨永辉, 等.耕作方式转变对土壤蓄水保墒影响的RZWQM模型模拟[J].农业机械学报, 2016, 47(4):136-145 http://d.old.wanfangdata.com.cn/Periodical/nyjxxb201604019 DING J L, WU J C, YANG Y H, et al. Simulation of effects of tillage pattern transformation on soil water conservation with RZWQM model[J]. Transactions of the Chinese Society for Agricultural Machinery, 2016, 47(4):136-145 http://d.old.wanfangdata.com.cn/Periodical/nyjxxb201604019 |
| [17] | 赵引, 毛晓敏, 薄丽媛.覆膜和灌水处理下土壤水分动态与玉米生长模拟研究[J].农业机械学报, 2018, 49(9):195-204 http://d.old.wanfangdata.com.cn/Periodical/nyjxxb201809024 ZHAO Y, MAO X M, BO L Y. Simulation of soil moisture dynamics and seed-maize growth under different mulching and irrigation conditions[J]. Transactions of the Chinese Society for Agricultural Machinery, 2018, 49(9):195-204 http://d.old.wanfangdata.com.cn/Periodical/nyjxxb201809024 |
| [18] | 武文红, 杜贞栋, 刘现伟, 等.基于BP神经网络的土壤贮水量预报模型研究[J].安徽农业科学, 2010, 38(15):8211-8212 doi: 10.3969/j.issn.0517-6611.2010.15.182 WU W H, DU Z D, LIU X W, et al. Based on BP neural network forecasting model of soil water storage[J]. Journal of Anhui Agricultural Sciences, 2010, 38(15):8211-8212 doi: 10.3969/j.issn.0517-6611.2010.15.182 |
| [19] | 陈昌华, 谭俊, 尹健康, 等.基于PCA-RBF神经网络的烟田土壤水分预测[J].农业工程学报, 2010, 26(8):85-90 doi: 10.3969/j.issn.1002-6819.2010.08.014 CHEN C H, TAN J, YIN J K, et al. Prediction for soil moisture tobacco fields based on PCA and RBF neural network[J]. Transactions of the CSAE, 2010, 26(8):85-90 doi: 10.3969/j.issn.1002-6819.2010.08.014 |
| [20] | L?NGKVIST M, KARLSSON L, LOUTFI A, et al. A review of unsupervised feature learning and deep learning for time-series modeling[J]. Pattern Recognition Letters, 2014, 42:11-24 doi: 10.1016/j.patrec.2014.01.008 |
| [21] | LECUN Y, BENGIO Y, HINTON G. Deep learning[J]. Nature, 2015, 521(7553):436-444 doi: 10.1038/nature14539 |
| [22] | 王鑫, 吴际, 刘超, 等.基于LSTM循环神经网络的故障时间序列预测[J].北京航空航天大学学报, 2018, 44(4):772-784 http://d.old.wanfangdata.com.cn/Periodical/bjhkhtdxxb201804015 WANG X, WU J, LIU C, et al. Exploring LSTM based recurrent neural network for failure time series prediction[J]. Journal of Beijing University of Aeronautics and Astronautics, 2018, 44(4):772-784 http://d.old.wanfangdata.com.cn/Periodical/bjhkhtdxxb201804015 |
| [23] | 李小涵, 王朝辉, 郝明德, 等.黄土高原旱地种植体系对土壤水分及有机氮和矿质氮的影响[J].中国农业科学, 2008, 41(9):2686-2692 doi: 10.3864/j.issn.0578-1752.2008.09.016 LI X H, WANG Z H, HAO M D, et al. Effects of cropping systems on soil water, organic N and mineral N in dryland soil on the Loess Plateau[J]. Scientia Agricultura Sinica, 2008, 41(9):2686-2692 doi: 10.3864/j.issn.0578-1752.2008.09.016 |
| [24] | 郭清毅, 黄高宝, LI G D, 等.保护性耕作对旱地麦-豆双序列轮作农田土壤水分及利用效率的影响[J].水土保持学报, 2005, 19(3):165-169 doi: 10.3321/j.issn:1009-2242.2005.03.040 GUO Q Y, HUANG G B, LI G D, et al. Conservation tillage effects on soil moisture and water use efficiency of two phases rotation system with spring wheat and field pea in dryland[J]. Journal of Soil and Water Conservation, 2005, 19(3):165-169 doi: 10.3321/j.issn:1009-2242.2005.03.040 |
| [25] | 王秋菊, 张敬涛, 盖志佳, 等.长期免耕秸秆覆盖对寒地草甸土土壤物理性质的影响[J].应用生态学报, 2018, 29(9):2943-2948 http://d.old.wanfangdata.com.cn/Periodical/yystxb201809017 WANG Q J, ZHANG J T, GAI Z J, et al. Effect of long-term straw mulching and no-tillage on physical properties of meadow soil in cold region[J]. Chinese Journal of Applied Ecology, 2018, 29(9):2943-2948 http://d.old.wanfangdata.com.cn/Periodical/yystxb201809017 |
| [26] | 李俊红, 吕军杰, 丁志强, 等.保护性耕作冬小麦产量及土壤水分变化研究[J].土壤通报, 2014, 45(6):1343-1348 http://d.old.wanfangdata.com.cn/Periodical/trtb201406009 LI J H, LYU J J, DING Z Q, et al. Study of conservation tillage on winter wheat yield and soil moisture[J]. Chinese Journal of Soil Science, 2014, 45(6):1343-1348 http://d.old.wanfangdata.com.cn/Periodical/trtb201406009 |
| [27] | FABRIZZI K P, GARCíA F O, COSTA J L, et al. Soil water dynamics, physical properties and corn and wheat responses to minimum and no-tillage systems in the southern Pampas of Argentina[J]. Soil and Tillage Research, 2005, 81(1):57-69 doi: 10.1016/j.still.2004.05.001 |
| [28] | 晋小军, 黄高宝.陇中半干旱地区不同耕作措施对土壤水分及利用效率的影响[J].水土保持学报, 2005, 19(5):109-112 doi: 10.3321/j.issn:1009-2242.2005.05.027 JIN X J, HUANG G B. Effects of different tillage methods on soil water and water use efficiency in semi-arid area of Gansu[J]. Journal of Soil and Water Conservation, 2005, 19(5):109-112 doi: 10.3321/j.issn:1009-2242.2005.05.027 |
| [29] | 高建华, 张承中.不同保护性耕作措施对黄土高原旱作农田土壤物理结构的影响[J].干旱地区农业研究, 2010, 28(4):192-196 http://d.old.wanfangdata.com.cn/Periodical/ghdqnyyj201004036 GAO J H, ZHANG C Z. The effects of different conservation tillage on soil physical structures of dry farmland in the Loess Plateau[J]. Agricultural Research in the Arid Areas, 2010, 28(4):192-196 http://d.old.wanfangdata.com.cn/Periodical/ghdqnyyj201004036 |
| [30] | 蔡立群, 罗珠珠, 张仁陟, 等.不同耕作措施对旱地农田土壤水分保持及入渗性能的影响研究[J].中国沙漠, 2012, 32(5):1362-1368 http://d.old.wanfangdata.com.cn/Periodical/zgsm201205028 CAI L Q, LUO Z Z, ZHANG R Z, et al. Effect of different tillage methods on soil water retention and infiltration capability of rainfed field[J]. Journal of Desert Research, 2012, 32(5):1362-1368 http://d.old.wanfangdata.com.cn/Periodical/zgsm201205028 |
| [31] | 刘强, 冯永忠, 杨世琦, 等.水蚀风蚀交错区坡耕地不同耕作措施水温效应研究[J].西北农业学报, 2011, 20(7):179-186 doi: 10.3969/j.issn.1004-1389.2011.07.035 LIU Q, FENG Y Z, YANG S Q, et al. Effects of different tillage on soil moisture and temperature on sloping farmland in the wind-water erosion crisscross region[J]. Acta Agriculturae Boreali-occidentalis Sinica, 2011, 20(7):179-186 doi: 10.3969/j.issn.1004-1389.2011.07.035 |
| [32] | 余海英, 彭文英, 马秀, 等.免耕对北方旱作玉米土壤水分及物理性质的影响[J].应用生态学报, 2011, 22(1):99-104 http://d.old.wanfangdata.com.cn/Periodical/yystxb201101016 YU H Y, PENG W Y, MA X, et al. Effects of no-tillage on soil water content and physical properties of spring corn fields in semiarid region of northern China[J]. Chinese Journal of Applied Ecology, 2011, 22(1):99-104 http://d.old.wanfangdata.com.cn/Periodical/yystxb201101016 |
| [33] | 吕美蓉, 李增嘉, 张涛, 等.少免耕与秸秆还田对极端土壤水分及冬小麦产量的影响[J].农业工程学报, 2010, 26(1):41-46 doi: 10.3969/j.issn.1002-6819.2010.01.008 LYU M R, LI Z J, ZHANG T, et al. Effects of minimum or no-tillage system and straw returning on extreme soil moisture and yield of winter wheat[J]. Transactions of the CSAE, 2010, 26(1):41-46 doi: 10.3969/j.issn.1002-6819.2010.01.008 |
| [34] | 丁晋利, 魏红义, 杨永辉, 等.保护性耕作对农田土壤水分和冬小麦产量的影响[J].应用生态学报, 2018, 29(8):2501-2508 http://d.old.wanfangdata.com.cn/Periodical/yystxb201808007 DING J L, WEI H Y, YANG Y H, et al. Effects of conservation tillage on soil water condition and winter wheat yield in farmland[J]. Chinese Journal of Applied Ecology, 2018, 29(8):2501-2508 http://d.old.wanfangdata.com.cn/Periodical/yystxb201808007 |
| [35] | 贺立恒, 高志强, 孙敏, 等.旱地小麦休闲期不同耕作措施对土壤水分蓄纳利用与产量形成的影响[J].中国农学通报, 2012, 28(15):106-111 http://d.old.wanfangdata.com.cn/Periodical/zgnxtb201215022 HE L H, GAO Z Q, SUN M, et al. Effect of ploughing in leisure period on yield and soil water use efficiency of winter wheat in dryland[J]. Chinese Agricultural Science Bulletin, 2012, 28(15):106-111 http://d.old.wanfangdata.com.cn/Periodical/zgnxtb201215022 |
| [36] | 陈四龙, 陈素英, 孙宏勇, 等.耕作方式对冬小麦棵间蒸发及水分利用效率的影响[J].土壤通报, 2006, 37(4):817-820 doi: 10.3321/j.issn:0564-3945.2006.04.044 CHEN S L, CHEN S Y, SUN H Y, et al. Effect of different tillages on soil evaporation and water use efficiency of winter wheat in the field[J]. Chinese Journal of Soil Science, 2006, 37(4):817-820 doi: 10.3321/j.issn:0564-3945.2006.04.044 |
| [37] | 彭正凯, 李玲玲, 谢军红, 等.不同耕作措施对旱地作物生育期农田耗水结构和水分利用效率的影响[J].水土保持学报, 2018, 32(5):214-221 http://d.old.wanfangdata.com.cn/Periodical/trqsystbcxb201805035 PENG Z K, LI L L, XIE J H, et al. Effect of different tillage practices on water consumption structure and water use efficiency during crop growth period in arid farmland[J]. Journal of Soil and Water Conservation, 2018, 32(5):214-221 http://d.old.wanfangdata.com.cn/Periodical/trqsystbcxb201805035 |
| [38] | 孔维萍, 成自勇, 张芮, 等.保护性耕作在黄土高原的应用和发展[J].干旱区研究, 2015, 32(2):240-250 http://d.old.wanfangdata.com.cn/Periodical/ghqyj201502005 KONG W P, CHENG Z Y, ZHANG R, et al. Application and development of conservation tillage techniques in the loess plateau[J]. Arid Zone Research, 2015, 32(2):240-250 http://d.old.wanfangdata.com.cn/Periodical/ghqyj201502005 |
| [39] | 王蕾, 李军, 贾志宽, 等.渭北旱原夏闲期麦田不同耕作措施的土壤贮水效应[J].西北农林科技大学学报:自然科学版, 2009, 37(8):133-138 http://d.old.wanfangdata.com.cn/Periodical/xbnydxxb200908023 WANG L, LI J, JIA Z K, et al. Effect of tillage on soil moisture storage in summer fallow period of winter wheat field in Weibei dry-land[J]. Journal of Northwest A & F University:Natural Science Edition, 2009, 37(8):133-138 http://d.old.wanfangdata.com.cn/Periodical/xbnydxxb200908023 |
| [40] | 郑洪兵, 刘武仁, 罗洋, 等.耕作方式对农田土壤水分变化特征及水分利用效率的影响[J].水土保持学报, 2018, 32(3):264-270 http://d.old.wanfangdata.com.cn/Periodical/trqsystbcxb201803040 ZHENG H B, LIU W R, LUO Y, et al. Effect of different tillage methods on soil water content and water use efficiency in cropland[J]. Journal of Soil and Water Conservation, 2018, 32(3):264-270 http://d.old.wanfangdata.com.cn/Periodical/trqsystbcxb201803040 |
