Daily standardized antecedent precipitation evapotranspiration index (SAPEI) and its adaptability in Anhui Province
CHEN Jinhua,YU Weiguo,
LIU Ruina,
YUE Wei,
CHEN Xi
Anhui Agrometeorological Center/Anhui Rural Comprehensive Economic Information Center, Hefei 230031, China
Funds: the National Key Research and Development Project of China2018YFD0300905
the National Key Research and Development Project of China2018YFD0300906
摘要
HTML全文
图
参考文献
相关文章
施引文献
资源附件
访问统计
摘要
摘要:旱涝灾害是影响农业丰产增效的主要灾害之一。目前广泛应用的旱涝指数，多以旬、月、季尺度的旱涝指数为主，其时效性与精准性水平与农业旱涝灾害绿色应对和防控服务需求还有差距。本文选取位于南北气候过渡带的安徽省，应用78个地面气象观测站数据，通过对日尺度前期降水蒸散差值指数（antecedent precipitation evapotranspiration index，APEI）序列值进行三参数log-Logistic概率分布拟合，构建日尺度的标准化前期降水蒸散指数（standardized antecedent precipitation evapotranspiration index，SAPEI），并在沿淮淮北、江淮之间、沿江江南不同干湿性区域选取代表站，对SAPEI在安徽省旱涝监测评估中的适用性进行分析。结果显示：不同区域代表站APEI序列的经验概率分布曲线与log-Logistic理论概率分布曲线高度拟合，有无降水时逐日SAPEI曲线能反映农田水分收支状况；2011年6月8日、6月28日旱涝急转应用案例中，SAPEI旱涝等级与变化趋势，与同期土壤水分监测的旱涝等级与演变趋势具有很好一致性。基于SAPEI的小麦全生育期累年平均旱涝积空间分布，符合安徽省实际旱涝分布型；全生育期SAPEI累年平均值（ISAPEI）的0值线以北、以西为负值、偏干区域，与安徽省小麦主产区一致。研究表明，日尺度的SAPEI及其旱涝积指数，可以反映降水时间分布及日雨量大小对旱涝的影响，精准刻画安徽省不同区域日尺度的旱涝变化及旱涝过程累积效应，可在安徽省旱涝逐日动态监测与农业旱涝影响评估服务中应用。
Abstract:Agricultural drought and waterlogging are two of the most compelling problems affecting agricultural productivity and efficiency. At present, most of the widely used drought and waterlogging indices are based on ten-day, monthly, and seasonal scales. Their timeliness and accuracy are still far from the desired levels that would enable a sustainable means of preventing and controlling agricultural drought and waterlogging disasters. Based on the data of 78 meteorological observing stations in Anhui Province, selected as the transitional zone between the North Semi-humid and South Humid climates, a daily standardized antecedent precipitation evapotranspiration index (SAPEI) was constructed by fitting the daily antecedent precipitation evapotranspiration index (APEI) series with a 3-parameter log-logistic distribution. In addition, its feasibility and adaptability were analyzed in representative stations that were selected in different dry and wet zones, namely, North of the Huaihe River, Between the Huaihe River and Yangtze River, and South of the Yangtze River. The results showed that the empirical probability distribution curve of representative stations' APEI series highly corresponded with the theoretical log-logistic distribution curve. Representative stations' daily SAPEI curve could describe the changes in farmland water budget in the presence/absence of rain. In the case of the rapid change in drought and flood on June 8 and 28, 2011, SAPEI's drought and waterlogging grade and change trends were in good agreement with soil moisture in the same period. Spatial distribution of drought, waterlogging frequency, and annual mean values of accumulated index based on winter wheat whole development stage's SAPEI was primarily distributed latitudinally. These distribution characteristics conformed to the actual distribution of drought and waterlogging in Anhui Province. The 0-value line of annual mean SAPEI (ISAPEI) in the winter wheat whole development stage was located north of the "Between the Huaihe River and Yangtze River" zone and along the eastern and southern foot of the Dabie Mountains. The area covered by negative values was drier and was the main area planted with winter wheat in Anhui Province, and the other area covered by positive values was more humid. In conclusion, the daily-scale SAPEI and its accumulated index could reflect the temporal distribution of precipitation and the impact of daily rainfall amount, and accurately depict the changes in drought and waterlogging and the cumulative effects of drought and waterlogging processes in different regions of Anhui Province. Therefore, SAPEI not only retained the advantages of standardized precipitation evapotranspiration index (SPEI) such as strong regional applicability, dimensionless character, and the ability to reflect the influence of temperature, but also had higher timeliness and sensitivity by modifying the precipitation evapotranspiration index from a monthly or seasonal scale to a weighted cumulative precipitation evapotranspiration index at a daily scale. SAPEI can be used in daily dynamic monitoring and the assessment process of drought and waterlogging in Anhui Province.
HTML全文

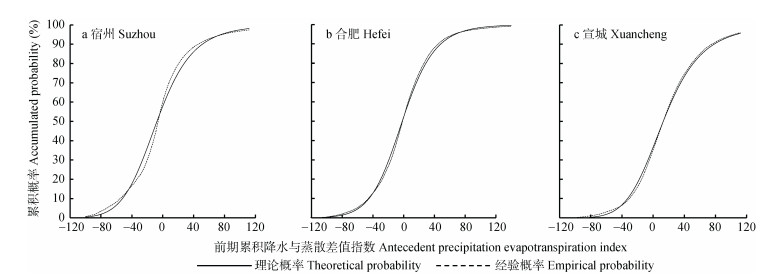

图1安微省半湿润区域(a)、半湿润湿润过渡区域(b)和湿润区域(c)代表站点前期累积降水与蒸散差值指数(APEI)序列经验概率与log-Logistic理论概率分布对比
Figure1.Comparison between log-Logistic distribution (black line) and the empirical probability distribution (dots) for antecedent precipitation evapotranspiration index (APEI) series in representative stations for semi-humid zone (a), semi-humid and humid transitional zone (b), or humid zone (c) in Anhui Province
下载: 全尺寸图片幻灯片

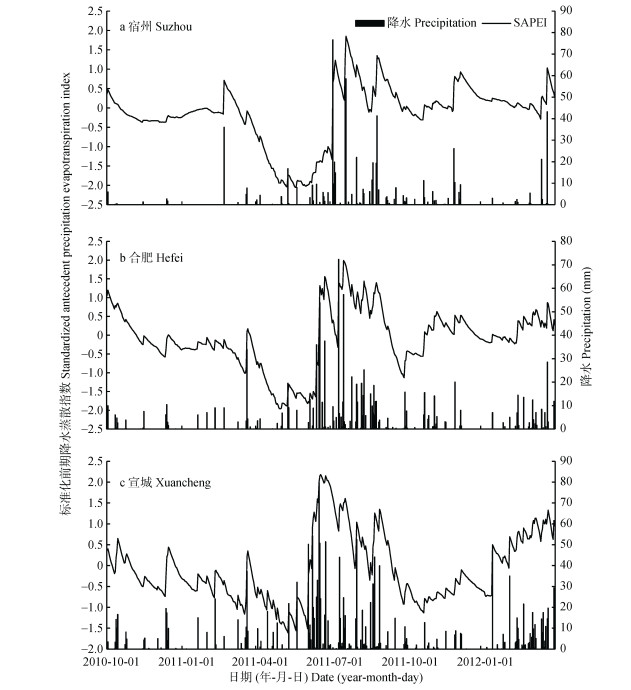

图2安徽省半湿润区域(a)、半湿润湿润过渡区域(b)和湿润区域(c)代表站点2010年10月—2012年4月标准化前期降水蒸散指数(SAPEI)对降水的响应
Figure2.Response of standardized antecedent precipitation evapotranspiration index (SAPEI) to rainfall at representative stations for semi-humid zone (a), semi-humid and humid transitional zone (b), or humid zone (c) from Oct. 1, 2010 to Apr. 28, 2012 in Anhui Province
下载: 全尺寸图片幻灯片
图3安徽省2011年6月8日(旱情缓解前)、6月28日(旱情缓解后)标准化前期降水蒸散指数(SAPEI)与0~20 cm土壤相对湿度旱涝监测对比(a: 6月8日土壤墒情; b: 6月8日SAPEI; c: 6月28日土壤墒情; d: 6月28日SAPEI)
Figure3.Comparison between standardized antecedent precipitation evapotranspiration index (SAPEI) and soil relative humidity of 0-20 cm layer on Jun. 8, 2011 (before drought relief) and Jun. 28, 2011 (after drought relief) in Anhui Province (a: soil relative humidity on Jun. 8; b: SAPEI on Jun. 8; c: soil relative humidity on Jun. 28; d: SAPEI on Jun. 28)
下载: 全尺寸图片幻灯片

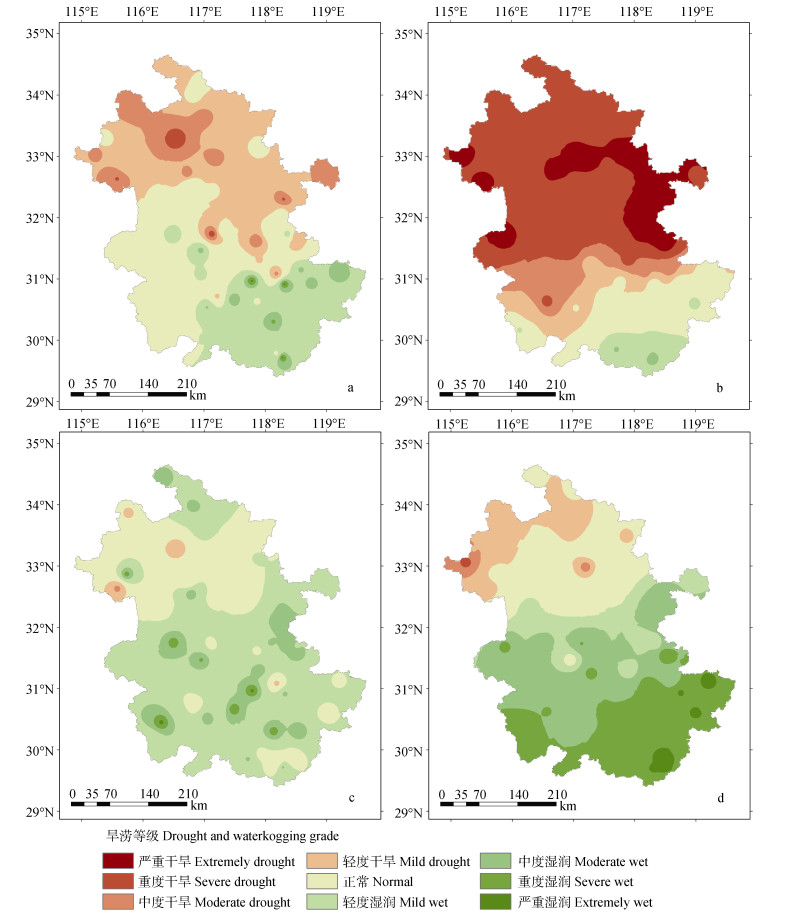

图4安徽省冬小麦生长季旱涝积指数累年平均值及旱涝发生频率空间分布(a:年平均旱积指数; b:干旱频率; c:年平均渍积指数; d:涝渍频率)
Figure4.Spatial distribution of drought and waterlogging frequency and annual mean of accumulated index for winter wheat in Anhui Province (a: annual mean of accumulated drought index; b: drought frequency; c: annual mean of accumulated waterlogging index; d: waterlogging frequency)
下载: 全尺寸图片幻灯片

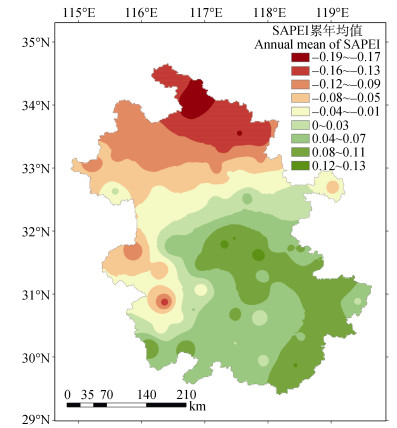

图5安徽省冬小麦生育期标准化前期降水蒸散指数(SAPEI)累年平均值空间分布
Figure5.Spatial distribution of annual mean of standardized antecedent precipitation evapotranspiration index (SAPEI) for winter wheat whole development stage in Anhui Province
下载: 全尺寸图片幻灯片表1标准化前期降水蒸散指数(SAPEI)等级标准、理论累积概率及相应的土壤相对湿度阈值
Table1.Grade' standard, theoretical cumulative probability and matching soil relative humidity threshold value for standardized antecedent precipitation evapotranspiration index (SAPEI)
| 等级序号 Grade ID | 等级名称 Grade name | SAPEI阈值 Threshold value of SAPEI | 累积概率 Cumulative probability (%) | 土壤相对湿度(RH) Soil relative humidity (%) |
| -4 | 严重干旱?Extremely drought | SAPEI≤-2.0 | 2.3 | RH≤35 |
| -3 | 重度干旱?Severe drought | -2.0 < SAPEI≤-1.5 | 4.4 | 35 < RH≤45 |
| -2 | 中等干旱?Moderate drought | -1.5 < SAPEI≤-1.0 | 9.2 | 45 < RH≤55 |
| -1 | 轻度干旱?Mild drought | -1.0 < SAPEI≤-0.5 | 15.0 | 55 < RH≤65 |
| 0 | 正常?Normal | -0.5 < SAPEI≤0.5 | 38.2 | 65 < RH≤80 |
| 1 | 轻度湿润?Mild wet | 0.5 < SAPEI≤1.0 | 15.0 | 80 < RH≤90 |
| 2 | 中等湿润?Moderate wet | 1.0 < SAPEI≤1.5 | 9.2 | 90 < RH≤95 |
| 3 | 重度湿润?Severe wet | 1.5 < SAPEI≤2.0 | 4.4 | 95 < RH≤100 |
| 4 | 严重湿润?Extremely wet | > 2.0 | 2.3 | RH≥100 |
下载: 导出CSV参考文献
| [1] | 刘玲, 沙奕卓, 白月明.中国主要农业气象灾害区域分布与减灾对策[J].自然灾害学报, 2003, 12(2):92-97 doi: 10.3969/j.issn.1004-4574.2003.02.016 LIU L, SHA Y Z, BAI Y M. Regional distribution of main agrometeorological disasters and disaster mitigation strategies in China[J]. Journal of Natural Disasters, 2003, 12(2):92-97 doi: 10.3969/j.issn.1004-4574.2003.02.016 |
| [2] | 任晴.河南省农业旱涝防灾效率评估与提升策略研究[D].郑州: 河南理工大学, 2016 http://cdmd.cnki.com.cn/Article/CDMD-10460-1017811723.htm REN Q. Study on the efficiency evaluation and promotion strategy on agricultural drought and flood disaster prevention in Henan Province[D]. Zhengzhou: Henan Polytechnic University, 2016 http://cdmd.cnki.com.cn/Article/CDMD-10460-1017811723.htm |
| [3] | 杨太明, 高锷, 程文杰, 等.安徽省粮食作物天气指数农业保险研究与实践[M].北京:气象出版社, 2018 YANG T M, GAO E, CHENG W J, et al. Research and Practice on Agricultural Insurance of Grain Crop Weather Index in Anhui Province[M]. Beijing:China Meteorological Press, 2018 |
| [4] | HEIM JR R R. A review of twentieth-century drought indices used in the United States[J]. Bulletin of the American Meteorological Society, 2002, 83(8):1149-1165 doi: 10.1175/1520-0477-83.8.1149 |
| [5] | HEIM JR R R. Computing the monthly Palmer Drought Index on a weekly basis:A case study comparing data estimation techniques[J]. Geophysical Research Letters, 2005, 32(6):L06401 http://www.researchgate.net/publication/240490855_Computing_the_monthly_Palmer_Drought_Index_on_a_weekly_basis_A_case_study_comparing_data_estimation_techniques |
| [6] | MCKEE T B, DOESKEN N J, KLEIST J. The relationship of drought frequency and duration to time scales[C]//Proceedings of the 8th Conference on Applied Climatology. Anaheim, CA: American Meteorological Society, 1993: 179-184 |
| [7] | VICENTE-SERRANO S M, BEGUER A S, L PEZ-MORENO J I. A multiscalar drought index sensitive to global warming:The Standardized Precipitation Evapotranspiration Index[J]. Journal of Climate, 2010, 23(7):1696-1718 doi: 10.1175/2009JCLI2909.1 |
| [8] | VICENTE-SERRANO S M, BEGUER A S, LORENZO-LACRUZ J, et al. Performance of drought indices for ecological, agricultural, and hydrological applications[J]. Earth Interactions, 2012, 16(10):10 |
| [9] | 李伟光, 陈汇林, 朱乃海, 等.标准化降水指标在海南岛干旱监测中的应用分析[J].中国生态农业学报, 2009, 17(1):178-182 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=2009134&flag=1 LI W G, CHEN H L, ZHU N H, et al. Analysis of drought monitoring on Hainan Island from standardized precipitation index[J]. Chinese Journal of Eco-Agriculture, 2009, 17(1):178-182 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=2009134&flag=1 |
| [10] | 王劲松, 李耀辉, 王润元, 等.我国气象干旱研究进展评述[J].干旱气象, 2012, 30(4):497-508 http://d.old.wanfangdata.com.cn/Periodical/ghqx201204002 WANG J S, LI Y H, WANG R Y, et al. Preliminary analysis on the demand and review of progress in the field of meteorological drought research[J]. Journal of Arid Meteorology, 2012, 30(4):497-508 http://d.old.wanfangdata.com.cn/Periodical/ghqx201204002 |
| [11] | 袁文平, 周广胜.标准化降水指标与Z指数在我国应用的对比分析[J].植物生态学报, 2004, 28(4):523-529 doi: 10.3321/j.issn:1005-264X.2004.04.011 YUAN W P, ZHOU G S. Comparison between standardized precipitation index and Z-index in China[J]. Acta Phytoecologica Sinica, 2004, 28(4):523-529 doi: 10.3321/j.issn:1005-264X.2004.04.011 |
| [12] | JARANILLA-SANCHEZ P A, WANG L, KOIKE T. Modeling the hydrologic responses of the Pampanga River basin, Philippines:A quantitative approach for identifying droughts[J]. Water Resources Research, 2011, 47(3):W03514 doi: 10.1029-2010WR009702/ |
| [13] | BEGUER A S, VICENTE-SERRANO S M, REIG F, et al. Standardized precipitation evapotranspiration index (SPEI) revisited:Parameter fitting, evapotranspiration models, tools, datasets and drought monitoring[J]. International Journal of Climatology, 2014, 34(10):3001-3023 doi: 10.1002/joc.2014.34.issue-10 |
| [14] | L PEZ-MORENO J I, VICENTE-SERRANO S M, ZABALZA J, et al. Hydrological response to climate variability at different time scales:A study in the Ebro basin[J]. Journal of Hydrology, 2013, 477:175-188 doi: 10.1016/j.jhydrol.2012.11.028 |
| [15] | HERNANDEZ E A, UDDAMERI V. Standardized precipitation evaporation index (SPEI)-based drought assessment in semi-arid south Texas[J]. Environmental Earth Sciences, 2014, 71(6):2491-2501 doi: 10.1007/s12665-013-2897-7 |
| [16] | 庄少伟, 左洪超, 任鹏程, 等.标准化降水蒸发指数在中国区域的应用[J].气候与环境研究, 2013, 18(5):617-625 http://d.old.wanfangdata.com.cn/Periodical/qhyhjyj201305007 ZHUANG S W, ZUO H C, REN P C, et al. Application of standardized precipitation evapotranspiration index in China[J]. Climatic and Environmental Research, 2013, 18(5):617-625 http://d.old.wanfangdata.com.cn/Periodical/qhyhjyj201305007 |
| [17] | 刘珂, 姜大膀.基于两种潜在蒸散发算法的SPEI对中国干湿变化的分析[J].大气科学, 2015, 39(1):23-36 http://d.old.wanfangdata.com.cn/Periodical/daqikx201501003 LIU K, JIANG D B. Analysis of dryness/wetness over China using standardized precipitation evapotranspiration index based on two evapotranspiration algorithms[J]. Chinese Journal of Atmospheric Sciences, 2015, 39(1):23-36 http://d.old.wanfangdata.com.cn/Periodical/daqikx201501003 |
| [18] | MING B, GUO Y Q, TAO H B, et al. SPEIPM-based research on drought impact on maize yield in North China Plain[J]. Journal of Integrative Agriculture, 2015, 14(4):660-669 doi: 10.1016/S2095-3119(14)60778-4 |
| [19] | 李伟光, 易雪, 侯美亭, 等.基于标准化降水蒸散指数的中国干旱趋势研究[J].中国生态农业学报, 2012, 20(5):643-649 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=2012520&flag=1 LI W G, YI X, HOU M T, et al. Standardized precipitation evapotranspiration index shows drought trends in China[J]. Chinese Journal of Eco-Agriculture, 2012, 20(5):643-649 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=2012520&flag=1 |
| [20] | 许玲燕, 王慧敏, 段琪彩, 等.基于SPEI的云南省夏玉米生长季干旱时空特征分析[J].资源科学, 2013, 35(5):1024-1034 http://d.old.wanfangdata.com.cn/Periodical/zykx201305016 XU L Y, WANG H M, DUAN Q C, et al. The temporal and spatial distribution of droughts during summer corn growth in Yunnan Province based on SPEI[J]. Resources Science, 2013, 35(5):1024-1034 http://d.old.wanfangdata.com.cn/Periodical/zykx201305016 |
| [21] | 张勃, 张耀宗, 任培贵, 等.基于SPEI法的陇东地区近50a干旱化时空特征分析[J].地理科学, 2015, 35(8):999-1006 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dlkx201508009 ZHANG B, ZHANG Y Z, REN P G, et al. Analysis of drought spatial-temporal characteristics based on SPEI in eastern region of Gansu in recent 50 years[J]. Scientia Geographica Sinica, 2015, 35(8):999-1006 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dlkx201508009 |
| [22] | 杨晓静, 徐宗学, 左德鹏, 等.东北三省农业旱灾风险评估研究[J].地理学报, 2018, 73(7):1324-1337 http://d.old.wanfangdata.com.cn/Periodical/dlxb201807011 YANG X J, XU Z X, ZUO D P, et al. Assessment on the risk of agricultural drought disaster in the Three Provinces of Northeast China[J]. Acta Geographica Sinica, 2018, 73(7):1324-1337 http://d.old.wanfangdata.com.cn/Periodical/dlxb201807011 |
| [23] | 谢五三, 田红.五种干旱指标在安徽省应用研究[J].气象, 2011, 37(4):503-507 http://d.old.wanfangdata.com.cn/Periodical/qx201104016 XIE W S, TIAN H. Study on the application of five drought indexes in Anhui Province[J]. Meteorological Monthly, 2011, 37(4):503-507 http://d.old.wanfangdata.com.cn/Periodical/qx201104016 |
| [24] | 马晓群, 吴文玉, 张辉.利用累积湿润指数分析江淮地区农业旱涝时空变化[J].资源科学, 2008, 30(3):371-377 doi: 10.3321/j.issn:1007-7588.2008.03.008 MA X Q, WU W Y, ZHANG H. Analyzing spatial and temporal variations of agricultural drought and waterlog in Jianghuai Area through Accumulated Humidity Index[J]. Resources Science, 2008, 30(3):371-377 doi: 10.3321/j.issn:1007-7588.2008.03.008 |
| [25] | 杨丽慧, 高建芸, 苏汝波, 等.改进的综合气象干旱指数在福建省的适用性分析[J].中国农业气象, 2012, 33(4):603-608 doi: 10.3969/j.issn.1000-6362.2012.04.019 YANG L H, GAO J Y, SU R B, et al. Analysis on the suitability of improved comprehensive meteorological drought index in Fujian Province[J]. Chinese Journal of Agrometeorology, 2012, 33(4):603-608 doi: 10.3969/j.issn.1000-6362.2012.04.019 |
| [26] | 王春林, 陈慧华, 唐力生, 等.基于前期降水指数的气象干旱指标及其应用[J].气候变化研究进展, 2012, 8(3):157-163 doi: 10.3969/j.issn.1673-1719.2012.03.001 WANG C L, CHEN H H, TANG L S, et al. A daily meteorological drought indicator based on standardized antecedent precipitation index and its spatial-temporal variation[J]. Progressus Inquisitiones de Mutatione Climatis, 2012, 8(3):157-163 doi: 10.3969/j.issn.1673-1719.2012.03.001 |
| [27] | MIAH M G, ABDULLAH H M, JEONG C. Exploring standardized precipitation evapotranspiration index for drought assessment in Bangladesh[J]. Environmental Monitoring and Assessment, 2017, 189(11):547 doi: 10.1007/s10661-017-6235-5 |
| [28] | 薛建军, 赵琳娜, 齐丹, 等. GB/T 32752-2016农田渍涝气象等级[S].北京: 中国标准出版社, 2017 XUE J J, ZHAO L N, QI D, et al. GB/T 32752-2016 Meteorological Grade of Agricultural Waterlogging[S]. Beijing: China Standard Press, 2017 |
| [29] | 吕厚荃, 张玉书, 李茂松, 等. GB/T 32136-2015农业干旱等级[S].北京: 中国标准出版社, 2016 LYU H Q, ZHANG Y S, LI M S, et al. GB/T 32136-2015 Grade of Agricultural Drought[S]. Beijing: China Standard Press, 2016 |
| [30] | 刘建刚. 2011年长江中下游干旱与历史干旱对比分析[J].中国防汛抗旱, 2017, 27(4):46-50 doi: 10.3969/j.issn.1673-9264.2017.04.013 LIU J G. A Comparative analysis of current severe drought in the Middle and Lower Reaches of Yangtze River 2011 with historical drought records[J]. China Flood & Drought Management, 2017, 27(4):46-50 doi: 10.3969/j.issn.1673-9264.2017.04.013 |
| [31] | 童金, 魏凌翔, 张娇, 等.安徽省春季暴雨气候特征统计分析[J].暴雨灾害, 2016, 35(6):504-510 doi: 10.3969/j.issn.1004-9045.2016.06.002 TONG J, WEI L X, ZHANG J, et al. Statistical analysis of climatological characteristics of spring rainstorm in Anhui Province[J]. Torrential Rain and Disasters, 2016, 35(6):504-510 doi: 10.3969/j.issn.1004-9045.2016.06.002 |
