Characteristics and partitioning of ozone dry deposition measured by eddy-covariance technology in a winter wheat field
XUJing-Xin1, ZHENGYou-Fei1,2,*,, MAIBo-Ru3, ZHAOHui2, CHUZhong-Fang2, HUANGJi-Qing2, YUANYue2 1Key Laboratory for Aerosol-Cloud-Precipitation of China Meteorological Administration, Nanjing University of Information Science & Technology, Nanjing 210044, China;2Collaborative Innovation Center of Atmospheric Environment and Equipment Technology, Nanjing University of Information Science & Technology, Nanjing 210044, China;and 3Institute of Tropical and Marine Meteorology/Guangdong Provincial Key Laboratory of Regional Numerical Weather Prediction, China Meteorological Administration, Guangzhou 510080, China 通讯作者:* 通信作者Author for correspondence (E-mail: zhengyf@nuist.edu.cn) 收稿日期:2017-02-28 接受日期:2016-09-13 网络出版日期:2017-07-28 版权声明:2017植物生态学报编辑部本文是遵循CCAL协议的开放存取期刊,引用请务必标明出处。 基金资助:基金项目 国家自然科学基金(41475108、41575110)和江苏省普通高校研究生科研创新计划(KYLX_ 0837)
关键词:涡度相关法;O3干沉降;O3通量;冬小麦田;气孔O3沉降通道;非气孔O3沉降通道 Abstract Aims Anthropogenic pollutants cause an increase in ground-level ozone concentration, which is a known threat to plant growth and yield and has been extensively observed worldwide. Since ozone is only slightly soluble in water, it is deposited mainly through dry deposition in terrestrial ecosystem. The object of this study was to analyze the characteristics of ozone dry deposition and to estimate the contribution of stomatal and non-stomatal ozone deposition pathways to total ozone deposition in a winter wheat field.Methods The research site was a winter wheat (Triticum aestivum) field located in Yongfeng experimental station of Nanjing University of Information Science & Technology. The data used in this study were collected from March 16, 2016 to May 30, 2016. We observed ozone dry deposition with an eddy-covariance system. This system mainly included a 3D sonic anemometer, an open-path infrared absorption spectrometer, a fast-response ozone chemiluminescent analyzer and a slow-response ozone monitor. We simultaneously measured meteorological data including solar radiation (SR), air temperature (T), air relativity humidity (RH), wind speed, net radiation, and rainfall. All raw data were recorded with data-logger and averaged every 30 min.Important findings Half hourly means of ozone concentrations (CO3), ozone flux (FO3) and ozone dry deposition velocity (Vd) in the winter wheat field were 32.9 nL·L-1, -5.09 nmol·m-2·s-1, 0.39 cm·s-1, and the ranges of them were 16-58 nL·L-1, -2.9- -11.7 nmol·m-2·s-1, 0.17-0.63 cm·s-1, respectively. FO3 and CO3/Vd were found to be mismatched with phase peaks occurring at different time intervals. The ecosystem was more effective on ozone dry deposition, under conditions of moderate to high SR (SR ≥ 400 W·m-2), moderate T and humility (T = 18 °C and RH > 40%). The relationship between Vdmax and SR was this function (y = 1.06 -exp (-0.0094 - x)). Vdmax increased with SR When SR < 400 W·m-2, and Vdmax reached its maximum when SR =400 W·m-2. Vdmax maintained its maximum when SR ≥ 400 W·m-2. The relationship between Vdmax and T was “bell” curve (y = 1.06 - (x - 18)2/169). Vdmax reached its maximum when T = 18 °C. Vdmax decreased with RH when RH < 40 % (y = 0.030x - 0.106). The variation of Vd might uncertainty when RH was high. There was a liner positive relationship between friction velocity (u*) and Vd, but this relationship was not significant. The mean day-to-day and daytime contributions of stomatal and non-stomatal ozone deposition pathway to total ozone deposition were 32%, 68% and 42%, 58%, respectively, during the whole experimental period.
2.3.1 O3气孔导度的估算 为了验证彭曼公式估算的冬小麦冠层O3气孔导度值(Gsto1)的有效性, 将RH划分为干燥条件(RH < 60%)和湿润条件(RH ≥ 60%)两种情况(Lamaud et al., 2009)。我们分析了不同RH条件下Gsto1与SR之间的相关关系, 同时作为参考, 也分析了不同条件下总初级生产力(GPP)与SR之间的相关关系。图5分别为不同干湿条件下Gsto1/GPP与SR的关系图。对比图5A与图5B可以看出, 当RH ≥ 60%时很多散点出现在Gsto1-SR的关系图中, 而这种现象并没有出现在GPP-SR的关系图中。这说明在冬小麦冠层表面确实有液态水的存在, 它的蒸发作用必然造成湿润条件下Gsto1值的误差。由此可见, 在湿润条件下不能利用彭曼公式估算的冠层O3气孔导度值。 显示原图|下载原图ZIP|生成PPT 图4观测期间(包含白天和夜间)太阳辐射(SR)(A)、温度(T)(B)、相对湿度(RH)(C)和摩擦速度(u*)(D)与O3干沉降速率(Vd)的关系。 -->Fig. 4Boundary-line (A, B, C) and linear (D) analysis of relationships between solar radiation (SR)(A), air temperature (T)(B), air relative humility (RH)(C), friction velocity (u*)(D) and ozone dry deposition velocity (Vd) during the whole experimental period (including daytime and nighttime). -->

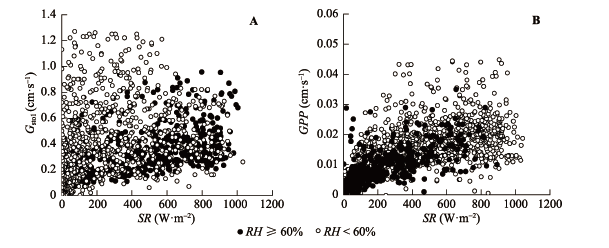

显示原图|下载原图ZIP|生成PPT 图5不同相对湿度(RH)条件下利用彭曼公式估算的冠层O3气孔导度(Gsto1)(A)和总初级生产力(GPP)(B)与太阳辐射(SR)的关系 Fig. 5 Canopy stomatal conductance for ozone (Gsto1) estimated by the Penman-Monteith equation (A), gross primary production (GPP) (B) vs solar radiation (SR) in two ranges of air relative humidity (RH). --> -->

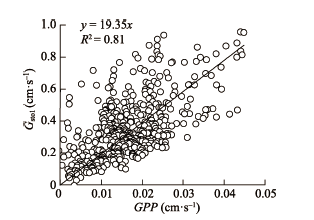

图6是在干燥条件下(RH < 60%) Gsto1与GPP的关系图。通过双样本t检验分析, Gsto1和GPP之间不存在显著差异(p < 0.01), 决定系数R2为0.81, 斜率为14.35。结合公式(3)获得观测期间冬小麦冠层O3气孔导度值(图7)。从图7可以看出, 在观测前期和观测后期, O3气孔导度值较低, 观测中期值较大。这样的结果比较符合冬小麦的生育期变化, 观测前期和后期主要处于冬小麦拔节期和成熟期, 中期为冬小麦生长旺盛期(抽穗-扬花-灌浆期), 且O3气孔导度在4月20-24日(扬花期)达到最大(0.64 cm·s-1)。此外成熟期的O3气孔导度比拔节期的要小。从图7中对比冬小麦叶面积指数(LAI)变化可以看出, LAI与O3气孔导度的变化具有相同趋势。这说明随着冬小麦逐渐生长, LAI逐渐达到最大(3.5 m2·m-2), O3气孔导度也会随之增大至峰值, 等到冬小麦达到成熟期后, 叶片开始老化, LAI开始减小, O3气孔导度也随之变小。 显示原图|下载原图ZIP|生成PPT 图6干燥条件下(RH < 60%)利用彭曼公式估算的冠层O3气孔导度(Gsto1)与总初级生产力(GPP)的关系。 -->Fig. 6Canopy stomatal conductance for ozone estimated by the Penman-Monteith equation (Gsto1) vs gross primary production (GPP) when RH < 60%. -->
显示原图|下载原图ZIP|生成PPT 图7观测期间冬小麦冠层O3气孔导度(Gsto)和叶面积指数(LAI)的变化。 -->Fig. 7Time series of canopy stomatal conductance for ozone (Gsto) and leaf area index (LAI) during the whole experimental period. -->

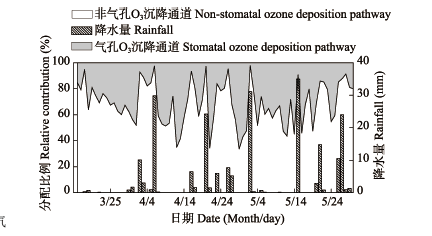

2.3.2 不同O3沉降通道的分配规律 通常假设FO3主要有气孔O3和非气孔O3这两个沉降通道。气孔O3沉降通量等于冠层O3气孔导度与O3浓度的乘积。图8显示了观测期间冬小麦不同O3沉降通道的逐日分配比例和降水量的分布。由图8可知, 整个观测期间非气孔O3通道分配比例明显大于气孔O3通道的分配比, 在观测中期气孔O3沉降通道所占比例要大于观测前期和后期的值, 当有降雨出现的时候, 气孔O3沉降通道的分配比例明显减小。在整个观测期, 平均通过气孔O3沉降通道和非气孔O3沉降通道所沉降的O3通量占总O3干沉降通量的比例分别是32%和68%。图9显示了冬小麦不同O3沉降通道的日分配比例, 可以看出夜间以非气孔沉降为主, 气孔O3沉降量为0, 主要因为夜间冬小麦叶片的气孔是关闭的。白天通过气孔O3沉降通道和非气孔O3沉降通道所沉降的O3通量平均占总O3干沉降通量的比例分别是42%和58%。气孔O3沉降通量在14:00-16:00出现两个峰值, 比例分别为57%和60%, 变化范围在21%-59%之间。 显示原图|下载原图ZIP|生成PPT 图8观测期间冬小麦不同O3沉降通道的分配比例和降水量的分布图。 -->Fig. 8Day-to-day contribution of different ozone dry deposition pathways to total ozone deposition and the rainfall during the whole experimental period. -->

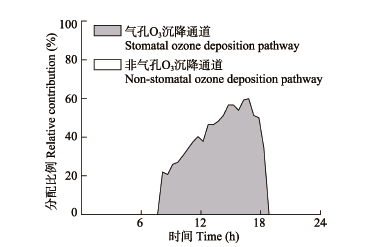

显示原图|下载原图ZIP|生成PPT 图9冬小麦不同O3沉降通道的日分配比例。 -->Fig. 9Daily contribution of different ozone dry deposition pathways to total ozone deposition. -->
3 讨论
3.1 O3干沉降日变化过程
本研究中冬小麦田主要生育期的O3干沉降通量(FO3)和O3沉降速率(Vd)的变化范围为-2.9 - -11.7 nmol·m-2·s-1、0.17-0.63 cm·s-1, 平均FO3与Vd分别为-5.09 nmol·m-2·s-1、0.39 cm·s-1, 与其他农田生态系统观测结果相似。例如, 玉米田平均FO3值为-4 - -7 nmol·m-2·s-1, Vd为1-2 cm·s-1 (Stella et al., 2011, 2013; Loubet et al., 2013); 麦田和橘园FO3范围分别为0 - -20 nmol·m-2·s-1和-6 - -8 nmol·m-2·s-1 (Tuzet et al., 2011; Fares et al., 2012); 葡萄和棉花(Gossypium hirsutum) FO3分别为-6 nmol·m-2·s-1和-10 nmol·m-2·s-1 (Grantz et al., 1995, 1997); 蔬菜和马铃薯平均FO3和Vd分别为-5.08 nmol·m-2·s-1、0.4 cm·s-1和-9.5 nmol·m-2·s-1、0.66 cm·s-1 (Fowler et al., 2001; Coyle et al., 2009)。本团队前期(2013年)利用梯度法在同一地区的另一个试验地进行了麦田干沉降的观测并获得相应结果(李硕等, 2016)。作为一个参考, 对梯度法和涡度相关法的观测结果进行了简单对比。从表1可以看出, 梯度法观测的FO3和Vd平均值分别为-7.29 nmol·m-2·s-1和0.55 cm·s-1, 均高于涡度相关法观测结果的30%和29%, 也间接表明该地区的CO3年际差异并不大。对比气候因子SR和RH, 发现涡度相关法观测时期的平均SR比梯度法低38%, 平均RH则高10%。较低的SR和较高的RH均会限制Vd, 从而影响O3的干沉降过程, 表明气象因子对O3干沉降过程存在影响。对比两次观测的FO3和Vd的日变化结果, 发现FO3的变化趋势基本一致, 且峰值出现的时刻也接近; 而Vd峰值出现的时刻并不相同, 梯度法出现在正午, 涡度相关法则出现在上午。梯度法和涡度相关法均属于微气象法, 但两者观测的原理、所用仪器和计算方法均存在很大不同, 这本身就会对观测结果带来差距。有研究指出对于长期的观测, 梯度法的观测结果与涡度相关法的较为接近, 但对于短期或昼夜尺度的观测, 涡度相关法明显优于梯度法(Muller et al., 2009)。 就O3浓度(CO3)而言, 冬小麦农田生态系统CO3的日变化趋势与T相似, 且两者显著正相关, 其原因主要是因为温度会影响O3前体物及其化学反应的光解速率(Kurpius et al., 2002)。CO3的昼夜差别较大, 说明该生态系统的CO3主要来自于局地的光化学反应。本研究中T的峰值比SR滞后了2-3 h, CO3的峰值比T也滞后2 h, 而FO3峰值不存在滞后现象, 与朱治林等(2014a)在玉米田生态系统得出的O3干沉降结果相似, 原因是新生成的O3并非立即沉降到下垫面, 而是在植被冠层内储存。Vd的日变化趋势与CO3完全不同。Vd的最大值出现在09:00, 与Stella等(2011)在玉米田和Zhang等(2006)在森林生态系统的观测结果相似。这可能是因为上午光照温和, 温湿度适中, 冬小麦气孔快速张开并达到最大, 因而Vd最高。CO3和Vd在夜间的变化很小, 因此夜间的FO3也较小且较平稳。当FO3和Vd达到峰值时, CO3正处于快速增长阶段, 这种日变化的不同步现象在其他研究中也有报道(Mikkelsen et al., 2004; Fares et al., 2013)。其原因主要是当CO3达到最大值的时候, 作物气孔张开度减小或开始关闭, O3的气孔沉降开始降低, 因此Vd会较小。 Table 1 表1 表1梯度法和涡度相关法的观测结果对比 Table 1Comparison of measurements by gradient and eddy-covariance technique
