王仕琴^1,,,
郑文波¹,
孔晓乐^{1, 2}
1.中国科学院遗传与发育生物学研究所农业资源研究中心/中国科学院农业水资源重点实验室/河北省节水农业重点实验室 石家庄 050022
2.中国科学院大学 北京 100049
基金项目: 国家重大科技专项项目2016YFD0800100
中国科学院科技服务网络（STS）计划项目KFJ-STS-ZDTP-001
国家自然科学基金面上项目41471028
国家自然科学基金面上项目41530859

详细信息

作者简介:王仕琴, 主要研究方向为水文循环与地下水环境。E-mail: sqwang@sjziam.ac.cn

中图分类号:X523

计量

文章访问数:717
HTML全文浏览量:2
PDF下载量:448
被引次数:0

出版历程

收稿日期:2018-07-05
录用日期:2018-07-15
刊出日期:2018-10-01

Spatial distribution characteristics of nitrate in shallow groundwater of the agricultural area of the North China Plain

WANG Shiqin^1,,,
ZHENG Wenbo¹,
KONG Xiaole^{1, 2}
1. Center for Agricultural Resources Research, Institute of Genetics and Developmental Biology, Chinese Academy of Sciences/Key Laboratory of Agricultural Water Resources, Chinese Academy of Sciences/Hebei Key Laboratory of Water-Saving Agriculture, Shijiazhuang 050022, China
2. University of Chinese Academy of Sciences, Beijing 100049, China
Funds: the National Key R & D Program of China2016YFD0800100
the Science and Technology Service Network Initiative of Chinese Academy of SciencesKFJ-STS-ZDTP-001
the National Natural Science Foundation of China41471028
the National Natural Science Foundation of China41530859

More Information

Corresponding author:WANG Shiqin, E-mail: sqwang@sjziam.ac.cn

摘要
HTML全文
图(3)表(0)
参考文献(37)
相关文章
施引文献
资源附件(0)
访问统计

摘要
摘要:华北平原地下水硝酸盐污染备受关注，然而受地貌类型、土地利用、土壤结构、含水层水文地质条件等因素差异性的影响，对区域尺度上农区浅层地下水硝酸盐污染程度和特征尚没有统一定论。本文通过综述过去华北平原地下水硝酸盐污染程度的相关研究，并结合近年来对华北平原农业种植区浅层地下水硝酸盐研究所取得的认识，指出补给源区（太行山低山丘陵区）、山前平原和低平原3个典型地貌类型区浅层地下水硝酸盐研究存在的问题：补给源区土地利用变化多样、土壤和含水层渗透性好，要重视对源区氮输入的控制，加强低山丘陵区气候变化对水文过程和氮迁移过程影响机制的研究；山前平原区是农业高产区，地下水埋深较深且包气带厚度大，较高的浅层地下水硝酸盐浓度除了与点源、污水渗漏以及污水灌溉等直接影响因素有关外，农田过量肥料施用对地下水硝酸盐影响的程度、水氮迁移路径以及未来潜在风险是农区地下水硝酸盐研究中亟需关注的问题；低平原区较细的土壤沉积结构减缓了氮向下迁移的速度，但地下水埋深较浅，二者的制约关系决定了地下水硝酸盐浓度，因此应在理解地表水-土壤-地下水转化关系的基础上评估地下水硝酸盐污染的风险。
关键词:地下水/
硝酸盐污染/
土地利用/
地貌类型/
包气带/
华北平原
Abstract:Nitrate contamination of groundwater in the North China Plain had attracted much attention. However, the characteristics and degree of nitrate contamination of groundwater on large scale were not uniform due to the effect of different factors such as landscape type, land-use, soil structure, and aquifer hydrogeology. This paper comprehensively summarized some studies on the status of nitrate pollution in groundwater in the North China Plain. It also included our results on nitrate concentration in shallow groundwater in agricultural areas in the North China Plain in recent years. It was found that nitrate pollution in shallow groundwater existed in three typical landscape types, including headwater area (hilly areas of Taihang Mountain), piedmont plain and lowland plain. The headwater area had different land-use and good soil and aquifer permeability and therefore required much attention in terms of controlling nitrogen input. There was also the need for researches on how climate change affected hydrological process and nitrogen transport in the region. The piedmont plain had high agricultural production, with deep groundwater depth and thick saturated zone. Relatively high nitrate concentration in the piedmont plain was not only related to point source, wastewater leakage and wastewater irrigation, but also to over application of fertilizer in the farmland. The impact of over application of fertilizer on groundwater, the flow path and the potential threat on shallow groundwater quality were very important for future researches. The leaching rate of nitrate was lowered due to the fine sediment of soil in the lowland area. However, groundwater was at high risk of nitrate contamination because of the shallow groundwater depth. There was therefore the need for correct assessment of potential risks of nitrate pollution of groundwater based on surface water, soil and groundwater interactions.
Key words:Groundwater/
Nitrate pollution/
Land use/
Landscape type/
Unsaturated zone/
North China Plain

HTML全文

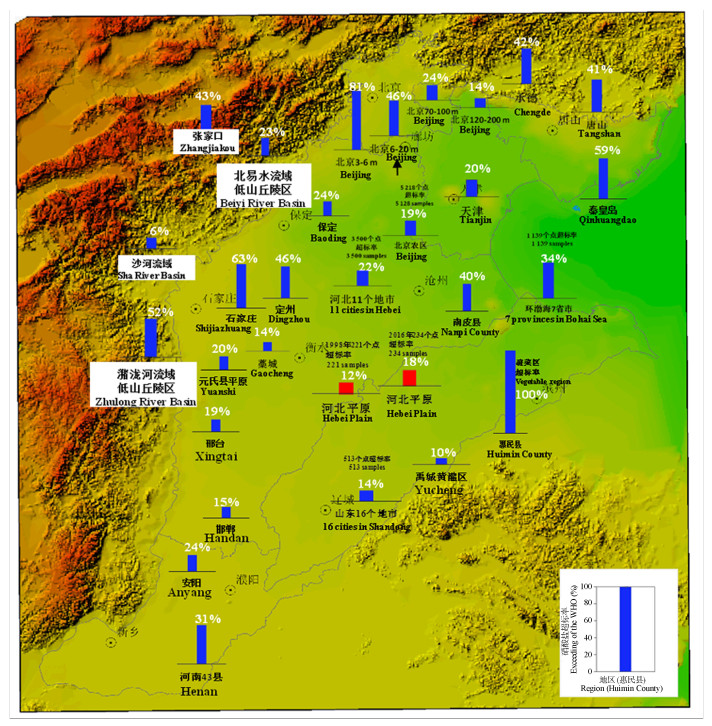

图1华北地区地下水硝酸盐浓度超标率(超WHO标准)
统计值部分根据文献[10-14, 16, 18-25]; 部分根据调研数据, 如河北平原18%的超标率、南皮县北部农区40%的超标率等。
Figure1.The rate of nitrate concentration exceeding the WHO standard in groundwater of the North China Plain
Most values in the figure are from the references [10-14, 16, 18-25]. Some are investigation results, such as 18% exceeding rate in the Hebei Plain, 40% exceeding rate in north rural area of Nanpi County.


下载: 全尺寸图片幻灯片

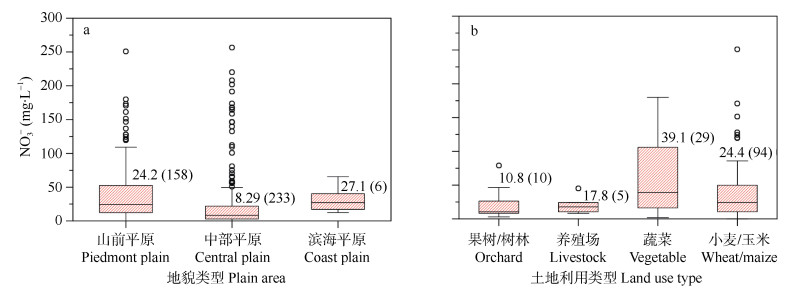

图22016年华北平原不同地貌类型(a)和不同土地利用(b)地下水硝酸盐浓度Box-Whisker统计图
箱上数字为中位数, 括号内数字为采样点数。
Figure2.Box-Whisker plots of NO₃^--N concentration of groundwater in different plain areas (a) and under different land use types (b)
The number beside the box is the value of the median and the number in parentheses is the number of sample.


下载: 全尺寸图片幻灯片

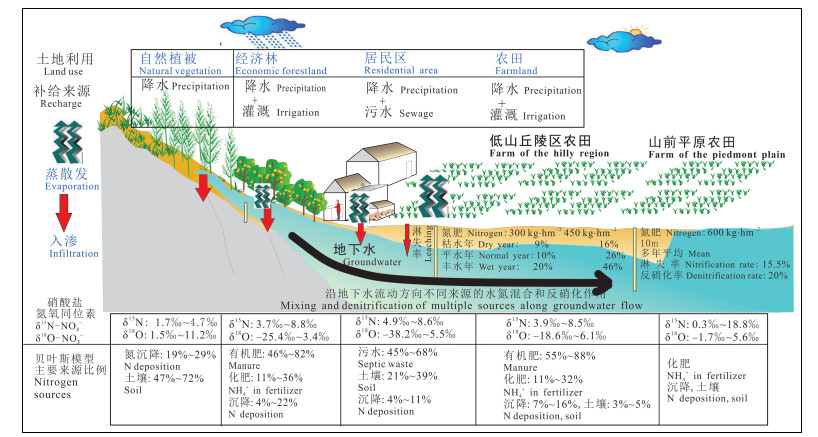

图3华北低山丘陵区与平原区不同土地利用类型对地下水硝酸盐分布和来源的影响机制概念图^[29]
Figure3.Impact of land use on source and fate of nitrate in groundwater in the hilly and plain areas of the North China Plain^[29]


下载: 全尺寸图片幻灯片


参考文献(37)

[1]	HALLBERG G R, KEENEY D R. Nitrate in Regional Groundwater Quality[M]. New York:Van Nostrand Reinhold, 1993:297-322
[2]	MUELLER D K, HAMILTON P A, HELSEL D R, et al. Nutrients in ground water and surface water of the United States: An analysis of data through 1992[R]. Reiston, Virginia: U.S. Geological Survey, 1995: 77
[3]	ZHU Z L, CHEN D L. Nitrogen fertilizer use in China-Contributions to food production, impacts on the environment and best management strategies[J]. Nutrient Cycling in Agroecosystems, 2012, 63(1/2):117-127
[4]	NAKAGAWA K, AMANO H, TAKAO Y, et al. On the use of coprostanol to identify source of nitrate pollution in groundwater[J]. Journal of Hydrology, 2017, 550:663-668 doi: 10.1016/j.jhydrol.2017.05.038
[5]	MUELLER N D, GERBER J S, JOHNSTON M, et al. Closing yield gaps through nutrient and water management[J]. Nature, 2012, 490(7419):254-257 doi: 10.1038/nature11420
[6]	HU K L, HUANG Y F, LI H, et al. Spatial variability of shallow groundwater level, electrical conductivity and nitrate concentration, and risk assessment of nitrate contamination in North China Plain[J]. Environment International, 2005, 31(6):896-903 doi: 10.1016/j.envint.2005.05.028
[7]	LIAO L X, GREEN C T, BEKINS B A, et al. Factors controlling nitrate fluxes in groundwater in agricultural areas[J]. Water Resources Research, 2012, 48(48):72-84 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=JJ0227736579
[8]	NOLAN B T, HITT K J. Vulnerability of shallow groundwater and drinking-water wells to nitrate in the United States[J]. Environmental Science & Technology, 2006, 40(24):7834-7840
[9]	BUROW K R, NOLAN B T, RUPERT M G, et al. Nitrate in groundwater of the United States, 1991-2003[J]. Environmental Science & Technology, 2010, 44(13):4988-4997
[10]	ZHANG W L, TIAN Z X, ZHANG N, et al. Nitrate pollution of groundwater in northern China[J]. Agriculture, Ecosystems & Environment, 1996, 59(3):223-231 doi: 10.1016-j.agee.2004.11.010/
[11]	赵同科, 张成军, 杜连凤, 等.环渤海七省(市)地下水硝酸盐含量调查[J].农业环境科学学报, 2007, 26(2):779-783 doi: 10.3321/j.issn:1672-2043.2007.02.072 ZHAO T K, ZHANG C J, DU L F, et al. Investigation on nitrate concentration in groundwater in seven provinces (city) surrounding the Bo-Hai Sea[J]. Journal of Agro-Environment Science, 2007, 26(2):779-783 doi: 10.3321/j.issn:1672-2043.2007.02.072
[12]	CHEN J Y, TANG C Y, SAKURA Y, et al. Nitrate pollution from agriculture in different hydrogeological zones of the regional groundwater flow system in the North China Plain[J]. Hydrogeology Journal, 2005, 13(3):481-492 doi: 10.1007/s10040-004-0321-9
[13]	茹淑华, 张国印, 孙世友, 等.河北省地下水硝酸盐污染总体状况及时空变异规律[J].农业资源与环境学报, 2013, 30(5):48-52 doi: 10.3969/j.issn.1005-4944.2013.05.011 RU S H, ZHANG G Y, SUN S Y, et al. Status of the contamination and spatial-temporal variations of nitrate in groundwater of Hebei Province, China[J]. Journal of Agricultural Resources and Environment, 2013, 30(5):48-52 doi: 10.3969/j.issn.1005-4944.2013.05.011
[14]	郭战玲, 沈阿林, 寇长林, 等.河南省地下水硝态氮污染调查与监测[J].农业环境与发展, 2008, 25(5):125-128 doi: 10.3969/j.issn.1005-4944.2008.05.034 GUO Z L, SHEN A L, KOU C L, et al. Investigation and monitoring on nitrate pollution in groundwater of Henan Province[J]. Journal of Agricultural Resources and Environment, 2008, 25(5):125-128 doi: 10.3969/j.issn.1005-4944.2008.05.034
[15]	高新昊, 江丽华, 刘兆辉, 等.山东省农村地区地下水硝酸盐污染现状调查与评价[J].中国农业气象, 2011, 32(1):89-93 doi: 10.3969/j.issn.1000-6362.2011.01.016 GAO X H, JIANG L H, LIU Z H, et al. Investigation and evaluation on nitrate contamination status of groundwater in rural areas of Shandong Province[J]. Chinese Journal of Agrometeorology, 2011, 32(1):89-93 doi: 10.3969/j.issn.1000-6362.2011.01.016
[16]	李文娟, 赵同科, 张成军, 等.北京市集约化农区地下水硝酸盐含量变化分析[J].农业环境科学学报, 2013, 32(7):1445-1450 http://cdmd.cnki.com.cn/Article/CDMD-10086-1014105916.htm LI W J, ZHAO T K, ZHANG C J, et al. Nitrate contamination of groundwater under intensive agricultural regions of Beijing[J]. Journal of Agro-Environment Science, 2013, 32(7):1445-1450 http://cdmd.cnki.com.cn/Article/CDMD-10086-1014105916.htm
[17]	余淼, 李瑜.天津市农区地下水硝酸盐污染现状调查与评价[J].中国农学通报, 2014, 30(20):219-222 doi: 10.11924/j.issn.1000-6850.2013-2202 YU M, LI Y. Investigation and evaluation on nitrate concentration status of groundwater in rural areas of Tianjin[J]. Chinese Agricultural Science Bulletin, 2014, 30(20):219-222 doi: 10.11924/j.issn.1000-6850.2013-2202
[18]	刘宏斌, 李志宏, 张云贵, 等.北京平原农区地下水硝态氮污染状况及其影响因素研究[J].土壤学报, 2006, 43(3):405-413 doi: 10.3321/j.issn:0564-3929.2006.03.008 LIU H B, LI Z H, ZHANG Y G, et al. Nitrate contamination of groundwater and its affecting factors in rural areas of Beijing Plain[J]. Acta Pedologica Sinica, 2006, 43(3):405-413 doi: 10.3321/j.issn:0564-3929.2006.03.008
[19]	刘宏斌, 张云贵, 李志宏, 等.北京市平原农区深层地下水硝态氮污染状况研究[J].土壤学报, 2005, 42(3):411-418 doi: 10.3321/j.issn:0564-3929.2005.03.010 LIU H B, ZHANG Y G, LI Z H, et al. Nitrate contamination of deep groundwater in rural plain areas of Beijing[J]. Acta Pedologica Sinica, 2005, 42(3):411-418 doi: 10.3321/j.issn:0564-3929.2005.03.010
[20]	TANG C, CHEN J, SHEN Y, et al. Long-term effect of wastewater irrigation on nitrate in groundwater in the North China Plain[C]//International Association of Hydrological Sciences. Wastewater Re-use and Groundwater Quality (Proceedings of Symposium HS04). 2004: 34-40
[21]	唐常源, 陈建耀, 宋献方, 等.农业污水灌溉对石家庄市近郊灌区地下水环境的影响[J].资源科学, 2006, 28(1):102-108 doi: 10.3321/j.issn:1007-7588.2006.01.017 TANG C Y, CHEN J Y, SONG X F, et al. Effects of wastewater irrigation on groundwater quantity and quality in the suburbs of Shijiazhuang City, China[J]. Resources Science, 2006, 28(1):102-108 doi: 10.3321/j.issn:1007-7588.2006.01.017
[22]	ZHANG Y, LI F D, ZHANG Q Y, et al. Tracing nitrate pollution sources and transformation in surface-and ground-waters using environmental isotopes[J]. Science of the Total Environment, 2014, 490:213-222 doi: 10.1016/j.scitotenv.2014.05.004
[23]	WANG S Q, TANG C Y, SONG X F, et al. Using major ions and δ15N-NO3- to identify nitrate sources and fate in an alluvial aquifer of the Baiyangdian lake watershed, North China Plain[J]. Environmental Science:Processes & Impacts, 2013, 15(7):1430-1443
[24]	WANG S Q, TANG C Y, SONG X F, et al. Factors contributing to nitrate contamination in a groundwater recharge area of the North China Plain[J]. Hydrological Processes, 2016, 30(13):2271-2285 doi: 10.1002/hyp.v30.13
[25]	赵焕, 王仕琴, 孔晓乐, 等.华北低山丘陵区潴龙河流域地下水水质特征及成因分析[J].水文地质工程地质, 2016, 43(2):17-24 http://d.old.wanfangdata.com.cn/Periodical/swdzgcdz201602003 ZHAO H, WANG S Q, KONG X L, et al. A study of the water quality characteristics and factors in the Zhulong River basin in the hilly region of North China[J]. Hydrogeology & Engineering Geology, 2016, 43(2):17-24 http://d.old.wanfangdata.com.cn/Periodical/swdzgcdz201602003
[26]	张丽娟, 巨晓棠, 刘辰琛, 等.北方设施蔬菜种植区地下水硝酸盐来源分析——以山东省惠民县为例[J].中国农业科学, 2010, 43(21):4427-4436 doi: 10.3864/j.issn.0578-1752.2010.21.012 ZHANG L J, JU X T, LIU C C, et al. A study on nitrate contamination of ground water sources in areas of protected vegetables-growing fields-A case study in Huimin County, Shandong Province[J]. Scientia Agricultura Sinica, 2010, 43(21):4427-4436 doi: 10.3864/j.issn.0578-1752.2010.21.012
[27]	HUANG T M, PANG Z H, YUAN L J. Nitrate in groundwater and the unsaturated zone in (semi) arid Northern China:Baseline and factors controlling its transport and fate[J]. Environmental Earth Sciences, 2013, 70(1):145-156 doi: 10.1007/s12665-012-2111-3
[28]	张翠云, 张胜, 李政红, 等.滹沱河上游区地表水和地下水同位素特征[J].干旱区资源与环境, 2008, 22(5):160-164 doi: 10.3969/j.issn.1003-7578.2008.05.031 ZHANG C Y, ZHANG S, LI Z H, et al. Isotopic characteristics of surface water and groundwater in the up-stream of Hutuo River[J]. Journal of Arid Land Resources and Environment, 2008, 22(5):160-164 doi: 10.3969/j.issn.1003-7578.2008.05.031
[29]	WANG S Q, ZHENG W B, CURRELL M, et al. Relationship between land-use and sources and fate of nitrate in groundwater in a typical recharge area of the North China Plain[J]. Science of the Total Environment, 2017, 609:607-620 doi: 10.1016/j.scitotenv.2017.07.176
[30]	WANG S Q, YUAN R Q, TANG C Y, et al. Combination of CFCS and stable isotopes to characterize the mechanism of groundwater-surface water interactions in a headwater basin of the North China Plain[J]. Hydrological Processes, 2018, 32(11):1571-1587 doi: 10.1002/hyp.v32.11
[31]	梁慧雅, 翟德勤, 孔晓乐, 等.府河-白洋淀硝酸盐来源判定及迁移转化规律[J].中国生态农业学报, 2017, 25(8):1236-1244 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=20170816&flag=1 LIANG H Y, ZHAI D Q, KONG X L, et al. Sources, migration and transformation of nitrate in Fuhe River and Baiyangdian Lake, China[J]. Chinese Journal of Eco-Agroculture, 2017, 25(8):1236-1244 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=20170816&flag=1
[32]	孔晓乐, 王仕琴, 梁慧雅, 等.基于水化学和稳定同位素的白洋淀流域地表水和地下水硝酸盐来源[J].环境科学, 2018, 39(6):2624-2631 http://d.old.wanfangdata.com.cn/Periodical/hjkx201806014 KONG X L, WANG S Q, LIANG H Y, et al. Source of nitrate in surface water and shallow groundwater around Baiyangdian Lake area based on hydrochemical and stable isotopes[J]. Environmental Science, 2018, 39(6):2624-2631 http://d.old.wanfangdata.com.cn/Periodical/hjkx201806014
[33]	ZHOU J Y, GU B J, SCHLESINGER W H, et al. Significant accumulation of nitrate in Chinese semi-humid croplands[J]. Scientific Reports, 2016, 6:25088 doi: 10.1038/srep25088
[34]	李晓欣.华北平原小麦-玉米两熟制下土壤硝态氮运移及淋失研究[D].石家庄: 中国科学院, 2003 LI X X. Leaching loss and movement of nitrate in soil under wheat-corn double cropping system in North China[D]. Shijiazhuang: Chinese Academy of Sciences, 2003
[35]	李晓欣, 胡春胜, 雷玉平, 等.应用Geoprobe对河北栾城土壤硝态氮含量进行计算[J].土壤通报, 2006, 37(5):906-908 doi: 10.3321/j.issn:0564-3945.2006.05.017 LI X X, HU C S, LEI Y P, et al. Calculation for the accumulation of nitrate nitrogen in a Luancheng soil by Geoprobe[J]. Chinese Journal of Soil Science, 2006, 37(5):906-908 doi: 10.3321/j.issn:0564-3945.2006.05.017
[36]	巩建华, 柯尊伟, 李季.河北省藁城市蔬菜种植区化肥施用与地下水硝酸盐污染研究[J].农村生态环境, 2004, 20(1):56-59 doi: 10.3969/j.issn.1673-4831.2004.01.014 GONG J H, KE Z W, LI J. Use of chemical fertilizer and contamination of groundwater in vegetable cultivation area-A case study in Gaocheng City, Hebei Province[J]. Rural Eco-Environment, 2004, 20(1):56-59 doi: 10.3969/j.issn.1673-4831.2004.01.014
[37]	KONG X L, WANG S Q, LIU B X, et al. Impact of water transfer on interaction between surface water and groundwater in the lowland area of North China Plain[J]. Hydrological Processes, 2018, 32(13):2044-2057 doi: 10.1002/hyp.v32.13
