行距配置和覆反光膜对夏玉米产量及光能利用的影响

删除或更新信息，请邮件至freekaoyan#163.com(#换成@)

本站小编 Free考研考试/2021-12-26

白晶^,, 张春雨, 丁相鹏, 张吉旺, 刘鹏, 任佰朝, 赵斌^,山东农业大学农学院/作物生物学国家重点实验室,山东泰安 271018

Effects of Row Spacing and Mulching Reflective Film on the Yield and Light Utilization of Summer Maize

BAI Jing^,, ZHANG ChunYu, DING XiangPeng, ZHANG JiWang, LIU Peng, REN BaiZhao, ZHAO Bin^,College of Agriculture, Shandong Agricultural University/State Key Laboratory of Crop Biology, Tai’an 271018, Shandong

通讯作者: 赵斌,E-mail： zhaobin@sdau.edu.cn

责任编辑: 杨鑫浩
收稿日期:2020-05-12接受日期:2020-08-24网络出版日期:2020-10-01

基金资助:

国家重点研发计划.2018YFD0300603
国家重点研发计划.2017YFD0301001

Received:2020-05-12Accepted:2020-08-24Online:2020-10-01
作者简介 About authors
白晶,E-mail： 921279941@qq.com。

摘要
【目的】近些年来夏玉米生长期阴雨寡照时有发生,光照不足已经成为影响夏玉米生长发育的重要限制因素。本研究的目的在于探讨在高密度下,采取适当调节行距配置和覆反光膜等措施能否有效改善及优化群体冠层和内部的光环境,缓解高密度造成的遮阴加重等问题,为进一步提高玉米产量提供理论依据。【方法】于2018—2019年进行大田试验,以郑单958为试验材料,在常规密度（67 500株/hm²）和高密度（82 500株/hm²）条件下,设置3个行距配置（（60+60）cm、（80+40）cm、（100+20）cm,覆反光膜（FM）和不覆膜（NM）2个处理,研究覆反光膜和行距配置对夏玉米光能利用及产量的影响。【结果】高密度种植,玉米产量增加。密度67 500株/hm²时,“60+60”和“80+40”行距配置的产量无显著差异,但均高于“100+20”行距配置;但密度82 500株/hm²时,覆反光膜处理下“FM80+40”的行距配置能够有效改善群体内部光照环境,使光能在玉米群体冠层内的分布更加合理,显著提高干物质积累量、LAI、冠层光能截获率、Pn及叶绿素含量,2年平均产量较“FM60+60”和“FM100+20”处理提高6.6%和10.8%,在不覆膜条件下“NM80+40”处理较“NM60+60”和“NM100+20”处理增产5.8%和8.7%,且“FM80+40”处理较“NM80+40”处理增产5.1%。【结论】82 500株/hm²密度下,采用“80+40”的行距配置,辅以覆反光膜处理,可显著改善夏玉米光合特性,提高下部透射光的反光率,进而增加中下部叶片的受光,防止叶片早衰,提升光合能力,是实现夏玉米再高产较理想的栽培模式。
关键词： 夏玉米;产量;光能利用;行距配置;覆反光膜

Abstract

【Objective】In recent years, it is the limitation for summer maize to face the less light radiation during the growing season, and the light deficiency has become the main limiting factor affecting the production of maize. In this study, the row spacing under high density of maize was adjusted appropriately to improve the light in the canopy and the interior of the population and to alleviate the influence of shading caused by high density, so as to lay a foundation for further improving the yield.【Method】This experiment took Zhengdan 958 as the experimental material under field conditions in 2018-2019, and there were two different planting densities, which were 67 500 plants/hm² and 82 500 plants/hm², and three row spacing forms (60+60, 80+40, 100+20), with mulching reflective film (FM) and no film treatment (NM). The effects of mulching reflective film and row spacing on light energy utilization and yield of summer maize were studied. 【Result】As the density increases, the maize yield increased. There was no significant difference in the yield of “60+60” and “80+40” row spacing configurations when the density of 67 500 plants/hm ² was higher than that of “100+20” row spacing configurations under the condition of mulching reflective film and no film. But at 82 500 plants/hm ² density, the row spacing configuration of “FM80+40” under the mulching treatment could effectively improve the light environment within the population and made the distribution of light energy in the canopy more reasonable, and significantly increase the dry matter accumulation, LAI, canopy light interception rate, Pn and chlorophyll content; Compared with “FM60+60” and “FM100+20” treatments, the two-year average yield of which were increased by 6.6% and 10.8%, respectively. The yield of “NM80+40” row spacing was 5.8% and 8.7% higher than that of “NM60+60” and “NM100+20” row spacing, respectively, and the yield of “FM80+40” was 5.1% higher than that of “NM80+40”.【Conclusion】Under the density of 82 500 plants/hm ², “80+40” row spacing arrangement supplemented by mulching reflective film could significantly improve the photosynthetic characteristics of summer maize, increase the reflectance of transmitted light at the lower part, and then increase the illumination of the middle and lower part of leaves, prevent premature aging of leaves, and improve photosynthetic capacity. Therefore, this treatment was an ideal cultivation mode to achieve high yield of summer maize

Keywords：summer maize;yield;light energy utilization;row spacing;mulching reflective film

PDF (589KB)元数据多维度评价相关文章导出EndNote|Ris|Bibtex 收藏本文
本文引用格式
白晶, 张春雨, 丁相鹏, 张吉旺, 刘鹏, 任佰朝, 赵斌. 行距配置和覆反光膜对夏玉米产量及光能利用的影响[J]. 中国农业科学, 2020, 53(19): 3942-3953 doi:10.3864/j.issn.0578-1752.2020.19.008
BAI Jing, ZHANG ChunYu, DING XiangPeng, ZHANG JiWang, LIU Peng, REN BaiZhao, ZHAO Bin. Effects of Row Spacing and Mulching Reflective Film on the Yield and Light Utilization of Summer Maize[J]. Scientia Acricultura Sinica, 2020, 53(19): 3942-3953 doi:10.3864/j.issn.0578-1752.2020.19.008

0 引言

【研究意义】玉米是我国第一大粮食作物,光照条件对玉米生长发育进程至关重要,但近些年来我国太阳总辐射量总体下降,以夏季降幅最大^[1],阴雨寡照在夏玉米生长期内时有发生,光照已经成为影响夏玉米生产的主要限制因素。密度与行距配置构建了不同的冠层结构,在高密度下,适当调节行距和增光能够有效改善群体冠层和内部的光照、通风等环境,缓解高密度造成的遮阴加重、透光率下降等影响,提高群体光能利用率,从而进一步提高玉米产量^[2]。因此,研究增光与行距配置对夏玉米产量形成和生理特性的调控机理具有重要的理论指导意义。【前人研究进展】光照对玉米生长发育过程至关重要^[3]。玉米作为C₄植物,光能是其光合作用的主要驱动力,光照强度、光照时间和光合面积显著影响玉米的产量^[4]。增加光照可以显著提高叶片的净光合速率和光能利用率^[5]。玉米的生殖生长期（开花期到成熟期）是玉米籽粒形成期,玉米穗粒数、粒重在这一时期受光能截获率和光能辐射量的影响最大,增加这一时期的光能截获率并延长光照时间可以有利于保持玉米绿叶面积,显著增加抽丝后植株的光合速率,进而提高夏玉米产量^[6,7,8]。在实际田间生产中,可以采用覆反光膜增光的技术来优化群体尤其是群体下部的光照环境和田间微环境,增强对太阳光的再次利用,提升底部叶片在“光斑”中的光合效率并能有效延缓其衰老进程,增加产量,这种方式可以显著提高果实商品性与品质,现阶段已在李、梨、柑橘、葡萄、桃等多种果树上广泛应用^[9,10,11]。增加种植密度是实现玉米高产稳产的重要途径^[12,13,14]。目前我国在生产中玉米的种植密度已达到60 000株/hm²,但是随种植密度的不断增大,植株之间互相遮阴,透光率下降,导致通风透光条件恶劣^[15,16]。行距配置对于建造良好的玉米群体冠层结构具有重要意义^[17,18],尤其在高密度条件下,宽窄行的种植模式可扩大光合利用面积,充分利用群体光资源,改善通风能力,提高中下层叶片的光合效率,使光照在玉米冠层内的分布更加合理,提高玉米群体的光能利用效率^[19,20]。【本研究切入点】前人关于增光或不同行距配置对夏玉米产量形成及生理特性等方面开展了较多的研究^[4-5,19-20],主要集中在增加人工光源、覆盖反光地膜及宽窄行等单一因素上,然而在不同行距配置辅以覆反光膜增光对夏玉米产量形成和生理特性影响方面的研究鲜见报道。【拟解决的关键问题】本文旨在通过研究不同行距配置辅以覆反光膜增光对夏玉米生长发育的影响,探明行距配置和覆反光膜对夏玉米光能利用和产量形成的调控机理,明确夏玉米高产、稳产的最优配置,为夏玉米应对光照不足条件下的高产高效生产提供理论依据和技术支持。

1 材料与方法

1.1 试验地点

本试验于2018—2019年在山东农业大学黄淮海区域玉米技术创新中心进行。试验田2018—2019年的土壤基础地力平均值如表1所示。

Table 1
表1
表1土壤养分含量
Table 1Nutrition content in soil

试验地点 Test location	有机质 Organic matter (g·kg^-1)	全氮 Total N (g·kg^-1)	速效氮 Available N (mg·kg^-1)	速效磷 Available P (mg·kg^-1)	速效钾 Available K (mg·kg^-1)
黄淮海区域玉米技术创新中心 Huang-huai-hai regional maize technology innovation center	10.65	0.76	56.87	35.76	127.41

新窗口打开|下载CSV

1.2 试验设计

2年试验均采用三因素裂区设计,主区为行距配置（cm+cm）,分别为60+60、80+40、100+20,副区为种植密度,分别为常规密度67 500株/hm²（L）和高密度82 500株/hm²（H）,副副区为覆反光膜（FM）和不覆膜（NM）,供试品种为郑单958（ZD958）。试验共12个处理,重复3次。覆反光膜的60+60、80+40、100+20行距配置分别表示为（FM60+60）、（FM80+40）、（FM100+20）。不覆反光膜的60+60、80+40、100+20行距配置分别表示为（NM60+60）、（NM80+40）、（NM100+20）。覆反光膜处理采用在玉米行间铺设银灰反光地膜,反光率达90%,铺设地膜时间为拔节期追肥以后进行,其他管理同一般高产田。

1.3 测定项目及方法

1.3.1 干物质积累与分配于大喇叭口期（V12）、开花期（VT）、花后20 d（VT+20）、花后40 d（VT+40）和成熟期（VT+60）,选择生长一致的植株5株,按照茎、苞叶、雄穗、叶片、籽粒、穗轴等部位分开,烘箱内105℃杀青60 min,80℃烘干至恒重称重。

1.3.2 叶面积指数于V12、VT、VT+20、VT+40、VT+60测定,各处理分别选择植株6株,量取叶片的叶长和叶宽,计算叶面积和叶面积指数。

单叶叶面积（m²）=叶长×叶宽×0.75

LAI=单株叶面积×单位土地面积内株数/单位土地面积

1.3.3 叶绿素含量于开花期选择有代表性的植株5株,测定穗位叶叶绿素含量,叶绿素含量测定方法采用丙酮乙醇混合液法,取穗位叶新鲜玉米叶片,剪取相同大小的小圆片8片,放入丙酮乙醇混合液中,在室温下（10—30℃）暗处提取,至材料完全变白后,取清液,以丙酮乙醇混合液做对照,用分光光度计测定光密度。

1.3.4 冠层光能截获率于V12、VT、VT+20、VT+40、VT+60时期选择晴朗无云天气,在9：00— 11：00采用SunScan冠层分析仪测定。每个小区分别在大小行间按对角线方式测定8次,取平均值。分3层测量,即冠层上部（雄穗上方20 cm）、穗位层（穗位叶）、冠层底部（距地面20 cm）。光合有效辐射（PAR）计算公式如下：

底部光能截获率（%）=1-底部PAR/冠层上部PAR

穗位层光能截获率（%）=1-穗位层PAR/冠层上部PAR

1.3.5 冠层反光率于V12、VT、VT+20、VT+40、VT+60时期选择晴天无云天气,在9：00—11：00采用SunScan冠层分析仪测定,测定时将仪器手柄反转。测定部位为冠层底部（距地面20 cm）的PAR,分别在大小行间按对角线方式定点测定8次。

反光率（%）=测定层PAR/冠层上部PAR×底部光能截获率

底层总光能截获率（%）=底部光能截获率+反光率

1.3.6 净光合速率于大喇叭口期、开花期以及开花后每20 d,选择晴朗无风天气,在上午9：00—11：00,选取代表性植株,采用CIRAS-3便携式光合测定系统,测定穗位叶和穗位叶下第4片叶的净光合速率,每个处理重复5次,测定部位为叶片中部向阳的一面。

1.3.7 产量及产量构成因素收获期每小区取中间3行5 m长进行测产,调查该面积内实际株数、穗数、双穗数、空秆数、倒伏数,待收获后随机选取30个果穗风干后考种,分别测定玉米千粒重、穗粒数、含水量等指标,最后计算籽粒产量。

1.4 数据分析

采用Microsoft Excel 2016处理数据;用SPSS软件进行数据统计与分析,用Sigmaplot 14.0作图。

2 结果

2.1 行距配置和覆反光膜对夏玉米产量的影响

由图1可知,在常规密度下,“60+60”与“80+40”行距配置间产量差异不显著,但均高于“100+20”行距配置,在覆反光膜条件下“FM60+ 60”与“FM80+40”行距配置2年平均产量分别较“FM100+20”提高5.5%、7.9%,在不覆膜条件下分别提高5.9%、6.6%;且“FM60+60”“FM80+40”和“FM100+20”3种处理分别较不覆膜处理提高3.4%、5.2%和3.8%。在高密度下,“FM80+40”行距配置2年平均产量较其他行距配置提高6.6%（FM60+ 60）、10.8%（FM100+20）,在不覆膜条件下“NM80+40”处理提高5.8%（NM60+60）、8.7%（NM100+20）;“FM60+60”“FM80+40”和“FM100+20”处理分别较不覆膜处理提高4.4%、5.1%和3.2%。高密度较常规密度2年平均产量提高12.1%。由于倒伏原因2018年产量略低于2019年产量。对玉米产量进行方差分析表明,种植密度、行距配置和覆反光膜各因素对产量均有显著影响,且各因素之间存在显著的交互作用（表2）。可见,在高密度下,“80+40”行距配置辅以覆反光膜可显著提高产量。

图1

新窗口打开|下载原图ZIP|生成PPT

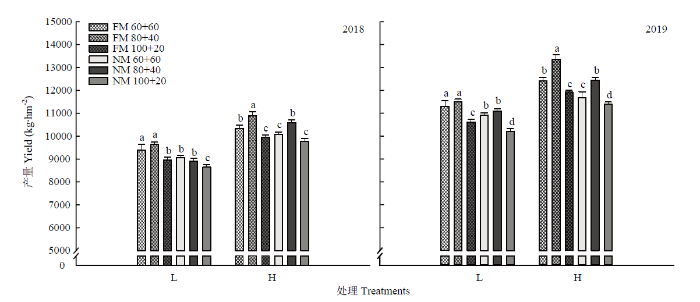

图1行距配置和覆反光膜对夏玉米产量的影响

L：常规密度;H：高密度。不同小写字母在0.05水平差异显著。下同
Fig. 1Effects of row spacing and mulching reflective film on the yield of summer maize

L: Normal density; H: High density. Different small letters indicate significant at 0.05 level. The same as below

Table 2
表2
表2夏玉米产量方差分析
Table 2Variance analysis for yield of summer maize

变异来源 Sources of variance	密度 Density	行距配置 Row spacing	覆反光膜 Mulching reflective film	密度×行距配置 Density×Row spacing	密度×覆反光膜 Density×Mulching reflective film	行距配置×覆反光膜 Row spacing×Mulching reflective film	密度×行距配置×覆反光膜 Density×Row spacing×Mulching reflective film
显著水平 Significance level	**	**	**	**	*	*	*

* indicates the correlation at 0.05 level, and ** indicates the correlation at 0.01 level
*表示在0.05水平相关,**表示在0.01水平相关

新窗口打开|下载CSV

2.2 行距配置和覆反光膜对夏玉米群体干物质积累的影响

群体干物质积累随着生育期的推进呈迅速增加趋势（图2）,在常规密度下,“60+60”行距配置高于其他2种配置,覆反光膜条件下分别提高2.4%（FM80+40）、11.8%（FM100+20）,不覆膜条件下分别提高3.4%（NM80+40）、14.8%（NM100+20）。在高密度下,“80+40”行距配置干物质积累能力最高,覆反光膜处理后的干物质积累量显著高于不覆膜处理,在覆反光膜条件下较其他行距配置增加8.1%（FM60+60）、13.9%（FM100+20）,不覆膜条件下增加4.9%（NM60+60）、13.8%（NM100+20）,其中“FM80+40”处理较“NM80+40”处理提高7.6%。高密度下的平均干物质积累量显著高于常规密度,2年分别提高5.4%（2018）、18.3%（2019）。

图2

新窗口打开|下载原图ZIP|生成PPT

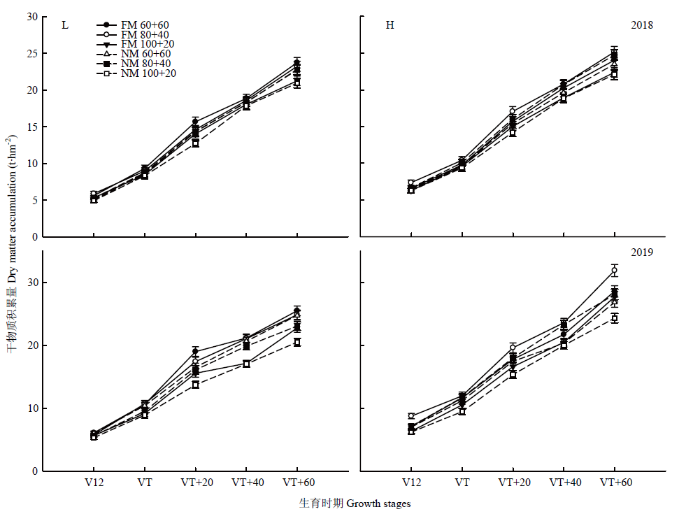

图2覆反光膜和行距配置对玉米群体干物质积累的影响

V12：大喇叭口期;VT：开花期;VT+20：开花期后20 d;VT+40：开花期后40 d;VT+60：开花期后60 d。下同
Fig. 2Effect of row spacing and mulching reflective film on dry matter accumulation of summer maize

V12: Large bell stage; VT: Flowering stage; VT+20: 20 days after flowering stage; VT+40: 40 days after flowering stage; VT+60: 60 days after flowering stage. The same as below

2.3 行距配置和覆反光膜对夏玉米叶面积指数（LAI）的影响

叶面积指数在玉米生长发育过程中随着生育时期的推进呈先增加后下降的趋势,最大值出现在开花期（图3）。不同密度下各行距配置叶面积指数表现不同,常规密度下“60+60”行距配置的LAI_max与“80+40”行距配置无显著差异,但均高于“100+20”行距配置,在覆反光膜条件下分别较“FM100+20”处理提高10.2%、9.5%,在不覆膜条件下分别提高9.7%、6.5%。在高密度下,“FM80+40”处理LAI_max比其他处理提高1.6%（FM60+60）、3.3%（FM100+ 20）,在不覆膜条件下“NM80+40”处理提高2.3%（NM60+60）、9.4%（NM100+20）。3种行距配置下覆反光膜增光处理后的LAI均高于不覆膜处理,2年来覆反光膜处理下的平均LAI_max较不覆膜处理提高3.0%,高密度下的平均LAI_max较常规密度提高16.6%。

图3

新窗口打开|下载原图ZIP|生成PPT

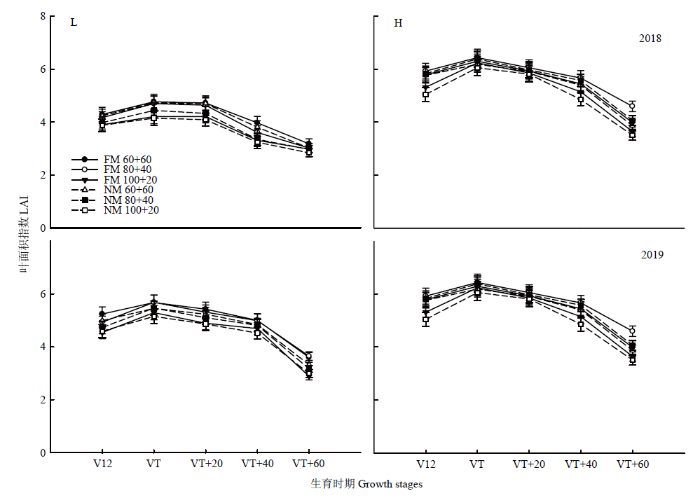

图3行距配置和覆反光膜对夏玉米叶面积指数的影响

Fig. 3Effect of row spacing and mulching reflective film on LAI of summer maize

2.4 行距配置和覆反光膜对夏玉米叶绿素的影响

穗位叶叶绿素含量从开花期开始随生育期的推进逐渐下降,3种行距配置中覆反光膜处理后叶绿素均增加（图4）。在2种种植密度下,行距配置对穗位叶叶绿素含量的影响表现一致,均表现为“80+40”行距配置高于其他2种配置。尤其是在花后40 d 时,常规密度下,覆反光膜处理下的“FM80+40”处理叶绿素含量高出其他各处理3.1%（FM60+60）、5.7%（FM100+20）,不覆膜条件下“NM80+40”较其他处理提高2.0%（NM60+60）、10.2%（NM100+20）,且“FM80+40”较“NM80+40”处理提高2.8%。在高密度下,覆反光膜后的“FM80+40”处理较其他2种处理提高3.0%（FM60+60）、19.0%（FM100+20）,不覆膜条件下“NM80+40”处理较其他2种处理提高13.7%（NM60+60）、18.8%（NM100+20）,“FM80+40”处理较“NM80+40”处理提高3.0%。

图4

新窗口打开|下载原图ZIP|生成PPT

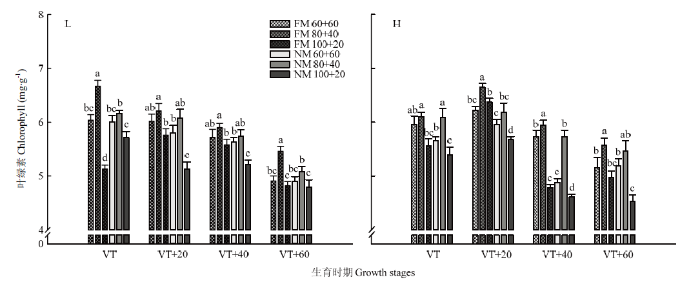

图4行距配置和覆反光膜对夏玉米叶绿素的影响

Fig. 4Effect of row spacing and mulching reflective film on chlorophyll of summer maize

2.5 行距配置和覆反光膜对夏玉米光能截获率的影响

夏玉米穗位层和底层的光能截获率在开花期后呈下降趋势,在花后40 d后降幅较大（图5）。常规密度下“60+60”与“80+40”行距配置间无显著差异,但二者均高于“100+20”行距配置。在高密度下,底层截获率和穗位层截获率表现为“80+40”行距配置最高,尤其是在覆反光膜条件下,“FM80+40”处理在开花期光能截获率平均比其他处理分别高2.2%（FM60+60）、2.9%（FM100+20）。3种行距配置下,覆反光膜增光后的底层截获率均高于不覆膜处理,高密度下光能截获率显著高于常规密度。在增光处理和行距配置的互作效应下,“FM80+40”处理截获率高于其他处理。

图5

新窗口打开|下载原图ZIP|生成PPT

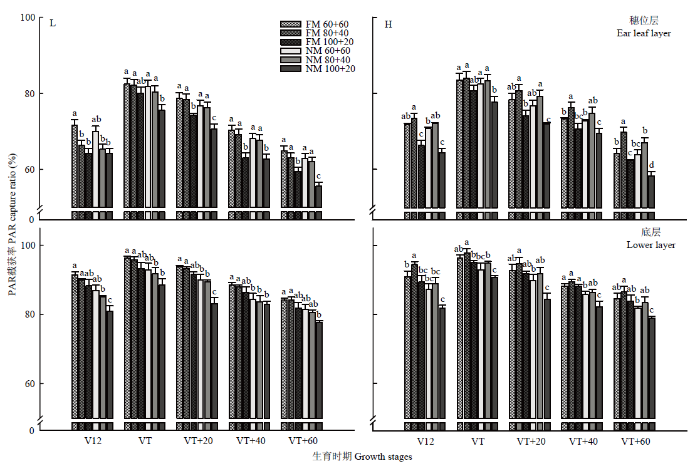

图5行距配置和覆反光膜对夏玉米光能截获率的影响

Fig. 5Effect of row spacing and mulching reflective film on PAR capture ratio of summer maize

2.6 行距配置和覆反光膜对夏玉米冠层反光率的影响

反光率是指反光膜在近地面经阳光照射后反射到叶片的这部分可再次利用光的光能截获率。由图6可以看出,随密度的增加冠层反光率呈现下降的趋势,82 500株/hm²密度下比67 500株/hm²密度下的反光率降低6.3%。不同的行距配置也对反光率有不同的影响,宽窄行的行距越大对冠层反光率的影响越显著,2个密度条件下“100+20”行距配置的反光率的平均值比“80+40”和“60+60”分别高63.3%、36.4%（67 500株/hm²）和145.2%、96.2%（82 500株/hm²）。

图6

新窗口打开|下载原图ZIP|生成PPT

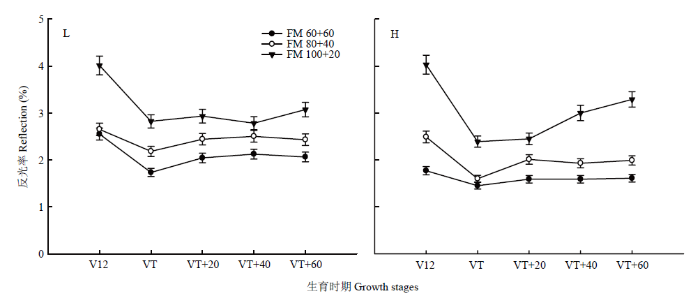

图6行距配置和覆反光膜对夏玉米冠层反光率的影响

Fig. 6Effect of row spacing and mulching reflective film on reflection ratio of summer maize

2.7 行距配置和覆反光膜对夏玉米净光合速率（Pn）的影响

3种行距配置下夏玉米穗位叶净光合速率均表现为随着种植密度的增大而减小（图7）。在同一密度条件下,各行距配置间的差异有所不同,在常规密度下各行距配置的净光合速率表现为“FM80+40”>“FM60+60”>“FM100+ 20”,“NM60+60”>“NM80+ 40”>“NM100+20”,表明覆膜增光处理后增强了“80+40”行距的光合能力。在高密度条件下,开花期覆反光膜后的“FM80+ 40”处理较其他处理提高4.8%（FM60+ 60）、8.1%（FM100+20）,不覆膜后的“NM80+ 40”处理较其他处理提高3.8%（NM60+60）、7.7%（NM100+20）,且“FM60+60” “FM80+40”和“FM100+ 20”处理分别较不覆膜提高1.6%、2.6%和2.2%。

图7

新窗口打开|下载原图ZIP|生成PPT

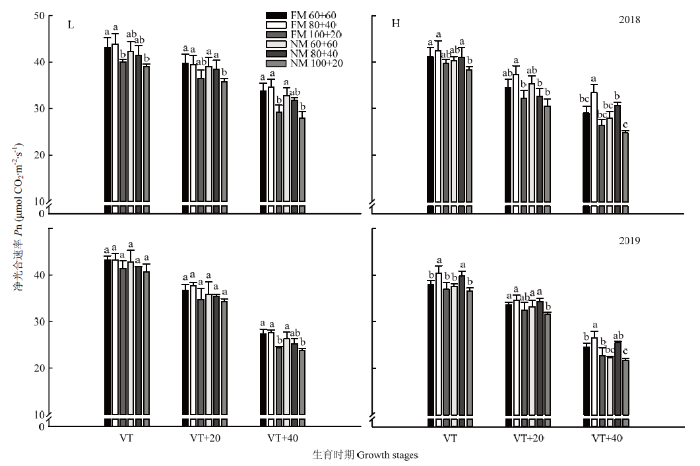

图7行距配置和覆反光膜对夏玉米穗位叶净光合速率的影响

Fig. 7Effect of row spacing and mulching reflective film on Pn of summer maize

2.8 行距配置和覆反光膜对夏玉米穗位叶下第四片叶净光合速率（Pn）的影响

由图8可以看出,覆反光膜的增光处理可以提高穗位叶下第四片叶即近地面叶片的净光合速率,净光合速率同期均较不覆膜处理升高,在花后20 d和40 d时,覆反光膜增光后,穗位叶下第四片叶Pn平均较不覆膜处理升高4.9%和9.0%。2种密度条件下,开花期“80+40”行距配置的穗位叶下第四片叶Pn均高于其他各配置,在常规密度下,覆反光膜条件下的“FM80+40”处理较其他处理分别增加2.1%（FM60+ 60）、29.2%（FM100+20）。在高密度下,覆反光膜后的“FM80+40”处理较其他处理分别提高9%（FM60+ 60）、23.3%（FM100+20）,不覆膜条件下“NM80+40”处理较其他处理分别提高8.9%（NM60+60）、28.6%（NM100+20）,其中“FM80+40”处理较“NM80+40”处理高4.4%。在高密度下,“FM80+40”处理更有利于近地面净光合速率的提高。

图8

新窗口打开|下载原图ZIP|生成PPT

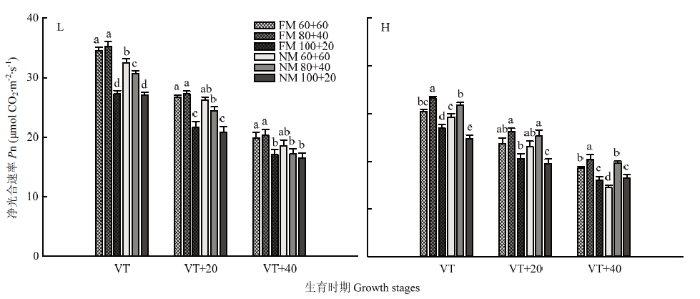

图8行距配置和覆反光膜对夏玉米穗位叶下第四片叶净光合速率的影响

Fig. 8Effect of row spacing and mulching reflective film on the Pn of the fourth leaf of panicle leaf of summer maize

3 讨论

3.1 行距配置和覆反光膜对夏玉米产量及干物质积累的影响

合理密植是决定高产的关键因素之一,通过增密来增加光合势在玉米生长后期的分配比例及花后净同化率,依靠群体发挥增产潜力是获得玉米高产稳产的重要途径之一^[21],但种植密度过高致使单株生长速率降低,冠层中下部叶片光照条件变差,群体光合速率降低。宽窄行的种植方式可以增强不同土层深度根系吸收养分和水分的能力^[22],尤其是在高密度下,宽行通风透光条件更好,促进了玉米雌雄穗分化发育,进而优化穗部性状,增加玉米有效穗而提高籽粒产量^[23]。本试验中产量及干物质积累量均随种植密度增加而提高,与常规密度相比,高密度下平均产量提高12.1%,在常规密度下,“60+60”与“80+40”行距配置间产量无显著差异,均显著高于“100+20”行距配置,而干物质积累表现为“60+60”行距配置高于其他2种配置;在高密度下,“80+40”行距配置的产量及干物质积累均高于其他配置,其中“FM80+40”处理优势更为明显,这与杨吉顺等^[24]的研究结果基本一致。

农田地膜覆盖应用较为普遍,覆盖地膜后能有效聚集自然降水,减少蒸发,最大限度的蓄积土壤水分,提升地表温度,改善土壤理化性质,最终提高籽粒产量^[25]。本试验首次将反光膜用于玉米栽培,由于覆盖反光膜采用两端固定两侧不固定的方式,反光膜的两边是通气的,可能存在对土壤温度的影响,但与反光的效果相比影响较小;反光膜不是全覆盖,各个处理间留有空隙,处理间土壤湿度因覆膜造成的差异可忽略。覆反光膜主要利用其对透射光的反射来增强冠层下部的光照条件,改善设施内的光强和光质,达到增产的目的。玉米产量主要来源于光合作用,受光照条件的限制尤为明显。史建国等^[26]研究发现,花粒期增光后干物质积累显著增加,籽粒所占植株干重比例也显著增加。本试验结果表明,覆反光膜的增光处理可以显著增加玉米产量,在常规密度下,“FM60+60”“FM80+40”和“FM100+20”3种处理下的产量分别较不覆膜提高3.4%、5.2%和3.8%;在高密度下,“FM60+60”“FM80+40”和“FM100+20”处理分别较不覆膜提高4.4%、5.1%和3.2%,这与高佳等^[5]增光的研究结果相似,且在行距配置和覆反光膜处理的互作效应下,“FM80+40”处理更有利于夏玉米产量的提高及群体干物质的积累。

3.2 行距配置和覆反光膜对夏玉米光合特性的影响

前人对于不同行距配置对夏玉米光合特性的研究较多,梁熠^[22]认为过高的密度条件使得玉米群体冠层郁蔽,遮阴严重,造成冠层下部光环境恶劣,宽窄行种植对玉米行间进行有效的间隔种植,可以增加植株之间的距离,可改善群体内部光环境,有利于提高群体光合利用效率,延缓玉米叶片衰老^[27,28]。本试验结果表明,在高密度下,覆反光膜和不覆膜处理的“80+40”行距配置的叶面积指数显著高于“60+60”和“100+20” 行距配置,且“FM80+40”处理下的叶面积指数高于“NM80+40”处理。武志海等^[29]和邓妍等^[30]也认为采用宽窄行种植的方式可以改善玉米优良冠层结构,增强玉米光合作用,充分利用群体光照资源,还可以调节群体内部光照分布,尤其改善并优化冠层中下部叶片的光照强度。本试验中,在高密度下“80+40”行距配置能够有效改善群体形态和内部的光照环境,提高玉米群体叶面积指数,增加群体内光能截获率,尤其是穗位叶层及底层光截获率,促进穗位叶Pn和叶绿素的提高,且在覆反光膜条件下,“FM80+40”的优势更为明显。

光照作为玉米生长发育的重要条件之一,玉米的产量与其截获的太阳辐射紧密相关^[31]。前人研究表明,前期的光照不足会严重影响玉米的生长发育,而玉米后期光照不足则会显著降低净光合速率^[32]。本试验中,通过在田间铺设反光膜显著增强了底部透射光的再次利用,“FM60+60” “FM80+40”和“FM100+ 20”处理的光能截获率和净光合速率均高于不覆膜处理。这与余伟^[10]在椪柑下覆盖反光地膜的结论相似,覆反光地膜可有效增强椪柑树冠下部的光照强度,增强植株叶片的净光合速率,进而提高果实品质。刘林^[11]也表明覆膜处理通过补充光合作用所需光照或改变其光质,可以增加其胞间CO₂浓度,进而可以提高叶片光合能力和净光合速率,但升高气孔导度只是影响光合速率提高的其中一个因素。叶片光合能力的强弱是决定群体光合作用的重要基础,增光处理后叶片叶绿体结构优良,叶绿素含量也呈上升趋势,叶片光合性能显著增强。本试验中,不同密度条件下,覆反光膜增光后“FM60+ 60”“FM80+40”和“FM100+20”处理的LAI和叶绿素含量均较不覆膜处理显著增高,其中“FM80+ 40”处理最高。这与高佳^[5]研究结果相似,高佳^[5]认为增光后夏玉米叶绿体结构良好,基粒片层排列紧致、清晰且数量增加,提高净光合速率和叶绿素含量,增强叶片光合性能。由此可见,覆反光膜处理后的“80+40”行距配置显著改善夏玉米的光合特性,增强对辐射光的再次利用,提升底部叶片的光合效率并能有效延缓其衰老进程,进而增加产量。

4 结论

本试验条件下,覆反光膜显著增加各处理的产量,在67 500株/hm²密度下,“60+60”和“80+40”行距配置的产量无显著差异,均高于“100+20”配置;在82 500株/hm²密度下,覆反光膜增光后“FM80+40”处理显著提高夏玉米产量,2年平均产量较“FM60+60”和“FM100+20”处理提高6.6%和10.8%,且“FM80+40”处理较“NM80+40”处理增产5.1%。因此,82 500株/hm²密度,采用“80+40”行距配置,覆反光膜增光可进一步提升夏玉米的光合能力和产量。
