王贺垒^1,,
李家曦²,
范凤翠³,
韩宪忠^1,,,
刘胜尧³,
李志宏³,
贾建明³,
王克俭¹,
张哲³,
贾宋楠³
1.河北农业大学信息科学与技术学院 保定 071001
2.南京农业大学园艺学院 南京 210095
3.河北农林科学院农业信息与经济研究所 石家庄 050051
基金项目: 国家公益性行业（农业）科研专项201303133-1-3
河北省科技计划项目16227005D
现代农业科技创新工程494-0402-YBN-H5A4

详细信息

作者简介:王贺垒, 主要从事农业节水模型信息化研究。E-mail:wanghelei20117462@163.com

通讯作者:韩宪忠, 主要研究方向为农业模型与信息化研究。E-mail:13832252366@163.com

中图分类号:S641.1;S161.4;S275.6

计量

文章访问数:799
HTML全文浏览量:1
PDF下载量:643
被引次数:0

出版历程

收稿日期:2018-02-28
录用日期:2018-07-10
刊出日期:2018-12-01

Evapotranspiration model and crop coefficient of greenhouse eggplant in North China

WANG Helei^1,,
LI Jiaxi²,
FAN Fengcui³,
HAN Xianzhong^1,,,
LIU Shengyao³,
LI Zhihong³,
JIA Jianming³,
WANG Kejian¹,
ZHANG Zhe³,
JIA Songnan³
1. Institute of Information Science and Technology, Agricultural University of Hebei, Baoding 071001, China
2. College of Horticulture, Nanjing Agricultural University, Nanjing 210095, China
3. Institute of Agriculture Information and Economic of Hebei Academy of Agriculture and Forestry Sciences, Shijiazhuang 050051, China
Funds: the Special Fund for Agro-scientific Research in the Public Interest of China201303133-1-3
Hebei Science and Technology Plan Project16227005D
the Modern Agricultural Science and Technology Innovation Project of China494-0402-YBN-H5A4

More Information

Corresponding author:HAN Xianzhong, E-mail: 13832252366@163.com

摘要
HTML全文
图(6)表(0)
参考文献(31)
相关文章
施引文献
资源附件(0)
访问统计

摘要
摘要:构建华北地区设施茄子蒸散量估算模型，可为制定其优化灌溉制度提供理论依据。本研究设灌水定额15 mm（W1）、22.5 mm（W2）、30 mm（W3）和37.5 mm（充分灌溉，CK）4个处理，在设施茄子苗期、开花座果期和成熟采摘期土壤含水率分别达田间持水量的70%、80%和70%时进行灌溉，以保证土壤供水充足。基于修正后的Penman-Monteith方程，通过分析CK处理的作物系数与叶面积指数的关系，建立了基于气象数据与叶面积指数的蒸散量估算模型，利用W1、W2和W3实测蒸散量对其进行验证。结果表明：修正后的Penman-Monteith方程可用于设施参考作物蒸散量的估算，W1、W2和W3蒸散量的实测值与新建模型的模拟值平均相对误差分别为17.81%、18.31%和17.97%。作物系数与叶面积指数呈显著线性关系，可通过叶面积指数确定作物系数。分析W1、W2、W3和CK处理的产量和水分利用效率（WUE）得出，W2与CK产量差异性不显著，而WUE差异性显著，较CK提高31.59%，表明W2兼顾产量和WUE。W2处理下茄子的作物系数，苗期为0.21~0.46，开花座果期为0.62~0.94，成熟采摘期为0.70~0.92。本研究认为，新建模型在估算设施茄子实际蒸散量上具有较好适用性，计算出的作物系数在节水灌溉条件下具有实际应用价值。
关键词:设施茄子/
Penman-Monteith方程/
蒸散量/
估算模型/
作物系数/
灌水定额
Abstract:The theoretical basis of a model for estimation of evapotranspiration of greenhouse eggplants in North China was constructed for the development of optimized irrigation systems.Because irrigation of vegetables in North China has been much higher than crop evapotranspiration, severe deep soil water leakage has occurred, resulting in soil salinization and compaction.This has had a significant impact on the yield and quality of vegetables, resulting in larges waste of water resources.An evapotranspiration model was needed to not only guide irrigation to improve water use efficiency of vegetables, also lay the foundation for the application of agricultural information technology.It can be used to alleviate over-exploitation of groundwater and reduce frequent occurrences of diseases and pests in vegetables due to large amount irrigation.Therefore, it was necessary to establish a model that can accurately simulate vegetable evapotranspiration under greenhouse conditions.In this experiment, the effect of irrigation quota on yield and water use efficiency of eggplant in greenhouse was investigated by setting watering quotas of 15 mm (W1), 22.5 mm (W2), 30 mm (W3) and 37.5 mm (full irrigation quota, CK).The fields were irrigated to ensure sufficient water supply at seeding, flowering and maturity stages, at which the soil moisture contents were kept respectively at 70%, 80% and 70% of field capacity. Based on the modified Penman-Monteith equation and by analysis of relationship between crop coefficient and leaf area index of CK treatment, a model for the evapotranspiration based on meteorological data and leaf area index was established.The model was validated by measured evapotranspiration data under W1, W2 and W3.The results showed that average relative errors between the measured evapotranspiration for W1, W2 and W3 and the simulated values by the model were respectively 17.81%, 18.31% and 17.97%. This showed that the modified Penman-Monteith equation accurately estimated reference crop evapotranspiration under greenhouse conditions.Crop coefficient (K_c) had a significant linear regression with leaf area index (LAI), K_c=0.21 LAI+0.199 1(P < 0.05), indicating that it was possible to determine crop coefficient from leaf area index.The simulated results showed on significant difference in yield (P > 0.05), and significant difference in WUE (P < 0.05) between W2 and CK.WUE of W2 was 31.59% higher than that of CK, indicating that W2 addressed both yield and WUE.Crop coefficients of eggplants at seedling stage and flowering to fruiting period and ripening stage under W2 treatment were respectively 0.21-0.46, 0.62-0.94 and 0.70-0.92.The study suggested that the new model was applicable in estimating actual evapotranspiration of facility eggplants.It calculated crop coefficient that was of practical value in water-saving irrigation.The research was significant for guiding agricultural precision irrigation.
Key words:Facility eggplant/
Penman-Monteith equation/
Evapotranspiration/
Estimation model/
Crop coefficient/
Irrigation quota

HTML全文


图1茄子生育期内设施日均气温、日累积太阳辐射和日均相对湿度的变化
I_a:日累积太阳辐射; RH:日均相对湿度。I_a: daily cumulative solar radiation; RH: daily relative humidity.
Figure1.Average daily temperature, daily cumulative solar radiation and daily relative humidity during the growing stage of greenhouse eggplant


下载: 全尺寸图片幻灯片

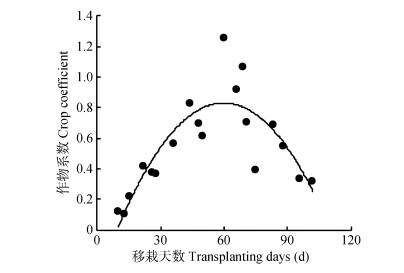

图2充分灌溉条件下设施茄子生育期内作物系数的变化
Figure2.Variation of crop coefficient for greenhouse eggplant during the growing stage under sufficient irrigation


下载: 全尺寸图片幻灯片

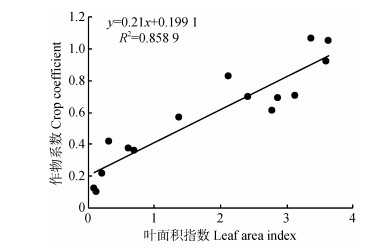

图3设施茄子作物系数与叶面积指数的关系
Figure3.Relationship between plant coefficient and leaf area index for greenhouse eggplant


下载: 全尺寸图片幻灯片

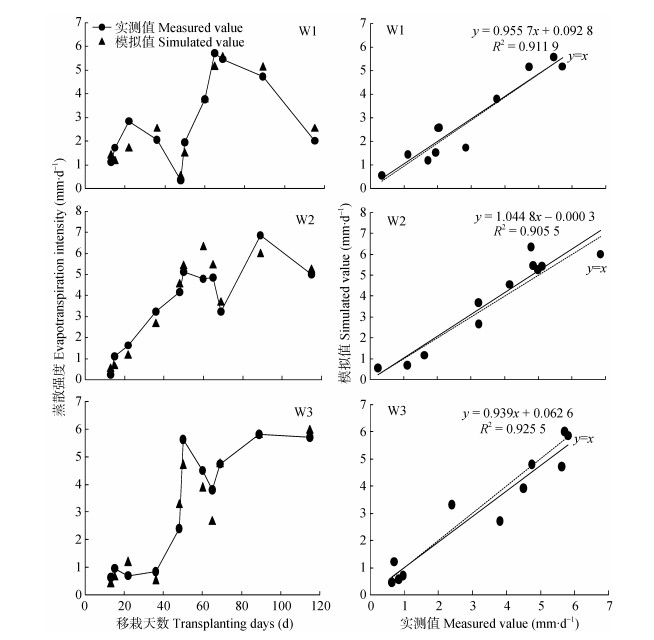

图4不同灌水条件下设施茄子蒸散量实测值(左)及其与模拟值的比较(右)
W1:灌水定额15 mm; W2:灌水定额22.5 mm; W3:灌水定额30 mm。W1: irrigation quota 15 mm; W2: irrigation quota 22.5 mm; W3: irrigation quota 30 mm.
Figure4.Actual evapotranspiration (left) and comparison with simulated values (right) for greenhouse eggplant under different irrigation quotas


下载: 全尺寸图片幻灯片

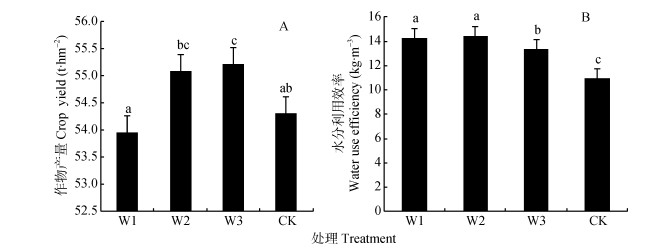

图5不同灌水定额处理茄子产量(A)、水分生产效率(B)的比较
W1:灌水定额15 mm; W2:灌水定额22.5 mm; W3:灌水定额30 mm; CK:灌水定额37.5 mm。不同小写字母表示不同处理间差异显著(P < 0.05)。W1: irrigation quota 15 mm; W2: irrigation quota 22.5 mm; W3: irrigation quota 30 mm; CK: irrigation quota 37.5 mm. Different lowercase letters indicate significant differences among treatments (P < 0.05).
Figure5.Comparison of yield and water use efficiency (WUE) of greenhouse eggplant under different irrigation quota treatments


下载: 全尺寸图片幻灯片

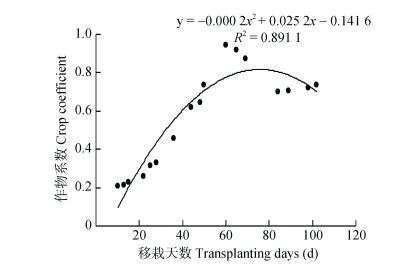

图6适宜灌水条件下设施茄子生育期内作物系数的变化
Figure6.Variation of crop coefficient during whole growth stage of greenhouse eggplant under suitable irrigation condition


下载: 全尺寸图片幻灯片
