Research Progress and Development Prospect of Potato Growth Model
TANG JianZhao,1,2, WANG Jing,1, XIAO DengPan2, PAN XueBiao11College of Resources and Environmental Sciences, China Agricultural University, Beijing 100193 2Institute of Geographical Sciences, Hebei Academy of Sciences/Engineering Technology Research Center, Geographic Information Development and Application of Hebei, Shijiazhuang 050011
Abstract Potato (Solanum tuberosum L.) is the fourth food crop around the world, following maize, wheat and rice. Potato production is of significance for ensuring national food security. Potato growth models have been used widely in narrowing potato yield gap, enhancing water and nitrogen use efficiency, adapting to climate change, and optimizing agronomic management options. The study reviewed the development, application and prospect of potato growth models. Potato growth models were built since the 1980s by expressing the growth and development processes of potato in the mathematical models, which mainly included the modules of phenology and biomass accumulation. During this period, the potato growth models were mainly used to evaluate potato productivity. During the 1990s, the potato growth models could be used to optimize application of irrigation and nitrogen fertilizer with the soil water and nitrogen modules being added into the models. In the 2000s, the potato growth models were improved significantly by including the module of the response of potato growth to CO2 concentration. Afterward, the potato models were used more widely in the estimation of potato potential yield, narrowing the yield gap, the optimization of cultivars and agronomic management practices, climate change impact assessment and adaptation, etc. Although the potato growth models have been used widely, there were still some limitations for potato growth models. Firstly, the simulation accuracy of potato growth models under water and nitrogen stresses should be further evaluated. Secondly, the potato growth models could not simulate the number and weight of tuber effectively. However, the number of marketable tuber had a significant impact on potato economic benefit. Thirdly, the current potato growth models could not reflect the impacts of diseases and pests on the growth and development of potato. In the future, the mechanism of potato growth models should be further enhanced based on the global big data, field and controlled experiments. Moreover, the application of potato growth models should be strengthened in the analysis of interaction of genotype, management and environment on potato production. For developing new generation models, potato growth models should be combined with remote sensing data and structure-functional models to realize the smart management of potato production. Keywords:potato;yield gap;climate change;water and nitrogen management;planting date;cultivar;tuber
PDF (493KB)元数据多维度评价相关文章导出EndNote|Ris|Bibtex收藏本文 本文引用格式 唐建昭, 王靖, 肖登攀, 潘学标. 马铃薯生长模型的研究进展及发展前景[J]. 中国农业科学, 2021, 54(5): 921-932 doi:10.3864/j.issn.0578-1752.2021.05.005 TANG JianZhao, WANG Jing, XIAO DengPan, PAN XueBiao. Research Progress and Development Prospect of Potato Growth Model[J]. Scientia Acricultura Sinica, 2021, 54(5): 921-932 doi:10.3864/j.issn.0578-1752.2021.05.005

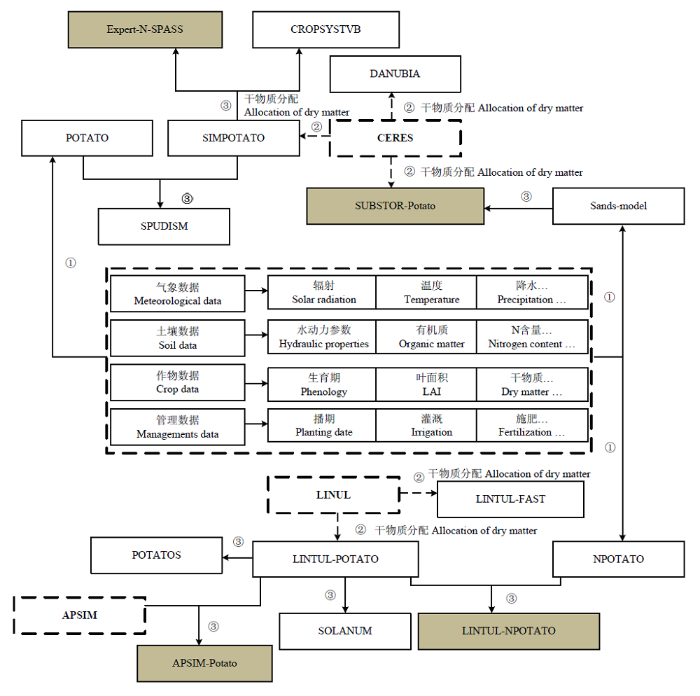

①、②和③分别代表基于田间试验数据直接开发、基于其他作物生长模型改进(主要为干物质分配过程的改进)和综合已有的马铃薯生长模型构建。棕色箱子表示当前广泛应用的马铃薯生长模型 Fig. 2The establishment methods of potato growth models
①, ② and ③ represent the potato growth models built directly from experimental data, from other crop growth models (mainly including the improvement of biomass partition processes) and from existed potato growth models, respectively. Brown boxes represent that the potato models are used widely at present
Table 1 表1 表1国际上主要马铃薯生长模型的应用领域 Table 1The application area of the main potato growth models around the world
模型 Model
生产力评价 Assessment of potato productivity
水分管理 Water management
氮肥管理 Nitrogen management
气候变化影响评估 Assessment of climate change impact
APSIM-Potato
*
**
**
**
AquaCrop
*
**
-
-
CROPSYST
—
*
*
**
CROPSYSTVB-CSPOTATO
—
—
*
—
DAISY
—
**
*
—
DANUBIA
—
—
*
—
Expert-N-SPASS
—
*
**
—
INFOCROP-POTATO
*
—
*
—
Johnson- model
*
—
—
—
LINTUL-NPOTATO
*
—
**
—
LINTUL-POTATO
*
*
*
**
Potato Calculator
*
—
*
—
PotatoSoilWat
*
—
—
—
Sands-model
*
—
—
—
SIMPOTATO
—
*
**
—
POMOD
*
—
—
—
HPOTATC
*
*
—
*
SUBSTOR-Potato
*
**
**
**
该表基于已发表的马铃薯生长模型研究的论文整理。“*”代表基于某生长模型进行过此方面研究;“**”代表某生长模型在该过程的模拟能力更突出;“—”代表无该方面研究 The table was established based on the published papers on the potato growth models. “*” represents the study was conducted by the model. “**” represents the model performed well in simulating the processes. “-” represents the model does not consider the processes

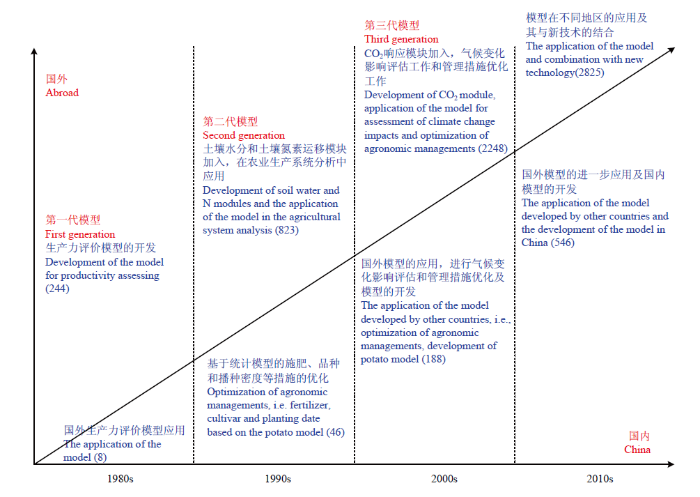

随着马铃薯生长模型应用的加深,关于马铃薯生长模型发表的科研论文数量逐渐增加。基于“Web of Science”和“中国知网”搜索引擎,分别以“potato;crop model”和“马铃薯;模型”为主题词,检索到的不同年份发表的英文和中文论文数量如图3所示,发表论文数量均呈增加趋势,并且已发表的英文论文数量远高于中文论文。将已发表的科研论文进行归类,其研究方向主要集中在生产力评价、水氮管理优化和气候变化影响评估等几个方面。
FAO. Data of FAOSTAT. http://www.fao.org/faostat/en/. URL [本文引用: 1]
HAVERKORTA J, STRUIKP C. Yield levels of potato crops: Recent achievements and future prospects Field Crops Research, 2015,182:76-85. [本文引用: 2]
KOOMANP L, HAVERKORTA J. Modeling development and growth of the potato crop influenced by temperature and daylenght: LINTUL-POTATO//HAVERKORT A J, MACKERRON D K L. Potato Ecology and Modeling Crops Under Conditions Limiting Growth Kluwer Academic Publisher, Wageningen, The Netherlands, 1995: 41-59. [本文引用: 2]
BENOITG R, GRANTW J. Excess and deficient water stress effects on 30 years of Aroostook County potato yields American Potato Journal, 1985,62:49-55. [本文引用: 1]
EPSTEINE, GRANTW J. Water stress relations of the potato plant under field conditions Agronomy Journal, 1973,65:400-404. [本文引用: 1]
HAVERKORTA J. The canon of potato: 36, potato ontology Potato Research, 2007,50:357-361. URL [本文引用: 1]
YUANF M, BLANDW L. Comparison of light and temperature- based index models for potato growth and development American Journal of Potato Research, 2005,82:345-352. URL [本文引用: 1]
TANGJ Z, WANGJ, FANGQ X, WANGE L, YINH, PANX B. Optimizing planting date and supplemental irrigation for potato across the agro-pastoral ecotone in North China European Journal of Agronomy, 2018,98:82-94. DOI:10.1016/j.eja.2018.05.008URL [本文引用: 3]
TANGJ Z, WANGJ, FANGQ X, DAYANANDAB, YUQ, ZHAOP Y, YINH, , PANX B. Identifying agronomic options for better potato production and conserving water resources in the agro-pastoral ecotone in North China Agricultural and Forest Meteorology, 2019,272/273:91-101. [本文引用: 2]
LIANGS M, ZHANGL, HES D, YANGQ Q, LIY S, HEP G, WANGS L, WANGY, YANGQ F, SUIQ J. Yield and economic benefit of potato under the different cultivation patterns in Northwest Yunnan Crops, 2017(6):79-83. (in Chinese) [本文引用: 1]
QINS H, ZHANGJ L, WANGD, LIUZ, SHENP. Effects of supplemental irrigation using catchment rainfall on water movement of potato field in semi-arid rainfed areas Journal of Soil and Water Conservation, 2011,25(4):179-182. (in Chinese) [本文引用: 1]
ZHOUY Y, FUM. Influence of different ridging manners on yield and economic traits of early mature potato Tillage and Cultivation, 2016(4):35-37. (in Chinese) [本文引用: 1]
FENGZ W, KANGY H, WANS Q, LIUS P. Effects of drip fertigation levels on potato growth and the water and fertilizer efficiency on sandy soil in Inner Mongolia Agricultural Research in the Arid Areas, 2017,35(5):242-249. (in Chinese) [本文引用: 1]
SONGN, WANGF X, YANGC F, YANGK J. Coupling effects of water and nitrogen on yield, quality and water use of potato with drip irrigation under plastic film mulch Transactions of the Chinese Society of Agricultural Engineering, 2013,29(13):98-105. (in Chinese) URL [本文引用: 2]
JONESJ W, HOOGENBOOMG, PORTERC H. The DSSAT cropping system model European Journal of Agronomy, 2003,18:235-265. [本文引用: 1]
BROWNH E, HUTHN, HOLZWORTHD. A potato model built using the APSIM Plant. NET framework//19th International Congress on Modeling and Simulation Perth, Australia, 2011, 961-967. [本文引用: 6]
LISSONS N, COTCHINGW E. Modeling the fate of water and nitrogen in the mixed vegetable farming systems of northern Tasmania, Australia Agricultural Systems, 2011,104:600-608. URL [本文引用: 1]
TANGJ Z, WANGJ, WANGE L, YUQ, YINH, HED, PANX B. Identifying key meteorological factors of yield variation of potato and the optimal planting date in the agro-pastoral ecotone in North China Agricultural and Forest Meteorology, 2018,256/257:283-291. [本文引用: 1]
LIY J, SHIQ, HEJ Q, ZHANGJ L, BAIJ P, WANGD. Development and application of potato growth models Agricultural Research in the Arid Areas, 2014,32(2):126-136. (in Chinese) [本文引用: 1]
SANDSP J, HACKEETC, NIXH A. Model of the development and bulking of potatoes. 1. Derivation from well-managed field crops Field Crops Research, 1979,2:309-331. [本文引用: 1]
NGE, LOOMISR S. Simulations of Growth and Yield of the Potato Crop Centre for Agricultural Publishing and Documentation. Wageningen, the Netherlands. 1984: 1-100. [本文引用: 4]
MACKERROND K L. Advances in modeling the potato crop: Sufficiency and accuracy considering uses and users, data, and errors Potato Research, 2008,51:411-427. URL [本文引用: 1]
HUANGC P. Studies on the system simulation for potato growth and development [D]. Hangzhou: Zhejiang University, 2003. (in Chinese) [本文引用: 2]
HAVERKORTA J, KOOMANP. The use of systems analysis and modeling of growth and development in potato ideotyping under conditions affecting yields Journal of Environment Quality, 1997,24:772-777. [本文引用: 1]
JAMIESONP D, ZYSKOWSKIR F, SINTONM, BROWNH E, BUTLERR C. The potato calculator: A tool for scheduling nitrogen fertilizer application//Proceedings of the Thirty-sixth Annual Conference, Agronomy Society of New Zealand Atlantic City, New Jersey, 2006,36:49-53. [本文引用: 1]
VANDELDEN A, SCHRODEERJ J, KROPFFM I, GRASHOFFC, BOOIJR. Simulated potato yield, and crop and soil nitrogen dynamics under different organic nitrogen management strategies in the Netherlands Agriculture, Ecosystem & Environment, 2003,96:77-95. [本文引用: 1]
VANITTERSUM M, LEFFELAARH, KROPFFM J, BASTIAANSL, GOUDRIAANJ. On approaches and applications of the Wageningen crop models European Journal of Agronomy, 2003,18:201-234. [本文引用: 1]
LENZ-WIEDEMANNV I S, KLARC W, SCHNEIDERK. Development and test of a crop growth model for application within a global change decision support system Ecological Modelling, 2010,221:314-329. [本文引用: 1]
FLEISHERD H, TOMLIND J, YANGY, REDDYV R. Simulation of potato gas exchange rate using SPUDSIM Agricultural and Forest Meteorology, 2010,150:432-442. [本文引用: 1]
MACKEEROND K L, WAISTERP D. A simple-model of potato growth and yield. 1. Model development and sensitivity analysis Agricultural and Forest Meteorology, 1985,34:241-252. [本文引用: 1]
FISHMANS, TALPAZH, WINOGRDR, DINARM, ARAZIY, ROSEMANY, VARSHAVSKIS. A model for simulation of potato growth on the plant community level Agricultural Systems, 1985,18:115-128. [本文引用: 1]
JACKSONS D. Multiple signaling pathways control tuber induction in potato Plant Physiology, 1999,119:1-8. URLPMID:9880339 [本文引用: 1]
HAVERKORTA J, FRANKEA C, STEYNJ M, PRONKA A, CALDIZD O, KOOMANP L. A robust potato model: LINTUL- POTATO-DSS Potato Research, 2015,58:313-327. [本文引用: 4]
MCMASTERG S, WILHELMW W. Growing degree-days: One equation, two interpretations Agricultural and Forest Meteorology, 1997,87:291-300. [本文引用: 2]
GRIFFINT S, BRADLEYS J, RITCHIEJ T. A simulation model for potato growth and development: SUBSTOR-Potato version 2.0 IBSNAT Research Report Series, 1993,93(500):1-32. [本文引用: 5]
RAYMUNDOR, ASSENGS, CAMMARANOD, QUIROZR. Potato, sweet potato, and yam models for climate change: A review Field Crops Research, 2014,166:173-185. URL [本文引用: 7]
VANDER VEEKEN A J H, LOMMENW J M. How planting density affects number and yield of potato minitubers in a commercial glasshouse production system Potato Research, 2009,52:105-119. DOI:10.1007/s11540-008-9124-zURL [本文引用: 1]
EWINGE E, STRUIKP C. Tuber formation in potato: Induction, initiation, and growth Horticultural Reviews, 1992,14:89-198. [本文引用: 2]
MASARIRAMBIM T, MANDISODZAF C, MASHINGAIDZEA B, BHEBHEE. Influence of plant population and tuber size on growth and yield components of potato International Journal of Agriculture & Biology, 2012,14:545-549. [本文引用: 1]
JAMIESONP D, ZYSKOWSKIR F, LIF Y, SEMENOVM A. Water and nitrogen uptake and response in models of wheat, potato, and maize//MA L W, AHUJA L R, BRUULSEMA T Quantifying and Understanding Plant Nitrogen Uptake for Systems Modeling. CRC Press, Taylor & Francis Group, America. 2009: 127-145. [本文引用: 1]
KIMY U, SEOB S, CHOID H, BANH Y, LEEB W. Impacts of high temperature on the marketable tuber yield and related traits of potato European Journal of Agronomy, 2017,89:46-52. [本文引用: 2]
GAYLERS, WANGE, PRIESACKE, SCHAAFT, MAIDLF X. Modeling biomass growth, N-uptake and phenological development of potato crop Geoderma, 2002,105:367-383. [本文引用: 2]
SIBMAL. Maximization of arable crop yield in Netherlands Netherlands Journal of Agricultural Science, 1977,25(4):278-287. [本文引用: 2]
ZHENGJ F, ZHOUB, LUL Q, DUY D. A discussion on agricultural productivity in Wuchuan county of Inner Mongolia Agricultural Research in the Arid Areas, 1990,4:79-85. (in Chinese) [本文引用: 1]
TANGJ Z, WANGJ, HED, HUANGM X, PANZ H, PANX B. Comparison of the impacts of climate change on potential productivity of different staple crops in the agro-pastoral ecotone of North China Journal of Meteorological Research, 2016,30(6):983-997. URL [本文引用: 1]
GARCIA-VILAM, FERERESE. Combining the simulation crop model AquaCrop with an economic model for the optimization of irrigation management at farm level European Journal of Agronomy, 2012,36:21-31. URL [本文引用: 1]
VASHISHTB B, TIGONT, MULLAD J, ROSENC, XUH, TWEINE, T, JALOTAS K. Adaptation of water and nitrogen management to future climates for sustaining potato yield in Minneasota: Field and simulation study Agricultural Water Management, 2015,152:198-206. [本文引用: 3]
FEDDESR A. Modelling soil water dynamics in the unsaturated zone-state of the art Journal of Hydrology, 1988,100(1/3):69-111. [本文引用: 1]
SPITTERSC J T, SCHAPENDONKA H C M. Evaluation of breeding strategies for drought tolerance in potato by means of crop growth simulation Plant and Soil, 1990,123:193-203. [本文引用: 1]
ZHANGY C, XIEL M. A study on the mathematical model of potato cultural practices for high tuber yield Chinese Potato Journal, 1989,3(2):79-87. (in Chinese) [本文引用: 1]
CHENJ S, XUF X, SANGD F. The research and application of comprehensive agricultural mathematical model and its optimum scheme for Weishu Ⅰ in dry and shady wet land area Chinese Potato Journal, 1998,8(1):36-40. (in Chinese) [本文引用: 1]
GONGX C, YANGL T, NIUR M, GAOZ W. Studies of the mathematics model of fertilizer effects on potato in Northwest Hebei Chinese Potato Journal, 1998,12(1):3-6. (in Chinese) [本文引用: 1]
HIJMANSR J. The effects of climate change on global potato production American Journal of Potato Research, 2003,80:271-279. URL [本文引用: 2]
FLEISHERD H, CONDORIB, QUIROZR, ALVAA, ASSENGS, BARREDAC, BINDIM, BOOTEK J, FERRISER, FRANKEA C, GOVINDAKRISHNANP M, HARAHAGAZWED, HOOGENBOOMG, KUMARS N, MERANTEP, NENDELC, OLESENJ E, PARKERP S, RAESD, RAYMUNDOR, RUANEA C, STOCKLEC, SUPITI, VANUYTRECHTE, WOLFJ, WOLIP. A potato model intercomparison across varying climates and productivity levels Global Change Biology, 2017,23:1258-1281. URLPMID:27387228 [本文引用: 3]
LIJ P, YANGK, CAON, HANY J, ZHANGX Y. Simulation of changes of potato yields under different climate change scenarios in Ningxia Chinese Journal of Agrometeorology, 2009,30(3):407-412. (in Chinese) URL [本文引用: 2]
SUNF, LINE D, LIJ P, XIONGW. Study on adaptation measures of potato production by using DSSAT crop model Chinese Journal of Agrometeorology, 2008,29(2):127-129. (in Chinese) URL [本文引用: 2]
GOMEZD, SALVADORP, SANZJ, CASANOVAJ L. Potato yield prediction using machine learning techniques and sentinel 2 data Remote Sensing, 2019,11:1-17. [本文引用: 2]
KHANM S, YINX Y, VANDER PUTTEN P E L, JANSENH J, VANECK H J, VANEEUWIJK F A, STRUIKP C. A model-based approach to analyze genetic variation in potato using standard cultivars and a segregating population. Ⅱ. Tuber bulking and resource use efficiency Field Crops Research, 2019,242:1-15. [本文引用: 2]
MACHAKAIREA T B, STEYNJ M, CALDIZD O, HAVERKORTA J. Forecasting yield and tuber size of processing potatoes in South Africa using the LINTUL-Potato-DSS model Potato Research, 2016,59:195-206. [本文引用: 2]
RAYMUNDOR, ASSENGS, PRASSADR, KLEINWECHTERU, CONCHAJ, CONDORIB, BOWENW, WOLFJ, OLESENJ E, DONGQ X, ZOTARELLL, GASTELOM, ALVAA, TRAVASSOM, QUIROZR, ARORAV, GRAHAMW, PORTERC. Performance of the SUBSTOR-Potato model across contrasting growing conditions Field Crops Research, 2017,202:57-76. [本文引用: 1]
CHENC T, SETTERT L. Response of potato dry matter assimilation and partitioning to elevated CO2 at various stages of tuber initiation and growth Environmental and Experimental Botany, 2012,80:27-34. DOI:10.1016/j.envexpbot.2012.02.003URL [本文引用: 2]
SPARKSA H, FORBESG A, HIJMANSR J, GARRETTK A. Climate change may have limited effects on global risk of potato late blight Global Change Biology, 2014,20:3621-3631. DOI:10.1111/gcb.12587URLPMID:24687916 [本文引用: 1] Weather affects the severity of many plant diseases, and climate change is likely to alter the patterns of crop disease severity. Evaluating possible future patterns can help focus crop breeding and disease management research. We examined the global effect of climate change on potato late blight, the disease that caused the Irish potato famine and still is a common potato disease around the world. We used a metamodel and considered three global climate models for the A2 greenhouse gas emission scenario for three 20-year time-slices: 2000-2019, 2040-2059 and 2080-2099. In addition to global analyses, five regions were evaluated where potato is an important crop: the Andean Highlands, Indo-Gangetic Plain and Himalayan Highlands, Southeast Asian Highlands, Ethiopian Highlands, and Lake Kivu Highlands in Sub-Saharan Africa. We found that the average global risk of potato late blight increases initially, when compared with historic climate data, and then declines as planting dates shift to cooler seasons. Risk in the agro-ecosystems analyzed, varied from a large increase in risk in the Lake Kivu Highlands in Rwanda to decreases in the Southeast Asian Highlands of Indonesia.
ANDRADEP J L, HIJMANSR J, FORBESG A, FRYW E, NELSONR J. Simulation of potato late blight in the Andes. Ⅰ. Modification and parameterization of the LATEBLIGHT model Phytopathology, 2005,95:1191-1199. DOI:10.1094/PHYTO-95-1191URLPMID:18943472 [本文引用: 1] LATEBLIGHT, a mathematical model that simulates the effects of weather, host growth and resistance, and fungicide use on asexual development and growth of Phytophthora infestans on potato foliage, was modified so that it can be used in the Andes and, eventually, worldwide. The modifications included (i) the incorporation of improved equations for the effect of temperature on lesion growth rate (LGR) and sporulation rate (SR); (ii) the incorporation of temperature-dependent latent period (LP); and (iii) the use of experimentally measured parameters of LGR, SR, and LP for specific potato cultivars and pathogen lineages. The model was parameterized for three Peruvian potato cultivars (Tomasa, Yungay, and Amarilis) infected with isolates of a new clonal lineage of P. infestans that is currently predominant in Ecuador and Peru (EC-1).
HUANGJ X, GOMEZ-DANSJ L, HUANGH, MAH Y, WUQ L, LEWISP E, LIANGS L, CHENZ X, XUEJ H, WIY T, ZHAOF, WANGJ, XIEX H Assimilation of remote sensing into crop growth models: current status and perspectives Agricultural and Forest Meteorology, 2019,276/277:1-16. [本文引用: 1]
YINX Y, VANDER LINDEN C G, STRUIKP G. Bringing genetics and biochemistry to crop modeling, and vice versa European Journal of Agronomy, 2018,100:132-140. DOI:10.1016/j.eja.2018.02.005URL [本文引用: 1]
IPR H L, ANGL M, SENGK P, BROSTERJ C, PRATLEYJ E. Big data and machine learning for crop protection Computers and Electronics in Agriculture, 2018,151:376-383. DOI:10.1016/j.compag.2018.06.008URL [本文引用: 1]
