Effect of Wilt-Resistant and Wilt-Susceptible Cotton on Soil Bacterial Community Structure at Flowering and Boll Stage
ZHAO WeiSong, GUO QingGang, LI SheZeng, WANG PeiPei, LU XiuYun, SU ZhenHe, ZHANG XiaoYun, MA Ping,Plant Protection Institute of Hebei Academy of Agricultural and Forestry Sciences/IPM Centre of Hebei Province/Key Laboratory of IPM on Crops in Northern Region of North China, Ministry of Agriculture and Rural Affairs, Baoding 071000, Hebei
Abstract 【Objective】The objective of this study is to research soil bacterial community structure of cotton verticillium wilt resistant and susceptible varieties at flowering and boll stage, understand the relationship between soil bacterial community structure and soil physicochemical properties, and to provide a theoretical basis for monitoring of cotton verticillium wilt and green ecological control. 【Method】The susceptible (EJ) and resistant (J863) varieties were used in field plot experiments. The ITS gene copy number of Verticillium dahliae and soil bacterial community structure at different flowering and boll stages (flowering, late flowering, and boll-forming stages) were studied by real-time fluorescence quantitative PCR (real-time PCR) and high throughput sequencing (Illumina MiSeq), respectively. The redundancy analysis (RDA) was used to determine the correlation between bacterial community structure and soil physicochemical properties. 【Result】There were different degrees of relevance between the occurrence of verticillium wilt and the ITS gene copy number of V. dahliae in soil. The incidence and disease index of susceptible variety EJ were positively correlated with the ITS gene copy number of V. dahliae, while those of resistant variety J863 were not significantly correlated with the ITS gene copy number of V. dahliae. The ITS gene copy number of V. dahliae in soil of resistant variety J863 was lower than that of susceptible variety EJ at late flowering and boll-forming stages. The high throughput sequencing analysis showed that the bacterial richness indices (Chao1 and ACE) of resistant variety J863 were higher than those of susceptible variety EJ at flowering and boll-forming stages. The principal component analysis showed that there were differences in soil bacterial community structure between resistant and susceptible varieties and at different flowering and boll stages. At phylum level, the average relative abundance of some dominant bacteria in susceptible variety EJ was lower than that of resistant variety J863, such as Actinobacteria, Gemmatimonadetes, Chloroflexi, Bacteroidetes, Nitrospirae, Patescibacteria, and Armatimonadetes, which was decreased by 16.38%, 4.05%, 2.25%, 6.58%, 7.10%, 20.60%, and 35.78%, respectively. At genus level, the average relative abundance of some dominant bacteria of susceptible variety EJ was lower than that of resistant variety J863, including Sphingomonas, Gemmatimonas, Bryobacter, Iamia, Pseudarthrobacter, Blastococcus, Rubrobacter, Nocardioides, Pontibacter, Streptomyces, Gemmatirosa, Micromonospora, and Solirubrobacter, which was decreased by 5.09%, 19.41%, 13.79%, 2.36%, 10.78%, 34.47%, 46.76%, 61.84%, 52.75%, 48.61%, 74.79%, 9.13%, and 26.42%, respectively. The redundancy analysis (RDA) showed that the bacterial community structure was affected by nitrate nitrogen (NO3--N), available phosphorus (AP), ammonium nitrogen (NH4+-N), inorganic phosphorus (IP), pH and organic matter (OM). 【Conclusion】The correlation between the ITS gene copy number of V. dahliae in soil and the occurrence of cotton verticillium wilt of susceptible and resistant varieties is different, and the incidence of verticillium wilt in susceptible variety is positively correlated with the ITS gene copy number of V. dahliae in soil. The bacterial community structure of resistant variety is better than susceptible variety at flowering, late flowering, and boll-forming stages. There are some differences in the dominant bacterial community at different growth stages. The diversity, relative abundance and composition of bacteria in soil are affected by organic matter, pH, nitrogen type and available phosphorus. Meanwhile, the growth stage of cotton had a significant influence on the bacterial community structure in soil. Keywords:cotton verticillium wilt;Verticillium dahliae;disease resistance;flowering and boll stage;bacterial community structure;Illumina MiSeq;soil physicochemical properties
PDF (1808KB)元数据多维度评价相关文章导出EndNote|Ris|Bibtex收藏本文 本文引用格式 赵卫松, 郭庆港, 李社增, 王培培, 鹿秀云, 苏振贺, 张晓云, 马平. 花铃期棉花黄萎病抗病与感病品种对 土壤细菌群落结构的影响[J]. 中国农业科学, 2020, 53(5): 942-954 doi:10.3864/j.issn.0578-1752.2020.05.007 ZHAO WeiSong, GUO QingGang, LI SheZeng, WANG PeiPei, LU XiuYun, SU ZhenHe, ZHANG XiaoYun, MA Ping. Effect of Wilt-Resistant and Wilt-Susceptible Cotton on Soil Bacterial Community Structure at Flowering and Boll Stage[J]. Scientia Acricultura Sinica, 2020, 53(5): 942-954 doi:10.3864/j.issn.0578-1752.2020.05.007
Table 2 表2 表2棉花抗/感品种在花铃期不同阶段的细菌测序量和群落多样性 Table 2Bacterial sequencing and community diversity of cotton resistant/susceptible varieties at different flowering and boll stages

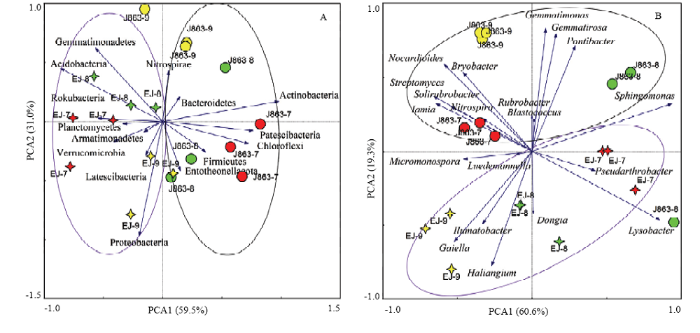

红色、绿色和黄色分别代表盛花期、开花后期和结铃期,星形代表感病品种鄂荆1号(EJ),圆形代表抗病品种冀863(J863),椭圆代表品种在不同时期的微生物群落组成Red, green and yellow represent flowering, late flowering and boll-forming stages, respectively. The star represents the susceptible variety EJ, and the round represents the resistant variety J863. The ellipse represents the microbial community composition of the variety at different stages门水平Phylum level:Proteobacteria变形菌门;Acidobacteria酸杆菌门;Actinobacteria放线菌门;Gemmatimonadetes芽单孢菌门;Chloroflexi绿弯菌门;Bacteroidetes拟杆菌门;Planctomycetes浮霉菌门;Nitrospirae硝化螺旋菌门;Verrucomicrobia疣微菌门;Armatimonadetes装甲菌门;Firmicutes 厚壁菌门。属水平Genus level:Sphingomonas鞘氨醇单胞菌属;Lysobacter溶杆菌属;Gemmatimonas芽单胞菌属;Nitrospira硝化螺菌属;Blastococcus芽球菌属;Rubrobacter红色杆菌属;Nocardioides类诺卡氏属;Streptomyces链霉菌属;Micromonospora微单孢菌属 Fig. 3Principal component analysis of soil bacterial community structure of cotton resistant/susceptible varieties at phylum (A) and genus (B) levels

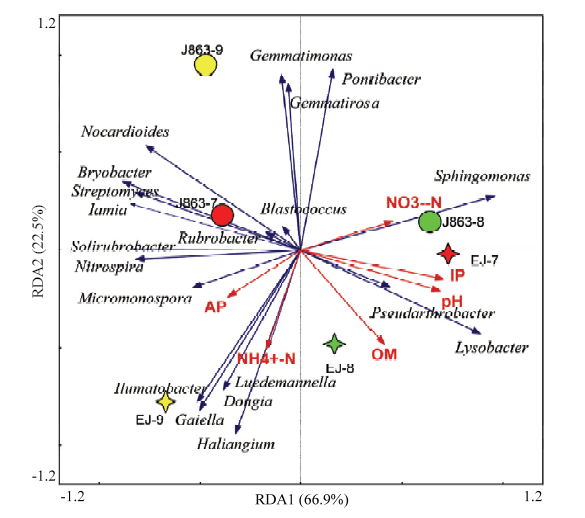

红色、绿色和黄色分别代表盛花期、开花后期和结铃期,星形代表感病品种鄂荆1号(EJ),圆形代表抗病品种冀863(J863)Red, green and yellow represent flowering, late flowering and boll-forming stages, respectively. The star represents the susceptible variety EJ, and the round represents the resistant variety J863 Fig. 6RDA analysis of soil physicochemical properties and bacterial communities at genus level
WANG MJ, ZHANG RY, LIN DD, LINL, ZHOU YJ . Investigation of endophytes and screening of antagonistic bacteria from different cotton verticillium wilt resistant varieties Jiangsu Agricultural Sciences, 2010(2):102-104. (in Chinese) [本文引用: 1]
WANGN, TAOW, CHEN SL, YAN SZ . Colonization trends of endophytic bacteria in cotton and their biological control effect on cotton verticillium wilt Journal of Plant Protection, 2016,43(2):207-214. (in Chinese) [本文引用: 1]
FRADIN EF, THOMMA BP H J. Physiology and molecular aspects of verticillium wilt diseases caused by V. dahliae and V. alboatrum. , 2006,7(2):71-86. [本文引用: 1]
BERENDSEN RL, PIETERSE CM J, BAKKER P AH M. The rhizosphere microbiome and plant health , 2012,17(8):478-486. [本文引用: 1]
MENDESC, RAMOSS, BORDALO AA . Feeding ecology of juvenile flounder Platichthys flesus in an estuarine nursery habitat: Influence of prey-predator interactions. , 2014,461(1):458-468. [本文引用: 1]
LI XH, MA ZY, ZHANG GY . The advance of study on mechanism of verticillium wilt resistance in cotton Journal of Agricultural University of Hebei, 1995,18(4):118-123. (in Chinese) [本文引用: 1]
LIY, ZHANG XH, YUK, HUO YY, WANG YH, CHEN BL . Physiological mechanism of different varieties and potassium application amounts on cotton resistance to verticillium wilt Cotton Science, 2019,31(1):40-53. (in Chinese) [本文引用: 1]
CHEN JY, DAI XF . Research advance on the resistant mechanism of cotton against verticillium wilt Molecular Plant Breeding, 2005,3(3):427-435. (in Chinese) [本文引用: 1]
ENWALLK, NYBERGK, BERTILSSONS, CEDERLUNDH, STENSTROMJ, HALLIS . Long-term impact of fertilization on activity and composition of bacterial communities and metabolic guilds in agricultural soil , 2007,39(1):106-115. [本文引用: 1]
GOMEZ-SAGASTI MT, ALKORTAI, BECERRIL JM, EPELDEL, ANZAM, GARBISUC . Microbial monitoring of the recovery of soil quality during heavy metal phytoremediation , 2012,223(6):3249-3262. [本文引用: 1]
MARSCHNERP, CROWLEYD, YANG CH . Development of specific rhizosphere bacterial communities in relation to plant species, nutrition and soil type , 2004,261:199-208. [本文引用: 1]
GUO MX, GONG ZQ, MIAO RH, SUD, LI XJ, JIA CY, ZHUANGJ . The influence of root exudates of maize and soybean on polycyclic aromatic hydrocarbons degradation and soil bacterial community structure , 2017,99:22-30. [本文引用: 1]
CHAPARRO JM, BADRI DV, VIVANCO JM . Rhizosphere microbiome assemblage is affected by plant development , 2014,8(4):790-803. [本文引用: 3]
DONG LH, GUO QG, ZHANG XY, LI SZ, LU XY, MAP . Effects of cotton root exudates on the biofilm formation and root colonization of Bacillus subtilis strain NCD-2. Acta Phytopathologica Sinica, 2015,45(5):541-547. (in Chinese) [本文引用: 2]
COSKUND, BRITTO DT, SHIW, KRONZUCKER HJ . How plant root exudates shape the nitrogen cycle , 2017,22(8):661-673. [本文引用: 1]
HAICHAR F EZ, MAROLC, BERGEO, RANGEL-CASTRO JI, PROSSER JI, BALESDENTJ, HEULINT, ACHOUAKW . Plant host habitat and root exudates shape soil bacterial community structure , 2008,2(12):1221-1230. [本文引用: 1]
BROECKLING CD, BROZ AK, BERGELSONJ, MANTER DK, VIVANCO JM . Root exudates regulate soil fungal community composition and diversity , 2008,74(3):738-744. [本文引用: 1]
GAO SC, GUAN DW, MA MC, ZHANGW, LIJ, SHEN DL . Effects of fertilization on bacterial community under the condition of continuous soybean monoculture in black soil in Northeast China Scientia Agricultura Sinica, 2017,50(7):1271-1281. (in Chinese) [本文引用: 1]
ZHANG LE, SHUANG WY, YUN AP, NIU LA, HU KL . Spatio-temporal variability and the influencing factors of soil available potassium in 30 years in Quzhou County, Hebei Province Scientia Agricultura Sinica, 2014, 47(5):923-933. (in Chinese) [本文引用: 1]
LI SZ, MAP, LIU XZ, HUANG HC, CHEN XH . Biological control of cotton verticillium wilt by antagonistic bacteria Journal of Huazhong Agricultural University, 2001,20(5):422-425. (in Chinese) [本文引用: 1]
LUR, LI YP, LI WX, XIE ZS, FAN CL, LIU PX, DENG SX . Bacterial community structure in atmospheric particulate matters of different sizes during the haze days in Xi’an, China , 2018,637/638:244-252. [本文引用: 1]
XIAOR, YU ZZ, ELSHARAWY AA, WEIF, YANG JR . SYBR Green I real time RT-PCR assay for quantitatively detecting the occurrence of Verticillium dahliae of cotton in naturally infested soil. Mycosystema, 2011,30(4):598-603. (in Chinese) [本文引用: 1]
ZHAO WS, GUO QG, LI SZ, WANG YJ, LU XY, WANG PP, SU ZH, ZHANG XY, MAP . Control efficacy of broccoli residues on cotton verticillium wilt and its effect on soil bacterial community at different growth stages Scientia Agricultura Sinica, 2019,52(24):4505-4517. (in Chinese) [本文引用: 1]
WANGC, ZHENG MM, SONG WF, WEN SL, WANG BR, ZHU CQ, SHEN RF . Impact of 25 years of inorganic fertilization on diazotrophic abundance and community structure in an acidic soil in southern China , 2017,113:240-249. [本文引用: 4]
RENC, ZHANGW, ZHONG ZK, HANX, YANGG, FENGY, ENG. Differential responses of soil microbial biomass, diversity, and compositions to altitudinal gradients depend on plant and soil characteristics , 2017,610/611:750-758. [本文引用: 1]
CAI QH, ZUO JX, LI ZH, ZHANG YP, ZHAO YG, DENGQ, OUYANGJ, HUANG JJ, YUL, ZOUJ, ZHAO ZX . Difference of rhizosphere microbe quantity and functional diversity among three flue-cured tobacco cultivars with different resistance Chinese Journal of Applied Ecology, 2015,26(12):3766-3772. (in Chinese) [本文引用: 1]
LI HL, YUAN HX, WANGY, HUANG JL, CHAI JX, WANG SZ . Studies on the relationship between diversity of microbes in rhizosphere and resistance of cotton cultivars to Verticillium dahliae. I. The population of microbes in cotton rhizosphere and cultivars resistant to V. dahliae. Acta Phytopathologica Sinica, 1998,28(4):341-345. (in Chinese) [本文引用: 3]
BREIDENBACHB, PUMPJ, DUMONT MG . Microbial community structure in the rhizosphere of rice plants , 2016,6:1537. [本文引用: 3]
INCEOGLUO, SALLES JF, VAN OVERBEEKL, VAN ELSASJ D. Effects of plant genotype and growth stage on the betaproteobacterial communities associated with different potato cultivars in two fields , 2010,76(11):3675-3684. [本文引用: 3]
PROSSER JI . Molecular and functional diversity in soil microorganisms , 2002,244(1/2):9-17. [本文引用: 1]
HU YS, WUK, LIUN, CHEN HG, JIA XC . Studies on microbial population dynamics in the cucumber rhizospheres at different developmental stages Scientia Agricultura Sinica, 2004,37(10):1521-1526. (in Chinese) [本文引用: 1]
LIU QG, YANGY . The relationship between tomato resistance and the quantity of Ralstonia solanacearum and rhizosphere microbes. Journal of Zhongkai University of Agriculture and Technology, 2006,19(3):31-34. (in Chinese) [本文引用: 2]
WANGH, REN XZ . Adsorption, penetration and multiplication of the pathogen (Pseudomonas solanacearum) in the roots of tomato plants. Acta Phytopathologica Sinica, 1993,23(2):143-150. (in Chinese) [本文引用: 2]
WU CD, YAN XF . Effect of successively planting fusarium wilt `resistant cotton varieties Acta Phytophylacica Sinica, 1985,12(3):195-200. (in Chinese) [本文引用: 2]
CUIJ, WANGJ, XUJ, XUC, XUX . Changes in soil bacterial communities in an evergreen broad-leaved forest in east China following 4 years of nitrogen addition , 2017,17:2156-2164. [本文引用: 1]
SHEN CC, XIONG JB, ZHANG HY, FENG YZ, LIN XG, LI XY, LIANG WJ, CHU HY . Soil pH drives the spatial distribution of bacterial communities along elevation on Changbai Mountain , 2013,57:204-211. [本文引用: 1]
ZHOUJ, GUAN DW, ZHOU BK, ZHAO BS, MA MC, QINJ, JIANGX, CHEN SF, CAO FM, SHEN DL, LIJ . Influence of 34-years of fertilization on bacterial communities in an intensively cultivated black soil in Northeast China , 2015,90:42-51. [本文引用: 1]
ZHOUJ, JIANGX, ZHOU BK, MA MC, GUAN DW, ZHAO BS, CHEN SF, LIJ . Effects of long term application of urea on ammonia oxidizing archaea community in black soil in Northeast China Scientia Agricultura Sinica, 2016,49(2):294-304. (in Chinese) [本文引用: 1]
SUNS, ZHAOH, XINGF, BAIZ, GAOY, DONGY, ZHOUJ, WUY, YANGY . Response of soil microbial community structure to increased precipitation and nitrogen addition in a semiarid meadow steppe , 2017,68(4):524-536. [本文引用: 1]
BASTIDAF, TORRES IF, ABADíAJ, ROMERO-TRIGUEROSC, RUIZ-NAVARROA, ALARCóNJ J, GARCíAC, NICOLáSE. Comparing the impacts of drip irrigation by freshwater and reclaimed wastewater on the soil microbial community of two citrus species , 2018,203:53-62. [本文引用: 1]
ZHOU WP, SHEN WJ, LI YE, HUI DF . Interactive effects of temperature and moisture on composition of the soil microbial community , 2017,68(6):909-918. [本文引用: 1]
