, 鲍超, 管卫华China's urbanization SD modelling and simulation based on water resource constraints
CAOQiwen, BAOChao, GUANWeihua通讯作者:
收稿日期:2018-03-22
修回日期:2018-07-4
网络出版日期:2019-01-20
版权声明:2019《地理研究》编辑部《地理研究》编辑部 所有
基金资助:
作者简介:
-->
展开
摘要
关键词：
Abstract
Keywords：
-->0
PDF (7658KB)元数据多维度评价相关文章收藏文章
本文引用格式导出EndNoteRisBibtex收藏本文-->
1 引言
在城镇化发展的早期阶段,工业发展对城镇化的巨大拉动作用离不开水资源的支持,水资源需求日益增长[1,2]。此时,水资源主要作为供给要素参与到城镇化发展过程中。自改革开放以来,中国城镇化经历了快速增长,并在进入21世纪以后迎来新高潮。然而,过快的城镇规模扩张也显著改变水资源消耗状况和环境质量[3],从而逐渐接近甚至超过合理的水资源承载力,限制城镇化的可持续发展。当前,尽管产业、人口、土地、资本和政策等经济和社会发展主控要素还在持续发挥重要作用,但随着诸多城市化地区人口-资源-环境压力的不断加剧[4],特别是淡水资源短缺、水质下降等问题的逐步显现,水资源在生产、生活和生态等诸多方面作为中国城镇化过程主控要素的趋势也愈益明显。因此,城镇化与水资源的关系研究成为热点问题[5,6,7,8,9]。一方面,城镇化对水资源的利用研究重点多集中于水资源供需平衡[10,11]、水资源承载力评估[12,13]、水资源需求影响因素[14,15]和水资源利用效率[16,17]等方面。Shen等指出人口增长和经济发展仍是造成未来缺水状况的主要因素[18]。Bao等认为经济发展和城市化水平的空间溢出效应是中国用水效率的主要影响因素[19]。此类研究的根本出发点均是面向可持续的水资源利用与管理,这也是城镇化健康发展的基础。另一方面,城镇化对水系统的影响研究目前主要聚焦于水环境质量[20,21]和脆弱性[22]等方面,侧重分析城镇化对水资源系统所形成的人为干扰。基于城镇化与水资源之间的密切联系,Fang等指出可将水资源作为一大主控要素,建构特大城市群地区城镇化与生态环境交互胁迫的动力学模型,从而为形成区域发展的中远期多情景方案提供决策支持[23]。
对水资源系统的结构分解,总体上涉及水资源供给、水资源需求、水环境质量三个子系统[24,25,26]。面向城镇化过程中的水资源管理研究,更多关注水资源供给和需求及其不匹配程度。Abadi等将水资源供给分为地表水和地下水两部分,基于水资源供给压力研究资源经济生产力可持续性问题[27]。此外,面对快速工业化和城镇化导致的“有水量无水质”的现实,Zhang等将水环境视为水生态承载力SD模型的一大核心,以COD和NH3-N污染物量作为水质评价的主要指标[28];Zeng等则将城市水系统视为代谢体,强调水的循环流动模式,构建水处理和水再生子系统,从而实现对城市水系统代谢过程和承载力的模拟[29]。
在中国城镇化水资源供需模拟研究方面,预测结果差异较大。如姚建文等预测2030年和2050年中国总需水量将达7800亿~8200亿m3和8500亿~9000亿m3 [30]。刘昌明等预测中国2030年和2035年可供水量约为6990亿m3和7300亿m3,需水量则约为7119亿m3和7319亿m3,最终于2050年实现基本供需平衡[31]。高珺等预测2025年中国水资源需求和供给量分别约为7255亿m3和7057亿m3 [32]。Sun等则预测2020年中国约需水5457.30亿~5486.45亿m3,供水量则约为3259.44亿m3 [33]。不同研究的预测结果千差万别,难以对中国未来城镇化及水资源的可持续利用决策提供科学依据。造成上述差异的一个原因是方法论问题。部分研究仅采用较为简单的多元回归[30]或单一的经济学供需平衡理论[32],从相对简单的要素出发,难以真正实现对水资源供需这一复杂巨系统[34,35]的解析。基于系统论的SD模型因便于研究多时间段、具有相互反馈关系的要素体系[36,37],适用性更高。然而,虽然目前已有城市、流域、国家等不同尺度的水资源SD模拟系统[24,33,38],但是其社会经济子系统的要素体系总体较为简单,未能涉及包含多要素的城镇化过程机理,而部分以社会经济子系统为主的城镇化SD模拟系统[39]则存在未能将水资源视为系统主控要素等问题。因此,如何将水资源作为中国城镇化的主控要素与经济、人口等因子进行耦合,以及中国城镇化与水资源利用如何良性协调等研究问题亟待系统化研究。
本文拟将水资源作为主控要素,尝试从水资源供给、需求和水环境等层面拓展和重构Gu等基于经济、人口和社会服务子系统所建立的中国城镇化SD模型[39],并对中国未来城镇化过程的水资源利用进行多情景模拟。
2 研究方法与数据来源
2.1 水资源子系统与中国城镇化SD模型关联思路
中国城镇化过程离不开以水为核心的资源环境支持,这种重要的资源环境要素不能仅被简单视为城镇化的外生变量,而更应作为城镇化发展过程的主控要素。本文从水资源供给、水资源需求、水环境等层面对水资源子系统进行解构,拓展出关联水资源主控要素的中国城镇化SD模型。在这一模型中,除考虑资本、劳动力等生产要素转移和配置、产业发展等社会经济发展动力过程外,进一步模拟了由生产、生活和生态环境所驱动的水资源利用状况。就水资源子系统与中国城镇化SD模型的联系（图1、图2,见第170页）而言,第一,城镇化发展会形成巨大的水资源需求,包括农业灌溉用水、工业生产用水、居民日常生活用水和城镇生态环境用水等。第二,快速城镇化过程对水资源系统构成压力,而水资源系统对此所做出的响应最终将可能影响城镇化可持续发展。工业生产过程会产生包含大量污染物的废水,居民日常生活也会排出一定污水,这些废污水若不加以处理将最终对城镇化的生态可持续发展过程产生消极效应。第三,高质量的城镇化过程与水资源系统之间可以形成良性协调的关系。在社会经济发展、相关投资增加和技术进步的作用下,水资源利用效率将得到提升,从而有利于减少水资源需求,而不断提升的污水处理回用技术则一定程度上为水资源供给提供了补充性来源,有利于减小水资源供需缺口。这种良性循环过程将为促进城镇化的健康稳定发展而提供资源保障。因此,水资源子系统通过第一产业产值、第二产业产值、城市人口和农村人口等重要变量,与中国城镇化SD模型的人口和经济子系统发生直接联系。同时,由于人口变化和经济发展也与教育、医疗水平、能源供需和环境效应等相互反馈,从而以此为桥梁,水资源子系统与社会服务和能源子系统之间形成一定间接联系。

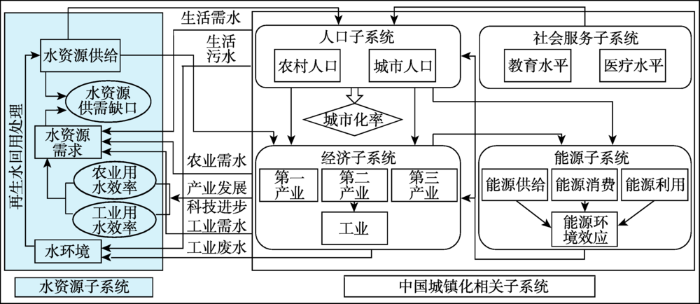

显示原图|下载原图ZIP|生成PPT图1水资源子系统与中国城镇化SD模型相关子系统逻辑关系图
注：图中箭头前端对后端构成需求或产生正负效应。
-->Fig. 1Relationship among water resource subsystem and subsystems of original China's urbanization SD model
-->
显示原图|下载原图ZIP|生成PPT图2基于水资源约束的中国城镇化SD模型因果关系图
注：图中蓝色框为水资源子系统要素。
-->Fig. 2Causal loop diagram of the China's urbanization SD model based on water resource constraints
-->
2.2 水资源子系统构建主要方法
在本文所构建的基于水资源约束的中国城镇化SD模型中,未涉及到水资源的变量与参数均与Gu等[39]保持一致。模型系统的构建和运行在Vensim平台中完成。限于篇幅,本文主要阐述水资源子系统的模型结构与主要方法（表1,见第171页）。Tab. 1
表1
表1水资源子系统主要方程
Tab. 1Key equations of water resources subsystem
| 模块 | 主要方程 |
|---|---|
| 水资源供给 | WT_TOTAL=WT_SURFACE+WT_GROUND-WT_REPEAT |
| WT_AVAIL=WT_TOTAL×WTUSE_RATE | |
| WT_RECYC=SEWAGE×REUSE_COEFF | |
| WT_SUPPLY=WT_AVAIL+WT_ALLOCT+WT_RAIN+WT_SEA+WT_RECYC | |
| 水资源需求 | WD_AGRI=OUTPUT_1×WD_Δ1/ 10000 |
| WD_INDTRI=ADDED_INDTRI×WD_ΔINDTRI/10000 | |
| WD_DOMES=WD_URB+WD_RUR=POP_URB×WDURB_PER+POP_RUR×WDRUR_PER | |
| ΔWD_ECO=WD_ECOT-1×WDECO_RATE | |
| WD_TOTAL=WD_AGRI+WD_INDTRI+WD_DOMES+WD_ECO | |
| WT_GAP=WD_TOTAL-WT_SUPPLY | |
| 水环境 | DOMES_SWG=WD_DOMES×DOMES_SWG.CO |
| INDTRI_SWG=WD_INDTRI×INDTRI_SWG.CO | |
| SEWAGE=DOMES_SWG+INDTRI_SWG |
新窗口打开
2.2.1 水资源供给 该模块主要模拟研究区水资源供给总量（WT_SUPPLY）,假定来源于可开发利用水资源（WT_AVAIL）、境外调配水资源（WT_ALLOCT）、集雨工程水量（WT_RAIN）、海水淡化量（WT_SEA）和再生水资源量（WT_RECYC）等。其中,可开发利用水资源取决于水资源总量（WT_TOTAL）和水资源开发利用率（WTUSE_RATE）,水资源总量由地表水资源量（WT_SURFACE）和地下水资源量（WT_GROUND）扣除地表水与地下水资源重复量（WT_REPEAT）而得,其值取1956-2015年多年数据均值,以减少气候波动的影响。水资源开发利用率,根据1998-2015年历史数据分阶段设定表函数。境外调配水资源,对于缺水区域而言可包括调水工程水资源和应急调配水资源等,但全国尺度上该水源可不作考虑。集雨工程水量,因年际变化幅度较小,采用1998-2015年多年历史数据均值。海水淡化量按1998-2015年多年总体趋势进行模拟。再生水资源量由污水排放总量（SEWAGE）和再生水回用系数（REUSE_COEFF）决定,再生水回用系数总体逐年提高,以反映技术进步的贡献。
2.2.2 水资源需求 该模块是水资源子系统的核心,主要反映农业生产、工业发展、居民日常生活及生态环境用水需求,四种用水需求总量与水资源供给总量之差即为水资源供需缺口（WT_GAP）。农业需水（WD_AGRI）,取决于第一产业产值（OUTPUT_1）和万元第一产业增加值需水量（WD_Δ1）,其中第一产业产值由经济子系统中基于土地、劳动力和资本的生产函数进行模拟。工业需水（WD_INDTRI）,由工业增加值（ADDED_INDTRI）和万元工业增加值需水量（WD_ΔINDTRI）确定,其中前者根据历年工业增加值占当年国内生产总值的比例状况进行模拟。生活需水（WD_DOMES）,分为城镇生活需水（WD_URB）和农村生活需水（WD_RUR）,采用人均用水定额法,在人口估算基础上得到生活需水量。城市人口（POP_URB）和农村人口（POP_RUR）由人口子系统模拟。生态环境需水（WD_ECO）,根据年综合增长率进行模拟。万元第一产业增加值需水量、万元工业增加值需水量、城镇和农村人均生活需水定额等参数可根据历史数据和发展规划进行情景设定,以便于用水方案比选。10000
2.2.3 水环境 该模块将水资源数量与水环境质量相关联,在模拟生活需水和工业需水量的基础上,进一步设定生活污水排放系数（DOMES_SWG.CO）和工业废水排放系数（INDTRI_SWG.CO）,以估算生活污水（DOMES_SWG）和工业废水（INDTRI_SWG）排放量。总体上,排放系数逐年降低,以反映技术进步的贡献。污水排放总量则与水资源供给模块相关联,为估算再生水资源量提供基础。
2.3 数据及来源
随着经济发展和人口增长,中国用水总量整体呈现增长态势,1998年中国用水总量为5435.40亿m3,2015年增长至6103.20亿m3。作为农业大国,农业用水是最主要的需水来源,但所占比例逐渐降低,1998-2015年由69.28%降低至63.10%。工业用水是第二大用水来源,其比例略有提高,1998-2015年由20.72%增长至21.90%。2015年生活用水占总用水量的13%,在快速城镇化过程中,城镇生活用水在总生活用水中所占比例逐年增加,农村生活用水与之相反。生态环境用水,自2003年《中国水资源公报》开始统计,2003-2015年其所占比例由1.49%提升至2.00%。研究所用水资源数据主要整理自历年《中国水资源公报》《中国环境统计公报》《中国统计年鉴》等。社会经济、人口等其他数据与Gu等[39]相同。3 结果分析
3.1 模型检验
从系统存流量和灵敏度两方面对模型进行检验。一方面,比较关键变量1998-2015年的模拟值与真实历史数据,检验其相对误差（表2）。由于关联水资源的中国城镇化SD模型系统复杂,涉及变量众多,故系统存流量检验所选取的关键变量主要为与中国城镇化过程中水资源利用密切相关的变量,包括1990年价格国内生产总值和分产业产值、总人口和城乡人口、水资源供给总量、不同部门需水量及废污水排放量等。结果表明,各主要指标模拟值与实际值的平均相对误差约-3%~4%,均小于10%,故认为模拟结果是有效的。Tab. 2
表2
表2关键变量系统存流量检验与灵敏度分析结果
Tab. 2Results of the system stock-flow test of key variables and sensitivity analysis
| 存流量检验 | 灵敏度分析 | ||||
|---|---|---|---|---|---|
| 变量 | 平均相对误差/% | 变量 | 增10%灵敏度均值/% | 减10%灵敏度均值/% | |
| 国内生产总值 | -2.35 | 第一产业产值增长率 | 6.25 | 6.30 | |
| 第一产业产值 | -0.41 | 第二产业产值增长率 | 7.29 | 7.14 | |
| 第二产业产值 | -2.30 | 第三产业产值增长率 | 6.20 | 6.24 | |
| 第三产业产值 | -3.27 | 积累率 | 19.61 | 19.01 | |
| 城市人口 | -0.58 | 城市人口出生率 | 1.85 | 1.82 | |
| 农村人口 | 1.59 | 农村人口出生率 | 7.02 | 6.46 | |
| 总人口 | 0.63 | 城市计划生育影响因子 | 2.41 | 2.38 | |
| 城市化率 | -1.21 | 农村计划生育影响因子 | 7.47 | 6.93 | |
| 水资源供给总量 | -1.39 | 教育因子 | 13.18 | 13.84 | |
| 农业需水量 | -0.26 | 医疗因子 | 3.41 | 4.37 | |
| 工业需水量 | -2.48 | 万元第一产业增加值需水量 | 3.91 | 3.91 | |
| 生活需水量 | -0.72 | 万元工业增加值需水量 | 1.40 | 1.40 | |
| 生态需水量 | -0.99 | 城镇人均生活需水定额 | 0.88 | 0.88 | |
| 工业废水排放量 | -1.11 | 农村人均生活需水定额 | 0.20 | 0.20 | |
| 生活污水排放量 | 3.45 | 生态需水增长率 | 7.81 | 6.81 | |
新窗口打开
另一方面,通过增加或减小10%的关键参数值进行系统灵敏度分析[39],检验模型中15个变量对主要水平变量的影响程度即变化幅度均值（表2）。结果表明,除积累率、教育因子的灵敏度较高外,绝大多数变量灵敏度小于10%,这说明所构建的中国城镇化SD新模型对于多数参数变化是不敏感的,满足建模要求。
据此判定基于水资源约束的中国城镇化SD模型（图3,见第174页）具有良好的模拟效果和充分的稳定性,能够较好地反映和模拟中国城镇化过程及水资源利用状况。
显示原图|下载原图ZIP|生成PPT图3基于水资源约束的中国城镇化SD模型
-->Fig. 3China's urbanization SD model based on water resource constraints
-->
3.2 情景与方案参数设定
本文根据产业发展速率、家庭生育因子和不同部门用水效率等变量,设定了四种社会经济和人口增长情景,以及农业需水、工业需水、生活需水、生态环境需水和再生水利用的高、中、低方案（表3）,以分别分析中国未来城镇化中不同经济发展和人口增长,以及不同用水方案条件下的水资源利用状况。Tab. 3
表3
表3中国城镇化水资源利用方案设置
Tab. 3Settings of water resources utilization schemes for China's urbanization
| 类别 | 方案 | 参数设置 |
|---|---|---|
| 农业需水 | 节水农业 | 万元第一产业增加值需水量：年降低率为3.4% |
| 一般耗水农业 | 万元第一产业增加值需水量：年降低率为3.2% | |
| 耗水农业 | 万元第一产业增加值需水量：年降低率为3.0% | |
| 工业需水 | 节水工业 | 万元工业增加值需水量：年降低率为6.3% |
| 一般耗水工业 | 万元工业增加值需水量：年降低率为5.8% | |
| 耗水工业 | 万元工业增加值需水量：年降低率为5.3% | |
| 生活需水 | 低生活需水 | 人均生活需水定额：城镇2030和2050年分别增长至232 L/d和252 L/d 农村2030和2050年分别增长至87 L/d和102 L/d |
| 中生活需水 | 人均生活需水定额：城镇2030和2050年分别增长至237 L/d和257 L/d 农村2030和2050年分别增长至92 L/d和107 L/d | |
| 高生活需水 | 人均生活需水定额：城镇2030和2050年分别增长至242 L/d和262 L/d 农村2030和2050年分别增长至97 L/d和112 L/d | |
| 生态环境需水 | 低生态环境需水 | 生态环境需水年综合增长率3.5% |
| 中生态环境需水 | 生态环境需水年综合增长率4.0% | |
| 高生态环境需水 | 生态环境需水年综合增长率4.5% | |
| 再生水利用 | 低再生水利用 | 再生水回用系数：2030年为12%;2050年为19% |
| 中再生水利用 | 再生水回用系数：2030年为17%;2050年为24% | |
| 高再生水利用 | 再生水回用系数：2030年为23%;2050年为29% |
新窗口打开
四种情景中,经济高速发展情景设定第一、二、三产业产值增速为4%、7%和8%,经济中高速发展情景设定第一、二、三产业产值增速分别为3.5%、6.5%和7.5%,这两种情景控制城市和农村计划生育影响因子为1孩的参数值[39]。全面二孩生育情景和1.5孩生育情景相应调整城市和农村计划生育影响因子参数值,这两种情景控制经济发展为中高速增长。这四种情景均采用相同部门的用水效率等变量参数值,包括：设定水资源开发利用率2030年为22.5%,2050年为24%;万元第一产业增加值需水量年降低率为3.2%;万元工业增加值需水量年降低率为5.8%;城镇人均生活需水定额2030和2050年分别增长至237 L/d和257 L/d,农村人均生活需水定额2030和2050年分别增长至92 L/d和107 L/d;生态环境需水年综合增长率为4%;再生水回用系数2030年为17%,2050年为24%。
对于用水方案,主要考虑不同部门用水效率或定额以及再生水回用率等指标。农业需水方面,主要调整万元第一产业增加值需水量这一关键变量的年降低率,形成节水农业、一般耗水农业和耗水农业三种方案。工业需水方面,主要调整万元工业增加值需水量的年降低率,形成节水工业、一般耗水工业和耗水工业方案。三种方案均可满足《全国水资源综合规划（2010-2030年）》中万元工业增加值需水量到2020年比2008年降低50%、到2030年比2020年降低40%左右的目标。生活需水方面,主要调整城镇和农村人均生活需水定额参数值。根据《全国水资源综合规划（2010-2030年）》,规划2030年全国城镇和农村居民生活用水定额较2008年分别增长25 L/d和20 L/d,故以此为中生活用水方案,并进行小幅调整,设定出低、高生活用水方案的居民生活用水定额。生态环境需水方面,通过调整年综合增长率而形成低、中、高生态环境用水方案。再生水利用方面,主要调整再生水回用系数。根据《全国水资源综合规划（2010-2030年）》设定的2030年全国废污水排放量和再生水量目标,推算出2030年再生水回用系数约为17%,故以此为中再生水利用方案,并进行小幅调整,设定出低、高再生水利用方案。在考察用水效率等条件变化带来的水资源利用状况差异时,采用相同的经济和人口情景,即假定经济保持中高速增长、生育情景为1.5孩。将一般耗水农业、一般耗水工业、中生活需水、中生态环境需水、中再生水利用的组合作为中等用水基本方案,此后每次改变其中一项用水参数,分析其对水资源利用的影响。
进一步地,为模拟中国走向可持续城镇化过程中的水资源利用状况,设定综合协调方案。随着中国经济发展进入“新常态”,产业增长逐渐由数量型转为质量型,经济增速从过去的高速增长转为中高速增长,故假定三次产业产值增长率为“中高速”。人口增长方面,随着中国人口总量增长势头的减弱,老龄化和人口结构性问题日益突出,国家由计划生育的政策导向逐渐转为全面推行二孩政策,但同时考虑到部分育龄人群二孩生育意愿较低的现实,故设定为1.5孩的家庭生育情景更为符合实际。在用水方案方面,该情景实行节水农业和节水工业,最大限度地提升用水效率,减少农业、工业这两大主要用水需求。同时,实行高生活需水和高生态环境需水方案,以尽可能保障居民日常生活水平,不断接近发达国家和地区水平,并减小对生态用水的排挤,改变传统以人类需求为中心的水资源管理观念。此外,高再生水利用在一定程度上为水资源供给提供了补充性来源,有助于减小水资源供需缺口。
3.3 中国城镇化水资源利用模拟
Gu等预测中国城镇化水平将于2035年达到70%以上[39],从而进入城镇化稳定发展阶段。而2050年是中国建设社会主义现代化强国的重要目标年,故本文将重点考察以上述两个时间点为代表的水资源利用状况。3.3.1 基于不同城镇化发展情景的水资源利用模拟 表4主要反映当部门用水效率和定额一定时,经济发展速率和人口增长变动所带来的水资源利用状况差异。在经济高速发展情景中,第一、二、三产业产值均达到最高水平,但同时也形成巨大的水资源需求,特别是农业需水和工业需水,其需水总量、水资源供需缺口和工业废水排放总量也相对最大。经济中高速发展情景中,第一、二、三产业产值有所减小,而水资源需求也随之形成相对较小的增幅。由于该情景需水总量有所降低,故水资源供需缺口得以减小。在全面2孩生育情景中,由于人口数量达到较高水平,故随之形成较大规模的生活需水。1.5孩生育情景中,人口数量增幅有所减小,其生活需水与全面2孩生育情景相比也相对较小。通过比较各情景需水总量和水资源供需缺口,可以发现在部门用水效率一定的条件下,经济发展速率提高对需水总量的拉动作用总体上大于人口增长的作用。
Tab. 4
表4
表4中国城镇化发展情景及水资源利用模拟结果
Tab. 4Simulation results of China's urbanization development scenario and water utilization
| 变量 | 经济高速发展情景 | 经济中高速发展情景 | 全面2孩生育情景 | 1.5孩生育情景 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2035年 | 2050年 | 2035年 | 2050年 | 2035年 | 2050年 | 2035年 | 2050年 | ||||
| 第一产业产值 （1990年价格,亿元） | 36162 | 62493 | 33838 | 56883 | 33946 | 58296 | 33761 | 56040 | |||
| 第二产业产值 （1990年价格,亿元） | 373846 | 1159900 | 349977 | 860107 | 348960 | 853677 | 349647 | 858087 | |||
| 第三产业产值 （1990年价格,亿元） | 461287 | 929749 | 437015 | 1097050 | 440923 | 1124260 | 438269 | 1105250 | |||
| 城市人口（万人） | 106107 | 121263 | 106159 | 121444 | 118639 | 144784 | 109876 | 127704 | |||
| 农村人口（万人） | 43828 | 38173 | 43860 | 38255 | 48043 | 45790 | 40935 | 34386 | |||
| 农业需水（亿m3） | 4116.07 | 4367.04 | 3851.51 | 3975.05 | 3863.77 | 4073.74 | 3842.80 | 3916.12 | |||
| 工业需水（亿m3） | 1685.12 | 1586.70 | 1577.53 | 1467.85 | 1572.94 | 1456.88 | 1576.04 | 1464.40 | |||
| 生活需水（亿m3） | 1090.41 | 1286.59 | 1090.99 | 1288.61 | 1215.84 | 1536.98 | 1113.60 | 1332.22 | |||
| 需水总量（亿m3） | 7159.06 | 7722.01 | 6787.49 | 7213.18 | 6920.01 | 7549.27 | 6799.90 | 7194.41 | |||
| 水资源供给总量（亿m3） | 6588.58 | 6919.18 | 6586.73 | 6917.62 | 6598.88 | 6941.03 | 6588.92 | 6921.71 | |||
| 水资源供需缺口（亿m3） | 570.49 | 802.83 | 200.76 | 295.56 | 321.14 | 608.24 | 210.99 | 272.71 | |||
| 生活污水排放量（亿m3） | 601.65 | 610.55 | 601.97 | 611.50 | 670.85 | 729.37 | 614.44 | 632.20 | |||
| 工业废水排放量（亿t） | 167.96 | 116.81 | 157.24 | 108.06 | 156.78 | 107.25 | 157.09 | 107.80 | |||
| 污水排放总量（亿t） | 769.61 | 727.36 | 759.20 | 719.56 | 827.64 | 836.62 | 771.53 | 740.00 | |||
| 再生水资源量（亿m3） | 136.61 | 145.47 | 134.76 | 143.91 | 146.91 | 167.32 | 136.95 | 148.00 | |||
新窗口打开
3.3.2 基于不同用水方案的水资源利用模拟 根据表5,节水农业的农业需水量基本保持不变甚至有所降低,该方案在2050年实现水资源供需平衡。一般耗水农业和耗水农业方案的农业需水则有较大增长,并出现相对严重的水资源供需缺口。工业需水方面,随着工业比例的调整和用水效率的进步,节水工业和一般耗水工业方案的工业需水量总体有所降低,而耗水工业方案则基本保持不变。节水工业方案在2050年基本实现水资源供需平衡,其他两种方案则出现相对较大的水资源供需缺口。三种方案的工业废水排放量依次增大,但总体均表现为下降趋势。生活需水方面,低、中、高三种方案的生活需水量均呈现增长趋势。三种生活用水方案对水资源供需缺口的改善作用相对较小,均呈现出中等规模缺口。生态环境需水方面,低、中、高方案的生态环境需水量在2050年分别达406.91亿m3、481.68亿m3和569.72亿m3,其对水资源供需缺口的影响也相对较小。再生水利用方面,低、中、高方案的再生水资源量在2050年分别达125.80亿m3、148亿m3和170.20亿m3,在不同程度上弥补了水资源供需缺口。
Tab. 5
表5
表5基于不同用水方案的中国城镇化水资源利用模拟结果
Tab. 5Simulation results of water resources utilization in China's urbanization based on different water use schemes
| 方案 | 年份 | 农业 需水 | 工业 需水 | 城镇生活 需水 | 农村生活 需水 | 生活需 水总量 | 生态环境 需水 | 需水 总量 | 水资源 供需缺口 | 工业废水 排放量 | 生活污水 排放量 | 污水排放 总量 | 再生水 利用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 中等用水基本方案 | 2035 | 3842.80 | 1576.04 | 970.54 | 143.06 | 1113.60 | 267.46 | 6799.90 | 210.99 | 157.09 | 614.44 | 771.53 | 136.95 |
| 2050 | 3916.12 | 1464.40 | 1197.93 | 134.29 | 1332.22 | 481.68 | 7194.41 | 272.71 | 107.80 | 632.20 | 740.00 | 148.00 | |
| 节水农业方案* | 2035 | 3687.09 | 6644.19 | 55.27 | |||||||||
| 2050 | 3642.65 | 6920.95 | -0.76 | ||||||||||
| 耗水农业方案* | 2035 | 4004.76 | 6961.86 | 372.94 | |||||||||
| 2050 | 4209.49 | 7487.79 | 566.08 | ||||||||||
| 节水工业方案* | 2035 | 1416.90 | 6640.77 | 54.67 | 141.23 | 755.67 | 134.13 | ||||||
| 2050 | 1215.53 | 6945.54 | 27.49 | 89.48 | 721.68 | 144.34 | |||||||
| 耗水工业方案* | 2035 | 1752.06 | 6975.92 | 383.89 | 174.64 | 789.08 | 140.06 | ||||||
| 2050 | 1762.50 | 7492.51 | 566.41 | 129.75 | 761.95 | 152.39 | |||||||
| 低生活需水方案* | 2035 | 950.49 | 135.59 | 1086.08 | 6772.38 | 186.16 | 599.26 | 756.35 | 134.25 | ||||
| 2050 | 1174.62 | 128.02 | 1302.64 | 7164.83 | 245.93 | 618.16 | 725.97 | 145.19 | |||||
| 高生活需水方案* | 2035 | 990.59 | 150.54 | 1141.13 | 6827.43 | 235.81 | 629.63 | 786.72 | 139.64 | ||||
| 2050 | 1221.23 | 140.57 | 1361.80 | 7224.00 | 299.48 | 646.24 | 754.04 | 150.81 | |||||
| 低生态环境需水方案* | 2035 | 242.88 | 6775.33 | 186.41 | |||||||||
| 2050 | 406.91 | 7119.65 | 197.94 | ||||||||||
| 高生态环境需水方案* | 2035 | 294.38 | 6826.83 | 237.91 | |||||||||
| 2050 | 569.72 | 7282.45 | 360.75 | ||||||||||
| 低再生水利用方案* | 2035 | 234.13 | 113.80 | ||||||||||
| 2050 | 294.91 | 125.80 | |||||||||||
| 高再生水利用方案* | 2035 | 187.84 | 160.09 | ||||||||||
| 2050 | 250.51 | 170.20 | |||||||||||
| 综合协调方案 | 2035 | 3687.09 | 1416.90 | 990.59 | 150.54 | 1141.13 | 294.38 | 6539.50 | -72.42 | 141.23 | 629.63 | 770.86 | 159.95 |
| 2050 | 3642.65 | 1215.53 | 1221.23 | 140.57 | 1361.80 | 569.72 | 6789.70 | -153.23 | 89.48 | 646.24 | 735.72 | 169.22 |
新窗口打开
进一步地,在实行节水农业、节水工业、高生活需水、高生态环境需水和高再生水利用的综合协调方案中,2050年中国城镇化的发展约共需6789.70亿m3水资源,实现水资源供需平衡,未出现水资源供需缺口。其中,农业需水3642.65亿m3,占需水总量的53.65%;工业需水1215.53亿m3,占需水总量的17.90%;生活需水1361.80亿m3,占需水总量的20.06%;生态环境需水569.72亿m3,占需水总量的8.39%。污水排放水平逐渐下降,2050年约排放735.72亿t,回用处理再生水资源约169.22亿m3（表5）。
4 结论与讨论
4.1 结论
（1）系统存流量检验和灵敏度分析表明,基于水资源约束的中国城镇化SD模型模拟效果良好,具有可操作性,这也佐证了水资源在中国城镇化过程中扮演着主控要素的角色。（2）当部门用水效率一定时,产业发展通过影响农业需水和工业需水两大主要需水源,成为比人口增长更为明显的水资源供需平衡调控因子。在社会经济发展情景保持一定的条件下,提高用水效率,实行节水农业和节水工业,能够有效地缓解水资源供需紧张状况,耗水农业和耗水工业方案则极大地加剧水资源供需不平衡,且相对产生较多废污水,不利于中国城镇化可持续发展。生活需水和生态环境需水的低中高方案对水资源供需缺口的影响则相对较小,而再生水利用在一定程度上成为水资源供给的补充性来源。
（3）在综合协调方案中,2050年中国城镇化的发展约共需6789.70亿m3水资源,其中,农业需水3642.65亿m3,工业需水1215.53亿m3,生活需水1361.80亿m3,生态环境需水569.72亿m3。该情景方案不仅有利于保障稳定高质量的经济发展和人口增长,还实现了水资源供需平衡,尽可能地保障居民日常生活和生态环境用水,是一种有利于实现水资源节约、高效、可持续利用,且促进社会经济良性发展的城镇化情景。
4.2 讨论
（1）中国在迈向可持续发展的城镇化过程中,需要直面日益严峻的水资源约束现实。尝试提出以下两方面政策性建议：① 在具有统领作用的国土空间规划中,加强对重要水源涵养区、江河水系、湿地资源的科学划定,实行严格的空间用途管制,防止水源涵养功能受损和水环境破坏,严守水资源开发利用控制红线。② 优化调整产业结构和布局,限制高耗水型行业发展,在水资源承载力基础上合理确定发展区规模,“以水定产”“以水定城”。通过提高有效灌溉水平、减少蒸发和渗漏等措施控制农业用水,发展节水农业。通过循环利用、降低定额等方式减少工业用水,加快研发再生水资源利用技术,发展节水工业。构建城镇化与水资源系统之间的良性协调关系,应当成为中国新型城镇化道路的必由之选。（2）本文所构建的基于水资源约束的中国城镇化SD模型,虽然主要采用全国尺度数据和参数,但理论上城镇化的经济、人口、社会要素与水资源供给、水资源需求、水环境要素间的耦合关系和因果循环逻辑可在本文所确定的基本概念框架基础上,通过结合研究区实际特点而灵活调整参数设置,从而在城市、流域等其他尺度上进行多情景模拟应用。
（3）将水资源这一重要基础资源作为内部主控要素,嵌入中国城镇化SD模型,弥补了仅基于社会经济层面的传统城镇化研究的不足。但本文所构建的基于水资源约束的中国城镇化SD模型仍有待将土地等更多关键资源环境要素嵌入模型系统之中,并尝试在城市群、流域等其他尺度上加以推广。
