七套土地覆被数据在羌塘高原的精度评价

本站小编 Free考研考试/2021-12-29

刘琼欢1,2,, 张镱锂1,2,, 刘林山1, 李兰晖1,2, 祁威1
1. 中国科学院地理科学与资源研究所,陆地表层格局与模拟重点实验室,北京 100101
2. 中国科学院大学,北京 100049

Accuracy evaluation of the seven land cover data in Qiangtang Plateau

LIUQionghuan1,2,, ZHANGYili1,2,, LIULinshan1, LILanhui1,2, QIWei1
1. Key Laboratory of Land Surface Pattern and Simulation, Institute of Geographic Sciences and Natural Resources Research, CAS, Beijing 100101, China
2. University of Chinese Academy of Sciences, Beijing 100049, China
通讯作者:通讯作者:张镱锂(1962- ),男,吉林长岭人,研究员,主要从事生物地理与自然地理综合研究。E-mail:zhangyl@igsnrr.ac.cn
收稿日期:2017-04-24
修回日期:2017-09-8
网络出版日期:2017-11-20
版权声明:2017《地理研究》编辑部《地理研究》编辑部
基金资助:国家科技基础性工作专项重点项目(2012FY111400)中国科学院战略性先导科技专项(XDB03030500)国家科技支撑计划(2012BAC06B00)
作者简介:
-->作者简介:刘琼欢(1990- ),女,湖南永兴人,博士研究生,主要从事土地覆被变化研究。E-mail:liuqh.16b@igsnrr.ac.cn



展开

摘要
基于羌塘高原8个一级土地覆被类型(包括10个二级土地覆被类型)的6851个样本点,采用混淆矩阵方法,从总体精度、制图精度和用户精度角度评价International Geosphere-Biosphere Program's Data and Information System Cover(IGBPDIS)、Global Land cover mapping at 30 m resolution(GlobeLand 30)、The MODIS Land Cover Type product(MCD12Q1)、Climate Change Initiative Land Cover(CCI-LC)和Global Land Cover 2000(GLC2000)等七套土地覆被数据产品在羌塘高原的精度。结果表明:① 七套数据产品的一级类型和二级类型总体精度普遍偏低,在相对较高的GlobeLand 30和CCI-LC数据中,一级类型总体精度分别为55.09%和53.92%,二级类型分别为46.55%和46.23%;② 草地、裸地和荒漠三个主要一级类型生产者精度最高的数据对应为:GLC 2000(46.19%)、MCD12Q1(39.20%)和IGBPDIS(84.44%)。而三个主要一级类型的用户精度均低于50%。其他覆被类型中,雪被与冰川类型用户精度最高的数据为CCI-LC(92.80%),漏分比例为19.90%;③ 羌塘高原特殊的高原环境与土地覆被分类系统构成原则和标准是影响遥感解译数据精度的主要原因。

关键词:土地覆被数据;遥感解译;精度评价;羌塘高原;青藏高原
Abstract
The land cover datasets in the Qiangtang Plateau (QP) have generally been considered as the fundamental data in the studies of local environmental and ecological issues. We evaluated the accuracy of seven land cover datasets in the QP, i.e. International Geosphere-Biosphere Program's Data and Information System Cover (IGBPDIS), Global Land cover mapping at 30 m resolution (GlobeLand 30), The MODIS Land Cover Type product (MCD12Q1), Climate Change Initiative Land Cover (CCI-LC), Global Land Cover 2000 (GLC2000), GlobCover 2009 (GlobCover) and University of Maryland (UMD). For that, the study used 6851 field samples with first and second level (8 and 10, respectively) land cover types. Three widely used parameters were derived to describe the error matrix of the map and also for the overall user's and producer's accuracy. The quantitative assessments of the map quality and classification accuracy for the available land cover maps will help to improve the overall accuracy of land cover mapping in future. The overall results of the assessment pointed out that the GlobeLand 30 and CCI-LC land cover map have higher accuracy than other data sets. However, they are also just 55.09% and 53.92% in first level assessment and 46.55% and 46.23% in the second level accuracy assessment. The best producer's accuracies of the three main land cover classes, e.g. alpine grassland, barren land and desert land in the QP were 46.19% in GLC 2000, 39.20% in MCD12Q1, and 84.44% in the IGBPDIS. The user's accuracy of the three first level land cover classes were less than 50%. In addition, the accuracy of the CCI-LC data was 92.8%, with omission error at 19.90% in the snow and ice cover. After analysis, we found that the discrepancy of classification system and the typical plateau environment in the QP are the main factors that result in a high level of inaccuracy of the land cover datasets.

Keywords:land cover data;remote sensing interpretation;accuracy evaluation;Qiangtang Plateau;Tibetan Plateau

-->0
PDF (20104KB)元数据多维度评价相关文章收藏文章
本文引用格式导出EndNoteRisBibtex收藏本文-->
刘琼欢, 张镱锂, 刘林山, 李兰晖, 祁威. 七套土地覆被数据在羌塘高原的精度评价[J]. 地理研究, 2017, 36(11): 2061-2074 https://doi.org/10.11821/dlyj201711003
LIU Qionghuan, ZHANG Yili, LIU Linshan, LI Lanhui, QI Wei. Accuracy evaluation of the seven land cover data in Qiangtang Plateau[J]. , 2017, 36(11): 2061-2074 https://doi.org/10.11821/dlyj201711003

1 引言

土地覆被数据是环境、生态等众多科学研究的基础,尤其在土地资源可持续利用以及政府决策中发挥重要作用[1]。随着遥感和GIS技术的发展,涌现出大量以遥感影像为数据源的全球或区域范围的土地覆被产品。截至2016年,有20余套全球尺度及区域尺度免费共享土地覆被数据产品[2]。然而,由于分类系统、分类技术、影像获取时间和空间分辨率等不一致,不同数据应用于区域或者全球尺度时,其精度存在明显的差异[3,4],严重影响土地覆被数据在各个领域的有效利用[5,6]。因此,对已有土地覆被数据资料的精度进行分析非常必要[7-9]
目前,部分****采用相对评价方法,对比多种土地覆被数据在整体范围的面积和空间一致性及差异性[4,10]。如对于不同分辨率产品进行全球或区域土地覆被数据空间一致性比较[11,12]。也有****以某套数据产品为参考,如GLC2000数据,对比评估其他全球土地覆被数据总体精度[13]。然而,大多****以样本点为参考数据,评价和验证数套全球土地覆被数据精度[3,14-18]。因该方法可靠性高,在土地覆被数据精度评价中最为常见,在该方法中,样本点的选取、布设和大小是影响精度评价的关键因素[17]
近年来,青藏高原的草地退化、冰川退缩、湖泊扩张等生态环境变化越来越受到科研工作者的关注[19-22]。作为青藏高原腹地,羌塘高原的土地覆被变化对自身区域内生态环境起着关键作用,是青藏高原生态环境变化研究的重要组成部分[23]。然而,由于羌塘高原自然环境极其恶劣,在该区域的科学考察较少,研究基础资料匮乏。已有的数值模拟和遥感反演数据的精度也大多缺乏地面观测的验证[23,24]
本文基于横跨羌塘高原的6851个土地覆被样本点,从总体精度、用户精度和制图精度三个方面,对GlobCover 2009(GlobCover)、University of Maryland(UMD)、和IGBPDIS等七套大尺度土地覆被数据在羌塘高原的精度进行评估,并试图回答:在羌塘高原地区,所选的七套代表性土地覆被数据产品中,数据综合精度如何、哪套数据精度最高?对于主要的土地覆被类型,哪套数据最为合理?影响羌塘高原土地覆被数据精度的原因有哪些,如何改进?

2 研究方法与数据来源

2.1 土地覆被数据产品

已有的20余套全球土地覆被数据产品分别属于11个数据系列[2]。本文选用其中的七套。其中,有5个数据系列——GlobeLand30、CCI-LC、GlobCover、MODIS Land Cover和Global Land Cover 250 m China(GLC250 m_CN)——包含不同年份的数据共22套。有一个数据系列未共享(GLC250 m_CN),故本文选用了其他4个数据系列(表1)中最新年份的数据(截至2016年12月公开发布);文中选用的另外3套数据(表1)分别属于3个数据系列(UMD、IGBP DISCover和GLC 2000),且在长时间序列的土地覆被变化研究中运用广泛。有2个数据系列是同一年份、不同空间分辨率,即Finer Resolution Observation and Monitoring-Global Land Cover(FROM-GLC)和International Satellite Land Surface Climatology Project(ISLSCP II),该系列共12套数据,本文未选用;另1个数据系列(GeoWiki),因其年份不确定,亦未选用。
Tab.1
表1
表1七套土地覆被数据
Tab.1Characteristics of seven land cover data sets
数据名称整体精度(%)验证方法传感器分类方法分辨率年份分类系统类型数链接参考文献
GLC 200068.6Confidence values statistical samplingSPOT4 VEGETATION非监督分类1 km1999-2000FAO LCCS
(23 classes)
http://bioval.jrc.ec.europa.eu/products/glc2000/products.phpBartholomé等[26]
IGBPDIS66.9Statistical sampling of validation working groupAVHRR非监督分类1 km1992-1993USGS IGBP
(17 classes)
http://edc2.usgs.gov/glcc/tabgoode_globe.phpLoveland等[27]
UMD65.0Evaluated using other digital datasetsAVHRR非监督分类、
决策树分类
1 km1992-1993Simplified IGBP (14 classes)http://www.landcover.org/data/landcover/index.shtmlHansen等[28]
MCD12Q174.8Cross-validationMODIS监督分类、决策树分类、神经网络500 m2013IGBP
(17 classes)
http://e4ftl01.cr.usgs.gov/MOTA/MCD12Q1.051/Friedl等[29,30]
GlobCover67.5Statistical sampling expert's judgementMERIS FR监督分类、
非监督分类
300 m2009UN LCCS
(22 classes)
http://due.esrin.esa.int/globcover/Bontemps等[31]
CCI-LC74.1Sampling-based labeling approachMERIS Full and Reduced Resolution/ SPOT非监督分类300 m2008-2012UN LCCS
(22 classes)
http://maps.elie.ucl.ac.be/CCI/viewer/index.phpBelgium等[32]
GlobeLand 3080.0Knowledge-based interactive verificationLandsat TM, ETM7, HJ-1A/b/基于像元、对象和知识规则分类30 m201011 classeshttp://www.globallandcover.comChen等[33]


新窗口打开

2.2 样本点数据

本文所用样本数据来自野外实地调查、基于空间采样的湖泊样点调查和冰川样点调查,共计6851个样本点(表2)。其中在2012-2014年羌塘高原土地覆被类型野外调查中,获取2991个样本数据,样本点主要分布在陆面交通条件较好的区域;基于谷歌地球影像和相片标记的湖泊样本点1157个,范围大小为2 km×2 km;冰川样本点数据源自寒区旱区科学数据中心中国第二次冰川编目数据集[25],计2703个,范围为2 km×2 km,样点的空间分布如图1所示。
Tab. 2
表2
表2羌塘高原样本点概况
Tab. 2Class description of the filed sample in Qiangtang Plateau
类型样本点数量类型定义类型样本点数量类型定义
高寒草甸777由寒冷中生多年生草本植物为主的植物群落覆盖区域,本研究区主要指藏北嵩草草甸、小嵩草(高山嵩草)草甸覆盖区湖泊1157指自然条件下形成的积水区常年水位以下的土地
高寒草原1245具有一定御寒能力的、旱生的多年生草本植物和小半灌木植物占优势的植物群落覆盖区域沼泽湿地80指覆盖着水(淡水、半咸水或咸水)与草本或木本植物的广阔区域,是介于陆地和水体之间的过渡带
稀疏植被29分布在连续植物覆盖的植被以上至永久雪线之间的、由适应严寒生境的寒旱生或寒冷中旱生多年生轴根性杂类草或以垫状植物或地衣苔藓等构成的盖度在5%~40%的植被区域。如蚤缀、点地梅垫状植被分布区域居民建设用地35指被建筑物覆盖的土地类型
半灌木或矮半灌木荒漠662半灌木、矮半灌木(驼绒藜、木亚菊、蒿)荒漠、垫状驼绒藜荒漠广泛分布区域裸地125指裸地、沙地、岩石、盐碱地,植被覆盖度不超过10 %
河流38指自然形成的沿着地表长条状槽形洼地雪被与冰川2703指常年由积雪或者冰覆盖的土地类型
合计6851

注:野外样本点选择标准:参照植被类型调查方法,选取土地覆被类型均一、周邻一致性较好、代表性较强的位置;该点位空域代表范围依土地覆被类型分布特征而变化,如草原、荒漠等大面积类型,可表示以点位为圆心,半径为500~1000 m的区域;除部分小面积类型,如河流点位表示的范围不确定外,其他类型样本点位至少可表示半径为30~50 m的区域。
新窗口打开
显示原图|下载原图ZIP|生成PPT
图1羌塘高原样本点空间分布
-->Fig.1Spatial distribution of the filed investigated sample points in Qiangtang Plateau
-->

2.3 数据处理与方法

2.3.1 土地覆被数据预处理 七套土地覆被数据的投影统一为“Albers_Conic_Equal_Area”。数据的空间分辨率保持不变,具体原因为:通过重采样的方法,如面积占优法、最近邻法等[12],其结果会降低数据本身的质量,且数据产品分辨率范围跨度大(30 m~1 km),难以选择折中且对数据影响小的统一分辨率;其次,由于羌塘高原特殊的地理环境和植被特征,从草地、荒漠、裸地主要土地覆被类型中筛选出的代表性样本点,能保持周围类别单一,成片分布范围大于最大像元的大小(1 km),基本不会影响像元大小造成的数据评价结果精度。因此,在不影响样本点对数据评价结果的条件下,为了尽可能减少对数据本身精度的影响,本文决定只对其进行投影转换处理,不对空间分辨率进行处理。
2.3.2 分类系统对应关系 各类土地覆被数据中土地覆被类型的划分及相关标准的制定存在一定差异,这使得不同数据间的比较难以进行[4]。Giri等[34]于2005年、Ran等[35]于2010年和Herold等[4]于2008年的相关研究中通过建立分类系统的衔接关系,实现了不同覆被类型的对应。参照已有的分类系统衔接工作[12,36,37],并结合实地考察和各数据产品类型的具体定义,编制了基于类型样点调查的羌塘高原土地覆被分类系统,包括8个一级类型10个二级类型。八套数据的四套分类系统与该分类系统具体的对应关系如表3所示。
Tab. 3
表3
表3羌塘高原地区不同土地覆被数据与样本点分类系统间的类别对应关系
Tab. 3Corresponding relationships of classes in different classification system between eight land cover data sets and ground data
类型IGBP (IGBPDIS、MCD12Q1、UMD)FAO LCCS (GLC 2000、GlobCover、CCI-LC)GlobeLand 30
序号一级二级
1草地草地草原、草甸草地
2高寒草甸-草甸-
3高寒草原草地草原草地
4稀疏植被稀疏植被-自然植被与农田镶嵌类型、稀疏植被-
5半灌木或矮半灌木荒漠半灌木或矮半灌木荒漠稀疏灌木林地荒漠草地、灌丛、落叶灌丛灌木林地
6水体水体水体水体
7河流---
8湖泊---
9沼泽湿地沼泽湿地湿地稀疏草本或木本湿地湿地
10居民建设用地居民建设用地建设用地建设用地人造地表
11裸地裸地裸地裸地、砾石裸地、松散裸地裸地
12雪被和冰川雪被和冰川雪被与冰川永久雪被与冰川永久雪被与冰川
13-常绿针叶林、常绿阔叶林、落叶针叶林、落叶阔叶林、混交林、郁闭灌木林地、森林稀疏草原、稀树草原、农田、农田与自然植被镶嵌类型旱地、灌溉或季节性水淹农田、农田与自然植被镶嵌类型、常绿针叶林农田、乔木林地

注:表中各数据产品的完整分类代码请参照数据源说明,该表只列出了各数据产品在羌塘高原中的类型。“无”指在本文研究区现实中不存在的土地覆被类型,而各对应的数据产品在本区域中出现的土地覆被类型。
新窗口打开
2.3.3 验证方法 本文采用混淆矩阵的方法,以总体精度、制图精度和用户精度为指标衡量土地覆被数据产品的质量,计算公式分别为[38, 39]
OA=TX×100%(1)
PAi=TiXi×100%(2)
UAi=TiVi×100%(3)
式中:OA为总体精度,是所有被正确识别的像元数T与总样本数X的比值;PAi为某地类i的生产者精度,或者制图精度;Ti为被正确识别为第i类地物的像元数;Xi为实际为第i类地物的样本数;Vi为被分为第i类地物的样本数;UAi为某地类i的用户精度。

3 结果分析

3.1 一致性特征

3.1.1 空间一致性 根据野外调查和相关资料记载[40,41],草地、荒漠和裸地是羌塘高原地区主要的一级土地覆被类型,又以草地类型占比最大。草地主要分布在中部和南部,荒漠主要分布在北部,裸地主要分布在西北部的草地与荒漠过渡带。
羌塘高原主要的3种土地覆被一级类型在不同的数据产品中差异明显(图2)。CCI-LC、GlobeLand 30和GLC 2000数据主要覆被类型是草地,面积比例分别为70.10%、67.69%、62.92%、64.42%,能较好地描述羌塘高原中部和东南部的草地空间分布。MCD12Q1数据中裸地和草地面积比例接近,分别为40.91%和44.96%,但其他三套数据的空间分布与调查结果有明显偏差。
显示原图|下载原图ZIP|生成PPT
图2七套数据产品在羌塘高原地区一级类型的空间分布特征 注:图中及下文各图中的不一致类别均指研究区现实中不存在的土地覆被类型,而各对应的数据产品在本区域中出现的土地覆被类型。
-->Fig. 2Distribution of eight data sets at Level I of the classification on the Qiangtang Plateau
-->

从七套数据草地二级类型的空间分布中可以发现(图3),高寒草甸比例非常少,高寒草原空间分布特征和数据精度与一级类型中草地分布一致,CCI-LC、GlobeLand 30、GLC 2000数据相对能较好得识别草地类型。而各数据湖泊类型的空间分布特征基本类似,识别度较高。但与Zhang等[42]2015年目视解译的羌塘高原地区面积大于10 km2的湖泊数据对比,七套土地覆被数据的湖泊面积明显偏小。本文土地覆被数据(1992-2010年)湖泊的面积范围在14712.00~28039.18 km2之间,Zhang等(1991-2013年)获取的湖泊数据面积范围为24502.47~30737.67 km2
显示原图|下载原图ZIP|生成PPT

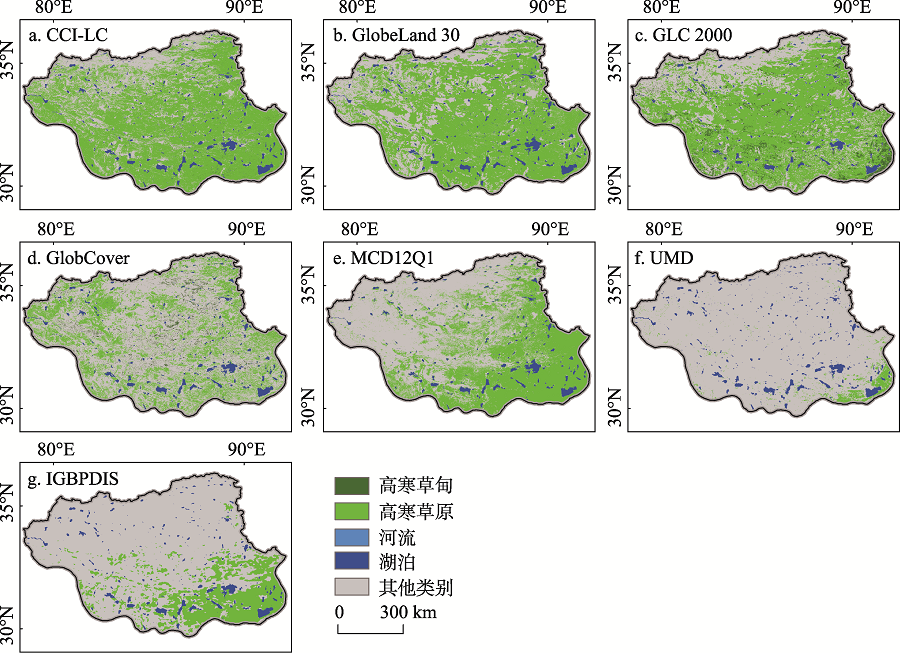

图3七套土地覆被数据产品在羌塘高原地区二级类型的空间分布特征
-->Fig. 3Distribution of seven data sets at Level II of the classification on the Qiangtang Plateau
-->

3.1.2 点位一致性 综合数据一致性和样本点验证的结果来看,一致性程度低,则实际土地覆被类型准确率低;一致性程度高,与实际土地覆被类型之间的关系并不明显(图4a)。总体上,在6851个样本点中,七套数据一致性程度低,主要集中在3和4之间,占54.9%(图4b)。数据间一致性低、数据与样本点间准确度也低(LL)的像元比例最大,占63.86%。即在大部分验证点上,各数据产品对类型判断不一致且判断准确的比例低。数据间一致性在空间上,未呈现明显区域差异特征。具体类型中(图4c),一致性和准确度高(HH)的类型主要集中在高寒草地和雪被冰川类型上。
显示原图|下载原图ZIP|生成PPT
图4土地覆被数据一致性与准确性分布图注:图b中,纵坐标值为1表示在该样本点上7套数据的分类结果各不相同,值为2表示在该样本点上有2套产品的分类结果是一致的,……,值为7表示有7套产品在该样本点上的分类结果全部一致。
-->Fig. 4Agreement and accuracy of land cover data sets
-->

3.2 总体精度

七套数据一级土地覆被类型在羌塘高原地区总体精度均低于56%,可划分为4个等级,由高到低分别为:50%以上,40%~50%,20%~40%以及20%以下。从表4可以看出各数据总体精度情况具体情况,第Ⅰ级:GlobeLand 30(55.09%)和CCI-LC(53.92%);第Ⅱ级:GLC 2000(49.97%)和CASLU(40.48%);第Ⅲ级:GlobCover(31.88%)和MCD12Q1(24.61%);第Ⅳ级:UMD(5.98%)和IGBPDIS(11.76%)。七套数据产品二级类型总体精度为6%~47%,精度等级与一级类型一致。
Table 4
表4
表4七套数据产品中不同类型面积比例及总体精度(%)
Table 4Area proportion and overall accuracy of different land cover types of the seven data products (%)
类型CCI-LCGLC 2000GlobCoverGlobeLand30IGBPDISMCD12Q1UMD
本文
研究区
稀疏植被2.000.002.510.000.000.000.00
湿地0.070.000.000.310.310.060.00
建设用地0.000.000.000.000.000.000.00
雪被与冰川2.252.491.641.191.191.250.00
草地70.5167.6968.8486.1240.473.5319.75
高寒荒漠1.1016.620.002.342.349.4968.50
水体4.002.774.074.404.403.324.09
裸地20.069.2851.3124.0724.0740.9123.88
一级类型
总体精度
53.9249.9731.8855.0911.7624.615.98
二级类型
总体精度
46.2339.4126.2346.5510.6121.466.00
等级
国际报道总体精度74.4068.6067.5080.0366.9074.8065.00
参考文献文献[32]文献[26]文献[31]文献[33]文献[27]文献[29, 30]文献[28]


新窗口打开

3.3 不同类型精度

3.3.1 生产者精度 七套数据产品的生产者精度普遍偏低。草地类型中,GLC 2000数据精度为46.19%,CCI-LC数据精度为43.57%,其他数据的制图精度均小于40%。在荒漠类型中,IGBPDIS数据制图精度为84.44%,但其总体精度仅为11.76%。裸地类型识别中,七套数据制图精度均小于50%,最高的仅为39.20%(MCD12Q1)。CCI-LC数据在雪被与冰川类型识别上制图精度为80.01%,且错分概率为7.2%,优于其他数据产品。而各数据在稀疏植被、湿地、水体类型中的制图精度均低于40%(图5a)。
显示原图|下载原图ZIP|生成PPT

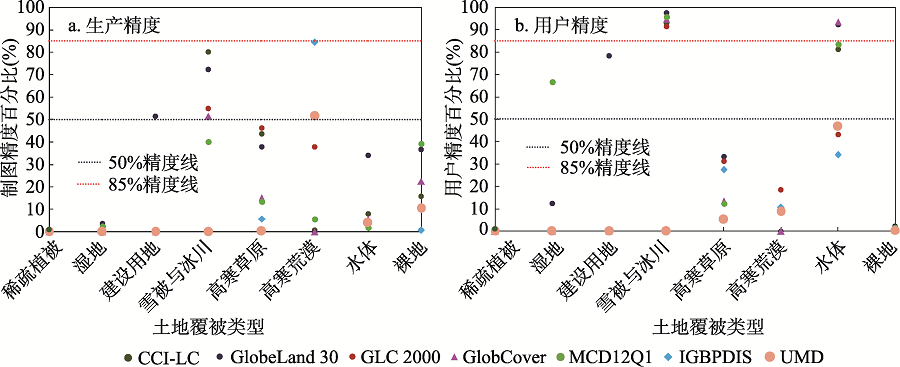

图5一级土地覆被类型的生产者精度和用户精度
-->Fig. 5Producer's accuracy and user's accuracy of seven land cover data sets at Level I of the classification
-->

3.3.2 用户精度 三大主要类型用户精度均低于50%,精度相对较高的类型主要是水体和冰川。在水体类型上,GlobeLand 30准确度为92.10%,漏分概率为64.74%。GlobCover准确度虽然为93.33%,漏分概率为93.95%。可见,GlobeLand 30在水体识别上整体精度更高。在冰川雪被类型上,CCI-LC数据精度更高。GlobeLand 30虽然识别准确率达到97.35%,但其漏分概率(27.89%),高于CCI-LC数据(图5b)。
3.3.3 面积估算精度 面积估算精度表示生产者精度与用户精度差值,在生产者精度和用户精度均较高的条件下,其值越接近表明该类型面积估算精度越高。经计算,制图精度和用户精度均较高的有GLC 2000、CCI-LC和GlobeLand 30四套数据的草地类型(图5)。其中,面积精度最高的为GlobeLand 30数据。其他类型中,无同时满足制图精度、用户精度和面积精度高的数据(表5)。
Tab. 5
表5
表5七套数据产品中不同类型面积估算精度(%)
Tab. 5Accuracy of area estimation of different land cover types of the seven data products (%)
数据稀疏植被湿地建设用地雪被与冰川草地高寒荒漠水体裸地
CCI-LC0.000.000.0012.7012.327.7973.2514.48
GlobalLand 300.008.7526.8325.244.410.0057.9634.43
GLC 20000.000.000.0036.4615.0019.1740.850.68
GlobCover0.000.000.0042.871.740.0087.4821.40
MCD12Q10.0064.170.0055.691.183.5581.2437.59
IGBPDIS0.000.000.000.0021.5373.8230.030.70
UMD0.000.000.000.004.8842.8642.549.90


新窗口打开

3.4 不同类型混淆

利用混淆矩阵,获得数据和样本点在相同位置土地覆被类型对应关系,选取六套总体精度高于20%的数据产品进行统计分析,地类混淆情况如图6所示,各类型与草地和裸地类型混淆严重。草地类型中,CCI-LC数据9.20%混分为裸地,少部分混分为其他类型。GlobeLand 30中,37.83%混分为裸地。GLC 2000数据18.23%混分为荒漠。裸地类型中,GlobeLand 30中24.59%混分为草地。MCD12Q1中,13.11%混分为荒漠。雪被与冰川类型中,CCI-LC中混分为草地和裸地比例分别为10.69%和8.77%。GlobeLand 30雪被与冰川主要混分为裸地(20.35%),另有少部分混分为其他类型。GLC 2000数据的雪被与冰川有44.98%混分为其他类型。此外,荒漠、稀疏植被、建设用地、湿地、水体主要混分为草地、裸地类型。
显示原图|下载原图ZIP|生成PPT
图6土地覆被一级类型混淆比例
-->Fig. 6Confusion of Level I of the classification between the six land cover datasets
-->

4 讨论

本文评估的七套数据采用了三套分类系统,即FAO LCCS、IGBP和GlobeLand30。在分析系统对应的过程中,主要问题表现为以下几方面:① UMD分类系统虽然采用了IGBP的分类方案,但UMD土地覆盖数据的分类系统是为SIB模型设计的,SIB的分类方案没有湿地和冰雪类,而是将永久性冰雪类包括在裸地里,而没有湿地类型,这可能会降低UMD数据的精度评价结果。② 羌塘高原的主题范围内基本无林地和耕地类型[23],但七套数据产品中均有林地和耕地类型,尤其IGBPDIS 和UMD数据在羌塘高原的核心区出现了大片林地和耕地类型(图2),偏离了真实情况。以上问题说明,不仅数据集分类系统的转换过程会影响数据精度[43],分类原则和类型内涵的不同,也是造成本文区的遥感分类解译结果差异因素之一。而出现偏离真实类别的分类系统的原因很大程度是由于缺乏野外实测资料。因此,这些数据的分类系统需要进一步考察修正,以减少分类系统制定过程中的模糊概念。
羌塘高原植被类型和高原环境特征对土地覆被数据分类有重要影响。羌塘高原特殊的植被类型,如草地、裸地、荒漠类型波谱曲线、影像色调、纹理等标识差异小,易造成类型混淆。其次,羌塘高原典型的高原环境对土地覆被提取具有重要的影响。羌塘高原的植被生长季远短于其他低海拔地区[44,45],主要集中在夏季,其他月份难以监测植被类型信息,但土地覆被数据使用的各幅影像的月份可能不一致,如使用非生长季期间的遥感影像数据,则会降低植被类型解译结果。
本文主要不确定性表现为:样本点采集与遥感数据年份存在时间差异。本文样本点数据来自2013-2016年野外调查,选用的七套数据时间跨度约为20年(1992年/1993年-2013年)。但据实地考察发现,羌塘高原大面积属于无人区,主要受自然因素影响,该地区整体上土地覆被类型变化幅度相对较小。其次,样本点空间分布不够均匀。由于环境条件极其恶劣,本文野外获取的样本点数据主要分布在陆面交通条件较好的区域,空间分布不够均匀对精度评价结果会有一定影响,但作为该地区首批基础调查数据之一,是评估该地区土地覆被数据精度的重要参考。

5 结论

在羌塘高原地区,七套数据产品(GLC 2000、IGBPDIS、UMD、MCD12Q1、GlobCover、CCI-LC和GlobeLand 30)中,精度最高的一级类型仅为55.09%左右,未达到可广泛应用的精度要求[1,2]。从具体类型来看,雪被与冰川数据类型制图精度和用户精度整体上高于其他数据,其中最高的是CCI-LC数据,用户精度为92.80%,制图精度为80.10%。GlobeLand 30数据的草地类型面积估算精度最高。
本文评估的七套大尺度土地覆被数据产品在高海拔的羌塘高原寒旱地区精度低,无论从现状分析,还是作为区域土地覆被变化及其生态和环境影响研究的基础数据而言,高原地区土地覆被数据质量都亟待提高。建议如下:① 加强野外实地土地覆被类型的光谱测定、植被样地调查、土壤与土地利用调查及环境要素调查,确定类型解译标志和标准,及梳理类型内涵与定义,调整并完善分类系统,修订和完善遥感解译流程和方法以提升解译能力;② 采用最新的高分辨率影像、包含物候信息的时序数据(SPOT VGT、HJ CCD以及MODIS),尤其是结合2000年以来MODIS的年内与年际间多期连续的时序数据,并结合野外实际观测分析结果,针对某土地覆被类型在进行深化和创新性研究。
致谢:对野外土地利用覆被调查中给予指导和帮助的中国科学院植物研究所郭柯研究员表示感谢,对参与野外数据采集的赵志龙、谷昌军、郑海朋、王宇坤等表示感谢,对数据分析和论文撰写中给予帮助和提出宝贵建议的王兆锋、聂勇等老师表示感谢。
The authors have declared that no competing interests exist.
