, 张甲珅, 郑伟, 刘诚国家卫星气象中心,北京 100081
Comparative study on the emission estimation from the forest fire based on different resolution satellite data
GAOHao, ZHANGJiashen, ZHENGWei, LIUCheng收稿日期:2016-10-13
修回日期:2017-01-17
网络出版日期:2017-05-20
版权声明:2017《地理研究》编辑部《地理研究》编辑部
基金资助:
作者简介:
-->
展开
摘要
关键词：
Abstract
Keywords：
-->0
PDF (13447KB)元数据多维度评价相关文章收藏文章
本文引用格式导出EndNoteRisBibtex收藏本文-->
1 引言
火干扰是全球森林生态系统的重要干扰因子,森林火灾破坏自然生态系统的同时,火灾过程中生物质燃烧也是大气痕量气体和颗粒物的重要来源。林火燃烧释放大量的二氧化碳（CO2）、一氧化碳（CO）、甲烷（CH4）、非甲烷总烃（NMHC）、黑炭（BC）、有机碳（OC）、氮氧化物（NOx）、二氧化硫（SO2）和颗粒物（PM）[1]。它们改变大气成分的组成,对生物地球化学循环产生重要的影响,同时林火过程中释放的大量颗粒物又改变大气辐射收支,进一步对区域和全球气候变化产生影响。此外,林火释放的细颗粒物能通过影响空气质量对人体健康也产生显著的影响[2-3]。随着全球气候的变暖和降雨量的时空分布变化,森林和草原火灾的强度和频率都在加剧,其对全球环境变化产生重要影响。研究表明,自然野火排放的一氧化碳占全球的51%[4],而全球26%~73%的细小有机颗粒物来自于自然野火排放[5]。东北大兴安岭林区是我国森林火灾的多发区域,其碳排放量占到了全国排放量的近45%[6],其对我国的碳排放量的定量评估具有重要的影响。因此,对该区域的林火排放的科学准确的计量,对于正确认识森林火灾对我国碳排放的贡献,并进一步认识其对区域气候的影响有重要的意义。
为了准确地估算由生物质燃烧引起的排放,并进一步认识其对气候变化的影响,国内外在不同尺度上开展了生物质燃烧排放大气痕量气体和颗粒物的定量研究。在局地尺度上,针对特定的森林火灾通过实地测量的方法来定量计算林火的排放量[7]。在区域尺度上,一些研究通过统计资料、调查数据和实验测定来推算生物质燃烧的排放量[8-10],同时也有不少研究通过卫星遥感开展生物质燃烧的排放估算[11,12]。近年来随着遥感技术的发展,全球尺度、不同空间分辨率（1 km和500 m）和时间分辨率的火烧迹地产品被用于开展全球生物质燃烧排放的研究[13],并且通过“自下而上”的方法取得了不同时间和空间尺度的排放清单,该模型中排放量由火烧迹地面积、可燃物载量、燃烧因子、排放因子决定,排放因子和燃烧因子可在实验室测定,火烧迹地面积和可燃物载量可通过卫星遥感获取。Van Der Werf等基于该方法获取了1997-2009年全球森林、草原、农田和泥炭野火的排放清单,并广泛应用于各类化学传输模式[14]。Wiedinmyer等利用该方法计算了2005-2010年全球的生物质燃烧排放清单FINN v1 (Fire Inventory from NCAR version 1.0)用于大气化学模式应用[15]。Randerson等采用该排放模型计算了2001-2010年全球范围内野外小火的排放清单[16]。但是,针对火烧迹地的研究表明,低分辨率的传感器存在较大的局限性,中高分辨率传感器在区域和全球尺度的估算精度有较大提高[17]。究其原因主要是遥感尺度效应,空间分辨率是影响地表特征提取精度[18-19]、空间格局[20]和模拟结果[21]的重要因素,随着空间分辨率的降低,精度逐渐降低。在“自下而上”模型中排放量对其变量因子都比较敏感,排放量计算结果存在较大的不确定性[22],当前空间分辨率的尺度效应对排放估算的影响仍然没有明确的研究结论。
本文利用30 m、500 m和1 km空间分辨率的TM、MODIS和AVHRR遥感数据获取排放模型中的火烧迹地面积、燃烧因子、可燃物载量等因子,参考已有实验中测定排放因子,对2006年5月22日发生在内蒙古鄂伦春旗大兴安岭砍都河林场森林大火的排放进行定量估算,并进一步评估不同空间分辨率的卫星遥感数据对林火排放定量估算的影响,为深入认识现有的基于卫星遥感获取的生物质燃烧排放清单的不确定性提供参考。
2 研究方法与数据来源
2.1 研究区概况
2006年5月22日,位于大兴安岭的砍都河林场因雷击发生火灾,并发展成特大森林大火。此次森林大火于2006年6月3日被扑灭,火灾造成砍都河林场大范围的森林过火（图1）。砍都河林场地处大兴安岭林场,属寒温带大陆性季风气候。地带性植被为寒温带针叶林,以兴安落叶松为优势树种,同时有白桦,散生的黑桦、杨树和樟子松以及柞树。由于各种因子的相互作用,该处区域雷击火较多,为中国森林火灾的高发区域并且危害严重。因此,对该区域的大型森林火灾进行研究具有一定的代表性。
显示原图|下载原图ZIP|生成PPT图1研究区地理位置
-->Fig. 1The geographic location of the study area
-->
2.2 排放模型
本文采用“自下而上”的方法定量估算生物质燃烧的排放,该方法中的排放与火烧迹地面积、可燃物载量、燃烧因子和排放因子有关,其公式如下[15]：式中：E为生物质排放量;BA为火烧迹地面积（m2）;FL为可燃物载量（kg/m2）,本文为地上干物质生物量密度;CF为可燃物在燃烧中实际燃烧的比例,即燃烧因子（combustion factor）;EF为不同植被类型排放特定大气痕量气体和颗粒物的排放因子（g/kg）。
2.3 火烧迹地面积
本文对火烧迹地的提取,采用过火前后的归一化燃烧指数（normalized burned ratio,NBR）的差值（dNBR）,相对于植被指数,加入了短波红外波段的NBR对于地形、云阴影和水体与过火区的识别能力更高。提取火烧迹地时,为避免人机交互式方法经验阈值的主观性,采用自适应的阈值方法自动确定阈值[23],TM和MODIS确定的dNBR阈值分别为-0.08和-0.04。由于NOAA的AVHRR传感器缺少短波红外波段,因此针对AVHRR提取火烧迹地时,基于过火前后NDVI的差值采用自适应阈值方法自动确定阈值,其阈值为-0.14。NBR和dNBR的计算公式分别为：式中：
排放模型中的火烧迹地面积的准确性直接影响排放量的精度。考虑到林场的地表并不是完全被植被覆盖,本文在计算火烧迹地面积时,引入植被覆盖度对火烧迹地的面积进行订正,基于砍都河林场过火前5月20日的TM、MODIS和AVHRR卫星数据,采用像元二分模型获取每个像元的植被覆盖度（fractional vegetation cover,FVC）,与判识的火烧迹地面积相乘,只有覆盖植被的燃烧面积是有效面积,从而得到真实的火烧迹地面积。植被覆盖度根据像元二分模型获取[24],该模型广泛应用于计算植被覆盖度：
式中：FVC为植被覆盖度;NDVI为归一化植被指数;
2.4 地上可燃物载量
本文根据土地覆盖类型来给定过火林区的可燃物载量,基于卫星遥感数据通过决策树分类获取土地覆盖类型。首先,基于林火发生前期的TM多光谱数据,计算获取归一化植被指数（NDVI）,辅以数值高程数据（DEM）,以1
显示原图|下载原图ZIP|生成PPT图2砍都河林场地表覆盖分类
-->Fig. 2Land cover classification of Kanduhe timberland
-->
Tab. 1
表1
表1砍都河林场地表覆盖类别分类混淆矩阵（%）
Tab. 1Confusion matrix of land cover classification for Kanduhe timberland (%)
| 生产者精度 | 林地 | 疏林 | 草地 | 水体 | 总计 |
|---|---|---|---|---|---|
| 林地 | (2236/2307) 96.92 | (22/1789) 1.23 | (61/1452) 4.20 | (2/162) 1.23 | 2321 |
| 疏林 | (66/2307) 2.86 | (1760/1789) 98.38 | (59/1452) 4.06 | 0 | 1885 |
| 草地 | (5/2307) 0.22 | (7/1789) 0.39 | (1330/1452) 91.60 | (5/162) 3.09 | 1347 |
| 水体 | 0 | 0 | (2/1452) 0.14 | (155/162) 95.68 | 157 |
| 总计 | 2307 | 1789 | 1452 | 162 | 5710 |
| 总体精度 = (5481/5710) = 95.98% Kappa系数 = 0.9403 | |||||
新窗口打开
根据砍都河林场的地表土地覆盖分类结果,由每个像元的土地覆盖类别来给定地上可燃物的载量。研究区域的林地以落叶针叶林为主,参考已有的研究结果[1,9-11,15],给定了研究区的每种土地覆盖类别的可燃物载量（表2）。其中林地的可燃物载量参考北方落叶针叶林,疏林参考灌木和草地的可燃物载量,草地为草本植被可燃物载量。
Tab. 2
表2
表2砍都河林场地表覆盖类别可燃物载（kg/m2）
Tab. 2Fuel loadings assigned to landcover types for Kanduhe timberland (kg/m2)
| 地表覆盖类别 | 林地[9-11,15] | 疏林[1,9-11,15] | 草地[1,9-11,15] | 水体 |
|---|---|---|---|---|
| 可燃物载量 | 8.10 | 3.06 | 0.74 | 0 |
新窗口打开
2.5 燃烧因子
燃烧因子受到可燃物种类和可燃物的含水量的影响,计算燃烧因子时,研究认为燃烧因子与绿色植被所占的比例（PGREEN）有一定的函数关系[25]。PGREEN通常由NDVI计算得到：式中：NDVIt为林火发生月的NDVI值;NDVImin和NDVImax分别为研究区前一生长季中每个像元NDVI值的最大值和最小值。本文从美国地质调查局（USGS）下载2005年生长季（4-9月）基于TM的NDVI数据,2005年缺少月份的数据选择最临近年份的数据补齐,同时选取2005年生长季500 m分辨率的NDVI数据（MOD13A1）,以及基于AVHRR的1 km分辨率的NDVI产品,统计生长季的NDVImin和NDVImax并计算PRGEEN。
Ito和Penner通过实验的方式研究获得了燃烧因子与PGREEN的函数关系[26],该模型已在中国和东亚区域的生燃烧物质排放研究中广泛应用[11,27]。对于草本植被,当像元中林木覆盖度小于15%时,通常认为是草地,其燃烧因子为：
当像元中林木覆盖度大于15%并小于60%时,通常认为是疏林,其燃烧因子为：
对于林地,实验研究认为其燃烧因子不大于0.47。本文借鉴已有的研究结果[11,26],将林地的燃烧因子设定为0.23,计算得到草地的燃烧因子根据已有研究将其范围限定为大于0.44且小于0.99,疏林的燃烧因子范围限定为大于0.01且小于0.88。
2.6 排放因子
排放因子是林火燃烧过程中每千克干物质所释放的大气痕量气体和颗粒物的量,本文根据土地覆盖类型建立一套参数表,给定各个土地覆盖类别燃烧过程中释放各种大气痕量气体和颗粒物（如CO2、CO、CH4、BC、OC、PM2.5、NOx、SO2、NMHC等）的排放因子,该排放因子都来自于已发表的研究成果[1,11,14-15]。如果排放因子的数值不止一个,本文选取平均值用于林火排放的计算（表3）,水体的排放因子都设定为0。Tab. 3
表3
表3砍都河林场不同地表覆盖类别的排放因子（g/kg）[
Tab. 3Emission factors assigned to different land cover types for Kanduhe timberland (g/kg) [
| 地表覆盖类别 | CO2 | CO | CH4 | NMHC | NOx | SO2 | PM2.5 | BC | OC |
|---|---|---|---|---|---|---|---|---|---|
| 林地 | 1594.3 | 96.9 | 4.67 | 7.4 | 2.87 | 0.8 | 12.6 | 0.49 | 7.7 |
| 疏林 | 1626.4 | 72.7 | 2.92 | 4.78 | 3.0 | 0.53 | 6.94 | 0.51 | 5.55 |
| 草地 | 1650.2 | 72.3 | 2.53 | 4.45 | 3.86 | 0.51 | 6.54 | 0.44 | 3.07 |
新窗口打开
3 结果分析
3.1 火烧迹地面积
基于2006年6月28日林场林火发生后晴空的30 m、500 m和1 km分辨率的TM、MODIS和AVHRR卫星数据,分别提取了砍都河林场的火烧迹地,如图3所示,同时基于5月20日TM、MODIS和AVHRR林火发生前的NDVI数据计算的植被覆盖度数据,分别计算了2006年5月22日砍都河林场森林大火的实际火烧迹地面积（表4）。统计显示,基于三种不同尺度卫星数据的森林实际火烧迹地面积分别为6.36×104 hm2、6.10×104 hm2和5.59×104 hm2 ,随着卫星分辨率的降低,火烧迹地面积逐渐减小。不同空间分辨率的卫星获取的火烧迹地面积的差异为4.3%~13.8%。三种不同空间分辨率的卫星监测的火烧迹地差异主要发生在火烧迹地的边缘（图4）,主要原因是火烧迹地的监测能力受到卫星传感器像元分辨率的限制,例如500 m分辨率的MODIS能监测到最小火烧迹地面积为1.2 km2 [13],MODIS、AVHRR等（1 km分辨率）中低分辨率的卫星传感器对面积较小的燃烧斑块无法监测[16],高分辨率的卫星可以监测到较小的燃烧斑块。研究表明火烧迹地的漏判随着空间分辨率的降低而增大,当火烧迹地面积大于1200 hm2时,MODIS监测的火烧迹地面积平均误差小于30%,而相同的平均误差下的1 km和5 km空间分辨率的卫星监测的火烧迹地面积至少要分别大于1800 hm2和3600 hm2,此时MODIS的监测平均误差则小于15%[19]。文中引入植被覆盖度来获取实际的火烧迹地面积,基于TM、MODIS和AVHRR数据的植被覆盖度的平均值分别为0.44、0.47和0.47。虽然已有研究表明尺度变化不会对NDVI产生重大误差[28,29],并且在植被覆盖度较高或较低的区域可以忽略NDVI的尺度效应,得到较为准确的植被覆盖度[30],但基于不同尺度遥感数据计算的植被覆盖度仍存在差异,导致实际火烧迹地面积出现差异。
显示原图|下载原图ZIP|生成PPT图32006年6月28日砍都河林场过火后TM、MODIS和AVHRR卫星影像(a-c)和过火区判识(d-f)
-->Fig. 3Satellite imagery (a-c) and burned area (d-f) of TM, MODIS andAVHRR for Kanduhe timberland on 28th, June, 2006
-->

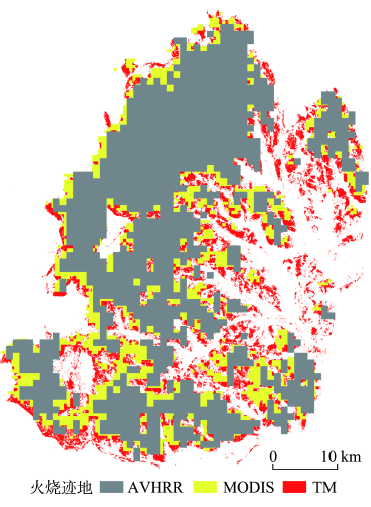

显示原图|下载原图ZIP|生成PPT图4不同空间分辨率卫星监测的火烧迹地空间分布差异
-->Fig. 4Spatial discrepancy of the burned scar monitoring from different resolution satellite
-->
Tab. 4
表4
表4砍都河林场火烧迹地面积统计（hm2）
Tab. 4Total burned scar of different resolutionsatellites for Kanduhe timberland (hm2)
| 卫星 | TM | MODIS | AVHRR |
|---|---|---|---|
| 火烧迹地面积 | 6.36×104 | 6.10×104 | 5.59×104 |
新窗口打开
3.2 林火排放量
根据排放模型,分别基于30 m、500 m和1 km分辨率的TM、MODIS和AVHRR计算了此次发生在内蒙古自治区鄂伦春旗大兴安岭砍都河林场森林大火释放的各类痕量气体和颗粒物的排放总量。统计显示（表5）,不同空间分辨率卫星估算的此次森林大火释放的二氧化碳（CO2）、一氧化碳（CO）、甲烷（CH4）、非甲烷总烃（NMHC）、氮氧化物（NOx）、二氧化硫（SO2）、可吸入颗粒物（PM2.5）、黑炭（BC）、有机碳（OC）的排放量分别为1.01×106~1.64×106 t、6.07×104~9.58×104 t、2.91×103~4.51×103 t、4.61×103~7.18×103 t、1.83×103~3.01×103 t、5.00×102~7.79×102 t、7.82×103~12.1×103 t、3.10×102 ~5.02×102 t、4.79×103~7.46×103 t。分别统计了不同分辨率卫星估算不同植被类型在砍都河林场森林大火中释放各类大气痕量气体和颗粒物排放量的贡献（表6）,结果显示不同分辨率卫星的估算结果有一定的差异,其中TM、MODIS和AVHRR卫星估算的林地在各类大气痕量气体和颗粒物排放量的贡献分别为83.4%~90.9%、94.5%~97.4%和95.1%~97.5%,疏林的平均贡献分别为5.9%~10.4%、1.5%~2.8%和1.6%~2.9%,草地的平均贡献分别为2.1%~6.3%、0.8%~2.7%和0.7%~2.0%。Tab. 5
表5
表52006年砍都河林场森林大火不同卫星估算的排放量（t）
Tab. 5Summary of fire emissions of different resolution satellites during forest fire in 2006 for Kanduhe timberland (t)
| 卫星 | CO2 | CO | CH4 | NMHC | NOx | SO2 | PM2.5 | BC | OC |
|---|---|---|---|---|---|---|---|---|---|
| TM | 1.64×106 | 9.58×104 | 4.51×103 | 7.18×103 | 3.01×103 | 7.79×102 | 1.21×104 | 5.02×102 | 7.46×103 |
| MODIS | 1.17×106 | 7.00×104 | 3.35×103 | 5.32×103 | 2.12×103 | 5.76×102 | 9.02×103 | 3.58×102 | 5.52×103 |
| AVHRR | 1.01×106 | 6.07×104 | 2.91×103 | 4.61×103 | 1.83×103 | 5.00×102 | 7.82×103 | 3.10×102 | 4.79×103 |
新窗口打开
Tab. 6
表6
表62006年砍都河林场森林大火不同植被类型对排放量的贡献（%）
Tab. 6Contribution of the different land cover types to emissions during forest fire in 2006 for Kanduhe timberland (%)
| 卫星 | 植被类型 | CO2 | CO | CH4 | NMHC | NOx | SO2 | PM2.5 | BC | OC |
|---|---|---|---|---|---|---|---|---|---|---|
| TM | 林地 | 85.4 | 88.5 | 90.7 | 89.8 | 83.4 | 89.9 | 90.9 | 85.5 | 90.3 |
| 疏林 | 10.4 | 7.7 | 6.7 | 6.8 | 10.3 | 6.9 | 5.9 | 10.4 | 7.6 | |
| 草地 | 4.2 | 3.8 | 2.6 | 3.3 | 6.3 | 3.2 | 3.2 | 4.1 | 2.1 | |
| MODIS | 林地 | 94.9 | 96.4 | 97.3 | 96.9 | 94.5 | 96.9 | 97.4 | 95.5 | 97.3 |
| 疏林 | 2.7 | 2.0 | 1.6 | 1.7 | 2.8 | 1.8 | 1.5 | 2.8 | 1.9 | |
| 草地 | 2.4 | 1.6 | 1.1 | 1.4 | 2.7 | 1.3 | 1.1 | 1.7 | 0.8 | |
| AVHRR | 林地 | 95.4 | 96.5 | 96.9 | 97.1 | 95.1 | 96.8 | 97.5 | 95.4 | 97.3 |
| 疏林 | 2.8 | 2.2 | 1.7 | 1.8 | 2.9 | 1.9 | 1.6 | 2.9 | 2.0 | |
| 草地 | 1.8 | 1.3 | 1.4 | 1.1 | 2.0 | 1.3 | 0.9 | 1.7 | 0.7 |
新窗口打开
通过对比显示,高分辨率卫星估算的林地的排放贡献相比较低分辨率卫星估算的各类大气痕量气体和颗粒物的排放贡献低。不同植被类型对林火排放的贡献差异主要由土地覆盖分类影响,研究表明随着高分辨率到低分辨率的土地覆盖分类,其空间格局基本一致,类别边缘区域的斑块数量会减少,面积较小或者分布分散的土地覆盖类别往往会损失信息,面积较大的优势类别存在信息夸大的趋势[31,32]。虽然本文在林火排放计算中为了保持结果的准确和一致性,没有对低分辨率的影像进行分类,而是基于TM的土地覆盖分类计算出低分辨率尺度网格内的类别比例计算林火排放,由于研究区域内林地为优势地类且连片分布,疏林和草地分布较少,随着尺度的变大,优势类别的比例逐渐增大,面积较小的类别比例有所减小,从而导致优势类别排放的贡献增高,非优势类别的排放贡献降低。
针对卫星估算火烧迹地面积的精度对排放量精度的影响,本文以此次大兴安岭林区特大林火排放的CO2总量为例,将自适应阈值提取的TM的火烧迹地面积和计算得到的CO2排放量当作真值,分别选取不同的阈值提取TM监测到的火烧迹地面积和CO2的排放量。定量分析火烧迹地面积误差对计算的CO2的排放量误差的影响显示,TM提取的火烧迹地面积误差1%时,导致基于排放模型计算的CO2的排放量误差为0.95%。
3.3 空间分辨率对林火排放量的影响
通过对比30 m、500 m和1 km分辨率的TM、MODIS和AVHRR卫星获取的2006年砍都河林场森林大火的排放量发现,空间分辨率对森林火灾释放的各类大气痕量气体和颗粒物排放量有较大的影响（表7）。当卫星空间分辨率从30 m（TM）降低到500 m（MODIS）,各类大气痕量气体和颗粒物排放量差异为25.5%~29.6%;当卫星空间分辨率从30 m（TM）降低到1 km（AVHRR）,各类大气痕量气体和颗粒物的排放量差异为35.4%~39.2%;当卫星空间分辨率从500 m（MODIS）降低到1 km（AVHRR）,各类大气痕量气体和颗粒物的排放量差异为13.1%~13.7%。Tab. 7
表7
表7砍都河林场2006年森林大火不同分辨率卫星估算排放量的差异（%）
Tab. 7Discrepancy of the total emissions among different resolution satellites duringforest fire in 2006 for Kanduhe timberland (%)
| 卫星 | CO2 | CO | CH4 | NMHC | NOx | SO2 | PM2.5 | BC | OC |
|---|---|---|---|---|---|---|---|---|---|
| TM vs MODIS | 28.6 | 26.9 | 25.7 | 25.9 | 29.6 | 26.1 | 25.5 | 28.7 | 26.0 |
| TM vs AVHRR | 38.4 | 36.6 | 35.5 | 35.8 | 39.2 | 35.8 | 35.4 | 38.2 | 35.8 |
| MODIS vs AVHRR | 13.7 | 13.3 | 13.1 | 13.3 | 13.7 | 13.2 | 13.3 | 13.4 | 13.2 |
新窗口打开
卫星空间分辨率对森林大火的排放量计算有比较大的影响,随着卫星空间分辨率的降低,基于排放模型得到的大气痕量气体和颗粒物的排放量也随之减少。一方面是不同尺度的传感器对火烧迹地的监测能力产生限制,低分辨率的传感器不能识别较小的燃烧斑块,随着空间分辨率的降低,火烧迹地的漏判增大,导致得到林火排放量偏小。另一方面引入植被覆盖度来获得真实的火烧迹地面积时,虽然研究区域的高植被覆盖度的特点可忽略NDVI的尺度效应,获得较准确植被覆盖度,但得到的植被覆盖度仍存在一定的差异。已有研究表明,基于低分辨率的影像得到的植被覆盖度要高于实际植被覆盖 度[30],因而导致计算的火烧迹地面积偏大,导致林火排放量偏大。分析基于TM、MODIS和AVHRR计算的PGEEN显示,低分辨率的数据得到的PGEEN大于高分辨率数据的PGEEN,根据燃烧因子的计算公式,从而引起计算得到的燃烧因子偏小,导致计算得到的林火排放量偏小。
4 结论与讨论
随着遥感技术的不断发展,基于卫星遥感的不同时间和空间分辨率的火烧迹地产品用于全球的生物质燃烧的排放研究,然而排放量的定量结果仍有一定的不确定性,尤其是不同空间分辨率的卫星的尺度效应的影响尚未可知。因此,本文基于不同空间分辨率（30 m、500 m和1 km）的TM、MODIS和AVHRR卫星遥感数据对2006年5月22日发生在内蒙古自治区鄂伦春旗大兴安岭砍都河林场森林大火释放的各类大气痕量气体和颗粒物的排放进行了定量估算,并评估卫星空间分辨率对排放量估算的定量影响。结果显示,不同空间分辨率的卫星监测的火烧迹地面积的差异为4.3%~13.8%,随着卫星空间分辨率的降低,火烧迹地面积有一定的减少。不同空间分辨率卫星估算的砍都河林场森林大火释放的二氧化碳（CO2）、一氧化碳（CO）、甲烷（CH4）、非甲烷总烃（NMHC）、氮氧化物（NOx）、二氧化硫（SO2）、可吸入颗粒物（PM2.5）、黑炭（BC）、有机碳（OC）的排放量分别为1.01×106~1.64×106 t、6.07×104~9.58×104 t、2.91×103~4.51×103 t、4.61×103~7.18×103 t、1.83×103~3.01×103 t、5.00×102~7.79×102 t、7.82×103~12.1×103 t、3.10×102~5.02×102 t、4.79×103~7.46×103 t。本文估算的大兴安岭林区砍都河林场的森林火灾的各类大气痕量气体和颗粒物的排放量与胡海清等研究结果的年平均排放量对比显示[9,10],含碳气体CO2、CO、CH4和NMHC的排放量较为一致。其中不同空间分辨率的卫星估算的林地、疏林和草地的贡献分别为83.4%~97.5%、1.5%~10.4%和0.7%~6.3%。研究表明：当卫星空间分辨率从30 m降低到500 m,各类大气痕量气体和颗粒物排放量差异为25.5%~29.6%,从30 m降低到1 km时的排放量差异为35.4%~39.2%,从500 m降低到1 km时的排放量差异为13.1%~13.7%。卫星分辨率从十米级到公里级,排放量存在约30%的差异,当从百米级到公里级,差异减小到约13%。在森林火灾的排放模型中,其影响因子包括过火迹地面积、可燃物载量、燃烧因子和排放因子,由于森林生态系统的空间异质性和复杂性,精确测定这些影响林火排放量计算的参数并不容易。对于小尺度的森林火灾,通过调查测量是可行的,对于大尺度的森林火灾的排放量的定量化,遥感的手段更加适合。然而面对海量的卫星数据,不同分辨率的卫星数据定量计算的差异多大,在大尺度的排放计算时,什么样分辨率的卫星数据更加合适,都是值得研究的问题。本文针对一次大型林火的研究显示,卫星空间分辨率的尺度效应对生物质燃烧释放各类大气痕量气体和颗粒物的估算影响十分明显,随着卫星空间分辨率的降低,估算的排放量也随着减少。主要原因是火烧迹地的监测能力受到卫星传感器像元分辨率的限制,火烧迹地的漏判随着空间分辨率的降低而增大,如500 m分辨率的MODIS火烧迹地产品检测的最小燃烧面积为1.2 km2[13],当火烧迹地面积大于500 hm2时,其误判和漏判小于10%,当火烧迹地面积大于3600 hm2时,MODIS的监测平均误差小于15%,而5 km分辨率的卫星监测平均误差则大于30%[19]。AVHRR对于过火面积较小的火烧迹地面积估算误差较大[33],中低分辨率的卫星传感器往往无法监测到火烧迹地边缘面积较小的燃烧斑块[16]。另一方面,已有研究表明基于低分辨率的遥感影像得到的植被覆盖度要大于实际的植被覆盖度[30],因而低分辨率的植被覆盖度会引起获得的实际火烧迹地面积偏大,导致林火排放量偏大。分析基于三种不同尺度数据源得到的PGEEN显示,计算的低分辨率PGEEN偏大,从而引起燃烧因子偏小,导致得到的林火排放量偏小。此外,随着空间分辨率的增大,土地覆盖边缘面积较小的类型损失,面积较大的优势类别存在信息夸大的趋势[31],因而林地的信息变大,由于林地可燃物载量比草地大,综合考虑林地、草地的燃烧因子,最终仍引起可燃物载量变大,导致林火排放偏大。由于尺度效应的复杂性,关于土地覆盖分类、可燃物载量和燃烧因子对林火排放的影响在本文中的分析仍然有所欠缺,在未来的工作中需要分别针对不同的因子开展更加深入的研究。
