Statistical characteristics of heat stress in early rice based on extreme value distribution in China

HE Liang^1,,,
WU Menxin¹,
HOU Yingyu¹,
ZHAO Gang²,
JIN Ning³,
YU Qiang^{3, 4}
1. National Meteorological Center, Beijing 100081, China
2. Bayer AG, Digital Farming, Langenfeld 40764, Germany
3. State Key Laboratory of Soil Erosion and Dryland Farming on the Loess Plateau, Northwest A & F University, Yangling 712100, China
4. School of Life Sciences, University of Technology Sydney, Sydney 2007, Australia
Funds: the National Natural Science Foundation of China41705095

More Information

Corresponding author:HE Liang, E-mail: heliang_hello@163.com

摘要
HTML全文
图(8)表(1)
参考文献(38)
相关文章
施引文献
资源附件(0)
访问统计

摘要
摘要:揭示水稻高温热害风险特征对农业适应气候变化具有重要意义。本研究以中国早稻种植区为研究区域，基于早稻种植区214个气象站1971-2015年的数据，利用Mann-Kendall非参数趋势检验方法和极值概率分布理论，探究中国早稻高温热害的时空变化趋势和极值概率分布规律。研究发现：1）反映早稻高温热害的两个指标即高温热害累计天数（ADHS，accumulated days of heat stress）和热害有害积温（HDD，heat stress degree days）的均值在湖南中南部、江西中部、浙江和福建中部较大，表明这些区域的早稻遭受高温热害的风险较大；从Mann-Kenall趋势检验看，两个指标在超过1/3的站点都呈显著增加的趋势，说明高温热害风险在这些站点显著增加，尤其20世纪90年代以后超过1/2的站点两个指标都呈显著增加的趋势。2）超过1/2以上的站点的高温热害累计天数和高温有害积温都满足极值概率函数分布。对于高温热害累计天数，56个站点满足耿贝尔分布（Gumbel），82个站点满足广义极值分布（GEV）；对于热害有害积温，61个站点满足耿贝尔分布，58个站点满足广义极值分布。3）两个高温热害指标的10年、50年、100年重现期的空间分布规律和2个指标的均值空间分布类似，即均值较大的区域，其10年、50年、100年重现期对应的重现期水平（return level）也较大；重现期水平与经度、纬度和海拔无明显相关关系。研究结果有助提升对早稻高温热害时空趋势和概率分布规律的认识，可为农业适应气候变化和农业天气指数保险设计等方面提供理论参考。
关键词:早稻/
高温热害累计天数/
热害有害积温/
时空分布/
极值概率分布
Abstract:Rice is one of the most important staple foods globally, eaten by more than half the world population. China is the largest producer of rice, accounting for 18.5% of the rice planted area globally and 28% of the global rice production. Rice is easily exposed to heat stress because of highly frequent heat-stress events in recent climate warming. Heat-stress is one of the main meteorological disasters causing yield loss in agriculture. Thus, it is essential to explore spatial and temporal characteristics along with extreme heat-wave distribution in early rice so as to develop measures for agricultural adaptation to climate change and to prevent and reduce natural disasters. Studies on heat-stress in rice have mainly focused on spatial and/or temporal distributions of heat-stress at provincial or catchment scales and on the relationship between heat-stress and yield production. However, spatial and temporal distributions of heat-stress at national scale and extreme heat-wave distribution have remained rarely explored. Extreme-value (outlier) theory is a branch of statistical deviation of median probability distribution, which is widely used in structural engineering, hydrology and traffic prediction. Here, we introduced extreme-value theory to analyze heat-stress in early rice and hypothesized that heat-stress in rice obeyed specific outlier distribution. Thus, using 214 meteorological data on early rice region in China, we studied spatial and temporal characteristics along with extreme-value distribution of heat-stress in early rice. Non-parametric methods (such as the Mann-Kendal trend test and extreme-value distribution) were used in this study. We found that:1) mean values of two heat-stress indices-ADHS (cumulative heat-stress days) and HDD (heat-stress degree days)-used to determine the extent of heat-stress were larger in the south and central Hunan Province, central Jiangxi Province, central Zhejiang and Fujian Provinces than that in other areas. This indicated that there were more severe heat-stress events in these areas. The two heat-stress indices significantly increased in more than a third of the investigated site (more than half of the sites in 1990-2015). This further indicated that early rice at these sites suffered from worsening heat-stress. 2) ADHS and HDD at more than half of the sites satisfied the extreme-value (outlier) distribution. ADHS at 56 sites obeyed the Gumbel distribution and at 82 sites satisfied the General extreme-value (outlier) distribution. HDD at 61 sites obeyed Gumbel distribution and at 58 sites satisfied the general extreme-value distribution. 3) The spatial distributions of the 10-, 50-and 100-year return periods of the two heat indices were similar to their mean values. It then meant that regions with larger mean values of the two heat-stress indices also had larger return periods. Furthermore, the return periods of the two heat-stress indices were not significantly correlated with longitude, latitude and altitude. The results improved our understanding of spatial and temporal distributions along with extreme-value (outlier) distributions of heat-stress in rice. It provided the scientific basis for adaptation to climate change and agricultural weather index insurance.
Key words:Early rice/
Accumulated days of heat stress/
Heat stress degree days/
Spatial and temporal distribution/
Extreme-value distribution

HTML全文

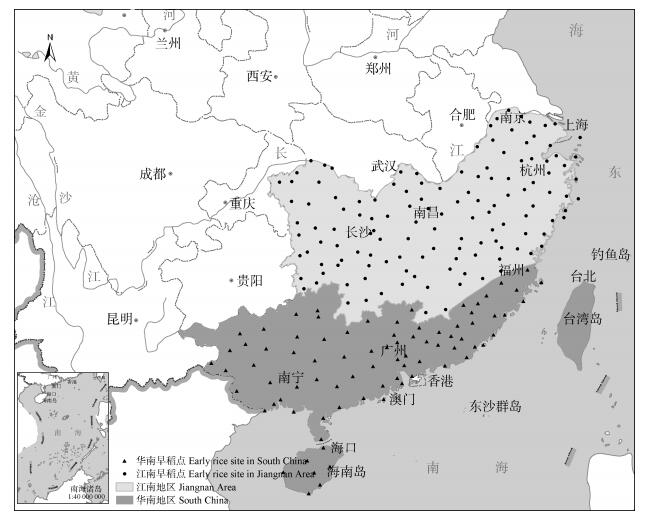

图1早稻区域气象站点分布
Figure1.Meteorological sites in the early rice area of China investigated in this study


下载: 全尺寸图片幻灯片

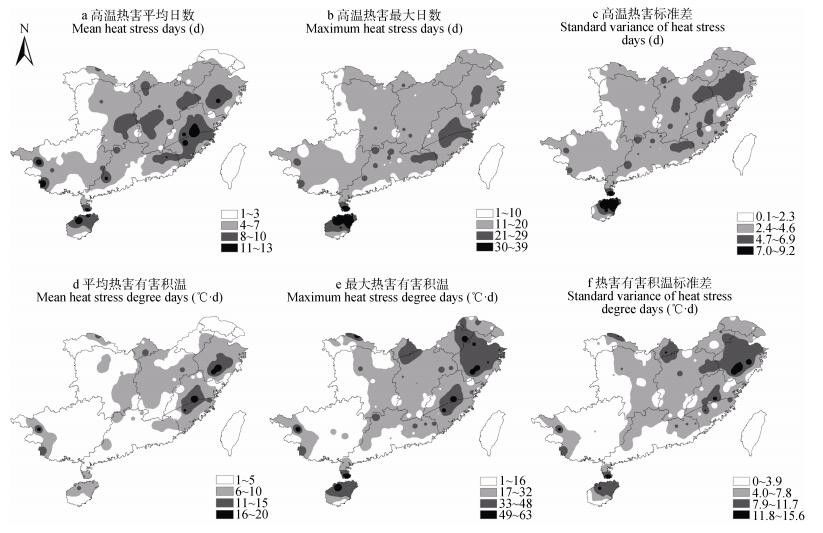

图2早稻区域早稻高温热害累计天数和热害有害积温的均值、最大值、标准差
Figure2.Mean, maximum, standard variance of heat stress days and heat stress degree days of early rice in the early rice area


下载: 全尺寸图片幻灯片

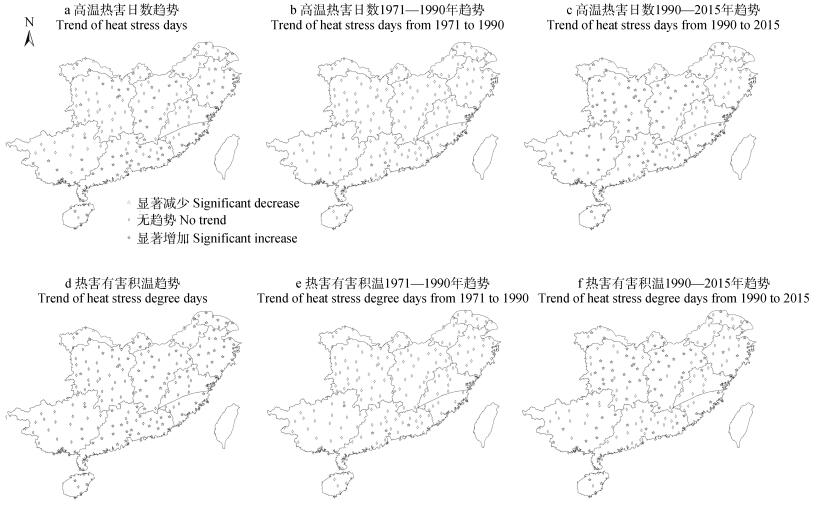

图31971—2015年(a, d)、1971—1990年(b, e)和1990—2015年(c, f)早稻区域早稻高温热害累计天数(a, b, c)和热害有害积温(d, e, f)Mann-kendall趋势分段趋势检验
Figure3.Mann-Kendall tests of accumulated days of heat stress (a, b, c) and heat stress degree days (d, e, f) of early rice during 1971-2015 (a, d), 1971-1990 (b, e) and 1990-2015 (c, f) in the early rice area


下载: 全尺寸图片幻灯片

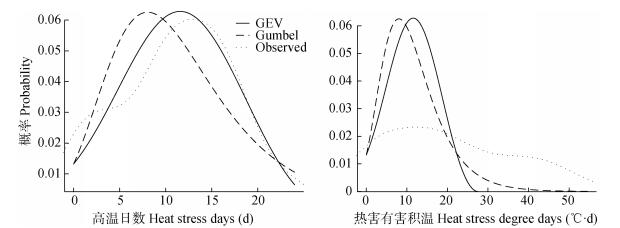

图4浙江丽水站高温热害累计天数和热害有害积温概率密度函数和极值函数分布拟合曲线
(GEV:广义极值分布; Gumbel:耿贝尔分布; Observed:观测)
Figure4.Observed density and functions fitted probability of accumulated days of heat stress (ADHS) and heat stress degree days (HDD) at Lishui Station, Zhejiang Province
(GEV: generalized extreme value; Gumbel: Gumbel distribution; Observed: observed serials)


下载: 全尺寸图片幻灯片

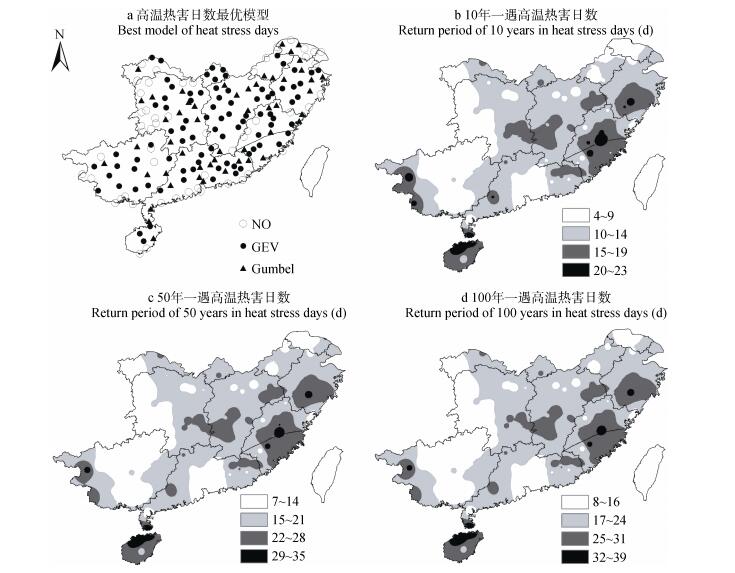

图5早稻区早稻高温热害累计天数的最优模型分布(NO:无; GEV:广义极值分布; Gumbel:耿贝尔分布)和10年、50年、100年重现期分布
Figure5.Accumulative heat stress days of early rice according to distribution of optimal model (NO: no model; GEV: generalized extreme value; Gumbel: Gumbel distribution) and under return periods of 10, 50 and 100 years in the early rice area


下载: 全尺寸图片幻灯片

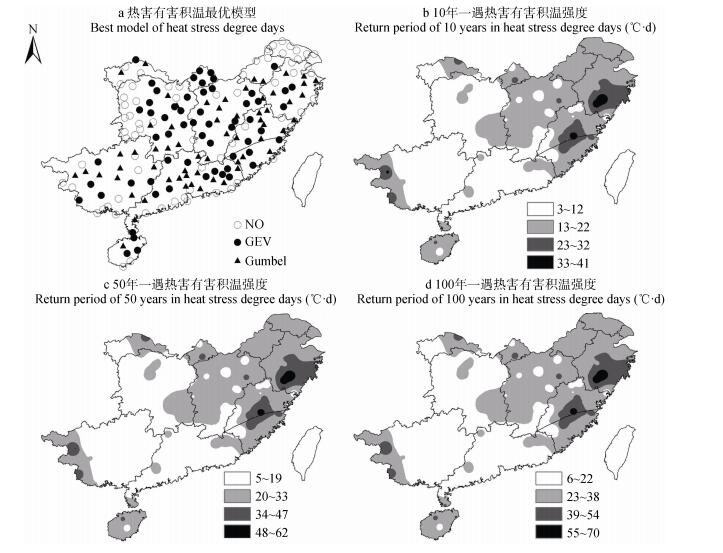

图6早稻热害有害积温的最优模型分布(NO:无; GEV:广义极值分布; Gumbel:耿贝尔分布)和10年、50年、100年重现期
Figure6.Heat stress degree days of early rice according to distribution of optimal model (NO: no model; GEV: generalized extreme value; Gumbel: Gumbel distribution) and under return periods of 10, 50 and 100 years in the early rice area


下载: 全尺寸图片幻灯片

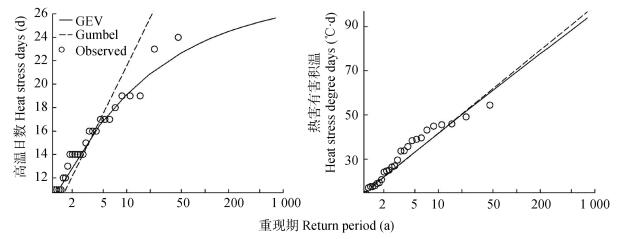

图7浙江丽水站在不同最优模型分布下的重现期对应的高温热害指标与观测值的对比
(GEV:广义极值分布; Gumbel:耿贝尔分布; Observed:观测)
Figure7.Comparisons of heat stress indices between observed values and predicted values by different probability models at Lishui Station, Zhejiang Province under different return periods
(GEV: generalized extreme value; Gumbel: Gumbel distribution; Observed: observed serials)


下载: 全尺寸图片幻灯片

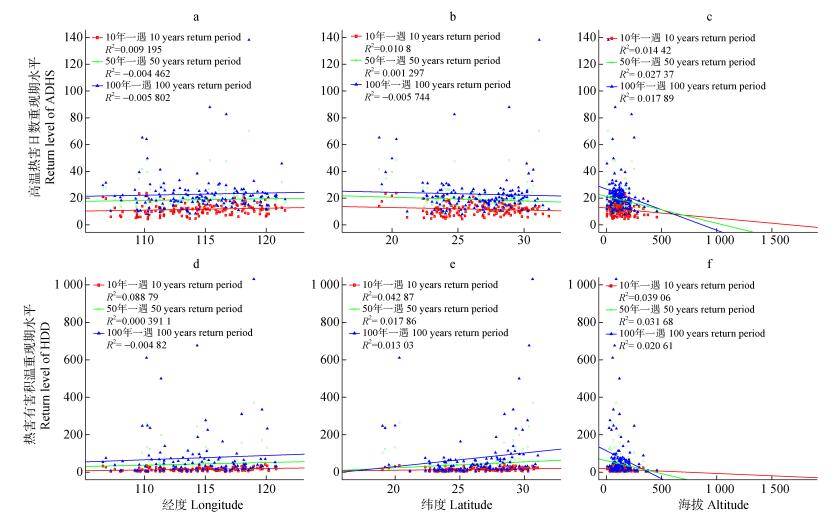

图8不同重现期下的高温热害累计天数和热害有害积温回归水平与经度、纬度和海拔的关系
Figure8.Relationships between return level of accumulative heat stress days (ADHS), heat stress degree days (HDD) and longitude, latitude, and altitude under different return periods


下载: 全尺寸图片幻灯片

表1早稻高温热害指标时间序列的最优分布的站点数
Table1.Number of meteorological sites with the optimal distribution models for time-serials of heat stress indices of early rice

高温热害指标 Heat stress index	耿贝尔分布 Gumbel distribution	广义极值分布 GEV distribution	不显著 No significant
高温热害累计天数 Accumulated days of heat stress	56	82	76
热害有害积温 Heat stress degree days	61	58	95

下载: 导出CSV

参考文献(38)

[1]	JAGADISH S V K, MURTY M V R, QUICK W P. Rice responses to rising temperatures-Challenges, perspectives and future directions[J]. Plant, Cell & Environment, 2014, 38(9):1686-1698 doi: 10.1111/pce.12430/pdf
[2]	SHI P H, TANG L, WANG L H, et al. Post-heading heat stress in rice of South China during 1981-2010[J]. PLoS One, 2015, 10(6):e0130642 doi: 10.1371/journal.pone.0130642
[3]	杨舒畅, 申双和.水稻高温热害及其风险评估的研究进展[J].农学学报, 2016, 6(2):122-125 http://d.old.wanfangdata.com.cn/Periodical/zgncxkkj201602022 YANG S C, SHEN S H. Research progress of high temperature injury of rice and its risk accessment[J]. Journal of Agriculture, 2016, 6(2):122-125 http://d.old.wanfangdata.com.cn/Periodical/zgncxkkj201602022
[4]	JAGADISH S V K, CRAUFURD P Q, WHEELER T R. High temperature stress and spikelet fertility in rice (Oryza sativa L.)[J]. Journal of Experimental Botany, 2007, 58(7):1627-1635 doi: 10.1093/jxb/erm003
[5]	ZHANG S, TAO F L, ZHANG Z. Changes in extreme temperatures and their impacts on rice yields in southern China from 1981 to 2009[J]. Field Crops Research, 2016, 189:43-50 doi: 10.1016/j.fcr.2016.02.008
[6]	黄义德, 曹流俭, 武立权, 等. 2003年安徽省中稻花期高温热害的调查与分析[J].安徽农业大学学报, 2004, 31(4):385-388 doi: 10.3969/j.issn.1672-352X.2004.04.001 HUANG Y D, CAO L J, WU L Q, et al. Investigation and analysis of heat damage on rice at blossoming stage in Anhui Province in 2003[J]. Journal of Anhui Agricultural University, 2004, 31(4):385-388 doi: 10.3969/j.issn.1672-352X.2004.04.001
[7]	谢晓金, 申双和, 李映雪, 等.高温胁迫下水稻红边特征及SPAD和LAI的监测[J].农业工程学报, 2010, 26(3):183-190 http://d.old.wanfangdata.com.cn/Periodical/nygcxb201003031 XIE X J, SHEN S H, LI Y X, et al. Red edge characteristics and monitoring SPAD and LAI for rice with high temperature stress[J]. Transactions of the CSAE, 2010, 26(3):183-190 http://d.old.wanfangdata.com.cn/Periodical/nygcxb201003031
[8]	高焕晔, 王三根, 宗学凤, 等.灌浆结实期高温干旱复合胁迫对稻米直链淀粉及蛋白质含量的影响[J].中国生态农业学报, 2012, 20(1):40-47 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=20120108&flag=1 GAO H Y, WANG S G, ZONG X F, et al. Effects of combined high temperature and drought stress on amylose and protein contents at rice grain-filling stage[J]. Chinese Journal of Eco-Agriculture, 2012, 20(1):40-47 http://www.ecoagri.ac.cn/zgstny/ch/reader/view_abstract.aspx?file_no=20120108&flag=1
[9]	YAO F M, XU Y L, LIN E D, et al. Assessing the impacts of climate change on rice yields in the main rice areas of China[J]. Climatic Change, 2007, 80(3/4):395-409 doi: 10.1007-s10584-006-9122-6/
[10]	SHEN X J, LIU B H, LU X G, et al. Spatial and temporal changes in daily temperature extremes in China during 1960-2011[J]. Theoretical and Applied Climatology, 2017, 130(3/4):933-943 doi: 10.1007/s00704-016-1934-3
[11]	SUN Y, ZHANG X B, ZWIERS F W, et al. Rapid increase in the risk of extreme summer heat in Eastern China[J]. Nature Climate Change, 2014, 4(12):1082-1085 doi: 10.1038/nclimate2410
[12]	ZHANG Z, WANG P, CHEN Y, et al. Global warming over 1960-2009 did increase heat stress and reduce cold stress in the major rice-planting areas across China[J]. European Journal of Agronomy, 2014, 59:49-56 doi: 10.1016/j.eja.2014.05.008
[13]	万素琴, 陈晨, 刘志雄, 等.气候变化背景下湖北省水稻高温热害时空分布[J].中国农业气象, 2009, 30(S2):316-319 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK200903015533 WAN S Q, CHEN C, LIU Z X, et al. Space-time distribution of heat injury on rice in Hubei Province under climate change[J]. Chinese Journal of Agrometeorology, 2009, 30(S2):316-319 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK200903015533
[14]	于堃, 宋静, 高苹.江苏水稻高温热害的发生规律与特征[J].气象科学, 2010, 30(4):530-533 doi: 10.3969/j.issn.1009-0827.2010.04.016 YU K, SONG J, GAO P. Characteristics of heat damage for rice in Jiangsu Province[J]. Scientia Meteorologica Sinica, 2010, 30(4):530-533 doi: 10.3969/j.issn.1009-0827.2010.04.016
[15]	杨太明, 陈金华, 金志凤, 等.皖浙地区早稻高温热害发生规律及其对产量结构的影响研究[J].中国农学通报, 2013, 29(27):97-104 http://d.old.wanfangdata.com.cn/Periodical/zgnxtb201327018 YANG T M, CHEN J H, JIN Z F, et al. Study on the law of rice high temperature induced heat damage and its relationship with rice yield structure in Anhui and Zhejiang Province[J]. Chinese Agricultural Science Bulletin, 2013, 29(27):97-104 http://d.old.wanfangdata.com.cn/Periodical/zgnxtb201327018
[16]	谭诗琪, 申双和.长江中下游地区近32年水稻高温热害分布规律[J].江苏农业科学, 2016, 44(8):97-101 http://d.old.wanfangdata.com.cn/Periodical/jsnykx201608026 TAN S Q, SHEN S H. Distribution of high thermal damage to rice in middle and lower reaches of the Yangtze River in recent 32 years[J]. Jiangsu Agricultural Sciences, 2016, 44(8):97-101 http://d.old.wanfangdata.com.cn/Periodical/jsnykx201608026
[17]	HUANG J, ZHANG F M, XUE Y, et al. Recent changes of rice heat stress in Jiangxi Province, southeast China[J]. International Journal of Biometeorology, 2017, 61(4):623-633 doi: 10.1007/s00484-016-1239-3
[18]	WANG P, ZHANG Z, CHEN Y, et al. How much yield loss has been caused by extreme temperature stress to the irrigated rice production in China?[J]. Climatic Change, 2016, 134(4):635-650 doi: 10.1007/s10584-015-1545-5
[19]	任义方, 高苹, 王春乙.江苏高温热害对水稻的影响及成因分析[J].自然灾害学报, 2010, 19(5):101-107 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK201002579073 REN Y F, GAO P, WANG C Y. High temperature damage to paddy rice in Jiangsu Province and its cause analysis[J]. Journal of Natural Disasters, 2010, 19(5):101-107 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK201002579073
[20]	冯灵芝, 熊伟, 居辉, 等. RCP情景下长江中下游地区水稻生育期内高温事件的变化特征[J].中国农业气象, 2015, 36(4):383-392 doi: 10.3969/j.issn.1000-6362.2015.04.002 FENG L Z, XIONG W, JU H, et al. Changes of high temperature events during rice growth period in MLRYR under RCP Scenarios[J]. Chinese Journal of Agrometeorology, 2015, 36(4):383-392 doi: 10.3969/j.issn.1000-6362.2015.04.002
[21]	李琪, 任景全, 王连喜.未来气候变化情景下江苏水稻高温热害模拟研究Ⅰ:评估孕穗-抽穗期高温热害对水稻产量的影响[J].中国农业气象, 2014, 35(1):91-96 doi: 10.3969/j.issn.1000-6362.2014.01.014 LI Q, REN J Q, WANG L X. Simulation of the heat injury on rice production in Jiangsu Province under the climate change scenariosⅠ:Impact assessment of the heat injury on rice yield from booting to heading stage[J]. Chinese Journal of Agrometeorology, 2014, 35(1):91-96 doi: 10.3969/j.issn.1000-6362.2014.01.014
[22]	王连喜, 任景全, 李琪.未来气候变化情景下江苏水稻高温热害模拟研究Ⅱ:孕穗-抽穗期水稻对高温热害的适应性分析[J].中国农业气象, 2014, 35(2):206-213 doi: 10.3969/j.issn.1000-6362.2014.02.014 WANG L X, REN J Q, LI Q. Simulation of the heat injury on rice production in Jiangsu Province under the climate change scenarios Ⅱ:Adaptability analysis of the rice to heat injury from booting to heading stage[J]. Chinese Journal of Agrometeorology, 2014, 35(2):206-213 doi: 10.3969/j.issn.1000-6362.2014.02.014
[23]	JIANG Z H, SONG J, LI L, et al. Extreme climate events in China:IPCC-AR4 model evaluation and projection[J]. Climatic Change, 2012, 110(1/2):385-401 doi: 10.1007/s10584-011-0090-0
[24]	佘敦先, 夏军, 张永勇, 等.近50年来淮河流域极端降水的时空变化及统计特征[J].地理学报, 2011, 66(9):1200-1210 http://d.old.wanfangdata.com.cn/Periodical/dlxb201109005 SHE D X, XIA J, ZHANG Y Y, et al. The trend analysis and statistical distribution of extreme rainfall events in the Huaihe River Basin in the past 50 years[J]. Acta Geographica Sinica, 2011, 66(9):1200-1210 http://d.old.wanfangdata.com.cn/Periodical/dlxb201109005
[25]	张强, 李剑锋, 陈晓宏, 等.基于Copula函数的新疆极端降水概率时空变化特征[J].地理学报, 2011, 66(1):3-12 http://d.old.wanfangdata.com.cn/Periodical/dlxb201101001 ZHANG Q, LI J F, CHEN X H, et al. Spatial variability of probability distribution of extreme precipitation in Xinjiang[J]. Acta Geographica Sinica, 2011, 66(1):3-12 http://d.old.wanfangdata.com.cn/Periodical/dlxb201101001
[26]	程炳岩, 丁裕国, 何卷雄.全球变暖对区域极端气温出现概率的影响[J].热带气象学报, 2003, 19(4):429-435 doi: 10.3969/j.issn.1004-4965.2003.04.011 CHENG B Y, DING Y G, HE J X. The influence of the global warming on probabilities of regional extreme temperatures[J]. Journal of Tropical Meteorology, 2003, 19(4):429-435 doi: 10.3969/j.issn.1004-4965.2003.04.011
[27]	林晶, 陈惠, 陈家金, 等.福建省年极端低温的分布及其参数估计[J].中国农业气象, 2011, 32(S1):24-27 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK201103788443 LIN J, CHEN H, CHEN J J, et al. The distributions of yearly minimum temperature and parameter estimation in Fujian Province[J]. Chinese Journal of Agrometeorology, 2011, 32(S1):24-27 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK201103788443
[28]	刘军臣, 千怀遂.黄淮地区月极端气温概率模型[J].河南大学学报:自然科学版, 2000, 30(2):84-87 http://d.old.wanfangdata.com.cn/Periodical/hndxxbzr200002021 LIU J C, QIAN H S. A study on the probability model of monthly extreme temperature in Huanghuai area[J]. Journal of Henan University:Natural Science, 2000, 30(2):84-87 http://d.old.wanfangdata.com.cn/Periodical/hndxxbzr200002021
[29]	陈雅子, 申双和.江苏省水稻高温热害保险的天气指数研制[J].江苏农业科学, 2016, 44(10):461-464 http://d.old.wanfangdata.com.cn/Periodical/jsnykx201610133 CHEN Y Z, SHEN S H. Design of weather index of high temperature thermal damage insurance for rice in Jiangsu Province[J]. Jiangsu Agricultural Sciences, 2016, 44(10):461-464 http://d.old.wanfangdata.com.cn/Periodical/jsnykx201610133
[30]	毛留喜, 魏丽.大宗作物气象服务手册[M].北京:气象出版社, 2015:96-97 MAO L X, WEI L. Handbook of Meteorological Service for Staple Crops[M]. Beijing:China Meteorological Press, 2015:96-97
[31]	武汉区域气候中心. GB/T 21985-2008主要农作物高温危害温度指标[S].北京: 中国标准出版社, 2008 Regional Climate Center of Wuhan. GB/T 21985-2008 Temperature Index of High Temperature Harm for Main Crops[S]. Beijing: China Standards Press, 2008
[32]	魏凤英.现代气候统计诊断与预测技术[M].北京:气象出版社, 2007:69-70 WEI F Y. Modern Technology of Statistics, Diagnosis and Forecast for Climate[M]. Beijing:China Meteorological Press, 2007:69-70
[33]	GOCIC M, TRAJKOVIC S. Analysis of changes in meteorological variables using Mann-Kendall and Sen's slope estimator statistical tests in Serbia[J]. Global and Planetary Change, 2013, 100:172-182 doi: 10.1016/j.gloplacha.2012.10.014
[34]	MANN H B. Nonparametric tests against trend[J]. Econometrica, 1945, 13(3):245-259 doi: 10.2307/1907187
[35]	COLES S. An Introduction to Statistical Modeling of Extreme Values[M]. London:Springer, 2001:54-59
[36]	陈升孛, 刘安国, 张亚杰, 等.气候变化背景下湖北省水稻高温热害变化规律研究[J].气象与减灾研究, 2013, 36(2):51-56 doi: 10.3969/j.issn.1007-9033.2013.02.007 CHEN S B, LIU A G, ZHANG Y J, et al. Dynamic variations of heat injury on rice in Hubei Province under climate change[J]. Meteorology and Disaster Reduction Research, 2013, 36(2):51-56 doi: 10.3969/j.issn.1007-9033.2013.02.007
[37]	何永坤, 范莉, 阳园燕.近50年来四川盆地东部水稻高温热害发生规律研究[J].西南大学学报:自然科学版, 2011, 33(12):39-43 http://d.old.wanfangdata.com.cn/Conference/7501165 HE Y K, FAN L, YANG Y Y. Study on the occurrence of high temperature-induced heat damage in rice in the east of Sichuan Basin in the past 50 years[J]. Journal of Southwest University:Natural Science Edition, 2011, 33(12):39-43 http://d.old.wanfangdata.com.cn/Conference/7501165
[38]	朱珠, 陶福禄, 娄运生. 1980-2009年江苏省气温变化特征及水稻高温热害变化规律[J].江苏农业科学, 2013, 41(6):311-315 doi: 10.3969/j.issn.1002-1302.2013.06.112 ZHU Z, TAO F L, LOU Y S. Temperature variation characteristics and high temperature damage of rice in Jiangsu Province from 1980 to 2009[J]. Jiangsu Agricultural Sciences, 2013, 41(6):311-315 doi: 10.3969/j.issn.1002-1302.2013.06.112
