Population Structure and Association Analysis of Main Agronomic Traits of Shanxi Core Collection in Foxtail Millet
WANG HaiGang, WEN QiFen, MU ZhiXin,, QIAO ZhiJun,Institute of Crop Germplasm Resources of Shanxi Academy of Agricultural Sciences/Key Laboratory of Crop Gene Resources and Germplasm Enhancement on Loess Plateau, Ministry of Agriculture/Shanxi Key Laboratory of Genetic Resources and Genetic Improvement of Minor Crops, Taiyuan 030031
Received:2019-04-22Accepted:2019-06-20Online:2019-11-16 作者简介 About authors 王海岗,E-mail:nkywhg@126.com

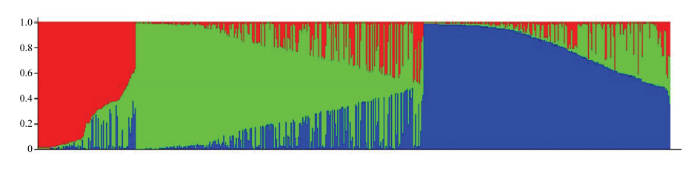

摘要 【目的】分析山西谷子地方品种遗传多样性和群体遗传结构,筛选与谷子农艺性状相关联的分子标记,为谷子杂交组合亲本选配及分子标记辅助育种提供依据。【方法】 利用96对SSR标记对595份山西谷子核心资源进行全基因组扫描,采用PowerMarker 3.25软件分析群体遗传多样性,利用STRUCTURE 2.3.4软件分析群体遗传结构,使用TASSEL 2.1软件中GLM(general linear model,Q)和MLM(mixed linear model,Q+K)2种方法,进行表型和标记关联分析。【结果】 96对SSR引物共扩增出828个等位变异,平均每对引物扩增到8.6个,变化范围为2—26;基因多样性指数变化范围为0.005—0.941,平均为0.610;多态信息量变化范围为0.005—0.938,平均为0.577;各位点杂合度变化范围为0—0.050,平均位点杂合度仅为0.016。群体结构分析将595份核心资源分为3个亚群。4 560个SSR位点成对组合中,共线性组合和非共线性组合之间都存在一定的连锁不平衡。D′统计概率(P<0.01)支持的LD成对位点1 955个,占全部位点组合的42.9%,D′平均值为0.23。通过GLM方法共检测到12个极显著性位点(P<0.01),表型变异解释率为2.34%—13.94%,平均为6.33%,贡献率较高的等位变异位点是CAAS2050(R2=13.94%)和B153(R2=11.36%);通过MLM方法共检测到9个极显著性位点(P<0.01),表型变异解释率为2.80%—9.22%,平均为5.16%,贡献率较高的等位变异位点是P89(R2=9.22%)和P3*(R2=8.28%);2种方法共同检测到的极显著性位点有7个。 【结论】 利用SSR标记分析了595份山西谷子核心资源的遗传多样性和群体遗传结构。2种关联分析模型中,GLM方法关联到12个标记与节数、株高、颈长、茎粗、穗长、穗粗、码数、码粒数、蛋白质含量9个性状相关;MLM方法关联到9个标记与节数、颈长、叶宽、茎粗、穗粗、码数、码粒数、千粒重8个性状相关。 关键词:谷子;山西;地方品种;SSR;遗传多样性;连锁不平衡;关联分析
Abstract 【Objective】The objective of this study is to detect the SSR markers associated with agronomic trait and analyze genetic diversity and genetic structure of foxtail millet landrace in Shanxi province. The results will be helpful for hybridization combination of parent materials and molecular marker assisted breeding.【Method】96 SSR markers on 9 chromosomes were genome-wide screened for polymorphism in core collection of 595 accessions. PowerMarker 3.25 software was used to estimate the polymorphism information of population. Population structure was analyzed using STRUCTURE 2.3.4 software. Then the data were associated with 96 SSR markers by GLM (general linear model, Q) and MLM (mixed linear model, Q+K).【Result】Totally 828 alleles were found with 96 SSR markers and 8.6 alleles were revealed with each marker in average ranged from 2-26. The gene diversity was from 0.005 to 0.941, averagely 0.610. The polymorphism information content (PIC) value ranged from 0.005 to 0.938 with the mean of 0.577. Heterozygosity per locus on average was 0.016, ranging from 0 to 0.050. All the 595 accessions were divided into three subgroups by analysis of population genetic structure. There was linkage disequilibrium (LD) among linked loci and unlinked loci pairs, and 1 955 out of 4 560 loci pairs (42.9%) had significant LD (P < 0.01) with average D′ value of 0.23. A total of 12 locus found by GLM method significantly at the level of P<0.01 which explained 2.34%-13.94% of the phenotypic variance and the mean value was 6.33%. CAAS2050 (R2=13.94%) and B153(R2=11.36%) kept the max value. Meanwhile, 9 loci were found by MLM method significantly at the level of P<0.01 which explained 2.80%-9.22% of the phenotypic variance and the mean value was 5.16%. P89(R2=9.22%) and P3*(R2=8.28%) kept the max value. A total of 7 loci were detected in common by GLM and MLM. 【Conclusion】Genetic diversity and population structure of 595 accessions were analyzed through SSR markers. In the two association analysis models, 12 markers were associated with nine traits including stem node number, plant height, peduncle length, diameter of main stem, panicle length, panicle diameter, primary branch number per panicle, spikelet number per primary branch, protein content by GLM. Nine markers were associated with eight traits including stem node number, peduncle length, leaf width, diameter of main stem, panicle diameter, primary branch number per panicle, spikelet number per primary branch, 1000-grain weight by MLM. Keywords:foxtail millet;Shanxi;landrace;SSR;genetic diversity;linkage disequilibrium;association analysis
PDF (2476KB)元数据多维度评价相关文章导出EndNote|Ris|Bibtex收藏本文 本文引用格式 王海岗, 温琪汾, 穆志新, 乔治军. 山西谷子核心资源群体结构及主要农艺性状关联分析[J]. 中国农业科学, 2019, 52(22): 4088-4099 doi:10.3864/j.issn.0578-1752.2019.22.013 WANG HaiGang, WEN QiFen, MU ZhiXin, QIAO ZhiJun. Population Structure and Association Analysis of Main Agronomic Traits of Shanxi Core Collection in Foxtail Millet[J]. Scientia Acricultura Sinica, 2019, 52(22): 4088-4099 doi:10.3864/j.issn.0578-1752.2019.22.013
Table3 表3 表3GLM和MLM关联分析 Table3Association analysis by the GLM and MLM (P<0.01)
性状 Trait
位点 SSR loci
染色体 Chromosome
GLM
MLM
2017
2018
2017
2018
R2
P
R2
P
R2
P
R2
P
节数SN
P58
Chr.1
0.0572
6.42E-08
0.0597
1.73E-07
B142
Chr.7
0.052
6.39E-05
株高PH
P58
Chr.1
0.0541
1.06E-07
0.0547
2.19E-07
颈长PL
CAAS6023
Chr.6
0.0558
3E-09
0.0517
1.77E-08
0.0298
8.8E-05
叶宽LW
In6-2
Chr.6
0.0444
4.34E-05
茎粗DMS
P3*
Chr.1
0.0774
1.04E-05
0.0977
4.95E-08
0.0828
3.73E-06
In6-2
Chr.6
0.0458
2.91E-05
0.0498
8.95E-06
0.0445
5.1E-05
P58
Chr.1
0.0522
3.73E-05
P89
Chr.4
0.0922
1.3E-06
B142
Chr.7
0.0628
6.19E-05
穗长PL
B153
Chr.1
0.0605
7.03E-07
0.0517
7.02E-06
CAAS7036
Chr.7
0.0234
3.08E-05
0.0306
1.16E-06
穗粗PD
B142
Chr.7
0.068
1.37E-05
0.0646
5.05E-05
B117
Chr.5
0.0457
6.4E-05
码数PBNP
CAAS2050
Chr.2
0.0514
3.48E-06
0.1394
3.59E-18
0.053
1.61E-06
In2-11
Chr.2
0.028
1.82E-05
In6-2
Chr.6
0.0258
5.04E-05
0.0277
3.55E-05
B142
Chr.7
0.0583
9.36E-05
0.0772
1.14E-06
码粒数SNPB
B117
Chr.5
0.0559
4.73E-06
0.0439
9.4E-05
0.046
6.78E-05
千粒重GW
CAAS6023
Chr.6
0.0375
5.05E-05
蛋白含量PC
B153
Chr.1
0.1136
1.12E-12
0.1081
4.84E-11
In1-7
Chr.1
0.0512
3.08E-07
0.0425
1.09E-05
P14
Chr.8
0.0901
3.77E-07
0.1108
7.03E-09
SN: Stem node number; PH: Plant height; PL: Peduncle length; LW: Leaf width; DMS: Diameter of main stem; PL: Panicle length; PD: Panicle diameter; PBNP: Primary branch number per panicle; SNPB: Spikelet number per primary branch; GW: 1000-grain weight; PC: Protein content; GLM: General linear model; MLM: Mixed linear model SN:节数;PH:株高;PL:颈长;LW:叶宽;DMS:茎粗;PL:穗长;PD:穗粗;PBNP:码数;SNPB:码粒数;GW:千粒重;PC:蛋白含量;GLM:一般线性模型;MLM:混合线性模型
贾冠清, 刁现民 . 谷子(Setaria italica (L.) P. Beauv.)作为功能基因组研究模式植物的发展现状及趋势 , 2017,29(3):292-301. [本文引用: 1]
JIA GQ, DIAO XM . Current status and perspectives of researches on foxtail millet (Setaria italica(L.) P. Beauv.): A potential model of plant functional genomics studies. Chinese Bulletin of Life Sciences, 2017,29(3):292-301. (in Chinese) [本文引用: 1]
WANG HG, QIN HB, TIANX, Lü JZ, CHENL, WANG JJ, CAO XN, LIU SC, WANGL, WEN QF, MU ZX, QIAO ZJ . Phenotypic diversity of local foxtail millet varieties in Shanxi Chinese Agricultural Science Bulletin, 2018,34(32):19-24. (in Chinese) [本文引用: 1]
WANG RH, WANG TY, LIY . Application of association analysis in molecular evaluation of crop germplasm resources Journal of Plant Genetic Resources, 2007,8(3):366-372. (in Chinese) [本文引用: 1]
YANG XH, YAN JB, ZHENG YP, YU JM, LI JS . Reviews of association analysis for quantitative traits in plants Acta Agronomica Sinica, 2007,33(4):523-530. (in Chinese) [本文引用: 1]
FENG JY, WEN YJ, ZHANGJ, ZHANG YM . Advances on methodologies for genome-wide association studies in plants Acta Agronomica Sinica, 2016,42(7):945-956. (in Chinese) [本文引用: 1]
ZHAO HL, CHENK, ZHANGQ, XU ZJ, XU JL, LI ZK . Association analysis on source sink-related traits in rice based on linkage disequilibrium Journal of Nuclear Agricultural Sciences, 2015,29(4):674-684. (in Chinese) [本文引用: 1]
SUN XT, LU DD, OUYANG LJ, HU LF, BIAN JM, PENG XS, CHEN XR, FU JR, HE XP, HE HH, ZHU CL . Association mapping and resistant alleles analysis for sheath blight resistance in rice Acta Agronomica Sinica, 2014,40(5):779-787. (in Chinese) [本文引用: 1]
ZHANG DL, ZHANG HN, HAO CY, WANG LF, LIT, ZHANG XY . Influence of canopy temperature (ct) during grain-filling period on yield and effects of several ct-associated SSR loci Acta Agronomica Sinica, 2015,41(4):548-556. (in Chinese) [本文引用: 2]
ZHU YL, WANG SX, ZHAO LX, ZHANG DX, HU JB, CAO XL, YANG YJ, CHANGC, MA CX, ZHANG HP . Exploring molecular markers of preharvest sprouting resistance gene using wheat intact spikes by association analysis Acta Agronomica Sinica, 2014,40(10):1725-1732. (in Chinese) [本文引用: 1]
YANG SX, NIUY, LIM, WEI SP, LIU XF, Lü HY, ZHANG YM . Association mapping of agronomic traits in soybean ( Glycine max L. Merr.) and mining of novel alleles Scientia Agricultura Sinica, 2014,47(20):3941-3952. (in Chinese)
WEN ZX, ZHAO TJ, ZHENG YZ, LIU SH, WANG CE, WANGF, GAI JY . Association analysis of agronomic and quality traits with SSR markers in glycine max and glycine soja in China: I. Population structure and associated markers Acta Agronomica Sinica, 2008,34(7):1169-1178. (in Chinese) [本文引用: 1]
WEN ZX, ZHAO TJ, ZHENG YZ, LIU SH, WANG CE, WANGF, GAI JY . Association analysis of agronomic and quality traits with SSR markers in glycine max and glycine soja in china: ii. exploration of elite alleles Acta Agronomica Sinica, 2008,34(8):1339-1349. (in Chinese) [本文引用: 1]
FANH, WEN ZX, WANG CE, WANGF, XING GN, ZHAO TJ, GAI JY . Association analysis between agronomic-processing traits and SSR markers and genetic dissection of specific accessions in Chinese wild soybean population Acta Agronomica Sinica, 2013,39(5):775-788. (in Chinese) [本文引用: 1]
SUN HM, ZHANGJ, ZHAO TJ, GAI JY . Association analysis between submergence tolerance and SSR markers in domestic and foreign soybean cultivars in Asia Acta Agronomica Sinica, 2010,36(10):1615-1623. (in Chinese) [本文引用: 1]
NIE XH, YOU CY, BAOJ, LI XF, HUIH, LIU HL, QIN JH, LIN ZX . Exploration of elite alleles of agronomic and fiber quality traits in Xinluzao cotton varieties by association analysis Scientia Agricultura Sinica, 2015,48(15):2891-2910. (in Chinese) [本文引用: 1]
LIU QB, LI LB, ZHANGC, SU JJ, WEI HL, WANG HT, YU SX . Association analysis of leaf chlorophyll content with SSR markers and exploration of superior alleles in upland cotton Scientia Agricultura Sinica, 2017,50(18):3439-3449. (in Chinese) [本文引用: 1]
WANGJ, DONG CG, LIUL, KONG XH, WANG XW, YUY . Association analysis and exploration of elite alleles of mechanical harvest-related traits with SSR markers in upland cotton cultivars ( Gossypium hirsutum L.) Acta Agronomica Sinica, 2010,36(10):1615-1623. (in Chinese) [本文引用: 1]
LAIY, WANG PX, FAN GQ, SI EJ, WANGJ, YANGK, MENG YX, LI BC, MA XL, SHANG XW, WANG HJ . Genetic diversity and association analysis using SSR markers in barley Scientia Agricultura Sinica, 2013,46(2):233-242. (in Chinese) [本文引用: 1]
JIANG XD, GUO GG, ZHANGJ . Analysis on the genetic diversity in Chinese barley landrace and genomic wide association of α-amylase activity genes Scientia Agricultura Sinica, 2013,46(4):668-677. (in Chinese) [本文引用: 1]
LAIY, WANG PX, FAN GQ, SI EJ, WANGJ, YANGK, MENG YX, LI BC, MA XL, SHANG XW, WANG HJ . Genetic diversity and linkage disequilibrium analysis in barley Acta Agronomica Sinica, 2013,39(12):2154-2161. (in Chinese) [本文引用: 1]
WANG CF, JIA GQ, ZHIH, NIU ZG, CHAIY, LIW, WANG YF, LI HQ, LUP, ZHAO BH, DIAO XM . Genetic diversity and population structure of Chinese foxtail millet [Setaria italica (L.) Beauv.] landraces. , 2012,7(2):769-777. [本文引用: 4]
JIA GQ, LIU XT, SCHNABLE JC, NIU ZG, WANG CF, LI YH, WANG SJ, WANG SY, LIU JR, GUO EH, ZHIH, DIAO XM . Microsatellite variations of elite Setaria varieties released during last six decades in China , 10(5):e0125688. [本文引用: 3]
VETRIVENTHANM, UPADHYAYA HARID, ANANDAKUMAR CR, SENTHILVELS, VARSHNEY RK, PARZIES HK . Population structure and linkage disequilibrium of ICRISAT foxtail millet (Setaria italica (L.) P. Beauv.) core collection. , 2014,196:423-435 [本文引用: 4]
GUPTAS, KUMARIK, MUTHAMILARASANM, PARIDA WK, PRASADM . Population structure and association mapping of yield contributing agronomic traits in foxtail millet , 2014,33:881-893 [本文引用: 3]
WANG CF . Population structure and genetic diversity of foxtail millet landraces in China assessed by microsatellites [D]. Shijiazhuang: Hebei Normal University, 2011. (in Chinese) [本文引用: 1]
ZHANGS, TANG CJ, ZHAOQ, LIJ, YANG LF, QIE LF, FAN XK, LIL, ZHANGN, ZHAO MC, LIU XT, CHAIY, ZHANGX, WANG HL, LI YT, LIW, ZHIH, JIA GQ, DIAO XM . Development of highly polymorphic simple sequence repeat markers using genome- wide microsatellite variant analysis in foxtail millet [Setaria italica (L.) P. Beauv.]. , 2014,15:78. [本文引用: 1]
BAIP, CHENG XZ, WANG LX, WANG SH, CHEN HL . Genetic diversity, population structure and linkage disequilibrium in adzuki bean by using SSR markers Acta Agronomica Sinica, 2014,40(5):788-797. (in Chinese) [本文引用: 1]
WANG HG, WEN QF, QIAO ZJ, MU ZX . Construction of candidate core collection local varieties of foxtail millet in Shanxi Journal of Agriculture, 2019,9(4):26-31. (in Chinese) [本文引用: 2]
WEN QF, WANGL, WANG XY . The foxtail millet germplasm resources and screening and utilization of drought resistance germplasm in Shanxi Agricultural Sciences, 2005,33(4):32-33. (in Chinese) [本文引用: 1]
EVANNOG, REGNAUTSS, GOUDETJ . Detecting the number of clusters of individuals using the software STRUCTURE: A simulation study , 2005,14:2611-2620. [本文引用: 1]
JIA XP, ZHANG ZB, LIU YH, ZHANG CW, SHI YS, SONG YC, WANG TY, LIY . Development and genetic mapping of SSR markers in foxtail millet [Setaria italica (L.) P. Beauv.]. , 2009,118(4):821-829. [本文引用: 1]
GU ZM, GU SL. Origin and Development of Shanxi Foxtail Millet. Beijing: Agricultural Science and Technology Press, 2007: 166-168. (in Chinese) [本文引用: 1]
REN JH, WEN QF, WANG XY, WANGL . Varieties of foxtail millet and their distribution in Shanxi province Acta Agriculturae Boreali-Sinica, 1999,14(3):25-30. (in Chinese) [本文引用: 1]
